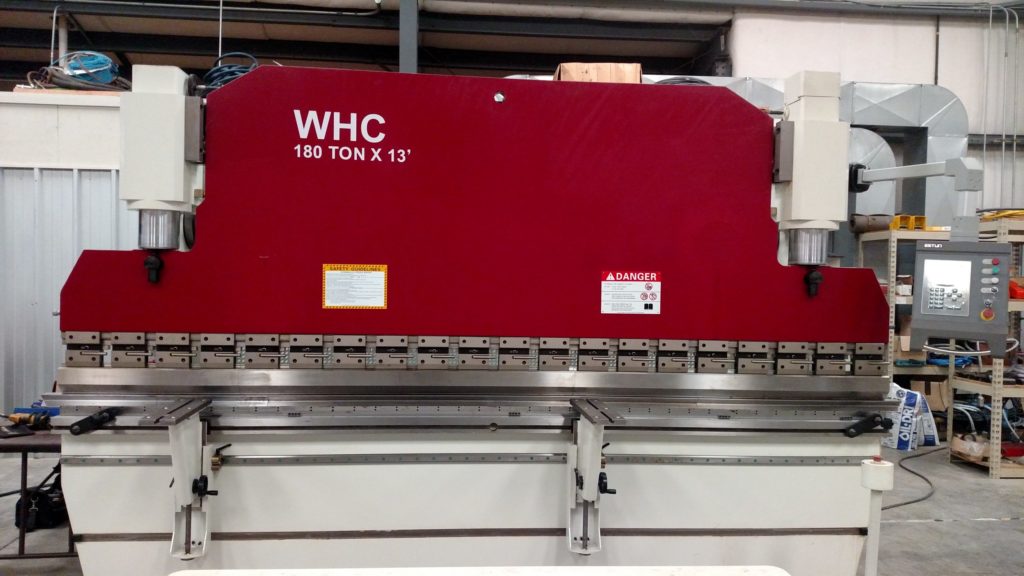

WHC WC67Y 13′ x 180 Ton Hydraulic Press Brake
$53,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info:
Stock #: CD-B-161054
Location: Dallas, NC
Brand: WHC
Model: WC67Y
Year: 2013
Approx. Shipping Weight: 25,353 Lbs.
Approx. Shipping Dimensions: 176″ L x 87″ W x 105″ H
Loading Fee: Free
Specifications:
Capacity: 180 Tons
Bending Length: 13′
Distance Between Housings: 10′
Stroke: 7.9″
Open Height: 25.4″
Throat Depth: 12.6″
Bed Height: 6″
Approach Speed: 307 in/min
Bending Speed: 21 in/min
Return Speed: 190 in/min
Back Guage Travel: x – 20″, r – 8″
Back Gauge Repeatability: +-.005″
Oil Capacity: 138 Gal
Motor: 15 HP 480 Volts
Equipped With:
Mono block steel frame, Heavy duty ram gibbing with UHMW guide ways, Precision honed hardened chrome hydraulic cylinders, Plated piston rods with low friction, zero leak seals, AC motor drive of ball screw driven back gauge, Anti-deflection mechanism for top tool, Electronic foot pedal pedestal mounted, Parker-Hannafin seals and “O” rings on high pressure system, 2 sheet support arms with ball transfers, 20″ BLISS largelead ballscrew driven back gauge, Mechanical stop nuts and synchronizing torsion bar ensure stable and reliable positioning accuracy, Main Motor 15 HP, Delem DA41 Controller, American – European style manually crowned punch holder, (4) die clamps, Full length punch, Full length riser block that will accommodate single “V” die, Full length 4-Way bottom die, Heavy Duty Backgauge
Additional Info:
This machine is a showroom demo machine. åÊList price is $65,000.
This machine is being sold from our client‰Ûªs facility and is being sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.
Seller Contact Info:
The Equipment Hub
770-621-0495
4601 Lewis Rd.
Stone Mountain, GA 30083
