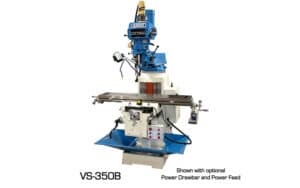

Summit VS Series Vertical Mill

Stock #: Summit-VS

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Phone

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: Summit-VS
Brand: Summit
Model: VS Series
Approx. Shipping Weight: 2,900 lbs. (VS-350B) / 3,740 lbs. (VS-550B)

Specifications

Models Available: VS-350B / VS-550B
Motor size: 3 HP (VS-350B) / 5 HP (VS-550B)
Spindle speeds: Infinitely variable, 60-4,200 RPM (VS-350B) / 80-3,500 RPM (VS-550B)
Spindle taper: R-8 (VS-350B) / NT40 (VS-550B)
Spindle travel: 5 in. (VS-350B) / 5.5 in. (VS-550B)
Spindle feed range: 0.0015 / 0.003 / 0.006 IPR
Head movement side to side: +/- 90°
Head movement front to back: +/- 45° (VS-350B only)
Table size: 10 in. x 50 in. (VS-350B) / 11 in. x 52 in. (VS-550B)
Longitudinal travel: 36 in. (VS-350B) / 32 in. (VS-550B)
Cross travel: 16 in.
Max workpiece weight: 850 lbs. (VS-350B) / 990 lbs. (VS-550B)
Over arm rotation: 360°
Over arm adjustment: 22 in. (VS-350B) / 24 in. (VS-550B)
Spindle nose to table: 2.5 in. – 18.5 in. (VS-350B) / 2 in. – 22 in. (VS-550B)

Equipped With

Standard Accessories: Heavy Meehanite cast construction, heavy box saddle, huge box type ways on knee, double table locks, Turcite-B inserted guideways, complete electrics with low voltage controls, way wipers for saddle and column, hardened & ground ways, one-shot lubrication, draw bar, way covers, built-in coolant system, halogen work light, clamping kit, service wrenches & tool box, R-8 collet set (VS-350B), power raise on knee (VS-550B), power draw bar (VS-550B)
Optional Accessories: Digital readout (DRO) system, power feed on X/Y/Z axis, air power draw bar, additional collets or tooling
