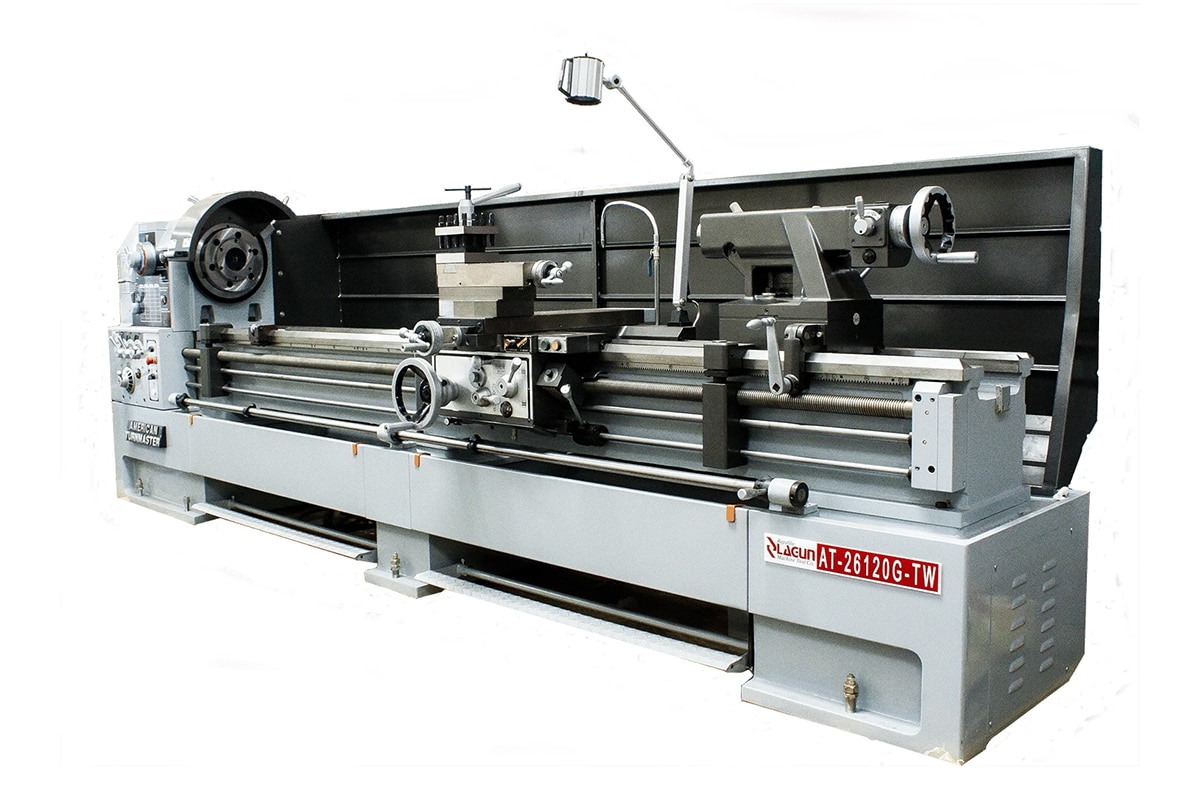

Republic Lagun Machine Tool AT 22 / 26 / 30 G TW American Turnmaster Lathe
Stock #: Lagun-AT-22/26/30
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Lagun-AT-22/26/30
- Brand: Republic Lagun
- Model: AT-22/26/30
Specifications
- Swing Over Bed: 22″ / 26″ / 30″
- Swing Over Cross Slide: 13.38″ / 17.21″ / 21.57″
- Distance Between Centers: 60″ – 200″
- Spindle Speed RPM Range: 13-1,200 RPM
- Hole Through Spindle: 4.094″
- Spindle Nose: D1-11
- Motor HP: 15 HP (20 HP Opt)
- Disk Clutch Headstock: No
- Inch Thread Range (TPI): 2-72 TPI
- Metric Thread Range: 0.2-14
- Tailstock Spindle Taper: MT 5
- Digital Threading Control: No
- CNC or Manual: Manual
Features
Chip and Coolant Tray, 3 V Way Design Bed Casting, Chuck Guard with Limit Switch, Foot Brake, Full Length Rear Splash Guard, Manual Indexing Square 4-Position Tool Post, Two (2) No. 5 MT Centers and One (1) Main Spindle No. 7 MT Reduction Sleeve, Rapid Feed Motor (Z Axis) for 60”, 90”, 120”, 160” & 200”, Halogen Work Light, Toolbox and Manuals, Leveling Pads and Bolts, Threading Dial, Inch/Metric Dials on Compound and Cross Slide (Direct Readings), 2 Speed Tailstock Quill with Tang, Electrics 220/440 V 3 Phase 60 Hz (Other Options Available), Coolant System, 3 V Ways, Manual Operation
