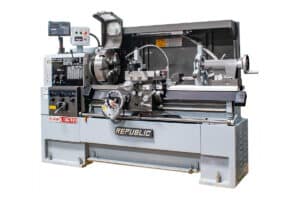

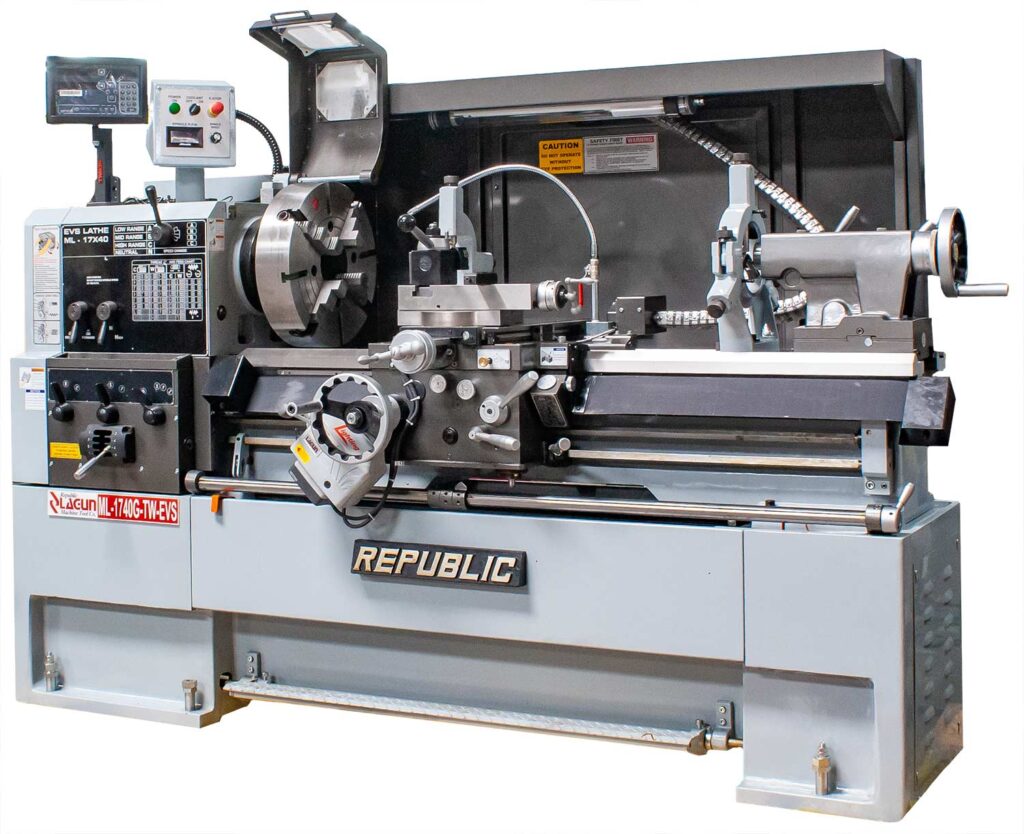

Republic Lagun Machine Tool American Turnmaster ML-1740/60 & ML-2060-G-TW Manual Lathe
Stock #: Lagun-ML-1740/60-G-TW
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Lagun-ML-1740/60-G-TW & Lagun-ML-2060-G-TW
- Brand: Republic Lagun
- Model: ML-1740-G-TW & ML-2060-G-TW
Specifications
- Swing Over Bed: 17.12″ (435 mm) & 20″ (508 mm)
- Swing Over Cross Slide: 10.91″ (277 mm) & 13.90″ (353 mm)
- Distance Between Centers: 44″ (1,120 mm), 57″ (1,450 mm), 59.06″ (1,500 mm)
- Length of Bed: 17.3″ (440 mm)
- Spindle Speed RPM Range: 36-1,800 RPM (20-2,200 RPM with optional EVS)
- Hole Through Spindle: 3.15″ (80 mm)
- Spindle Nose: D1-6
- Motor HP: 7.5 HP
- Disk Clutch Headstock: No
- Inch Thread Range (TPI): 2-72 TPI
- Metric Thread Range: 0.2-14
- Tailstock Spindle Taper: M.T.4
- Digital Threading Control: No
- CNC or Manual: Manual
Features
High Speed Engine Lathe: 7.5 HP, 12 Speeds from 36 to 1,800 RPM, Cam Lock Spindle D1-6, 3-1/8″ Spindle Bore, 3 V Ways, Manual Operation
