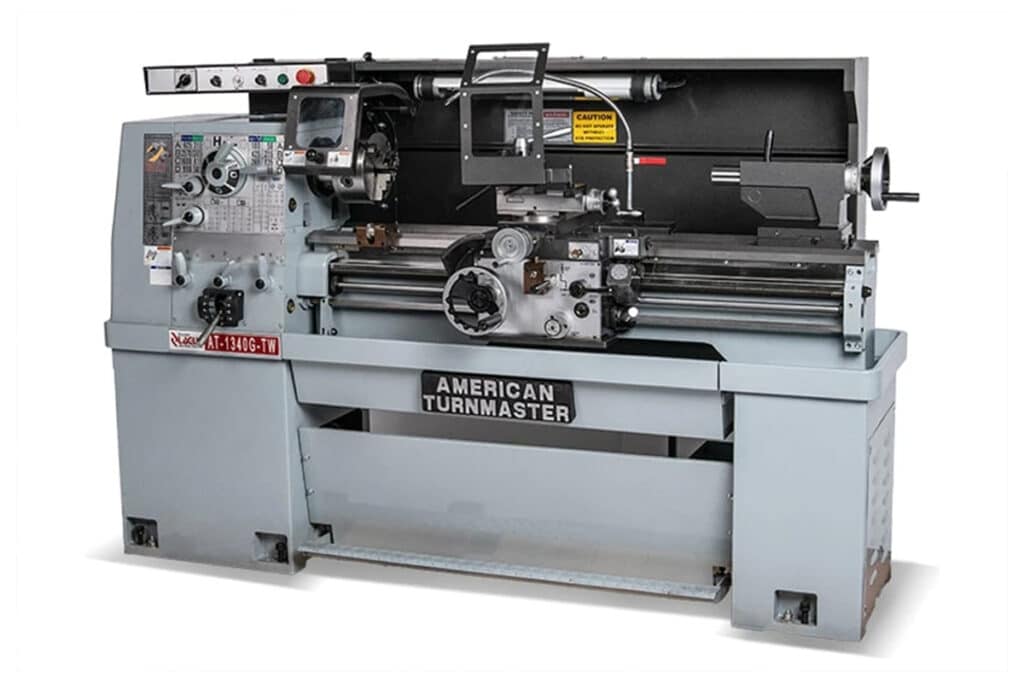

Republic Lagun Machine Tool AT-1340-G-TW Engine Lathe
Stock #: Lagun-AT-1340-G-TW
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Lagun-AT-1340-G-TW
- Brand: Lagun
- Model: AT-1340-G-TW
Specifications
- Swing Over Bed: 13.39″
- Swing Over Cross Slide: 8.27″
- Distance Between Centers: 39.37″
- Length of Bed: 15.75″
- Spindle Speed RPM Range: 50-2570 RPM
- Hole Through Spindle: 1.25″
- Spindle Nose: D1-4
- Motor HP: 5 HP
- Quill Diameter: 1.97″
- Quill Travel: 4.41″
- Inch Thread Range (TPI): 2-72 TPI
- Metric Thread Range: 0.2 – 14
- Tailstock Spindle Taper: MT 3
- Voltage: 3/60/220 V
Features
Disk Clutch Headstock, 3 V Ways, Manual Operation, Chip and coolant tray, Foot brake, Full length rear splash guard, Compound protection guard (without limit switch), Manual Indexing Square 4-position tool post, Back Plate (to mount plain back 3 or 4 jaw chuck or fixture plate; dog or face plate), Two (2) No. 3 MT centers and main spindle reduction sleeve, Lead screw protection cover, Halogen work light, Operator protection guard compound mounted, Leveling pads and bolts, Threading dial, Inch/metric dual dials on cross slide; compound & tailstock, Flood coolant system
