Summit Radial Drills

Stock #: Summit-Radial

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: Summit-Radial
Brand: Summit
Model: Radial Arm Drill Press Series

Specifications

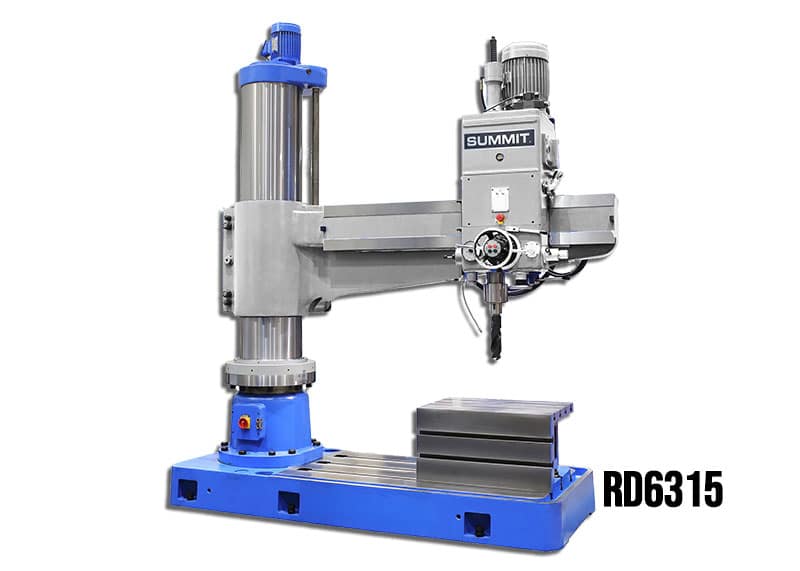

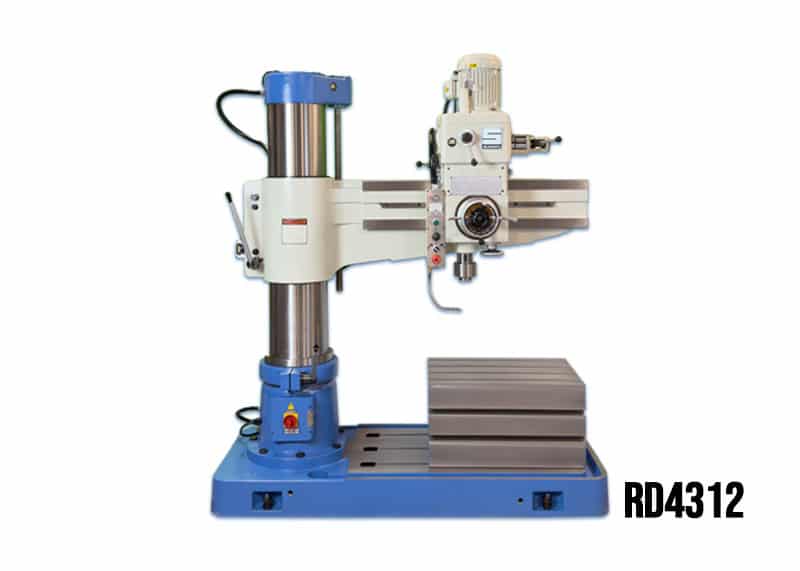

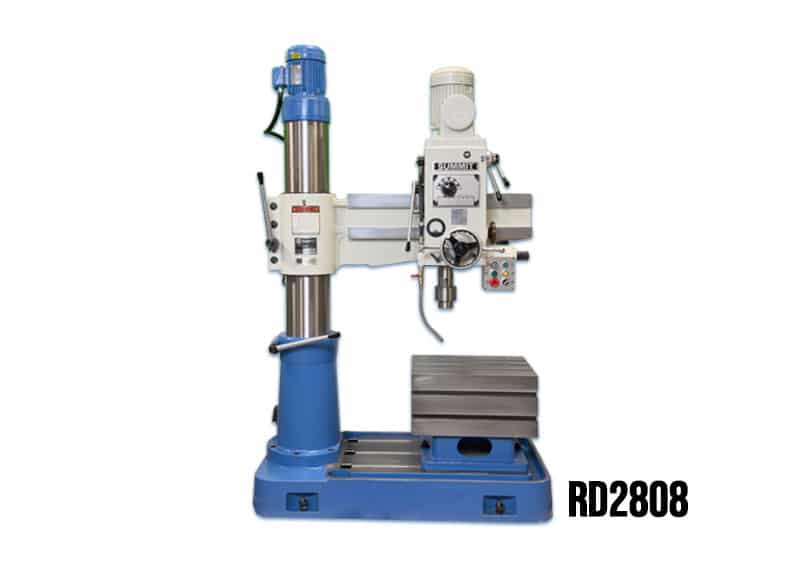

Models Available: RD2808 / RD4312 / RD6315
Drilling capacity: 1.5 in. (RD2808) / 1.75 in. (RD4312) / 2.25 in. (RD6315)
Distance from Spindle axis and column: 7.5 in. / 28 in. (RD2808) / 14 in./43.25 in. (RD4312) / 14.5 in./63 in. (RD6315)
Column diameter: 8 in. (RD2808) / 12 in. (RD4312) / 15.375 in. (RD6315)
Spindle taper: 4 MT (RD2808 & RD4312) / 5 MT (RD6315)
Spindle travel: 8.25 in. (RD2808) / 8.625 in. (RD4312) / 11.75 in. (RD6315)
Spindle speeds (number): 6 (RD2808) / 9 (RD4312) / 12 (RD6315)
Spindle speeds (range): 88-1500 RPM (RD2808) / 49 – 1524 RPM (RD4312) / 30 – 1580 RPM (RD6315)
Spindle feeds (number): 3 (RD2808 & RD4312) / 12 (RD6315)
Spindle feeds (IPR): .003 in., .0052 in., .009 in. (RD2808) / .003 in.-.0137 in. (RD4312) / .0023 in.-.044 in. (RD6315)
Horizontal traverse of spindle head: 20.5 in. (RD2808) / 29.25 in. (RD4312) / 48.5 in. (RD6315)
Arm elevating motor: 1 HP (RD2808) / 2 HP (RD4312 & RD6315)
Coolant pump motor: .1 HP
Spindle motor: 2 HP (RD2808) / 3 HP (RD4312) / 7.5 HP (RD6315)
Overall dimensions (L x W x H): 55 in. x 31 in. x 77 in. (RD2808) / 81 in. x 41 in. x 93 in. (RD4312) / 108 in. x 46 in. x 117 in. (RD6315)
Weight: 2,843 lbs. (RD2808) / 5,896 lbs. (RD4312) / 11,130 lbs. (RD6315)

Equipped With

Standard Accessories: Heavy duty construction, hardened & ground steel gears, power arm elevation, coolant system, work light, automatic feed & tapping cycles, safety devices
Optional Accessories: Digital readout (DRO), additional workholding or tooling
