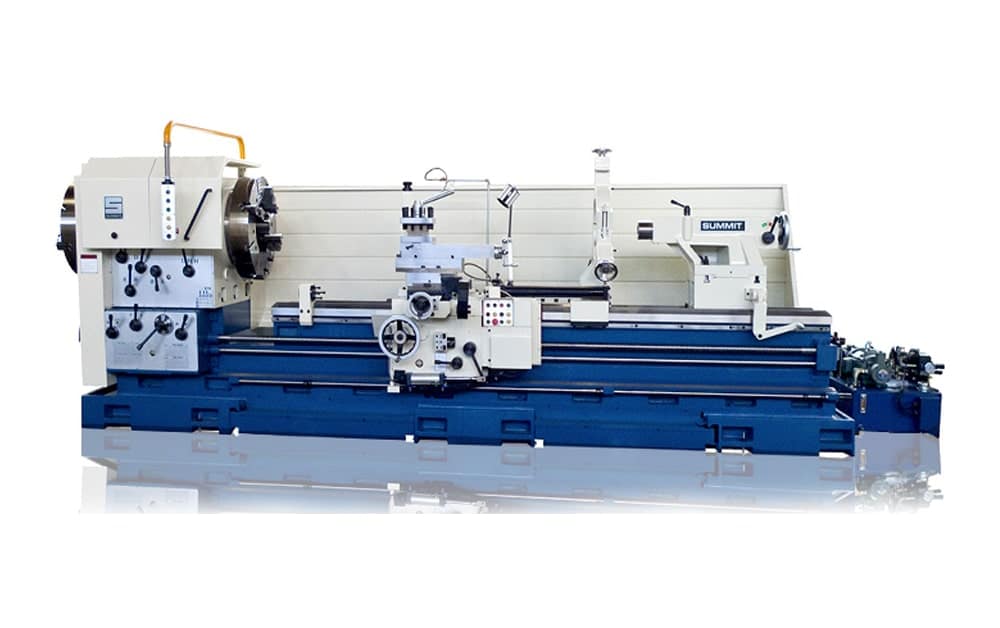

Summit 42″ Hollow Spindle Oil Country Metal Lathe

Stock #: Summit-OC

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

X/Twitter

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

Provide Shipping Quote

Provide Financing Options

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: Summit-OC
Brand: Summit
Model: Hollow Spindle Oil Country
Approx. Shipping Weight: 19,800 lbs. (28″ / 120″ centers) / 23,100 lbs. (32″ / 120″ centers) / 26,400 lbs. (40″ / 120″ centers)

Specifications

Swing over bed: 28 in. / 32 in. / 40 in.
Swing over cross slide: 17 in. / 21 in. / 29 in.
Swing over gap: 39 in. / 43 in. / 51 in.
Distance between centers: 60 in., 120 in., 160 in., 200 in., 240 in., 280 in., 320 in.
Hole through spindle: 9.1 in. / 12.1 in. / 14.2 in.
Spindle speeds: 18 speeds, 8.5 – 540 RPM (28″ & 32″) / 12 speeds, 12 – 480 RPM (40″)

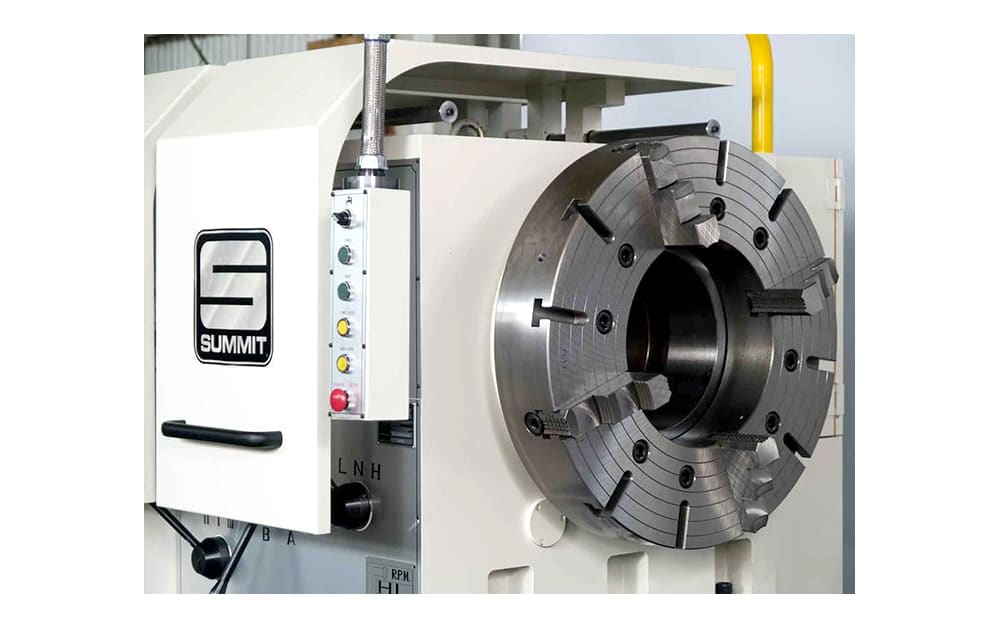

Spindle nose: A2-15 (9.1″ & 12.1″) / A2-20 (14.2″)
Tailstock spindle (quill) diameter: 4.9 in.
Tailstock spindle (quill) travel: 11.8 in.
Tailstock spindle taper: MT #6
Threads per inch: 1/4 – 28 TPI (60 ranges)
Metric threads: 1 – 120 mm (60 ranges)
Bed width: 27.5 in.
Main drive motor: 30 HP

Equipped With

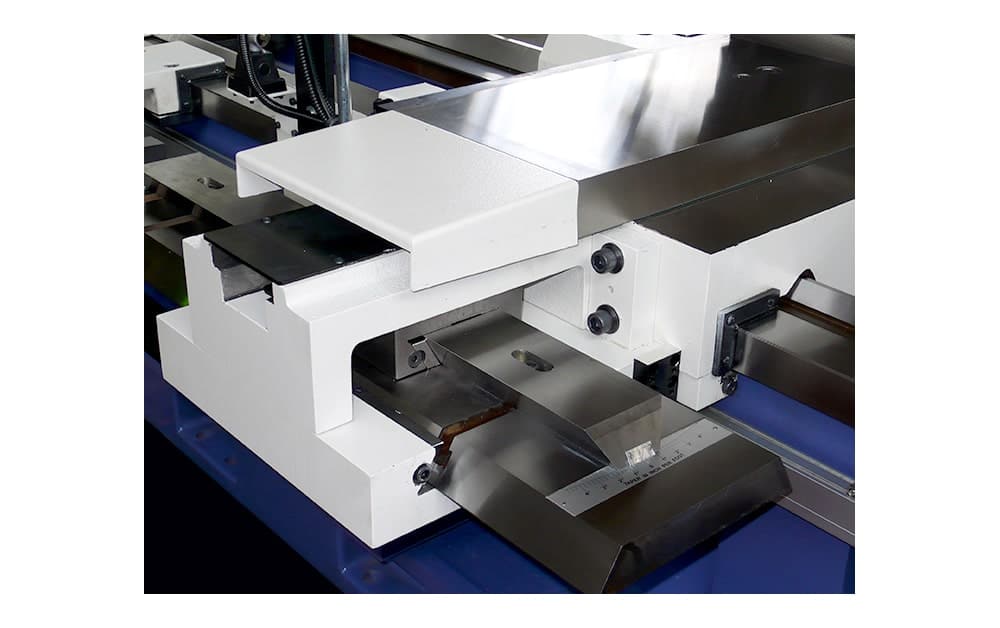

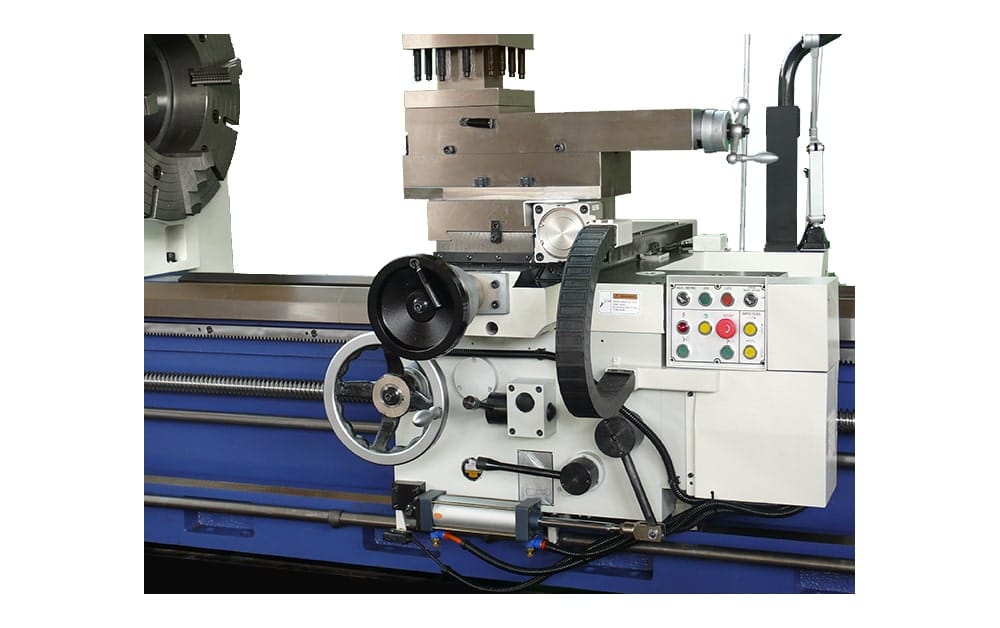

Standard Accessories: Thread dial, extra large steady rest with rollers, follow rest, coolant system, taper attachment, work light, full-length splash guard, front and rear 4-jaw chucks, rapid traverse on carriage (4-way joystick), 2-speed tailstock, clutched headstock
Optional Accessories: Digital readout (DRO) system, quick-change tool post with holders, larger chucks, live center
