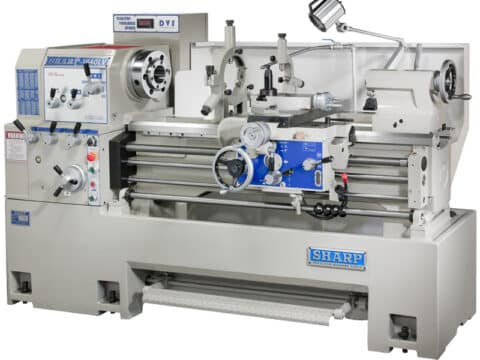

Sharp Heavy Duty 70″ Extra Large Swing Lathe

Stock #: Sharp-M32-70-Series

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Name

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: Sharp-M32-70-Series
Brand: Sharp
Model: M32-70 Series (70120M, 70160M, 70200M, 70240M, 70280M, 70315M)
Approx. Shipping Weight: 37,400 – 49,500 lbs. / 16,964 – 22,455 Kg
Approx. Shipping Dimensions: 18.58′ x 7.11′ x 6.33′ to 35′ x 7.11′ x 6.33′ / 5.66m x 2.17m x 1.93m to 10.67m x 2.17m x 1.93m

Specifications

Swing Over Bed: 70.87 in. / 1,800.09 mm
Swing Over Cross Slide: 54.7 – 58.7 in. / 1,389.38 – 1,490.98 mm
Swing Over Gap: 81.9 – 87.8 in. / 2,080.26 – 2,229.12 mm
Distance Between Centers: 120 – 315 in. / 3,048 – 8,001 mm
Spindle Speed: 4 – 420 rpm
No. of Spindle Speeds: 16 steps
Spindle Nose: A2-11
Spindle Bore: 6 in. standard, 9, 12, 15 in. optional / 152.4 mm standard, 228.6, 304.8, 381 mm optional
Inch Threads, Number: 0.25 – 30 tpi (70)
Metric Threads, Number: 1 – 120 mm (62)
Modular Threads, Number: 0.25 – 30 M.P. (53)
Diametral Pitch Threads, Number: 1 – 120 D.P. (70)
Longitudinal Feeds: 0.0028 – 0.34 in./rev / 0.0711 – 8.63 mm/rev
Cross Feeds: 0.0014 – 0.17 in./rev / 0.035 – 4.31 mm/rev
Leadscrew Pitch, Diameter: 2 tpi, 2.36 in.
Cross Slide Travel: 27.56 in. / 700.02 mm
Compound Travel: 15.75 in. / 400.05 mm
Compound Width: 34.65 in. / 880.11 mm
Bed Length: 215 – 411.8 in. / 5,461 – 10,461 mm
Bed Width: 32 in. / 812.8 mm
Quill Diameter: 7.88 in. / 200.15 mm
Quill Travel: 20.87 in. / 530.09 mm
Quill Center Taper: MT #6
Spindle Motor: 30 HP / 22.37 KW
Voltage: 220V/440V
Phase: 3 phase

Equipped With

Standard Accessories: 16 spindle speed, 2 stage spindle start up, headstock oil bath system, electro magnetic brake, lubrication system, coolant system, manual tailstock, steady rest 16”, work lamp
Optional Accessories: 3-jaw chuck (various sizes), 4-jaw chuck (various sizes), steady rest (larger sizes), follow rest (various sizes), face plate with 4 jaws (various sizes), rear chuck adapter, 40 HP or 50 HP motor in lieu of 30 HP, taper attachment, digital readout system
