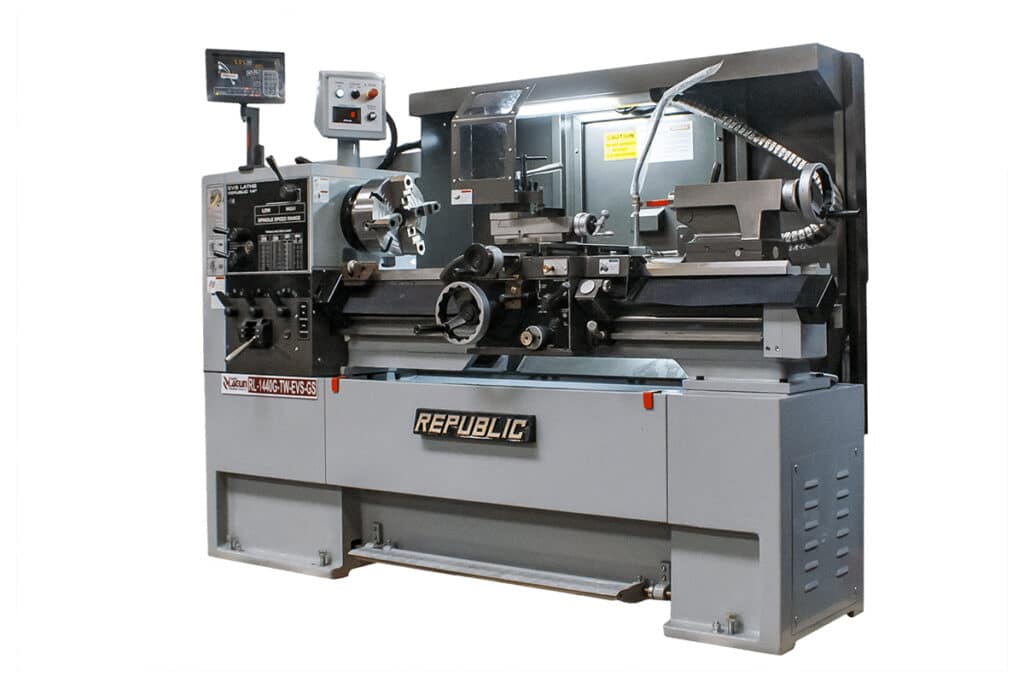

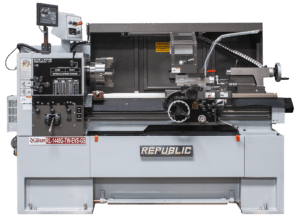

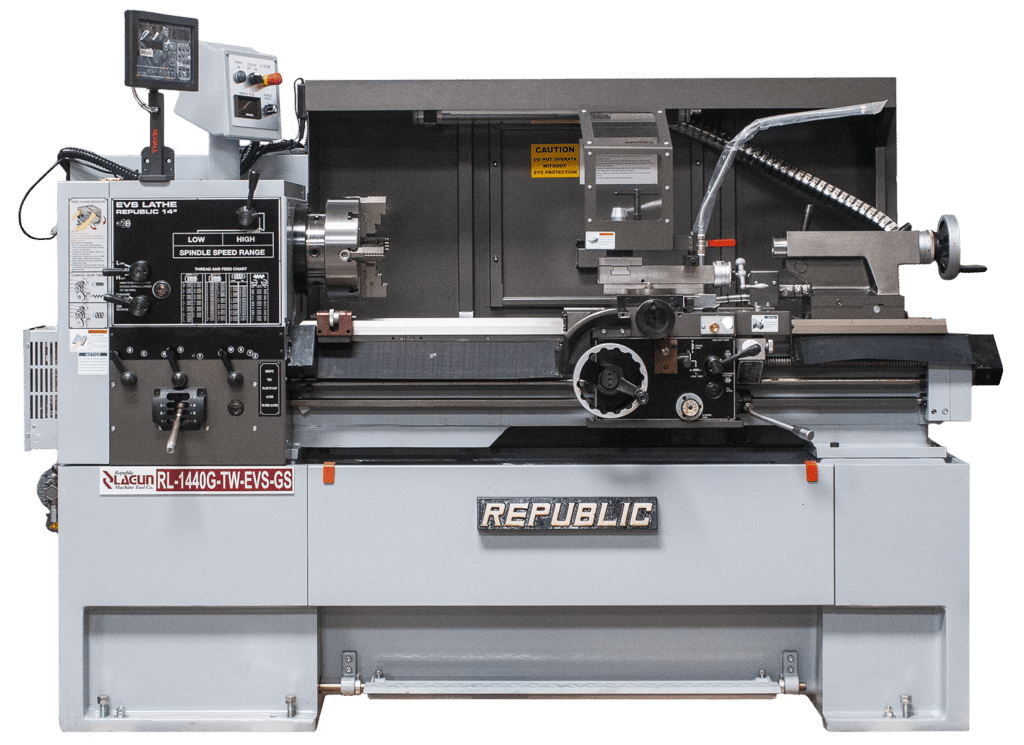

Republic Lagun Machine Tool RL-1440G-TW-EVS-GS Gunsmithing Lathe
Stock #: Lagun-RL-1440G-TW-EVS-GS
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Lagun-RL-1440G-TW-EVS-GS
- Brand: Republic Lagun
- Model: RL-1440G-TW-EVS-GS Gunsmithing Lathe
Specifications
- Swing Over Bed: 14.17″ (360 mm)
- Swing in Gap: 20.98″ (360 mm)
- Swing Over Cross Slide: 8″ (212 mm)
- Distance Between Centers: 40″ (1000 mm)
- Width of Bed: 10.24″ (260 mm)
- Spindle Nose, Internal Taper: D1-6 / A1-6 (Opt) / MT No. 6
- Spindle Bore: 2.07″ (52.5 mm)
- Spindle Speeds (Gear Steps/Range): 2 Steps / L: 20-400 RPM, H: 400-2500 RPM (Opt 25-3000 RPM Infinitely Variable)
- Width of Bridge: 16.22″ (412 mm)
- Cross Slide Travel: 8.66″ (220 mm)
- Top Slide Travel: 4.9″ (125 mm)
- Longitudinal Feeds: 0.002-0.067″ (0.05-1.7 mm)
- Cross Feeds: 0.001-0.034″ (0.025-0.85 mm)
- Quill Diameter: 2.5″ (65 mm)
- Main Spindle: AC 5 HP (3.7 kW), Inverter
- Coolant Pump: 1/8 HP (0.09 kW)
- Net Weight: 2,976 lb (1,350 kg)
- Length Packed: 89.4″ (2,270 mm)
- Width Packed: 44″ (1,120 mm)
- Height Packed: 74.8″ (1,900 mm)
Features
Hardened and Ground Gears, Hardened and Ground Tri-V Bedways, Outboard Spider, Acu-Rite 300S DRO with Thread Cycle, Headstock Mounted RPM Readout, Dual Inch/Metric Dials with Graduations, Quick Change Tool Post, Removable Chip Pan, Flood Coolant System, Foot Brake
