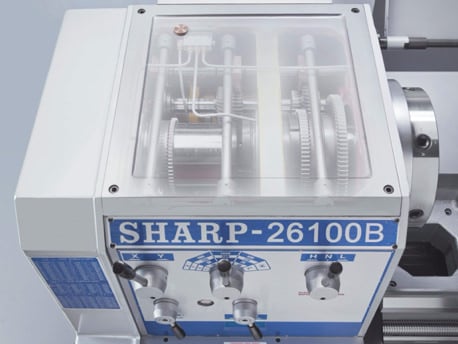

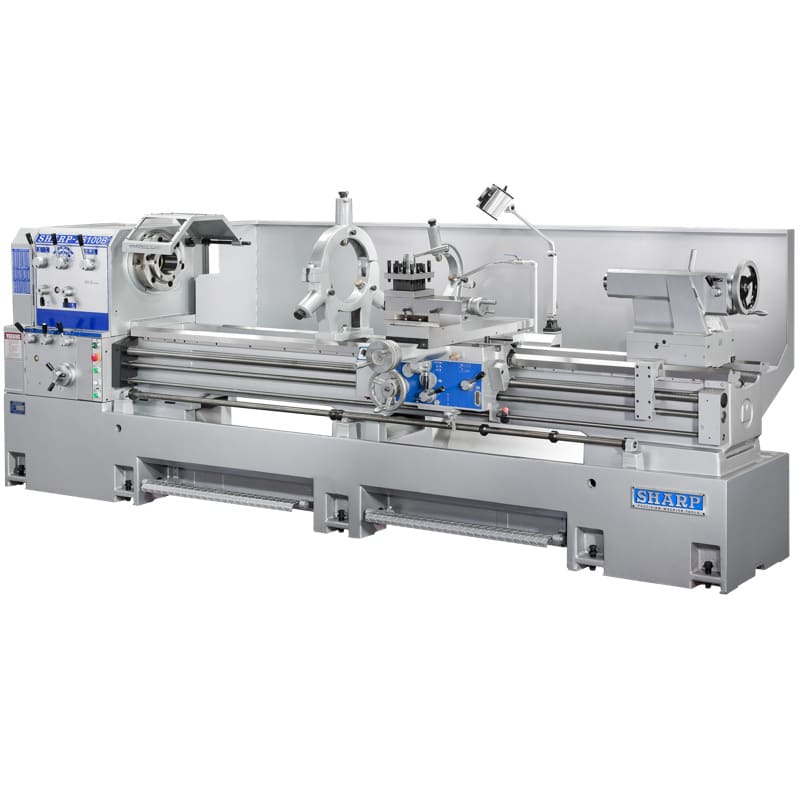

Sharp 26-B-Series Heavy Duty Lathe
Stock #: Sharp-26-B-Series
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Sharp-26-B-Series
- Brand: Sharp
- Model: 2640B, 2660B, 2680B, 26100B, 26120B, 26160B
- Approx. Shipping Weight: 2640B: 5,556 lbs., 2660B: 5,786 lbs., 2680B: 6,656 lbs., 26100B: 7,430 lbs., 26120B: 8,140 lbs., 26160B: 10,802 lbs.
- Approx. Shipping Dimensions: 2640B: 7.83′ L x 3.41′ W x 4.33′ H, 2660B: 9.5′ L x 3.41′ W x 4.33′ H, 2680B: 11.41′ L x 3.41′ W x 4.33′ H, 26100B: 13.08′ L x 3.41′ W x 4.33′ H, 26120B: 15.83′ L x 3.41′ W x 4.33′ H, 26160B: 18.83′ L x 3.41′ W x 4.33′ H
Specifications
- Swing Over Bed: 26 in.
- Swing Over Cross Slide: 2640B: 17.24 in., 2660B: 17.24 in., 2680B: 17.24 in., 26100B: 17.33 in., 26120B: 17.33 in., 26160B: 17.33 in.
- Swing Over Gap: 35 in.
- Gap Width (In Front Of Face Plate): 11.81 in.
- Distance Between Centers: 2640B: 40 in., 2660B: 60 in., 2680B: 80 in., 26100B: 100 in., 26120B: 120 in., 26160B: 160 in.
- Spindle Speed: 2640B: 40 – 1,000 RPM, 2660B: 10 – 1,000 RPM, 2680B: 10 – 1,000 RPM, 26100B: 10 – 1,000 RPM, 26120B: 10 – 1,000 RPM, 26160B: 10 – 1,000 RPM

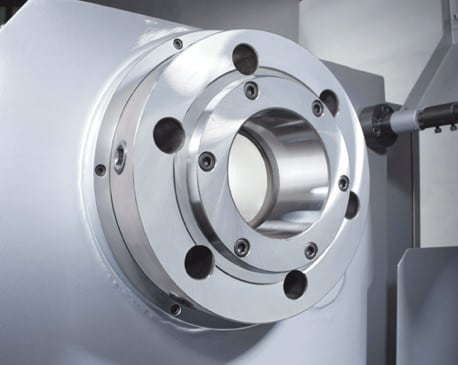

- Spindle Nose: D1-11 Camlock
- Spindle Bore: 4.5 in.
- Threads (Inch): 2 – 56 tpi (44)
- Modular Threads: 0.019 – 0.55 in. (24)
- Diametral Pitch Threads: 0.157 – 2.20 in. (36)
- Longitudinal Feeds: 0.0022 – 0.032 in./rev
- Cross Feeds: 0.00026 – 0.035 in./rev
- Leadscrew Pitch, Diameter: 4 tpi, 1.5 in.
- Cross Slide Travel: 2640B: 14.75 in., 2660B: 14.75 in., 2680B: 13.75 in., 26100B: 14.75 in., 26120B: 14.75 in., 26160B: 14.75 in.
- Compound Travel: 2640B: 8 in., 2660B: 8 in., 2680B: 6.2 in., 26100B: 8 in., 26120B: 8 in., 26160B: 8 in.
- Compound Width: 6 in.
- Bed Length: 2640B: 91 in., 2660B: 111 in., 2680B: 130.5 in., 26100B: 150 in., 26120B: 170 in., 26160B: 210 in.
- Bed Width: 16 in.
- Quill Diameter: 3 in.
- Quill Travel: 6.5 in.
- Quill Center Taper: MT #5
- Spindle Motor: 15 HP
- Voltage: 2640B: 220V/440V, 2660B: 220V/440V, 2680B: 230V/460V, 26100B: 230V/460V, 26120B: 230V/460V, 26160B: 230V/460V
- Phase: 3 phase
- Power Consumption (220V): 16 KVA / 45 amps
- Power Consumption (440V): 16 KVA / 22.5 amps
Equipped With
Standard Accessories: 4-jaw 20″ chuck, face plate (24″), steady rest (4″ – 15″), 4 ways tool post, coolant system, halogen light, 4-way carriage stop, splash guard & 20″ chuck guard, tailstock, follow rest, tool kit, wired 220V or 440V
Optional Accessories: 3-jaw chuck (different sizes), 4-jaw chuck (different sizes), taper attachment, chuck guard with limit switch, tool guard with limit switch (at front of compound), lead screw cover (accordion style), lead screw guard (covers entire front of machine bed), safety cover at end of spindle, UL or CSA electrical components, UL spindle motor, CSA pump motor, Steady rest, Quick change tool holder (aloris) (7 pcs holder) 1.25″ tool, Live center – (dual bearing) MT #5, 5C lever collet closer, 5C collet set (1/8 to 1/16″ x 1/16″) (16 pcs) • Micrometer carriage stop, Roller jaws set (3 pc)
