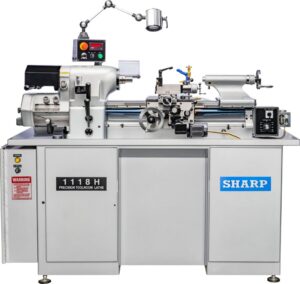

Sharp 1118H Tool Room Lathe
Stock #: Sharp-1118H
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Sharp-1118H
- Brand: Sharp
- Model: 1118H
- Approx. Shipping Weight: 1804 lbs / 820 Kg
- Approx. Shipping Dimensions: 6.07′ L x 2.46′ W x 5.58′ H / 1.85m x 0.75m x 1.70m
Specifications
- Spindle Capacity with Jaw Chucks: 6 in. / 150 mm
- Spindle Capacity with Expanding Collets: 3 in. / 76 mm
- Spindle Capacity with Round 5C Collets: 1-1/16 in. / 27 mm
- Spindle Capacity with Step Chucks: 1-1/16 – 6 in. / 27 – 152 mm
- Swing Over Bed: 11 in. / 280 mm
- Swing Over Cross Slide: 6 in. / 152 mm
- Distance Between Centers: 18 in. / 457 mm
- Spindle Speed: 50 – 4000 RPM
- No. of Spindle Speeds: Variable (high/low)
- Spindle Nose Diameter: 2.19 in. / 55.5 mm
- Spindle Bore: 1-1/4 in. / 31.75 mm
- Spindle Nose ID/OD: 5C 10°/4° taper
- Threads (Inch/Metric): 11 – 108 tpi / 0.275 – 2.7 mm (36)
- Longitudinal Feeds: 0.31 – 7 ipr / 8 – 178 mm/r
- Cross Feeds: 0.18 – 4 ipr / 5 – 102 mm/r
- Leadscrew Pitch, Diameter: 8 tpi, 1 in. / 8 tpi, 25.4 mm
- Cross Slide Travel: 6 in. / 152 mm
- Compound Slide Travel: 3 in. / 76 mm
- Quick Action Compound Travel: 0.1 in. / 2.5 mm
- Quill Diameter: 1.35 in. / 34.5 mm
- Quill Travel: 3.75 in. / 95 mm
- Quill Center Taper: MT #2
- Spindle Motor: 5 HP / 3.7 KW
- Voltage: 220V, 440V, 3 Ph (no 1 Ph)
- Coolant Pump Motor: 0.167 HP / 0.124 KW

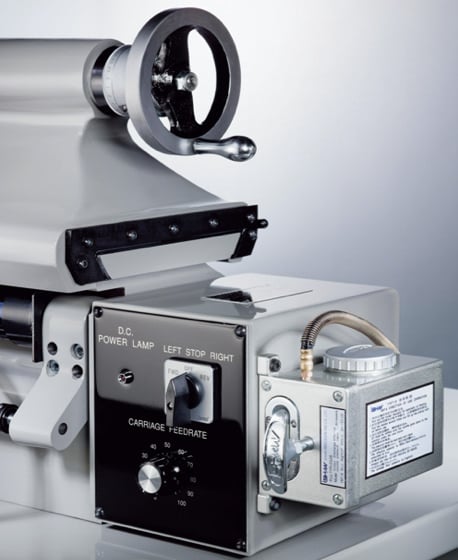

- Carriage Feed Motor (DC): ½ HP, 220V / 0.37 KW
Equipped With
Standard Accessories: Splash guard, Coolant system, 5C collet closer, 5C collet holder (2), Chuck guard, Spindle nose cover, Leadscrew cover, American tool post, Drive dog & gear, Adjustable tool setting gauges, Halogen work light, Drive plate, Headstock center
Optional Accessories: 3-jaw 6″ chuck with 6″ fixture plate, 4-jaw 6″ chuck with 6″ fixture plate, 6-jaw chuck with 6″ fixture plate, 3-jaw 6″ zero set chuck with fixture plate, 4-jaw 6″ chuck with fixture plate, 6-jaw chuck with 6″ fixture plate, 380V, 440V, 575V transformer, 5C collet set (1/8″ to 1-1/16″ by 1/16″) 16 sets, 7″ face plate, Quick change tool holder set 7 sets, Vertical cut-off slide, Taper attachment, Steady rest, Follow rest, Micrometer cartridge stop with bracket, Dorian tool-MT #2, Drill chuck & arbor
