Product Description

General Info

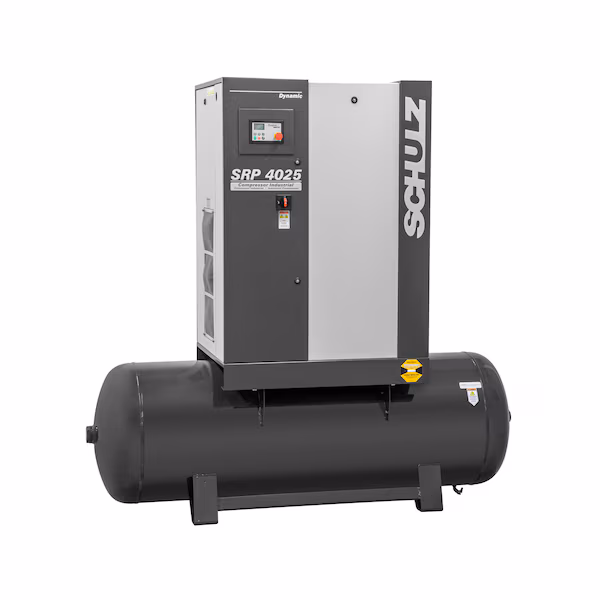

  • Stock #: Schulz-SRP-4025-Dynamic
  • Brand: Schulz
  • Model: SRP 4025 Dynamic
  • Approx. Shipping Weight: 1300 lbs. / 590 Kg
  • Approx. Shipping Dimensions: 78″ x 36″ x 60″ / 1.98m x 0.91m x 1.52m

Specifications

  • Motor Horsepower: 25 HP / 18.65 KW
  • Voltage: 208-230/460 V / Three Phase
  • Max Operating Pressure: 125 PSI / 8.62 bar
  • Free Air Delivery @ 125 PSI: 92 CFM / 2606 L/min
  • Theoretical Displacement: N/A
  • Number of Stages: 1
  • Tank Capacity: 120 Gallons / 454 L
  • Tank Type: Horizontal
  • Lubrication: Oil-Lubricated
  • Pump Material: Steel

Equipped With

Standard Accessories: TEFC IP55 electric motors, High efficiency electric motors, Thermostatic valve for working temperature control, Top-mounted coolers for heat recovery, Low maintenance costs design, Low oil consumption, Oversized cooling system, Robust belts, Oversized separator elements, Easy access to components, Low noise level foam coated steel cabinet, Low discharge temperature, Preparation for higher ambient temperatures up to 113°F, Longer oil and separator lifetime, Belt guard, 24V command panel, Fault and sequence phase relay, High temperature protection, Fully computerized controls with auto start/stop, Magnetic starters, Pressure gauges, Maintenance timers, Microprocessor controller for monitoring and remote operation, High-efficiency two-stage intake filter, 2 year airend warranty
