Product Description

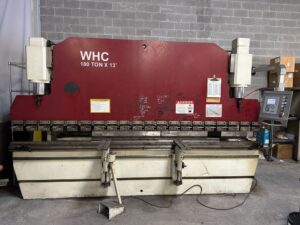

General Info

  • Stock #: 121230023
  • Location: Atlanta, GA 30315
  • Brand: WHC
  • Model: WC67K-160/4000
  • Serial #: W3026
  • Year: 2013
  • Approx. Shipping Weight: 25,353 Lbs
  • Approx. Shipping Dimensions: 176″ x 87″ x 105″ H
  • Loading Fee: Rigging Required

Specifications

  • Capacity: 180 Tons
  • Bending Length: 13′
  • Distance Between Housings: 10′
  • Stroke: 7.9″
  • Open Height: 25.4″
  • Throat Depth: 12.6″
  • Bed Height: 35″
  • Bed Width: 6″
  • Approach Speed: 307 In/Min
  • Bending Speed: 21 In/Min
  • Return Speed: 190 In/Min
  • Back Gauge Travel (x axis): 20″
  • Back Gauge Travel (r axis): 8″
  • Back Gauge Repeatability: + or – .005″
  • Oil Capacity: 138 Gal
  • Motor: 15 HP
  • Electrical: 480/230 V (Wired at 480) / 3 PH

Equipped With

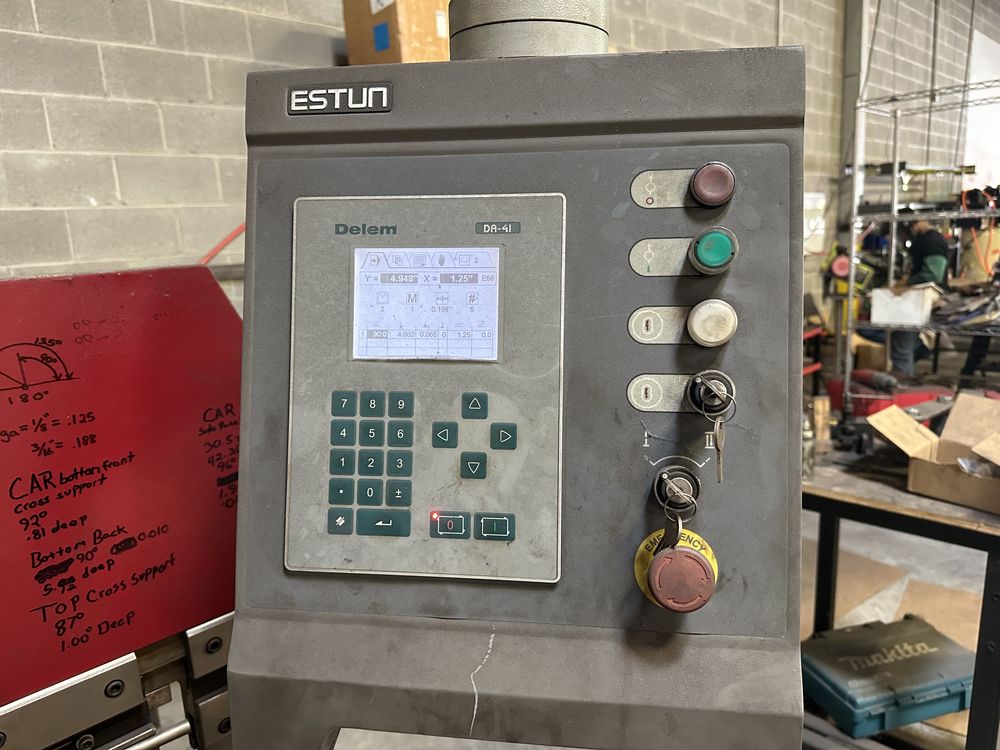

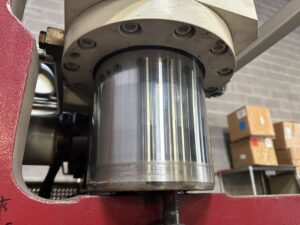

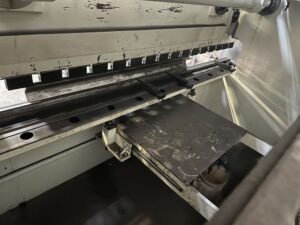

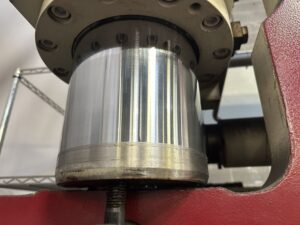

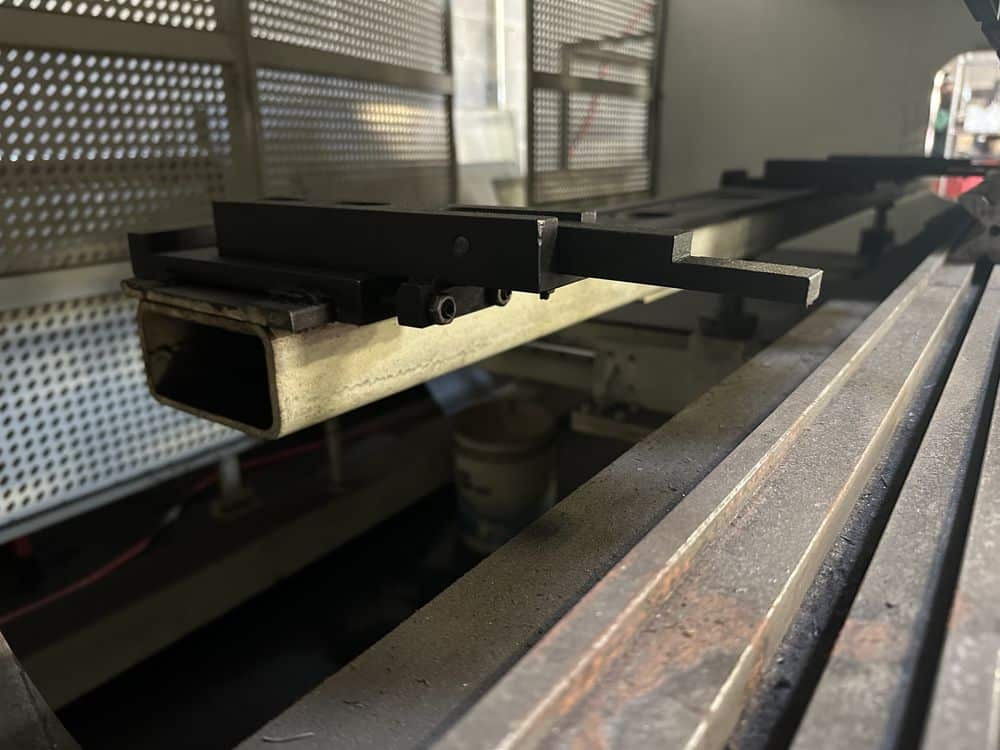

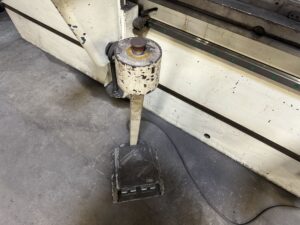

Mono block steel frame, Heavy duty ram gibbing with UHMW guide ways, Precision honed hardened chrome hydraulic cylinders, Plated piston rods with low friction, zero leak seals, AC motor drive of ball screw driven back gauge, Anti-deflection mechanism for top tool, Electronic foot pedal pedestal mounted, Parker-Hannafin seals and “O” rings on high pressure system, 2 sheet support arms with ball transfers, 20″ BLISS largelead ballscrew driven back gauge, Mechanical stop nuts and synchronizing torsion bar ensure stable and reliable positioning accuracy, Main Motor 15 h.p., Delem DA41 Controller, 999 programs 13 bends per program, 99 repeat bends, Correction of Y & X axis, Easy to use conversational programming language, Simple prompts allow for quick part programming, Program bend sequences, Program positioning of the backstop, Program depth of ram and tonnage, Ability to manually operate all axis, Punch & die library, Alpha/numeric job listings, Program & tooling backup

Additional Info

This machine is under power and can be demoed upon request.

This machine is being sold from our client’s facility and is sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.
