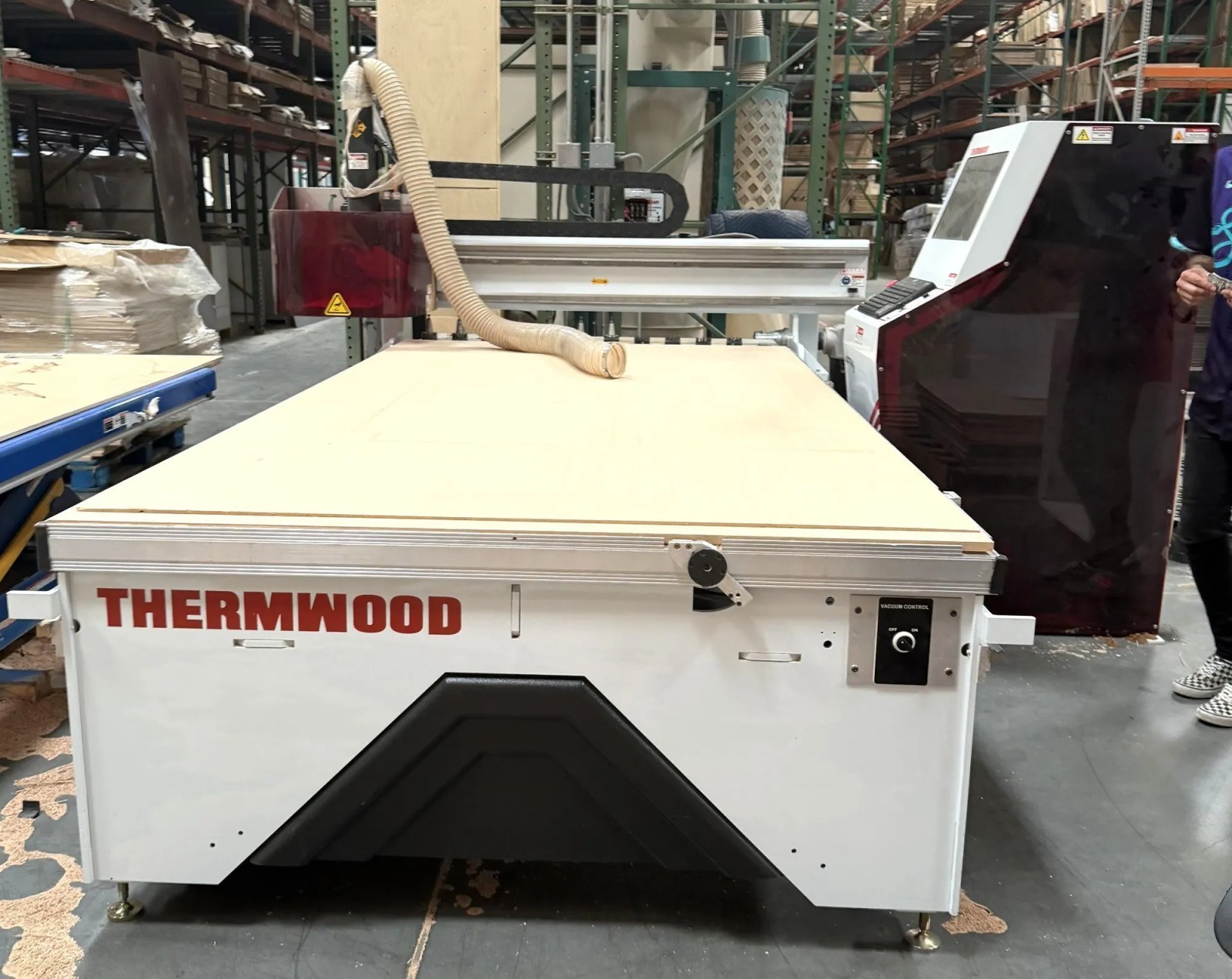

Thermwood CS43 5′ x 10′ CNC Router (2021)
Stock #: 163260043
$86,900.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 163260043
- Brand: Thermwood
- Model: CS43-510
- Year: 2021
- Location: AR
- Rigging Fee: Free Loading
Specifications
- X Axis Travel: 121.5"
- Y Axis Travel: 76"
- Z Axis Travel: 9.8"

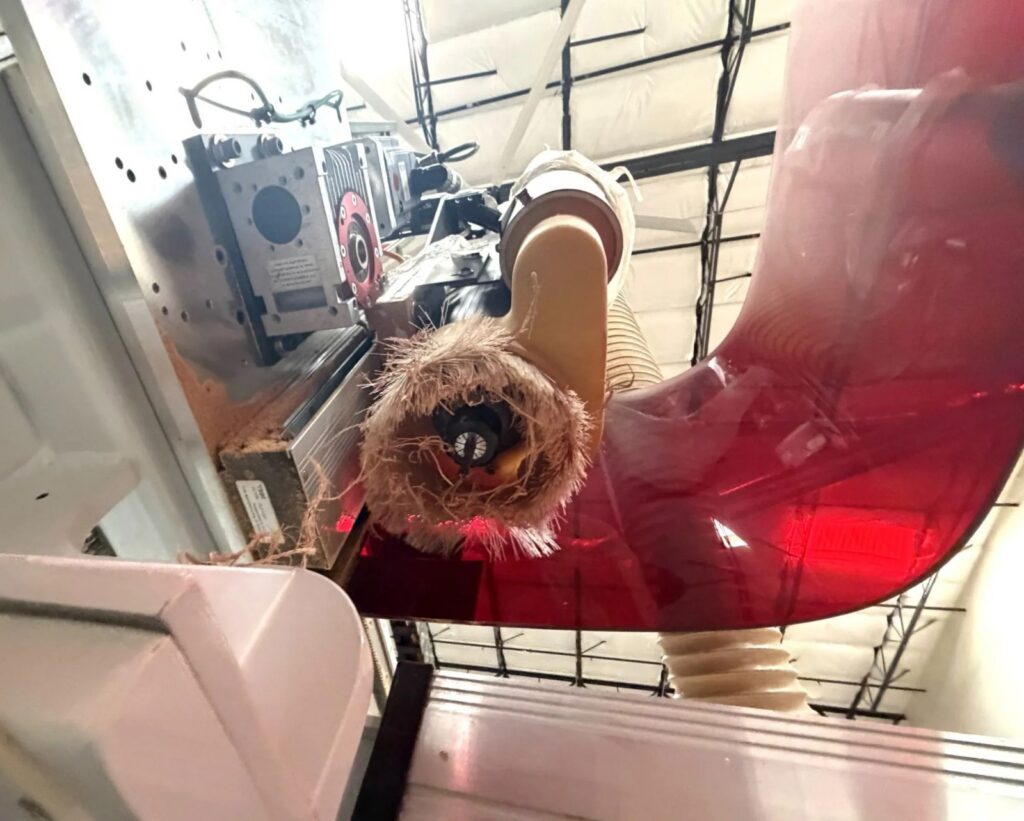

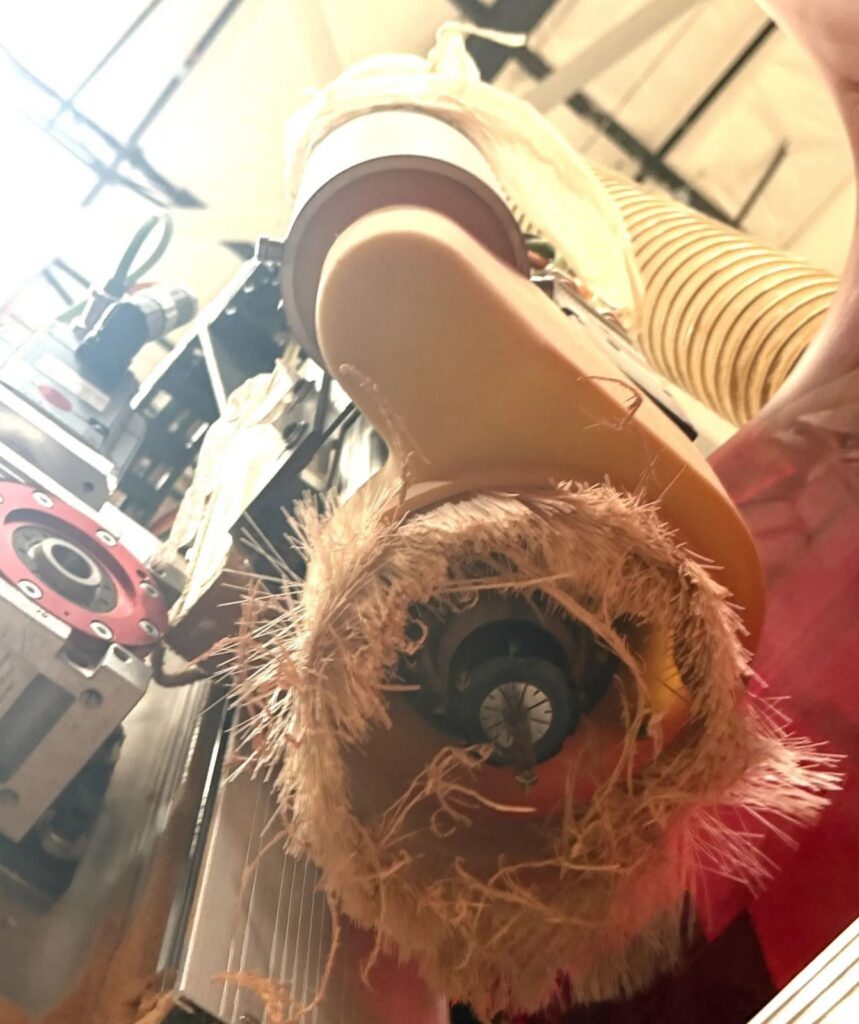

- Spindle: 12 HP HSD ES929 24,000 RPM

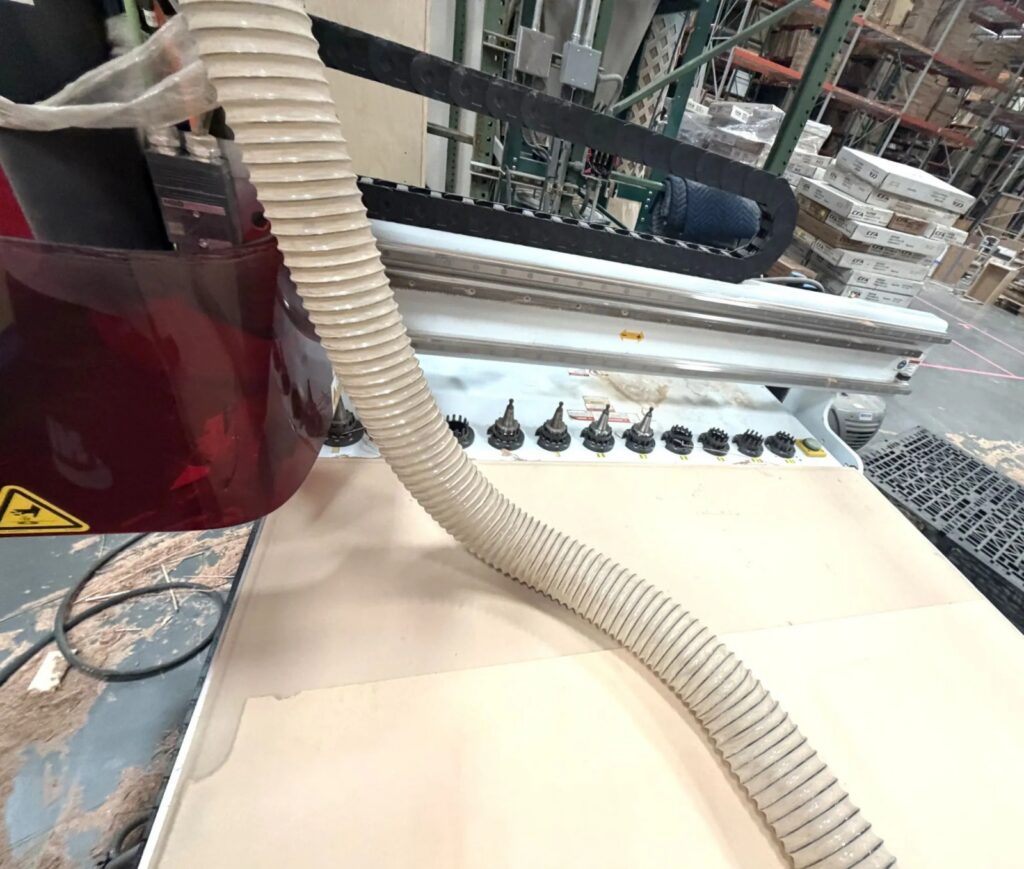

- Tool Changer: 11 Position
- Rapid Traverse Rate: 2800 IPM
Equipped With

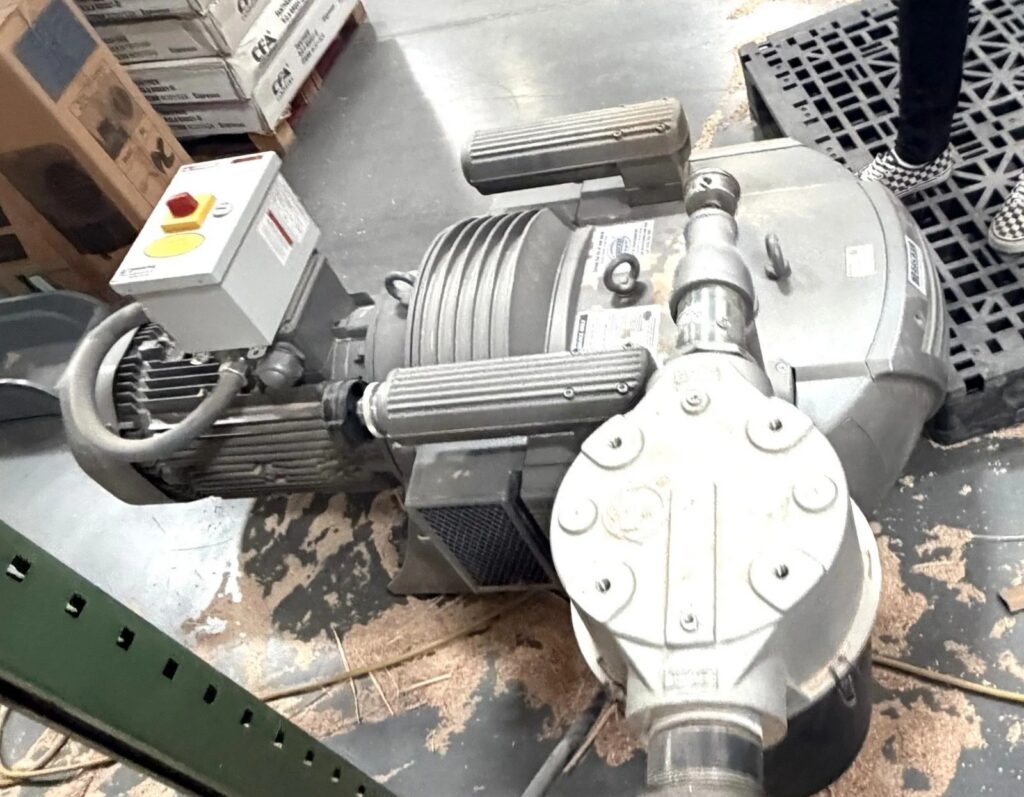

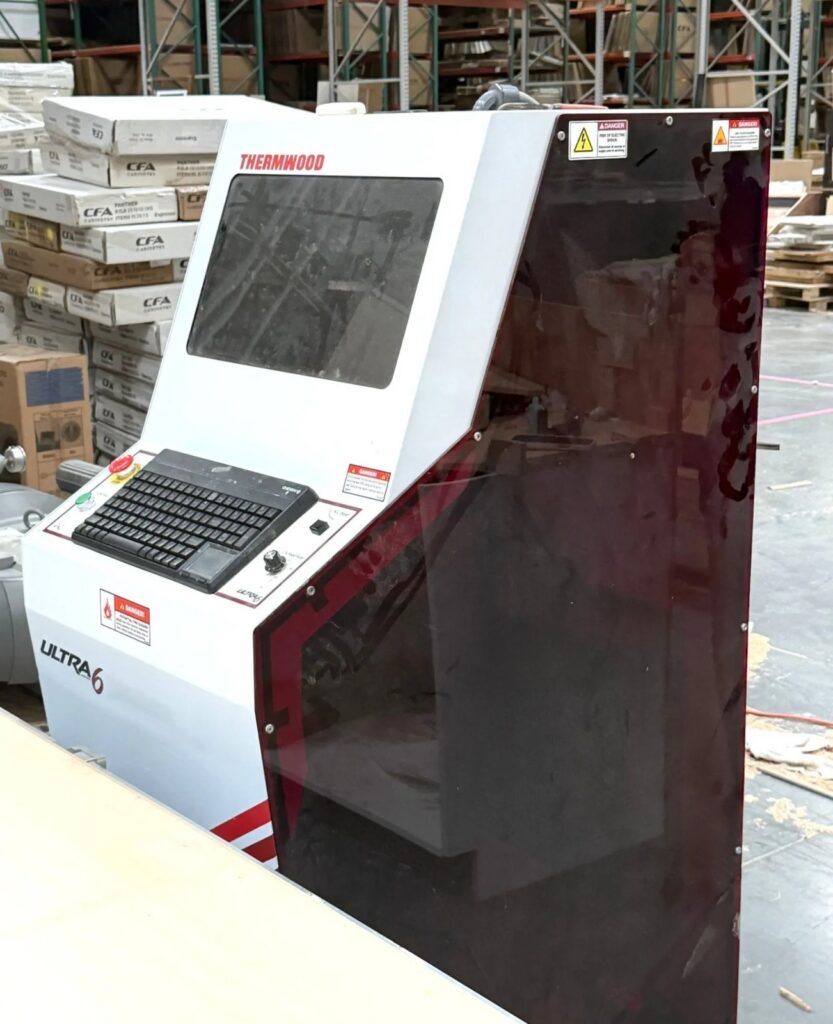

Ultra 6 CNC Control (Thm 9.13) , 17HP Becker Vacuum Pump, Vacuum Plumbing, Auto Tool Length Measurement, Auto Lubrication System (Oil & Grease), Auto Pop Up Locator Pins, Auto Held Programmer
Additional Info
Machine is under power and can be inspected upon request.
