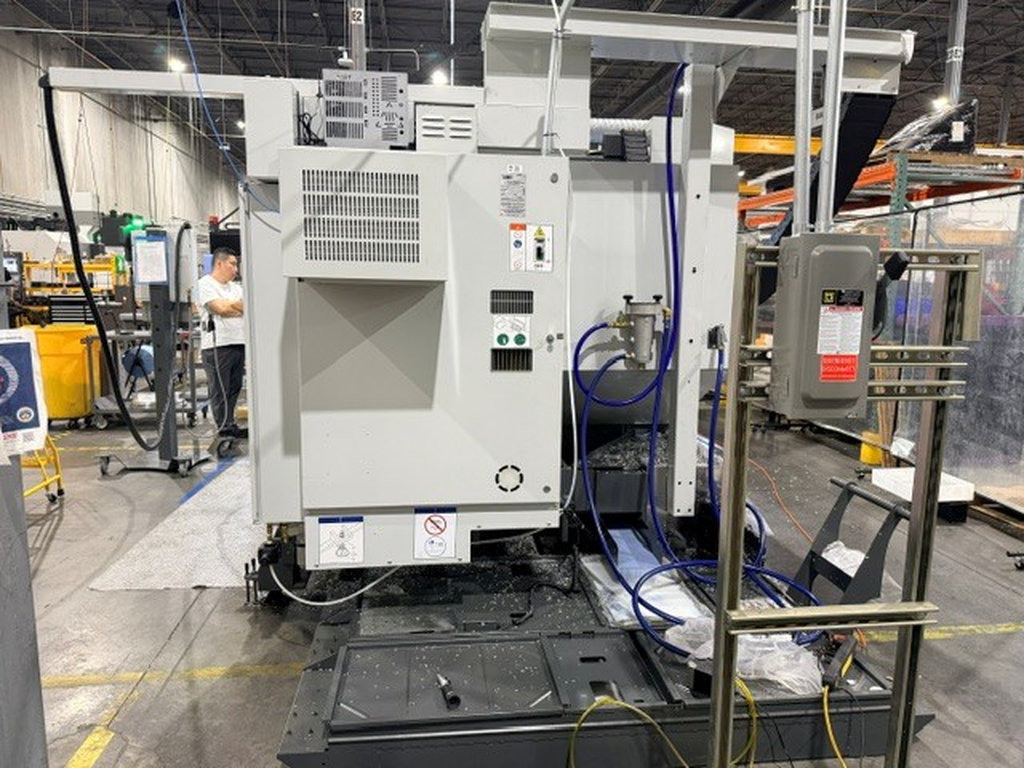

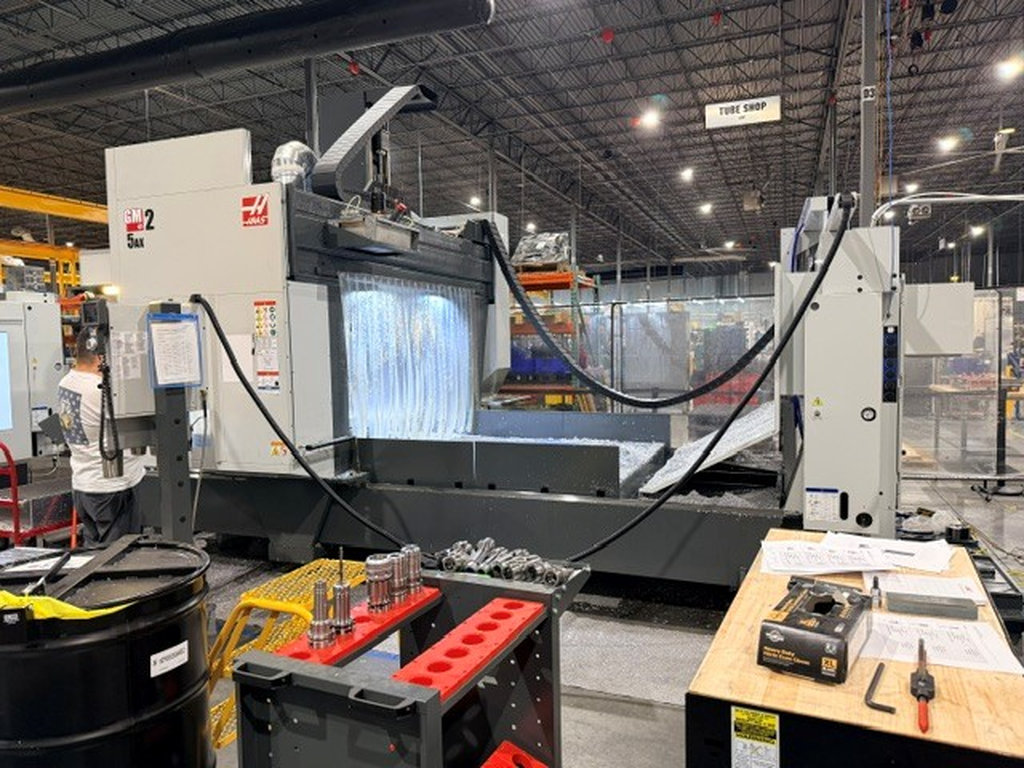

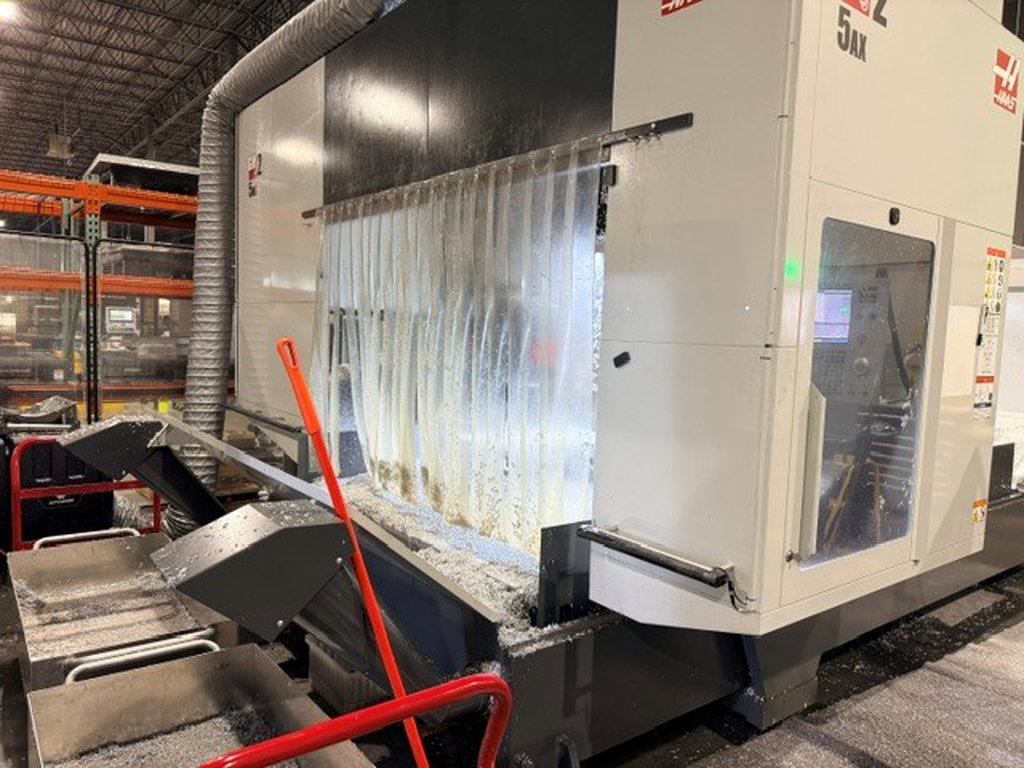

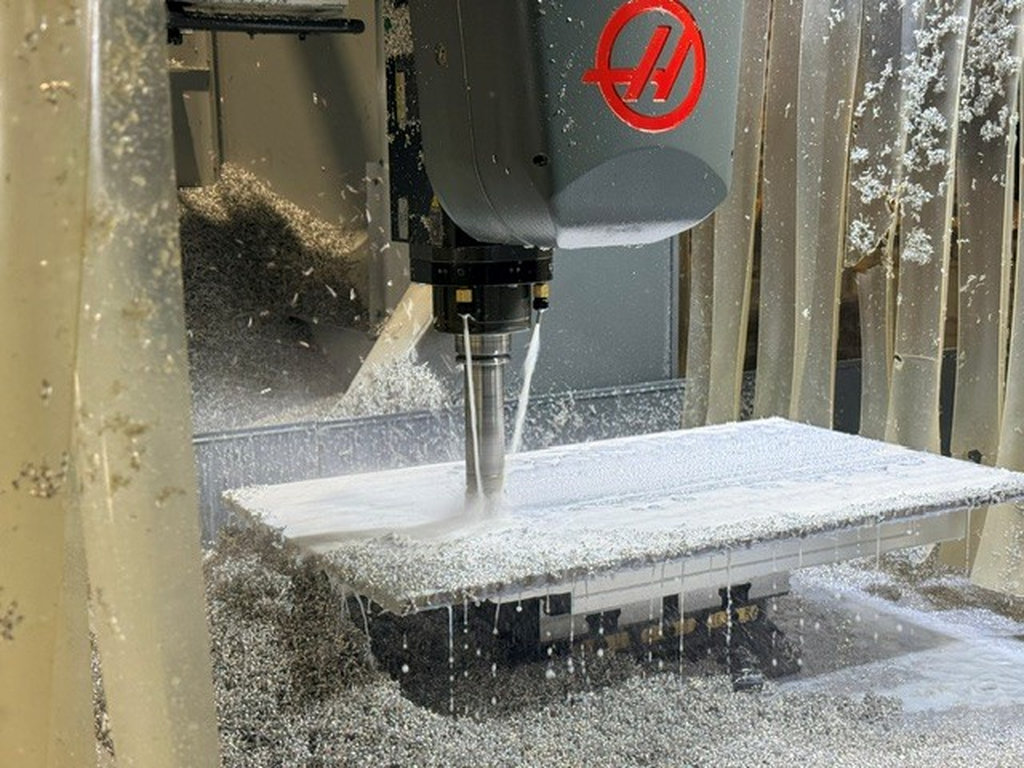

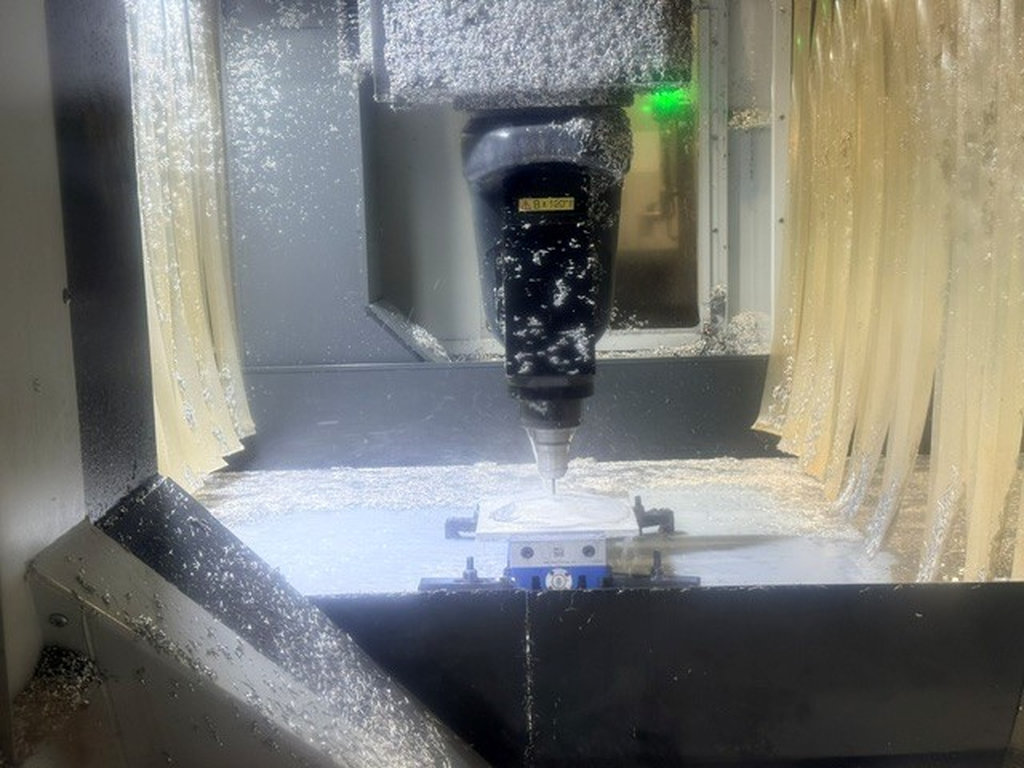

Haas GM-2-5AX 5-Axis CNC Gantry Mill (2024)

Name: Haas GM-2-5AX 5-Axis CNC Gantry Mill (2024)
SKU: 203727
Price: 349500.00 USD
Availability: InStock

Stock #: 141260012

$349,500.00

See Product Details

Stock #: 141260012
Brand: Haas

Not What You're Looking For?

Have Surplus Machinery to Sell?

Stock #: 141260012
Brand: Haas

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Phone

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

Provide Shipping Quote

Provide Financing Options

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

This field is hidden when viewing the form

In Stock?

UTM Campaign

UTM Source

UTM Medium

UTM Term

UTM Content

Product Description

General Info

Stock #: 141260012
Location: Atlanta, Georgia
Brand: Haas
Model: GM-2-5AX
Year: 2024
Approx. Shipping Weight: 22,000 LBS.
Approx. Shipping Dimensions: 226.0″L x 143.0″W x 137.0″H
Skidding Fee: Skidding Unavailable
Loading Fee: Rigging Required

Specifications

X-Axis Travel: 145″
Y-Axis Travel: 87.5″
Z-Axis Travel: 39.30″
Spindle Nose to Table (Max – Min): 37″ – 5″
Maximum Spindle HP: 16 HP
Maximum Spindle Speed: 20,000 RPM
Spindle Taper: HSK-A63
B-Axis Tilt Range: 120+ degrees to 120- degrees
C-Axis Rotation Range: 245+ degrees to 245- degrees
Table L x W: 144″ x 72″
Max Workpiece Weight (Evenly Distributed): 6,000 LBS.
Maximum Cutting Feedrate: 472 IPM
Rapids (X ,Y, & Z): X: 472 IPM, Y: 1,889 IPM, Z: 1,181 IPM

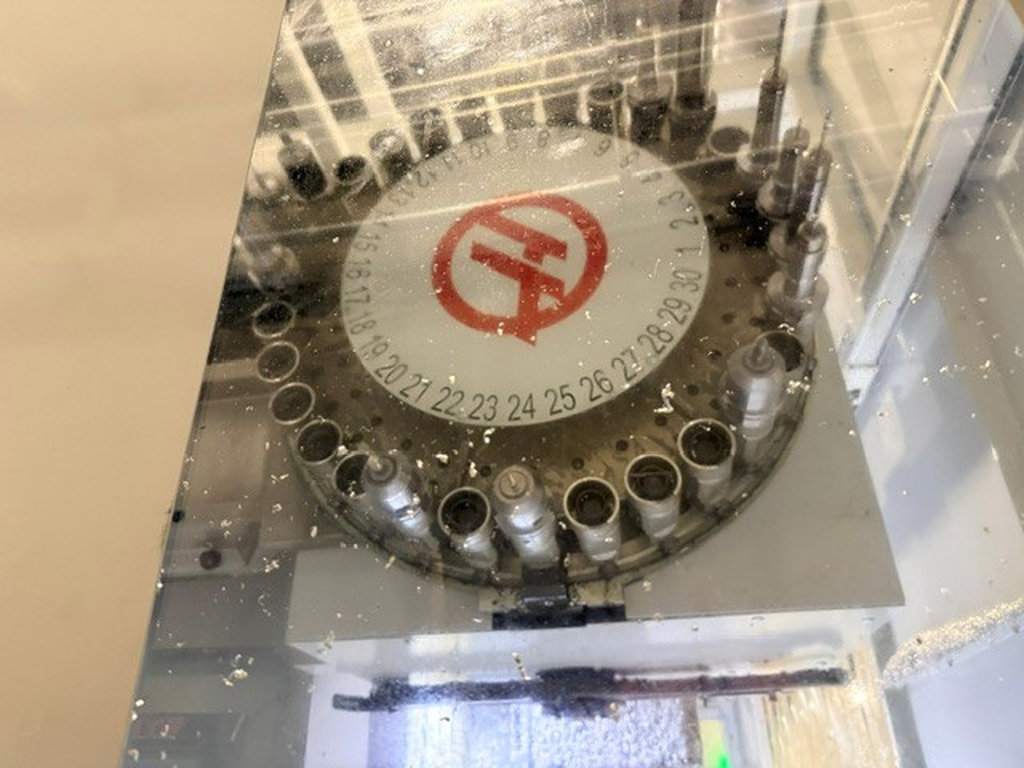

Tool Changer Type & Capacity: SMTC, 30+1
Coolant Capacity: 95 Gallons
Electrical: 220V / 3PH / 40 FLA

Equipped With

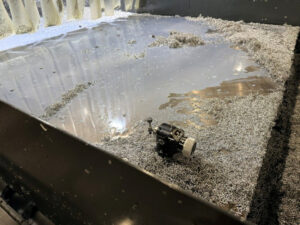

Haas NGC Control, 64GB Expanded Memory, High Speed Machining, Dynamic Work Offset & Tool Center Point Control, Early Power Failure Detection Module, Ethernet Interface, Haas Connect, Haas Drop, Second Home Position, Media Display, Large Touchscreen Remote Jog Handle, Rigid Tapping, Power Surge Protection, Control Touch Screen, Wi-Fi Connection, Wireless Intuitive Probing System (WIPS), 20K RPM HSK-A63 Spindle, 30+1 Side-Mount Tool Changer, Coolant System, Chip Auger, Control Cabinet Cooler, Steel Table (Inch)
