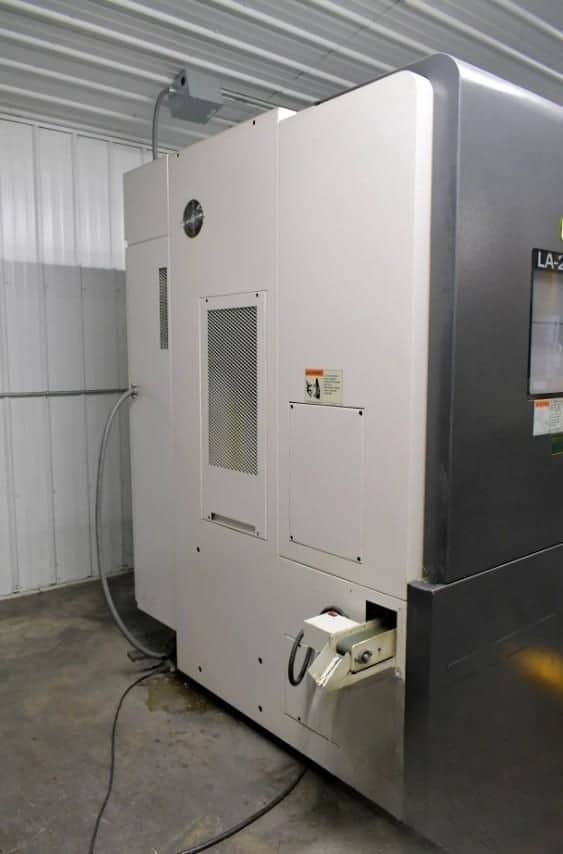

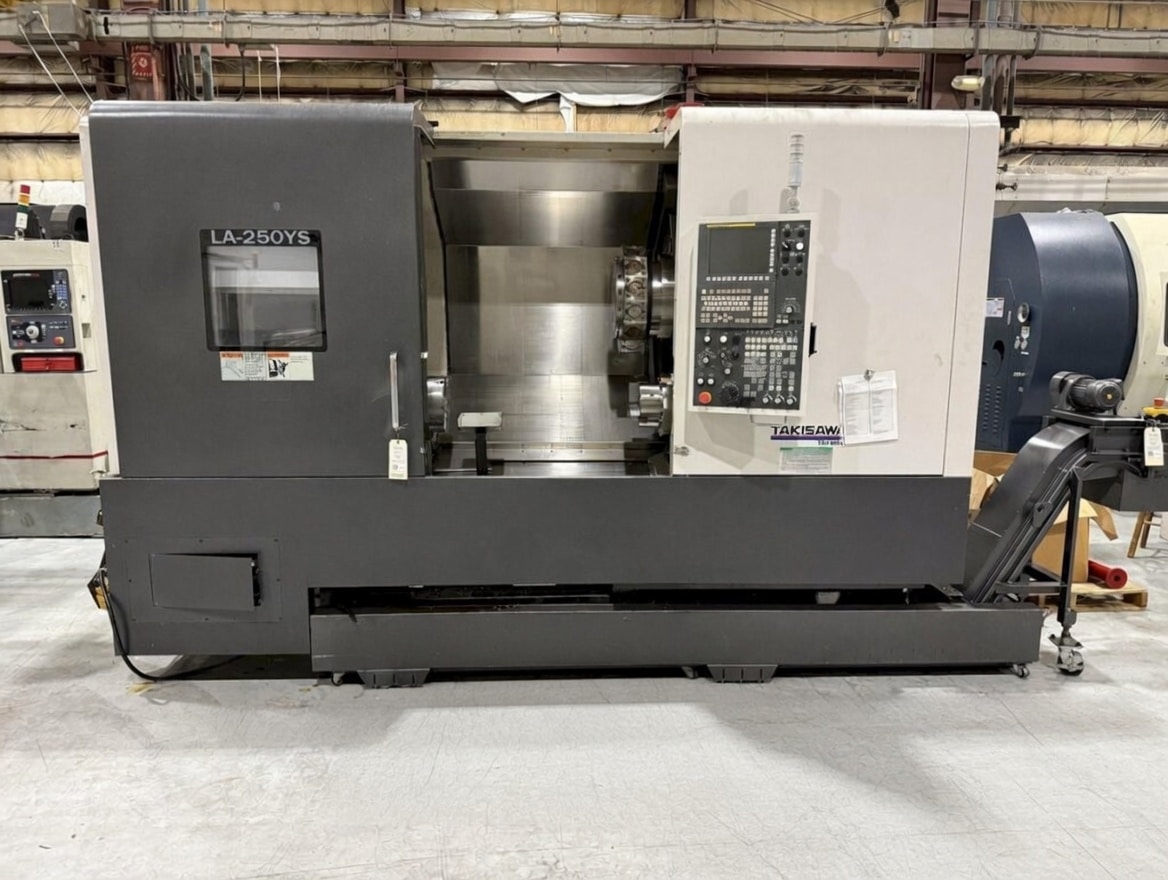

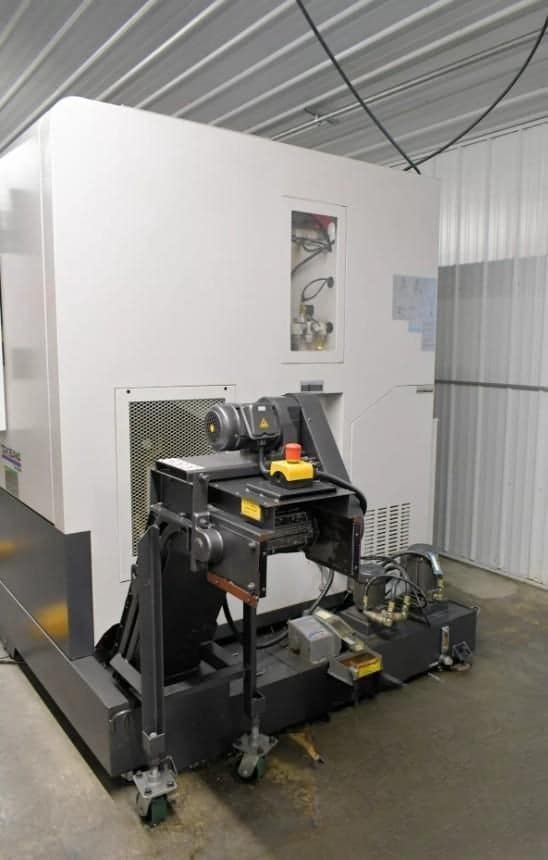

Takisawa LA-250YS CNC Lathe (2018)
Stock #: 173260005
$99,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 173260005
- Location: MI
- Brand: Takisawa
- Model: LA-250YS
- Year: 2018
- Approx. Shipping Weight: 17800 pounds
- Approx. Shipping Dimensions: 149″ x 73″ x 98″
Specifications
- Type: Lathes (3-Axis or More)
- CNC Control: Yes

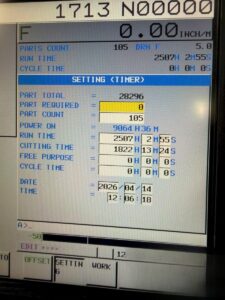

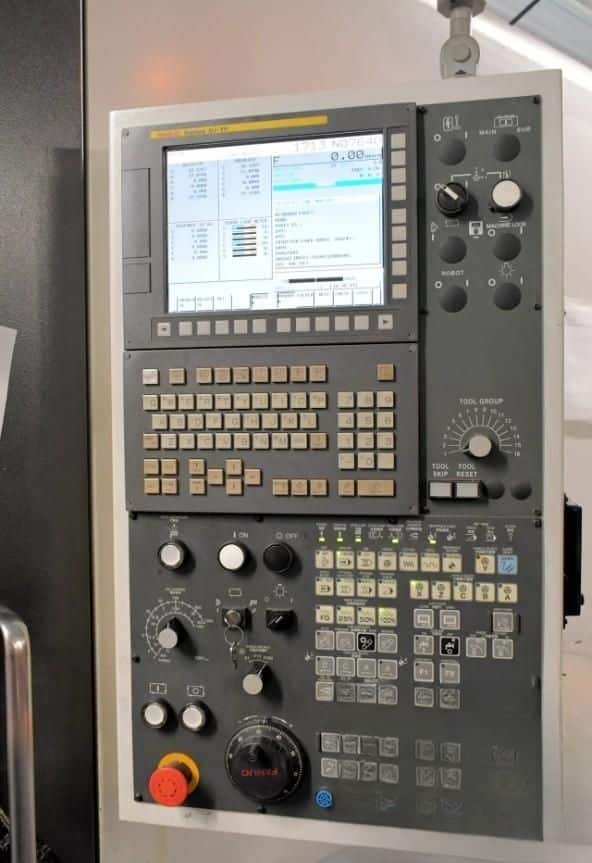

- Control Type: Fanuc 0i-TF
- # Axis: 6
- Swing: 23.6″
- Turning Diameter: 14.6″
- Center Distance: 43.11″

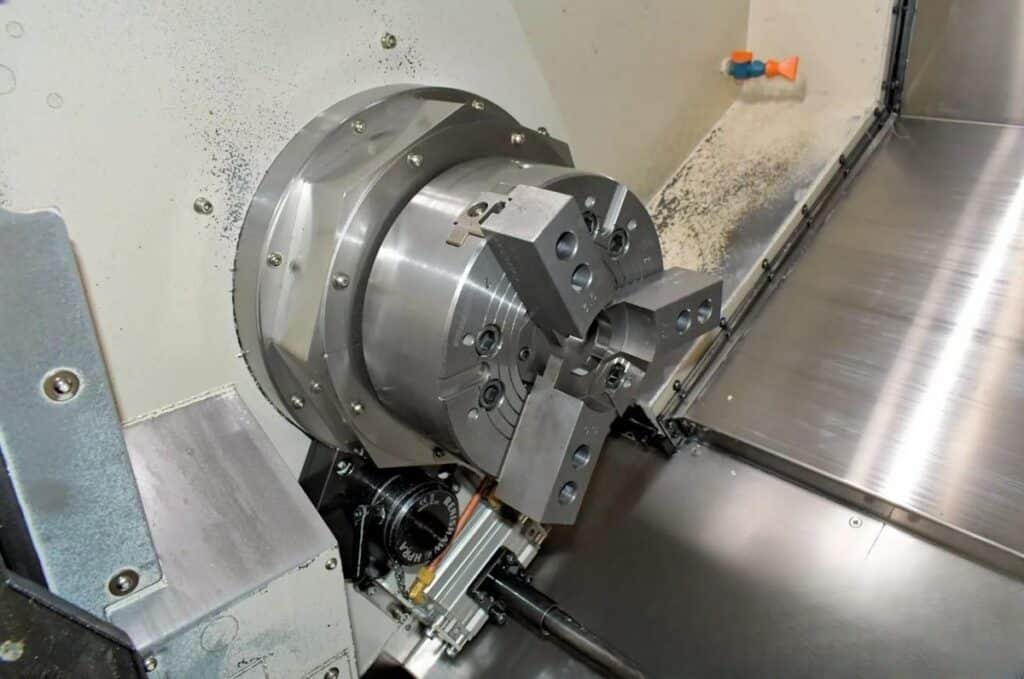

- Chuck Size: 10″
- Bar Capacity: 3.05″
- X Axis Travel: 10.6″
- Y Axis Travel: 3.92″
- Z Axis Travel: 31.49″
- B Axis Travel (Sub Spindle): 28.93″
- C1/C2 Axis Index: 0.001°
- Rapid Traverse (X/Y/Z): 787/393/797 ipm
- Spindle Nose: A2-8
- Spindle Speed: 3500 rpm
- Main Motor: 30 hp
- Tailstock: No
- Y Axis: Yes
- Live Tooling: Yes
- Live Tooling Speed: 5000 rpm
- Live Tooling Motor: 5 hp

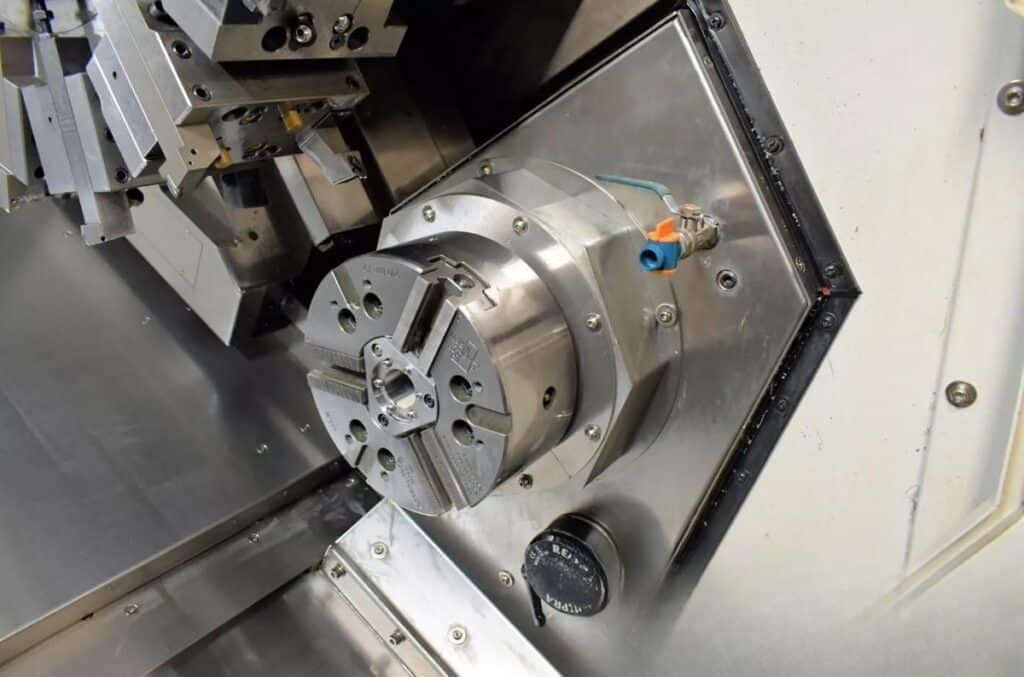

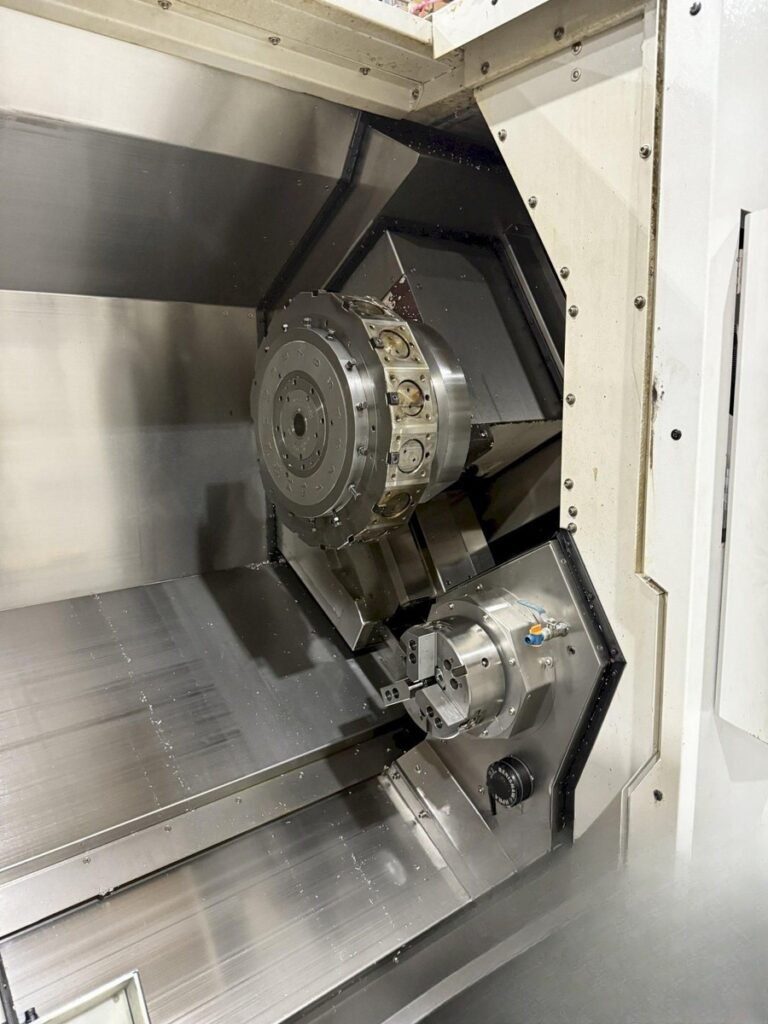

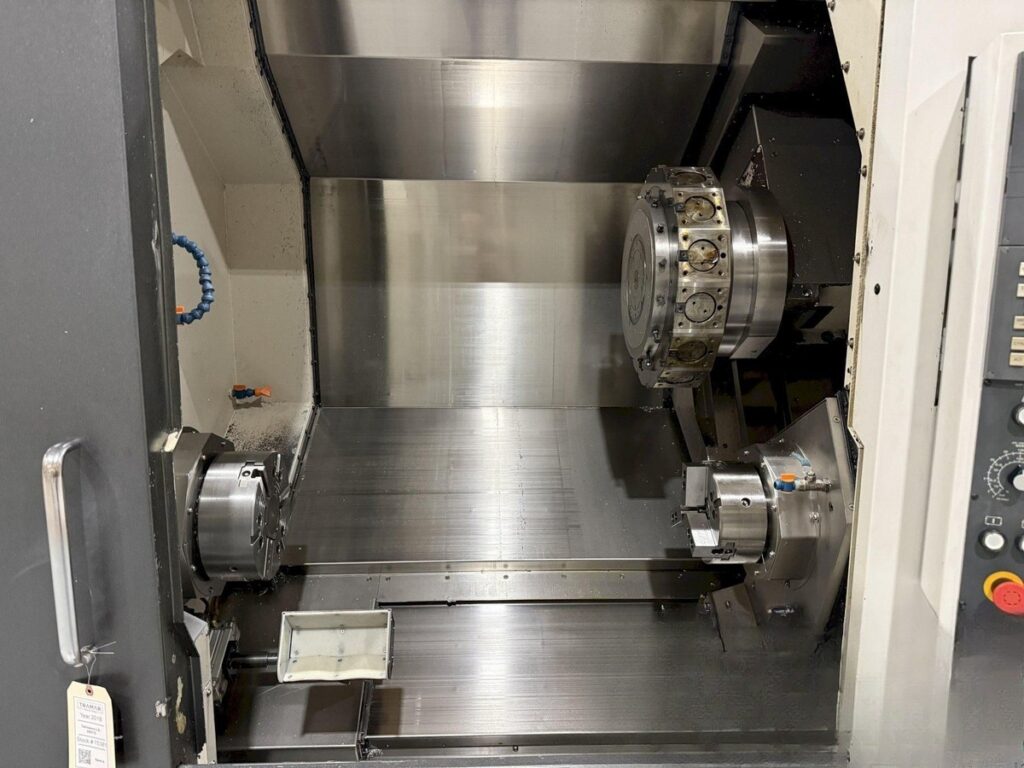

- Sub Spindle: Yes
- Sub Spindle Chuck: 8″
- Sub Spindle Bar Capacity: 2″
- Sub Spindle Nose: A2-6
- Sub Spindle Speed: 3500 rpm
- Sub Spindle Motor: 15 hp

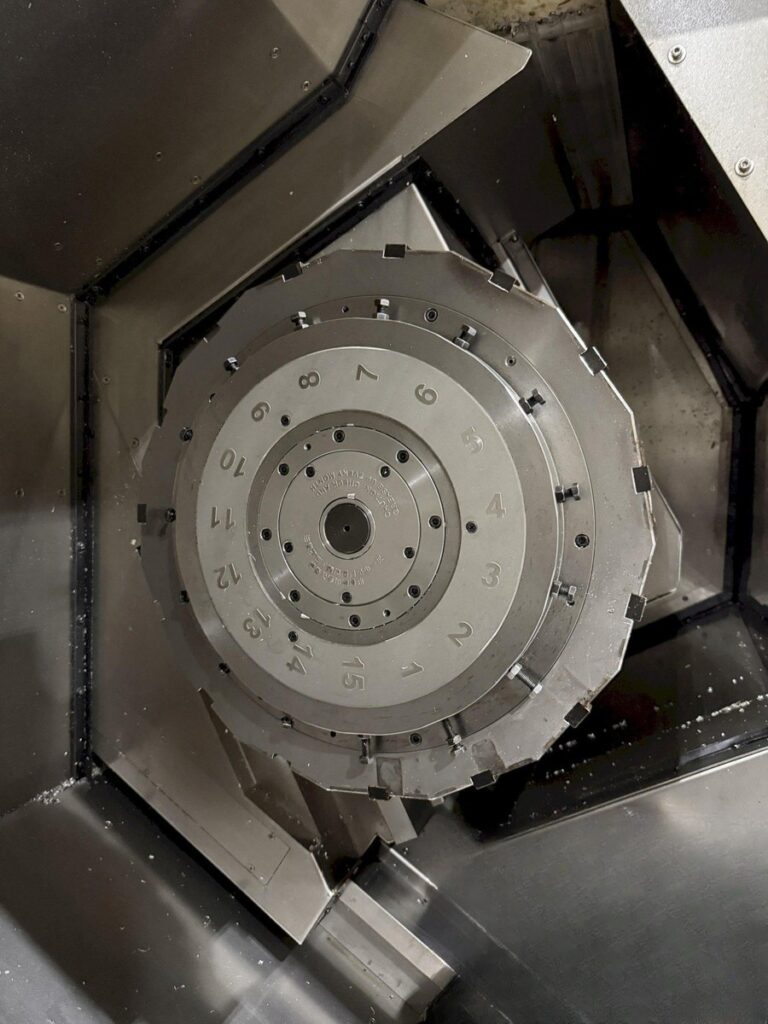

- Turret Capacity: 15 Stations
- Heavy Duty Box Way Machine: Yes
Equipped With

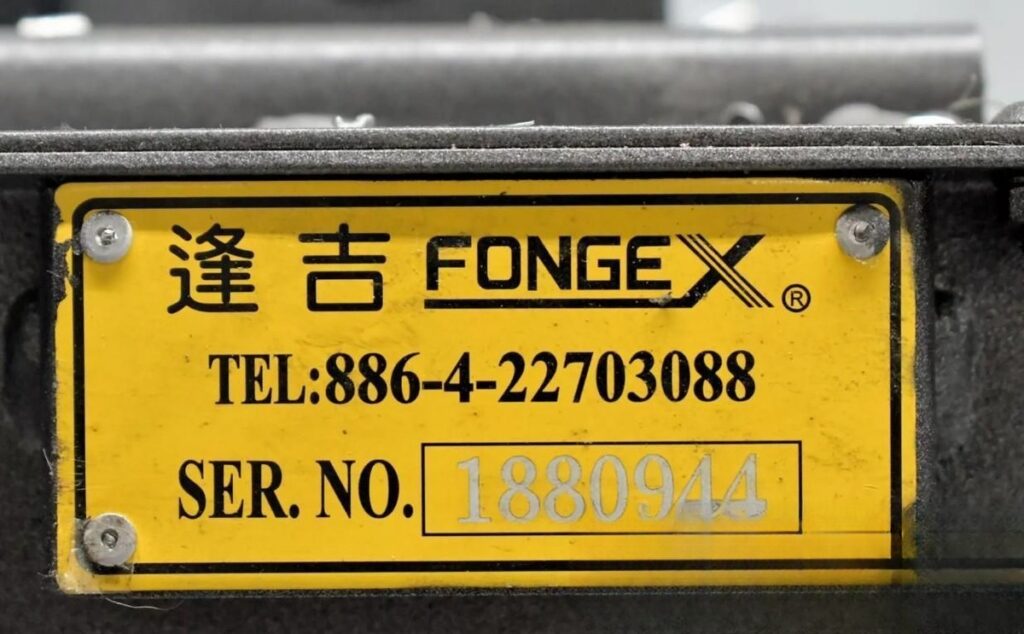

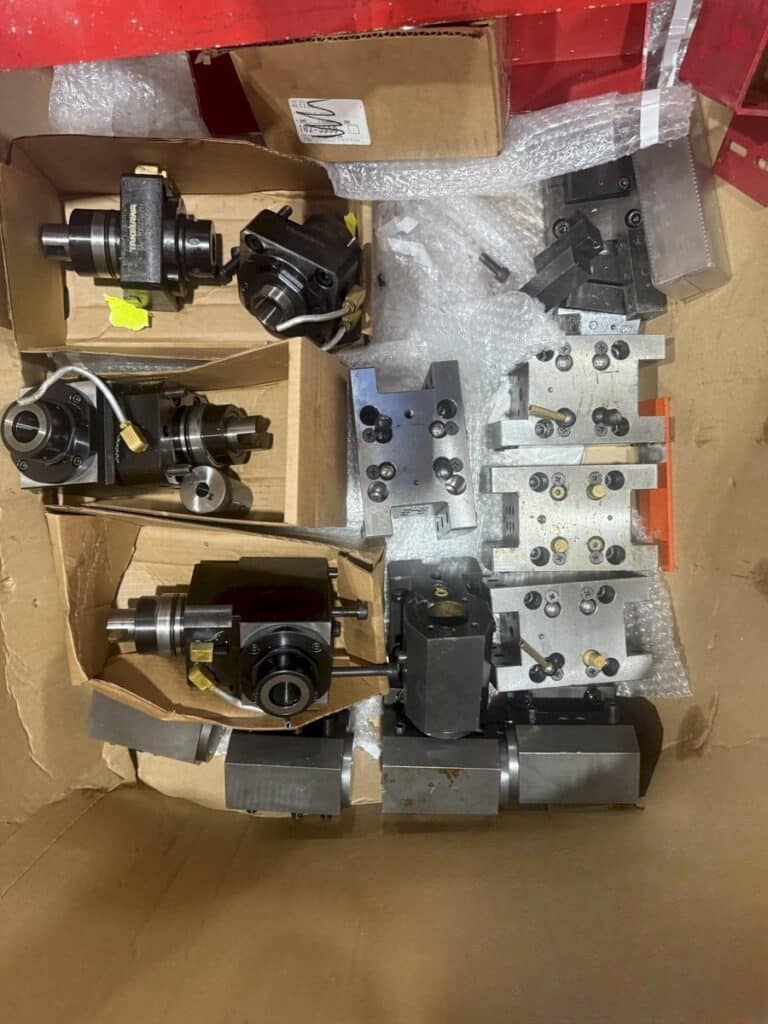

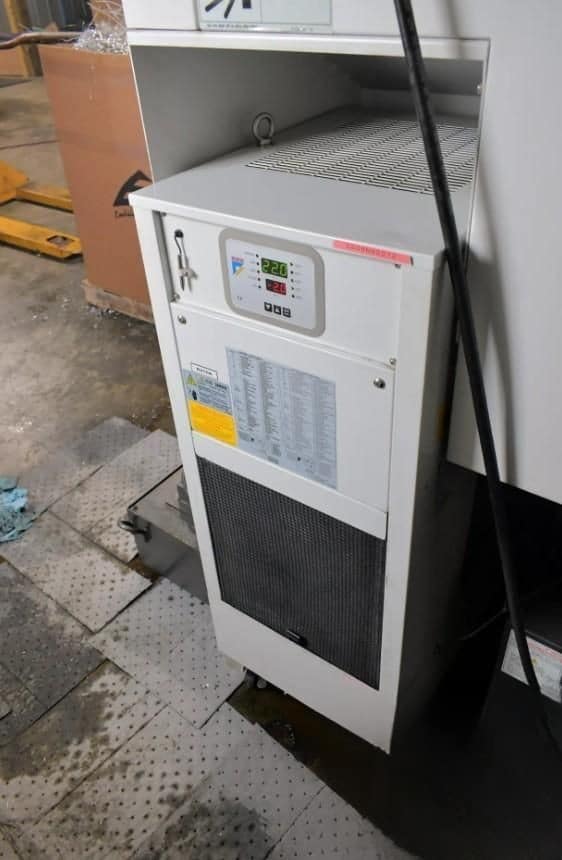

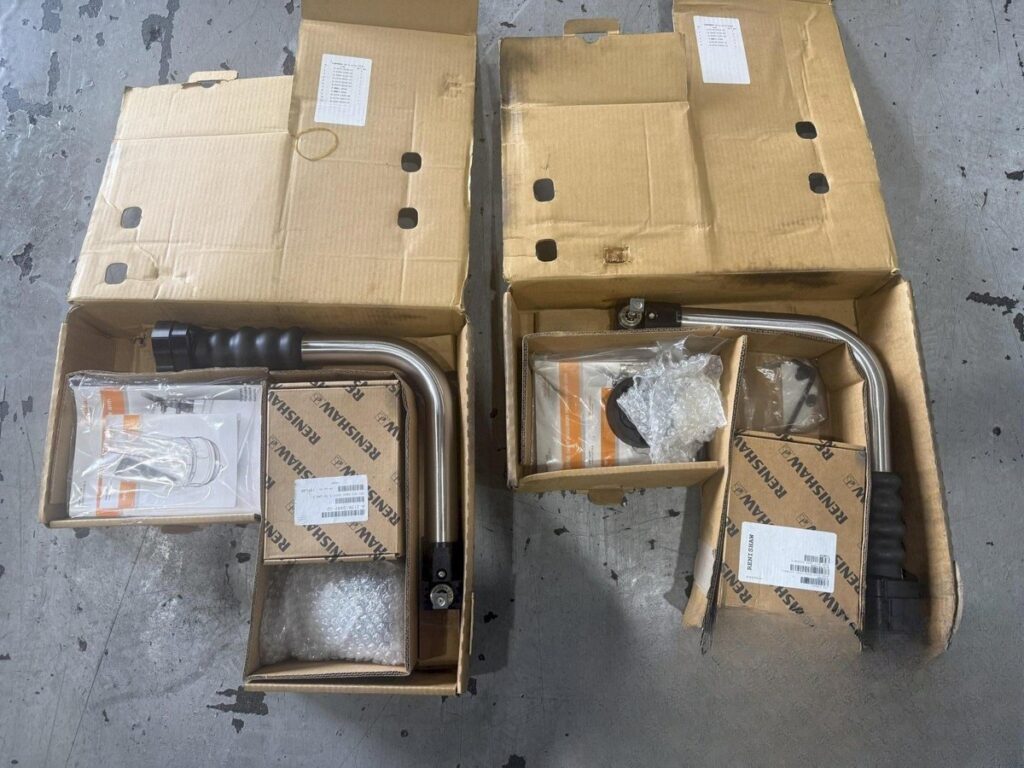

Chip Conveyor, Coolant Tank & Pump, Parts Conveyor, Tool Presetter, Spindle Chiller, Manual Guide i (Conversational Programming), Misc. Static Tooling Available, (2) Straight Live Tool Holders, (2) Right Angled Live Tool Holders
