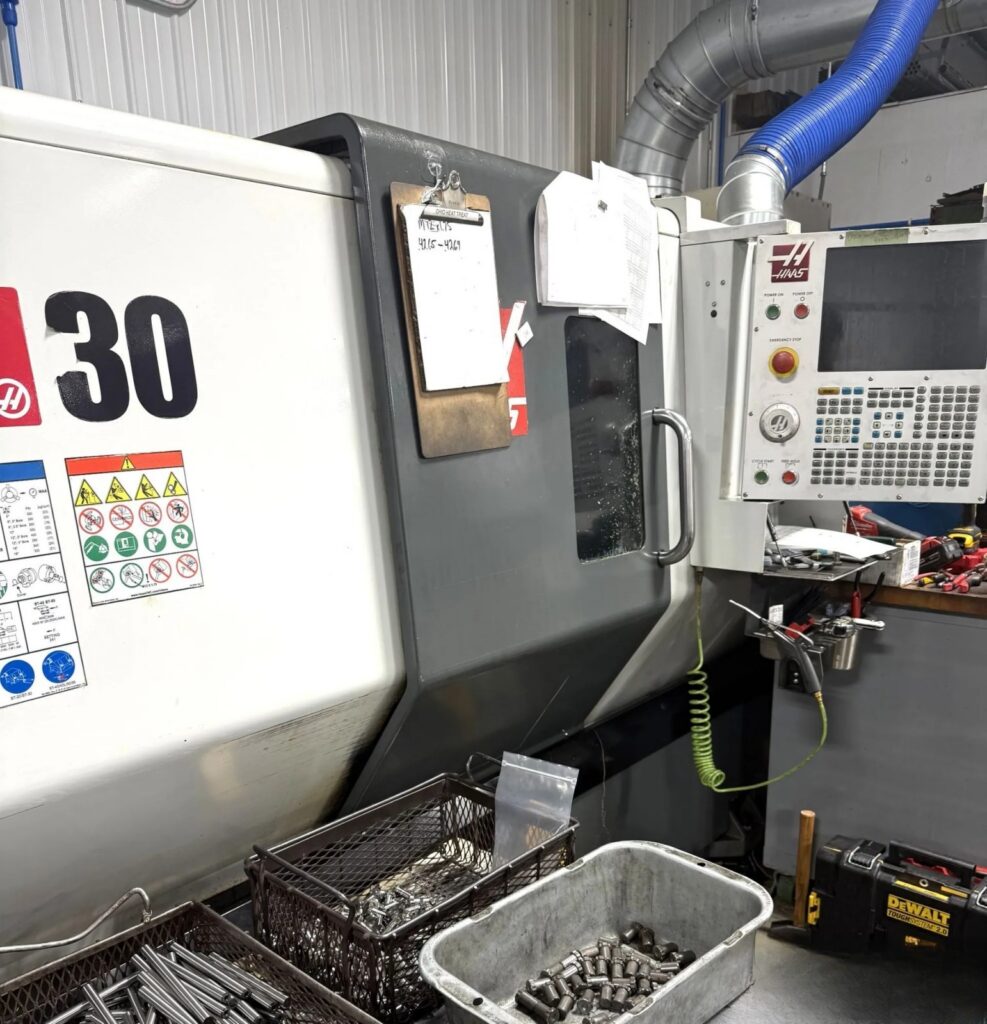

Haas ST-30 CNC Lathe (2019)

Stock #: 143260016

$69,500.00

See Product Details

Stock #: 143260016
Brand: Haas

Not What You're Looking For?

Have Surplus Machinery to Sell?

Stock #: 143260016
Brand: Haas

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Comments

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

Provide Shipping Quote

Provide Financing Options

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

This field is hidden when viewing the form

In Stock?

UTM Campaign

UTM Source

UTM Medium

UTM Term

UTM Content

Product Description

General Info

Stock #: 143260016
Brand: Haas
Model: ST-30
Year: 2019
Approx. Shipping Weight: 11,000 LBS.
Approx. Shipping Dimensions: 23’L x 8’W x 8’H

Specifications

Swing Over Front Apron: 31.75″
Max Cutting Diameter: 15″
Max Cutting Length: 32.5″
X-Axis Travel: 9.4″
Z-Axis Travel: 32.5″
Chuck Size: 10″
Bar Capacity: 3″
Spindle Bore: 3.5″
Spindle Nose: A2-6
Spindle Motor: 30 hp
Spindle Speed: 4,500 RPM
Rapid Traverse Rate X-Axis: 472 in/min.
Rapid Traverse Rate Z-Axis: 945 in/min.
Turret Positions: 12

Equipped With

NextGen CNC Control, Programmable Tailstock, Wireless Intuitive Probing System For Lathes (WIPS), Tool Presetter, Collet Chuck, 4,500 RPM Spindle Upgrade, Chip Conveyor, Air Blast, High Pressure Coolant (300 PSI), Coolant System, Visual Part Programming System, Spindle Orientation, Rigid Tapping, Macros, Early Power-Failure Detection, Ethernet, 1 GB Memory, Haas Connect
