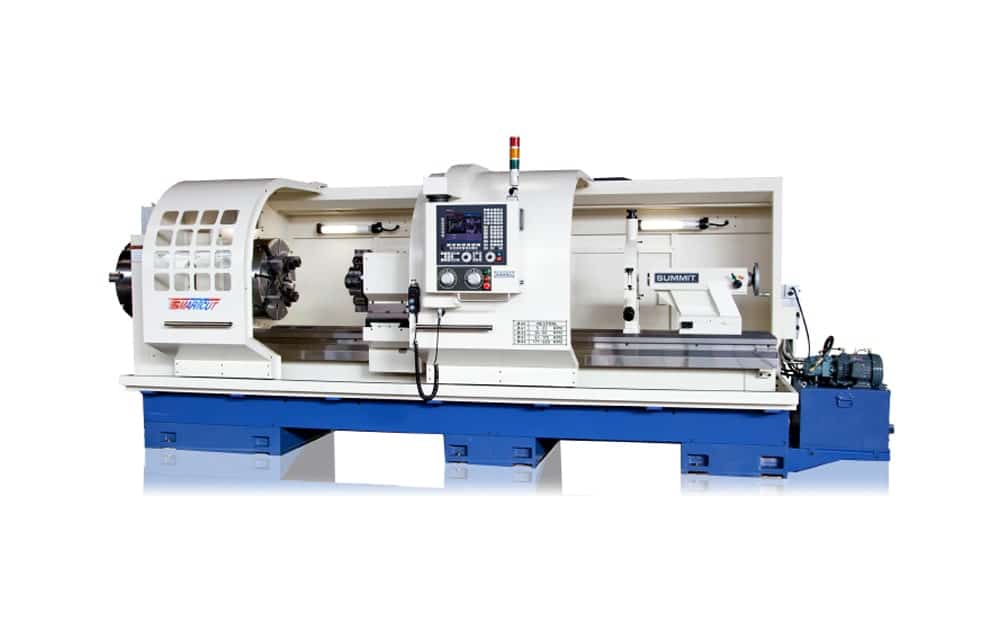

Summit Smartcut Big Hole CNC Lathe
Stock #: Summit-SmartCut
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Summit-SmartCut
- Brand: Summit
- Model: SmartCut II Big Hole CNC
Specifications
- Models Available: SC26, SC30, SC33, SC42, SC47, SC55, SC63
- Swing over bed: 26.3 in. to 63 in. (model dependent)
- Swing over cross slide: 15.75 in. to 45.2 in. (model dependent)
- Distance between centers: 60 in. to 600 in.
- Hole through spindle: 6.1 in. to 21 in. (model & configuration dependent)
- Spindle speeds: Infinitely variable, 2-800 RPM (model dependent)
- Spindle nose: A2-11 to A2-28 (model dependent)
- Tailstock quill diameter: 3.7 in. to 7.8 in. (model dependent)
- Tailstock quill travel: 9 in. to 11.8 in. (model dependent)
- Axis feeds (X/Z): 0-200 IPM

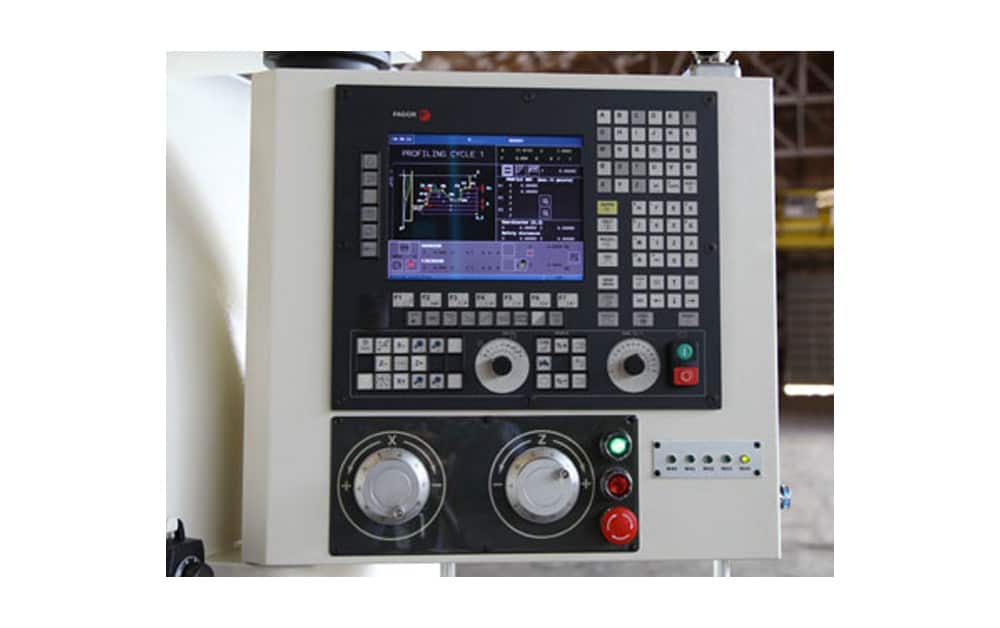

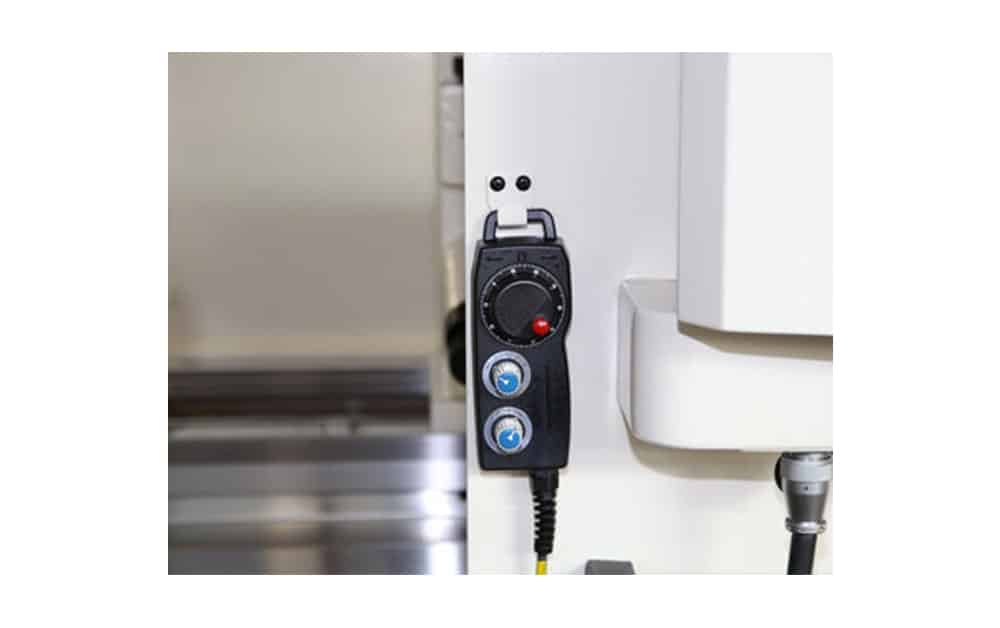

- CNC Control: Fagor 8055 with handwheels & self-teaching function
- Spindle motor: 20 HP to 50 HP (model dependent)
Equipped With

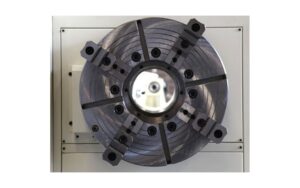

Standard Accessories: Fagor 8055 CNC control with handwheels & self-teaching feature, steady rest with roller tips, coolant system, work light, sliding enclosure doors, 3-jaw or 4-jaw chuck(s) (front/rear on larger models), constant surface speed, Yaskawa spindle drive, precision ground ball screws, T-slotted cross slide
Optional Accessories: Digital readout enhancements, quick-change tool post with holders, additional chucks, live center
