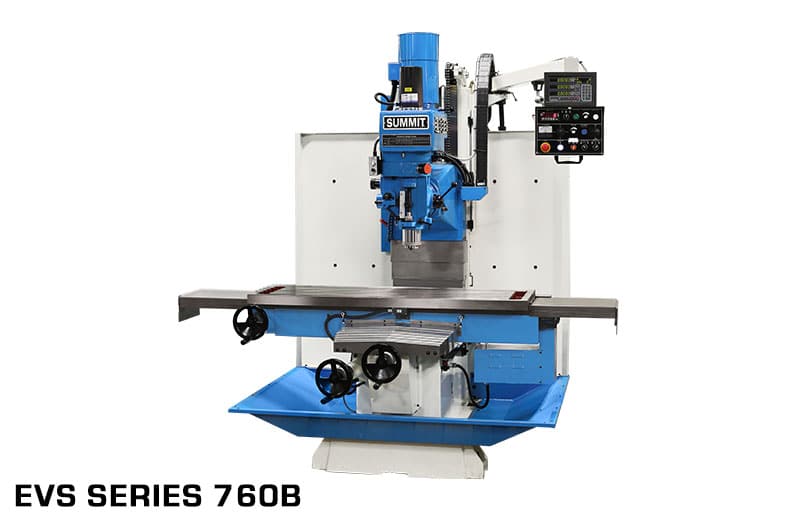

Summit EVS Series 760B Vertical Bed Mill
Stock #: Summit-EVSBed760
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Summit-EVSBed760
- Brand: Summit
- Model: EVS-760B Bed Mill
- Approx. Shipping Weight: 6,500 lbs.
Specifications

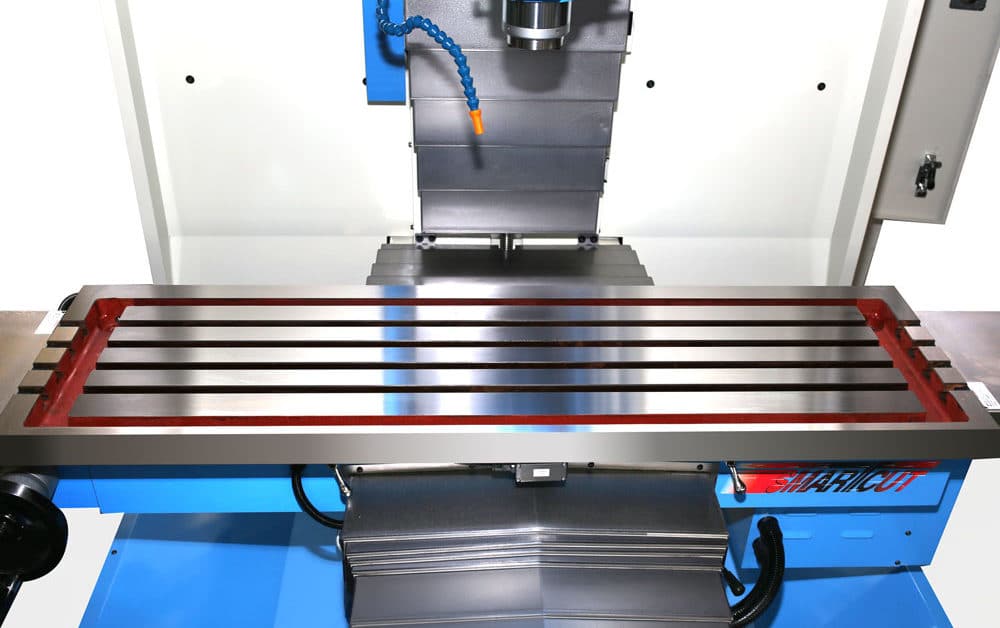

- Table size: 16.9 in. x 60 in. x 3-1/8 in.
- Max workpiece weight: 2,200 lbs.
- Longitudinal travel (X-axis): 51.1 in.
- Cross travel (Y-axis): 23.62 in.
- Vertical head travel (Z-axis): 23.6 in.

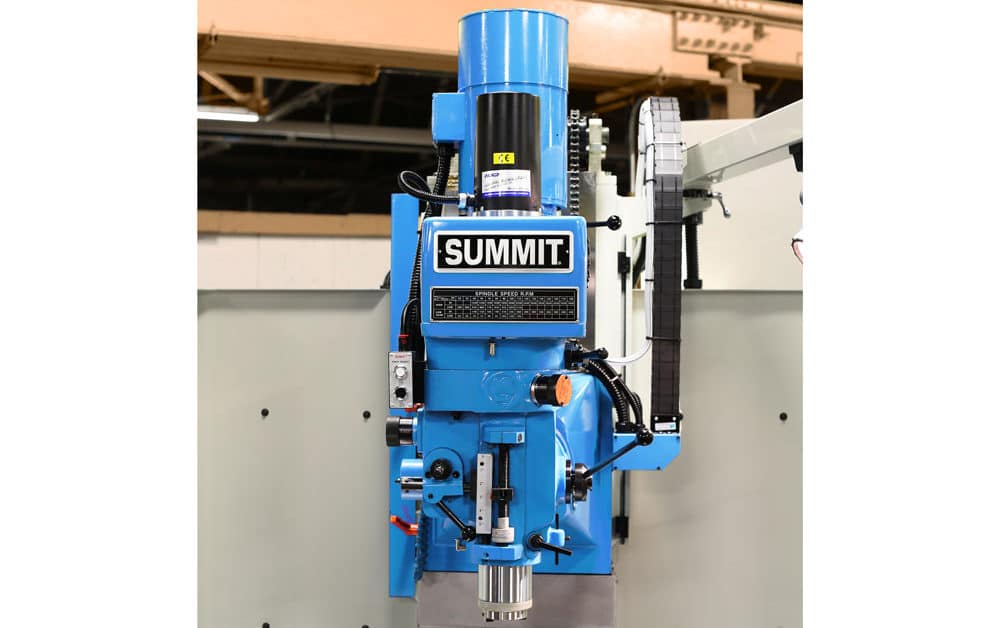

- Spindle motor: 7.5 HP
- Spindle speeds: Infinitely variable, 0 – 3,650 RPM
- Spindle taper: NT #40
- Quill travel: 5.5 in.
- Head movement side to side: +/- 90°
- Over arm rotation: 360°
- Over arm adjustment: 24 in.
- Spindle nose to table: 2.5 in. – 30 in.
Equipped With

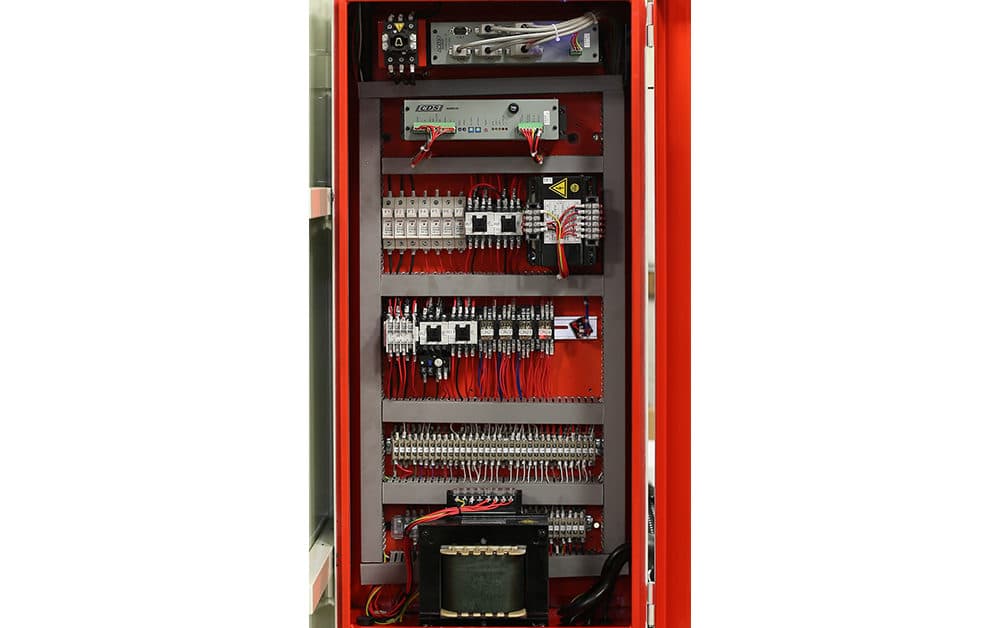

Standard Accessories: Heavy Meehanite cast iron construction, heavy box saddle, huge box ways on column, Turcite-B inserted guideways, double table locks, wipers on saddle and column, built-in coolant system, automatic lubrication, precision ground ball screws, inverter duty high-efficiency motors, compact AC inverter spindle drive, power cogged drive belt, electronic inverter-controlled braking, fan cooled electrical enclosure, low voltage controls, oil gun, clamping kit, anchor bolts, open end wrench set, steel way covers, halogen work light, air-operated power draw bar
Optional Accessories: Digital readout (DRO) system, power feeds, additional tooling
