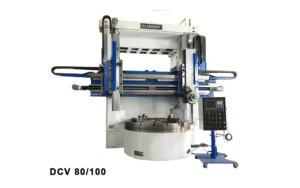

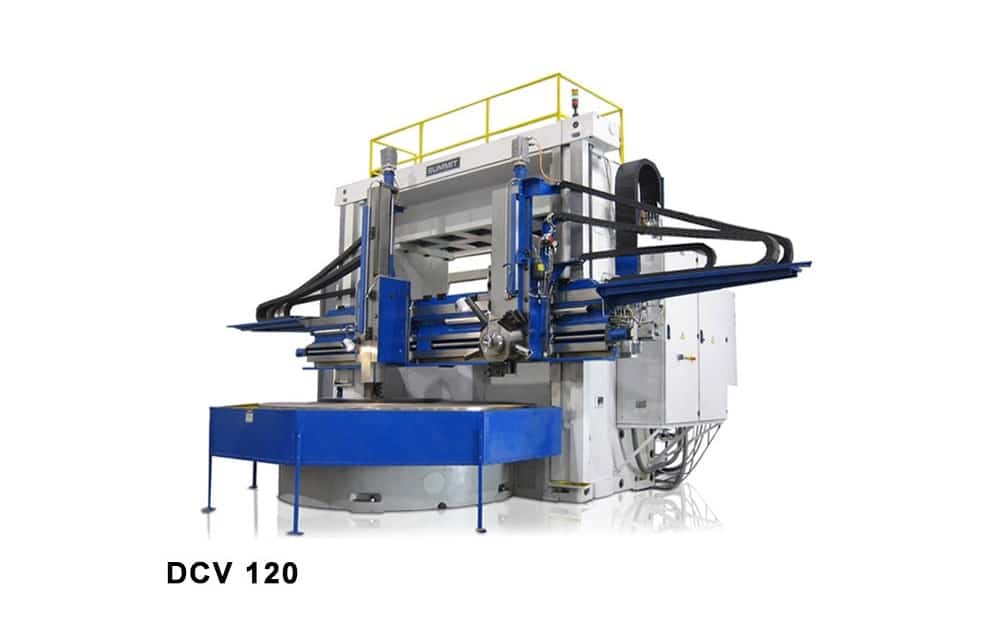

Summit DCV CNC Vertical Turning Lathe
Stock #: Summit-DCV
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Summit-DCV
- Brand: Summit
- Model: DCV Series
- Approx. Shipping Weight: 76,000 lbs. (DCV80) / 95,000 lbs. (DCV100) / 108,000 lbs. (DCV120) / 140,000 lbs. (DCV160)
- Approx. Shipping Dimensions: 169 in. x 165 in. x 181 in. (DCV80) / 189 in. x 189 in. x 197 in. (DCV100) / 208 in. x 220 in. x 212 in. (DCV120) / 228 in. x 260 in. x 248 in. (DCV160)
Specifications
- Models Available: DCV80 / DCV100 / DCV120 / DCV160
- Maximum diameter of swing: 86 in. (DCV80) / 106 in. (DCV100) / 129 in. (DCV120) / 169 in. (DCV160)
- Maximum diameter of swing w/ slide head: 82 in. (DCV80) / 102 in. (DCV100) / 124 in. (DCV120) / 163 in. (DCV160)
- Maximum machining height above table: 59 in. or 78 in. (DCV80) / 78 in. or 94 in. (DCV100) / 98 in. or 118 in. (DCV120) / 98 in. (DCV160)
- Maximum weight of workpiece: 26,500 lbs. (DCV80) / 33,000 lbs. (DCV100) / 40,000 lbs. (DCV120) / 40,000 lbs. (DCV160)
- Table Diameter: 78 in. (DCV80) / 98-1/2 in. (DCV100) / 118 in. (DCV120) / 157 in. (DCV160)
- Table Speed (Infinitely Variable): 1.55-140 RPM (DCV80) / 1.24-112 RPM (DCV100) / 1.0-92 RPM (DCV120 & DCV160)
- Vertical heads (RH Pentagonal Turret / LH Plain Ram): 2
- Swivel of each vertical head: +/- 35°
- Vertical travel right hand turret: 30 in.
- Vertical travel left hand boring ram: 57 in.
- Vertical travel of the side head: 76 in. (DCV80) / 90 in. (DCV100) / 100 in. (DCV120) / 96-1/2 in. (DCV160)
- Horizontal travel of the side head: 27-1/2 in. (DCV80) / 35-1/2 in. (DCV100) / 39 in. (DCV120 & DCV160)
- Vertical travel of Crossrail: 66 in. (DCV80) / 82 in. (DCV100) / 98 in. (DCV120) / 90 in. (DCV160)
- Feeds (vertical & side heads): 16 ranges, 0.002 – 0.196 IPR
- Rapid traverse for all heads: 98 IPM
- Main drive motor (AC Brushless): 100 HP
- Rail elevating motor: 10 HP
- Rapid traverse motor: 4 HP
Equipped With
Standard Accessories: High precision ballscrews for vertical & horizontal head movement, precision hardened and ground gearing, power rapid traverse to all heads, constant surface speed controlled through PLC, centralized full-electric pendant control panel with built-in DRO, full-length Turcite tapered gibbing, chrome-plated hand wheels and dials, all axis driven by servo motors, heat treated and stress relieved castings, large diameter Timken type taper roller bearing, one vertical head with indexing pentagonal turret, one side head with standard tool holder, one vertical plain ram head, precision hardened and ground crossrail guideways, totally enclosed electrical cabinet with PLC, pressurized lubrication system, set of four reversible table jaws, emergency stop switch, wipers on all ways, built-in leveling screws with mounting pads, set of service spanners
Optional Accessories: Additional heads or tooling configurations, digital readout enhancements
