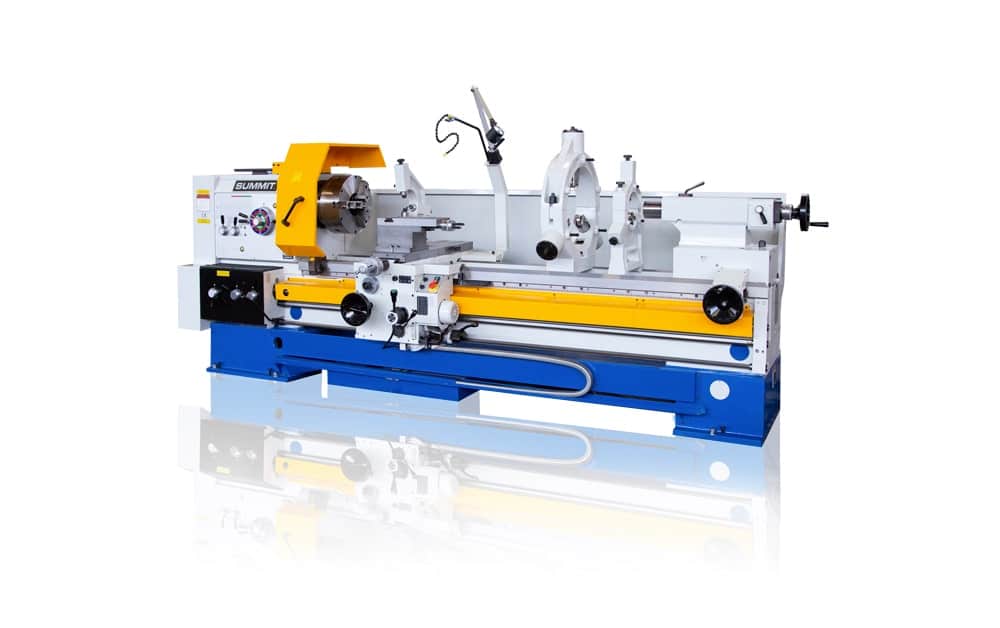

Summit 30″ Swing Metal Lathe
Stock #: Summit-30
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Summit-30
- Brand: Summit
- Model: 30″ Big Bore
- Approx. Shipping Weight: 10,780 lbs. (approximate)
Specifications
- Swing over bed: 29.9 in.
- Swing over cross slide: 20.5 in.
- Distance between centers: 80 in., 120 in., 160 in., 200 in.
- Hole through spindle: 5.1 in.
- Spindle speeds: 17 speeds, 7.5 – 1,015 RPM
- Spindle nose: D1-11 Camlock
- Tailstock spindle (quill) diameter: 4.1 in.
- Tailstock spindle (quill) travel: 8.8 in.
- Tailstock spindle taper: MT #6
- Threads per inch: 1.6-60 TPI (76 ranges)
- Metric threads: 0.5-180 mm (76 ranges)
- Bed width: 22 in.
- Main drive motor: 25 HP
Equipped With
Standard Accessories: Standard steady rest, extra capacity steady rest with rollers, follow rest, thread dial, coolant system, taper attachment, 16″ 3-jaw chuck with solid jaws, carriage stop, work light, full-length splash guard, service wrenches & spanners, 2-speed tailstock, mechanical disc clutch, rapid traverse on carriage
Optional Accessories: Digital readout (DRO) system, Aloris quick-change tool post with holders, larger chucks, live center
