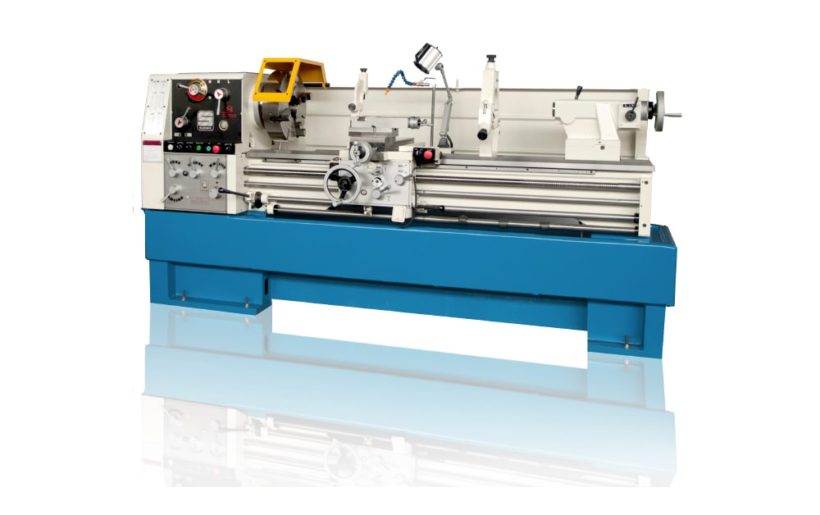

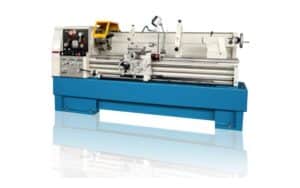

Summit 18″ & 20″ Metal Lathe
Stock #: Summit-1820
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Summit-1820
- Brand: Summit
- Model: 18″/20″ Big Swing
- Approx. Shipping Weight: 5,500 lbs. (60″ centers)
Specifications
- Swing over bed (18″ Series): 18 in.
- Swing over bed (20″ Series): 20 in.
- Swing over cross slide (18″ Series): 11.25 in.
- Swing over cross slide (20″ Series): 13.25 in.
- Swing over gap (18″ Series): 28 in.
- Swing over gap (20″ Series): 30 in.
- Distance between centers: 40 in., 60 in., or 80 in.
- Hole through spindle (18″ Series): 3 in.
- Hole through spindle (20″ Series): 4 in.

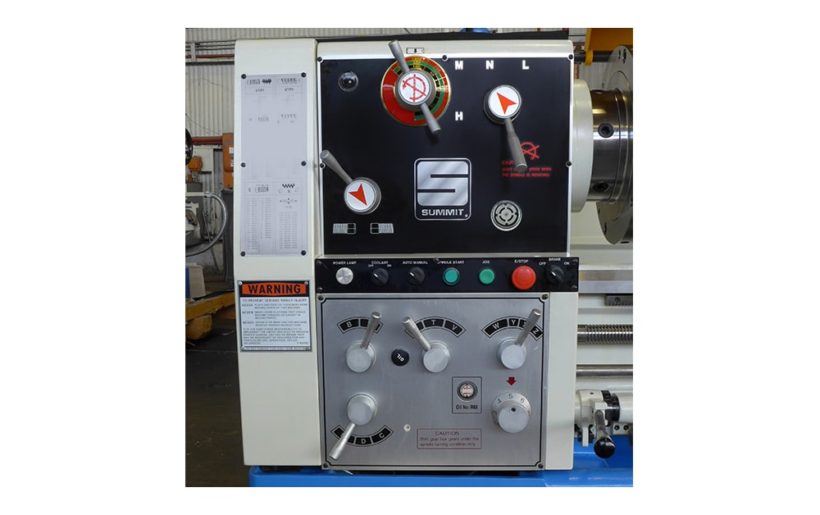

- Spindle speeds: 12 speeds, 32 – 1,500 RPM

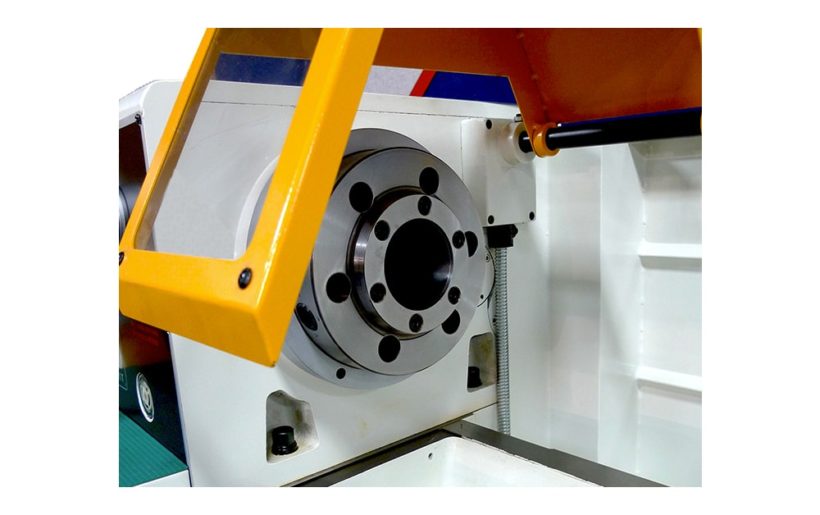

- Spindle nose: D1-8 Camlock

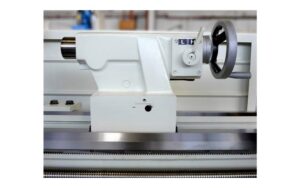

- Tailstock spindle (quill) diameter: 3 in.
- Tailstock spindle (quill) travel: 6 in.
- Tailstock spindle taper: MT #5
- Threads per inch: 2-72 TPI (45 ranges)
- Metric threads: 0.2-14 mm (42 ranges)
- Bed width: 13 in.
- Main drive motor: 10 HP
Equipped With
Standard Accessories: Thread dial, steady rest, follow rest, coolant system, taper attachment, work light, full-length splash guard, 3-jaw chuck, 4-jaw chuck, rapid traverse on carriage
Optional Accessories: Digital readout (DRO) system, Aloris quick-change tool post with holders, larger chucks, live center
