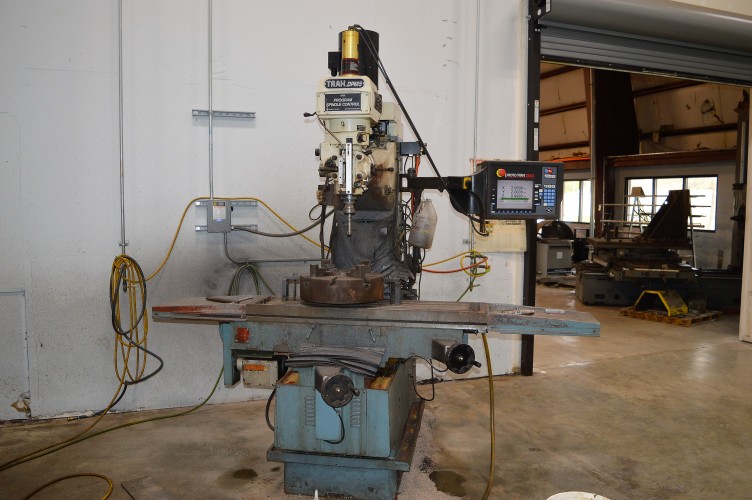

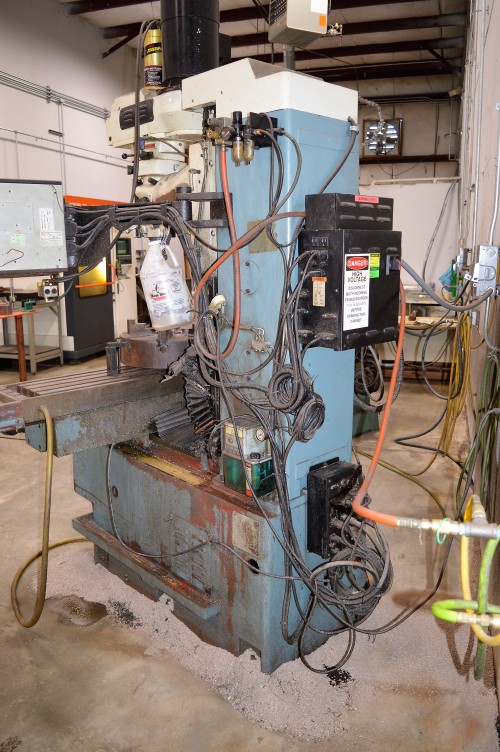

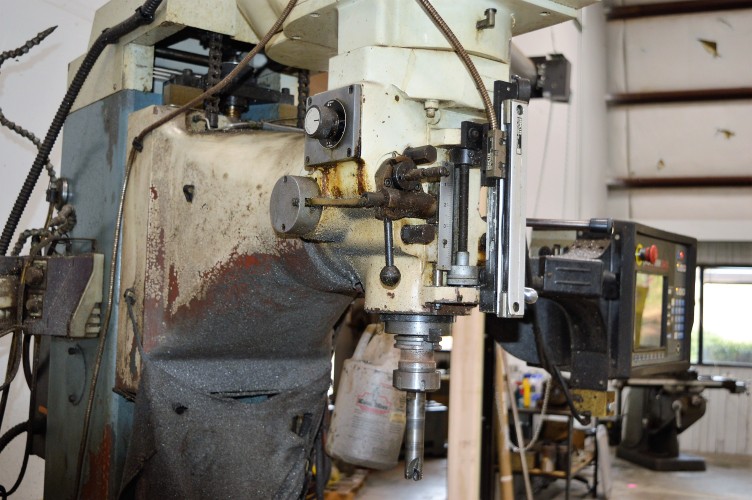

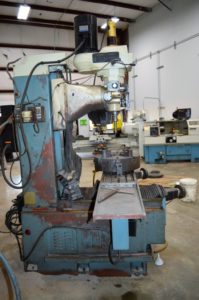

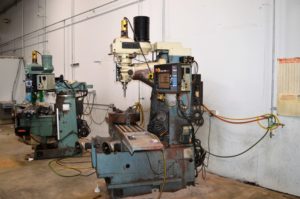

Southwestern Industries TRAK DPM SX5P 3 Axis CNC Bed Mill
Stock #: CL-171208
$20,000.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info:
Stock #: CL-171208
Location: Toana, VA 23168
Brand: Southwestern Industries
Model: Trak DPM SX5P
Approx. Shipping Weight: Local Pick-up Only
Approx. Shipping Dimensions: Local Pick-up Only
Skidding Fee: Skidding Unavailable
Loading Fee: Rigging Required
Specifications:
Table Size: 12″ x 50″
Longitudinal Travel: 40″
Cross Travel: 20″
Ram Travel: 23.5″
Quill Travel: 5″
Spindle Speed Range: 40-600, 300-5000
Spindle Motor: 5 HP
Spindle Taper: 40 Taper
Quill Diameter: 3.9375″
Spindle Center to Column Face: 20″
Max Spindle Nose to Table: 23.5″
Drilling Max Capacity: 1″ Diameter
Tapping Max Capacity: 1″
Rapid Traverse X, Y, Z: 150 IPM
Milling Max Capacity: 5 inch^3/min
Voltage: 220V/3PH/17.5AMP
Equipped With:

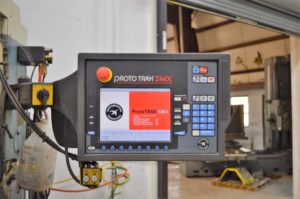

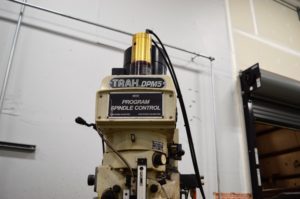

2010 Proto TRAK SMX Controller, Auto Lube System, Program Spindle Control, Torque-Rite Power Draw Bar
Additional Info:
Machine is under power and can be demoed upon request.
