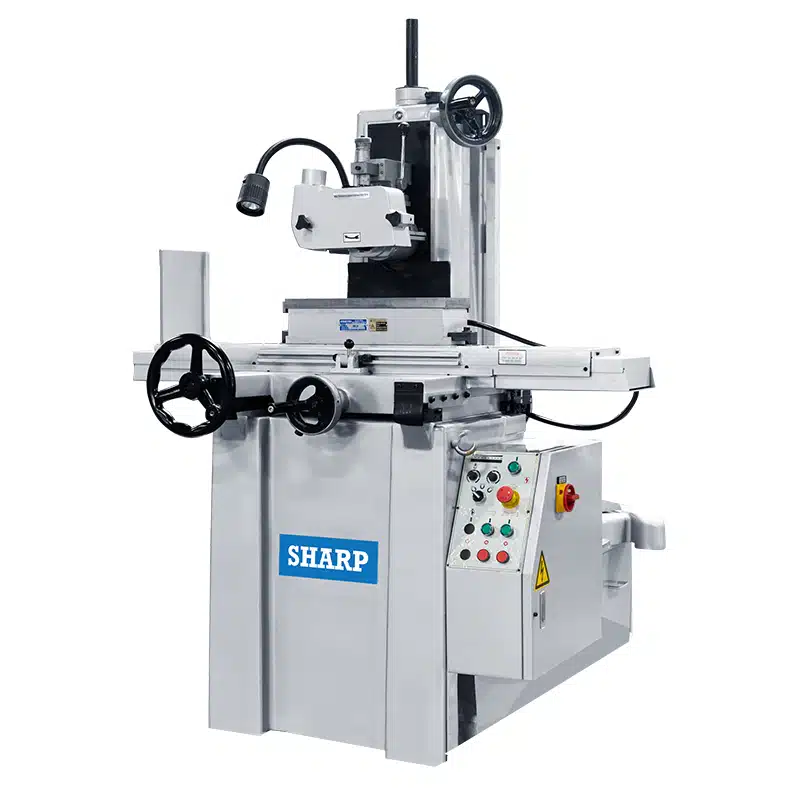

Sharp SG-618 Surface Grinder

Stock #: Sharp-SG-618

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Comments

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

UTM Campaign

UTM Source

UTM Medium

UTM Term

UTM Content

Product Description

General Info

Stock #: Sharp-SG-618
Brand: Sharp
Model: SG-618
Approx. Shipping Weight: 1,540 lbs. / 698.53 Kg
Approx. Shipping Dimensions: 4.59′ x 3.28′ x 5.91′ / 1.4m x 1.0m x 1.8m

Specifications

Max Grinding Length: 18.5 in. / 470 mm
Max Grinding Width: 6.3 in. / 160 mm
Max Distance Table to Spindle Center (Center Height): 15.7 in. / 400 mm
Table Size: 6 x 18.3 in. / 150 x 465 mm
Longitudinal Travel: 18.9 in. / 480 mm
Cross Travel: 7 in. / 177 mm
Longitudinal Feed of Table – Hand Feed Per Revolution: 4.2 in. / 106.68 mm
Cross Feed of Saddle – Hand Feed Per Revolution: 0.2 in. / 5.08 mm
Cross Feed of Saddle – Hand Wheel Graduation: 0.001 in. / 0.0254 mm
Vertical Feed of Wheel – Hand Feed Per Revolution: 0.05 in. / 1.27 mm
Vertical Feed of Wheel – Hand Wheel Graduation: 0.0001 in. / 0.00254 mm
Grinding Wheel Outside Diameter: 8 in. / 203.2 mm
Grinding Wheel Bore: 1.25 in. / 31.7 mm
Grinding Wheel Width: 0.63 in. / 16.002 mm
Spindle Motor: 2 HP
Power Consumption (220V): 1.5KVA / 4 amps
Floor Area (W x D x H): 55.1 x 39.4 x 70.9 in. / 1400 x 1000 x 1800 mm
Approximate Weight: 1,540 lbs. / 698.53 Kg

Equipped With

Standard Accessories: Grinding wheel (8” x 0.63” x 25”), Auto-lube system, Wheel adapter/flange, Wheel balancing arbor, Work light, Diamond dresser, Tool kit, Wired 220V or 440V please specify
Optional Accessories: Permanent magnetic chuck, Electro magnetic chuck, Parallel dresser, Balance stand, Extra wheel adapter (flange), Coolant system (12 gal) w/ splash guard-sg-004, Splash guard for coolant, Dust collector
