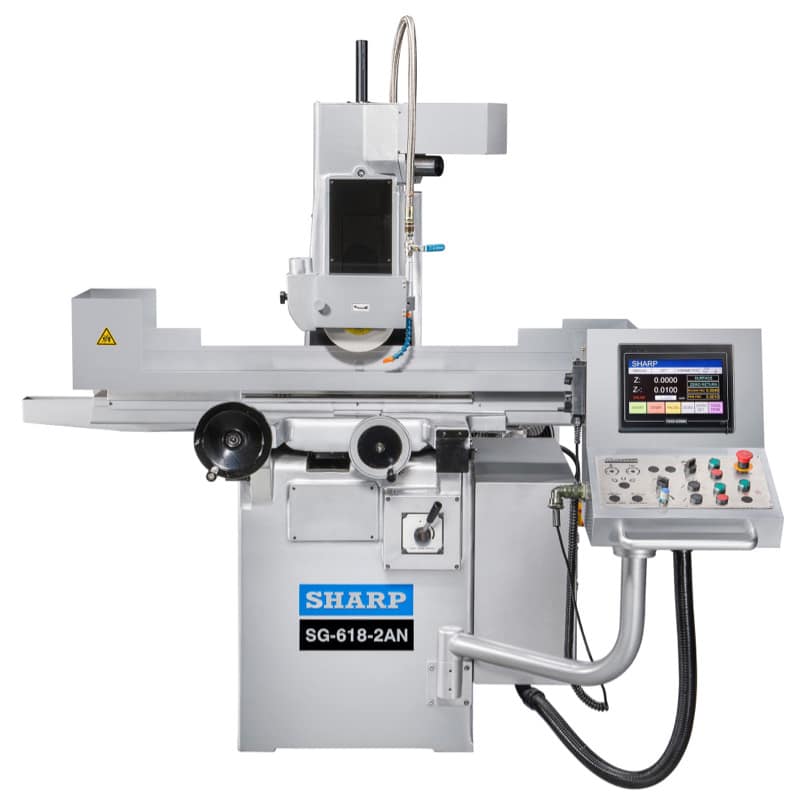

Sharp SG-618-2AN Surface Grinder
Stock #: Sharp-SG-618-2AN
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Sharp-SG-618-2AN
- Brand: Sharp
- Model: SG-618-2AN
- Approx. Shipping Weight: 2,100 lbs. / 952.5 Kg
- Approx. Shipping Dimensions: 6.16′ x 6.18′ x 3.63′ / 1.87m x 1.88m x 1.10m
Specifications
- Max Grinding Length: 19.7 in. / 500.38 mm
- Max Grinding Width: 5.9 in. / 149.8 mm
- Max Distance Table to Spindle Center (Center Height): 16 in. / 406.4 mm
- Table Size: 6 x 18.3 in. / 152.4 x 464.8 mm
- Longitudinal Travel: 21.6 in. / 548.6 mm
- Cross Travel: 7 in. / 177.8 mm
- Hand Feed per Revolution (Longitudinal Feed of Table): 2.7 in. / 68.58 mm
- Hydraulic Feed (Longitudinal Feed of Table): 3.3 – 83 fpm / 1,005.84 – 25,298 mm
- Hand Feed Per Revolution (Cross Feed of Saddle): 0.02 in. / 0.508 mm
- Hand Wheel Graduation (Cross Feed of Saddle): 0.001 in. / 0.0254 mm
- Intermittent Feed (Cross Feed of Saddle): 0.006 – 0.4 in. / 0.152 – 10.16 mm
- Continuous Traverse Feed (Cross Feed of Saddle): 47 ipm / 1,193.8 mm/min
- Hand Feed Per Revolution (Vertical Feed of Wheel): 0.05 in. / 1.27 mm
- Hand Wheel Graduation (Vertical Feed of Wheel): 0.0001 in. / 0.00254 mm
- Grinding Wheel Outside Diameter: 8 in. / 203.2 mm
- Grinding Wheel Bore: 1.25 in. / 31.75 mm
- Grinding Wheel Width: 0.63 in. / 16.002 mm
- Spindle Motor: 2 HP / 1 KW
- Hydraulic Table Motor: 1 HP / 0.75 KW
- Power Consumption (220V): 2 KVA / 5 amp
- Power Consumption (440V): 2 KVA / 2.5 amp
Equipped With
Standard Accessories: NC spindle downfeed system, Grinding wheel, Kanetsu chuck with coolant system (12 gal) and splash guard, Auto-lube system, Wheel adapter/flange, Wheel balancing arbor, Work light, Diamond dresser, Tool kit, Wired 220V or 440V, Fully loaded special package available
Optional Accessories: Permanent magnetic chuck (fine pole), Electro-magnetic chuck (fine pole) w/ control, Overhead manual parallel dresser, Balancing stand, Extra wheel adapter (flange), Dust collector, Coolant system w/paper filter (25 gal) & magnetic separator, 220V/440V, Digital Readout System, CE mark
