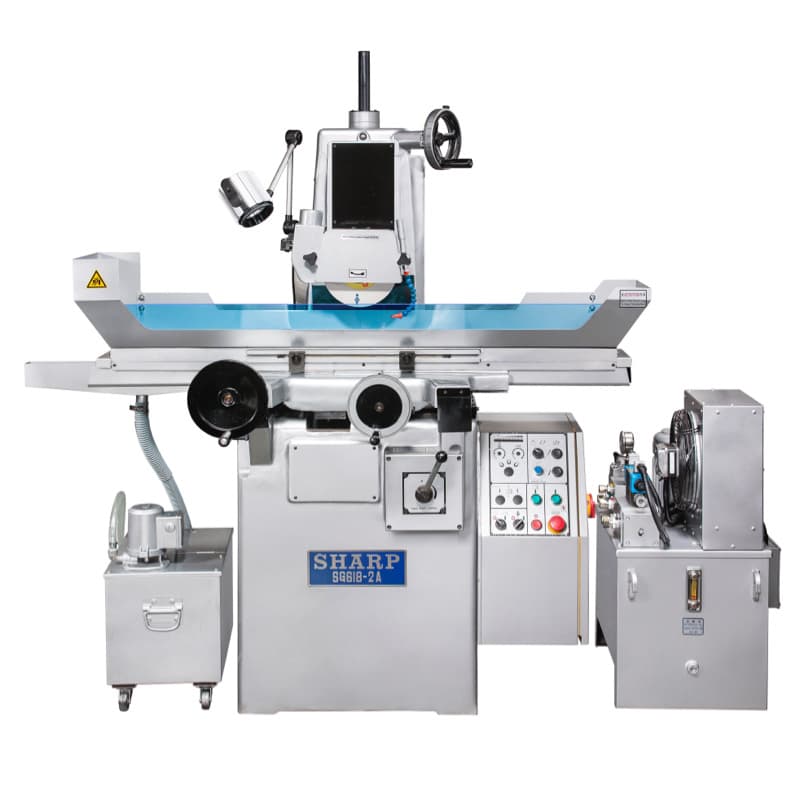

Sharp SG-618-2A Surface Grinder

Stock #: Sharp-SG-618-2A

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Comments

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

UTM Campaign

UTM Source

UTM Medium

UTM Term

UTM Content

Product Description

General Info

Stock #: Sharp-SG-618-2A
Brand: Sharp
Model: SG-618-2A
Approx. Shipping Weight: 2,100 lbs. / 952.5 Kg
Approx. Shipping Dimensions: 6.91′ x 4.25′ x 5.91′ / 2.10 x 1.29 x 1.80 M

Specifications

Max Grinding Length: 19.7 in. / 500.38 mm
Max Grinding Width: 5.9 in. / 149.8 mm
Max Distance Table to Spindle Center (Center Height): 16 in. / 406.4 mm
Table Size: 6 x 18.3 in. / 152.4 x 464.8 mm
Longitudinal Travel: 21.6 in. / 548.6 mm
Cross Travel: 7 in. / 177.8 mm
Longitudinal Feed Of Table – Hand Feed Per Revolution: 2.7 in. / 68.58 mm
Longitudinal Feed Of Table – Hydraulic Feed: 3.3 – 83 fpm / 83.82 – 2,108.2 mm
Cross Feed Of Saddle – Hand Feed Per Revolution: 0.02 in. / 0.508 mm
Cross Feed Of Saddle – Hand Wheel Graduation: 0.001 in. / 0.0254 mm
Cross Feed Of Saddle – Intermittent Feed: 0.006 – 0.4 in. / 0.1524 – 10.16 mm
Cross Feed Of Saddle – Continuous Traverse Feed: 47 ipm / 47 ipm
Vertical Feed of Wheel – Hand Feed Per Revolution: 0.05 in. / 1.27 mm
Vertical Feed of Wheel – Hand Wheel Graduation: 0.0001 in. / 0.00254 mm
Grinding Wheel Outside Diameter: 8 in. / 203.2 mm
Grinding Wheel Bore: 1.25 in. / 31.75 mm
Grinding Wheel Width: 0.63 in. / 16.002 mm
Spindle Motor: 2 HP / 1 KW
Hydraulic Table Motor: 1 HP / 0.75 KW
Power Consumption (220V): 2 KVA / 5 amp
Power Consumption (440V): 2 KVA / 2.5 amp

Equipped With

Standard Accessories: Grinding wheel, Kanetsu chuck with coolant system (12 gal) and splash guard, Auto-lube system, Wheel adapter/flange, Wheel balancing arbor, Work light, Diamond dresser, Tool kit, Wired 220V or 440V, Fully loaded special package available
Optional Accessories: Permanent magnetic chuck (fine pole), Electro-magnetic chuck (fine pole) w/ control, Overhead manual parallel dresser, Balancing stand, Extra wheel adapter (flange), Dust collector, Coolant system w/paper filter (25 gal) & magnetic separator, 220V/440V, Digital Readout System, CE mark, Optional overhead dresser greatly enhance the process in dressing the wheel. Automatic overhead dresser is also available as an option.
