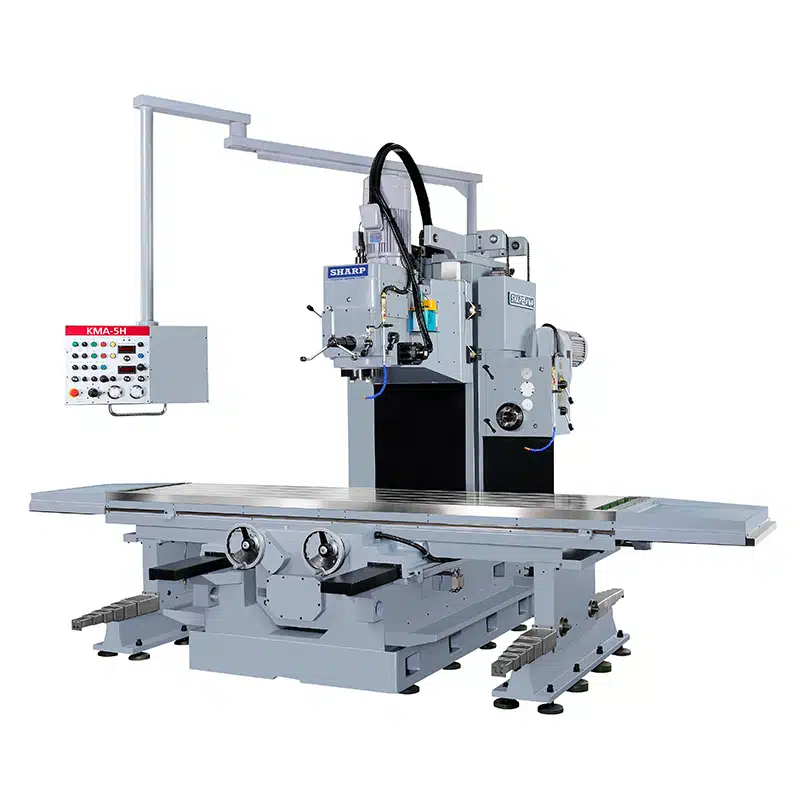

Sharp KMA-5H Bed Type Vertical / Horizontal Milling Machine

Stock #: Sharp-KMA-5H

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Phone

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: Sharp-KMA-5H
Brand: Sharp
Model: KMA-5H
Approx. Shipping Weight: 28,650 lbs. / 12,995.42 Kg
Approx. Shipping Dimensions: 18.68′ x 10.08′ x 10.5′ / 5.69m x 3.07m x 3.20m

Specifications

Table Size: 106.3 x 29.5 in. / 2700.02 x 749.3 mm
T-slots (No., Size, Pitch): 5 x 0.75 x 5.9 in. / 5 x 19.05 x 149.86 mm
Longitudinal Travel (X): 78.75 in. (99 in. opt.) / 2000.25 mm (2514.6 mm opt.)
Cross Travel (Y): 31.5 in. / 800.1 mm
Vertical Head Travel (Z): 27.56 in. / 700 mm
Spindle Center to Column: 31.5 in. / 800.1 mm
Spindle Nose to Table: 2.75 – 30.3 in. / 69.85 – 769.62 mm
Spindle Speeds (Vertical): 45 – 1500 rpm
No. of Spindle Speeds (Vertical): Variable
Spindle Nose (Vertical): NST #50
Spindle Speeds (Horizontal): 40 – 1450 rpm
No. of Spindle Speeds (Horizontal): 12 steps
Spindle Nose (Horizontal): NST #50
Horizontal Head Travel (Up/Down): 25.5 in. / 647 mm
Longitudinal Feeds: 1.10 – 39.37 in./min / 28 – 1000 mm/min
Longitudinal Rapids: 122.04 in./min / 3100 mm/min
Cross Feeds: 1.10 – 39.37 in./min / 28 – 1000 mm/min
Cross Rapids: 122.04 in./min / 3100 mm/min
Vertical Head Feeds: 39 ipm
Horizontal Rapids: 150 ipm / 3800 mm/min
Vertical Spindle Motor: 17.5 HP / 11 KW
Horizontal Spindle Motor: 7.5 HP / 5.59 KW
Table Feed and Rapid Motor: 4.7 HP / 3.50 KW
Coolant Motor: 0.16 HP / 0.11 KW
Voltage: 220V/440V
Phase: 3 phase

Equipped With

Standard Accessories: Coolant system, Auto lubrication system, Draw-in bolt (1 pc), Tool box, Wired 220V or 440V
Optional Accessories: Power drawbar w/ foot pedal control, 6 in. “KURT” vise with swivel base D688, Halogen work light, Outboard support of table to increase longitudinal travel
