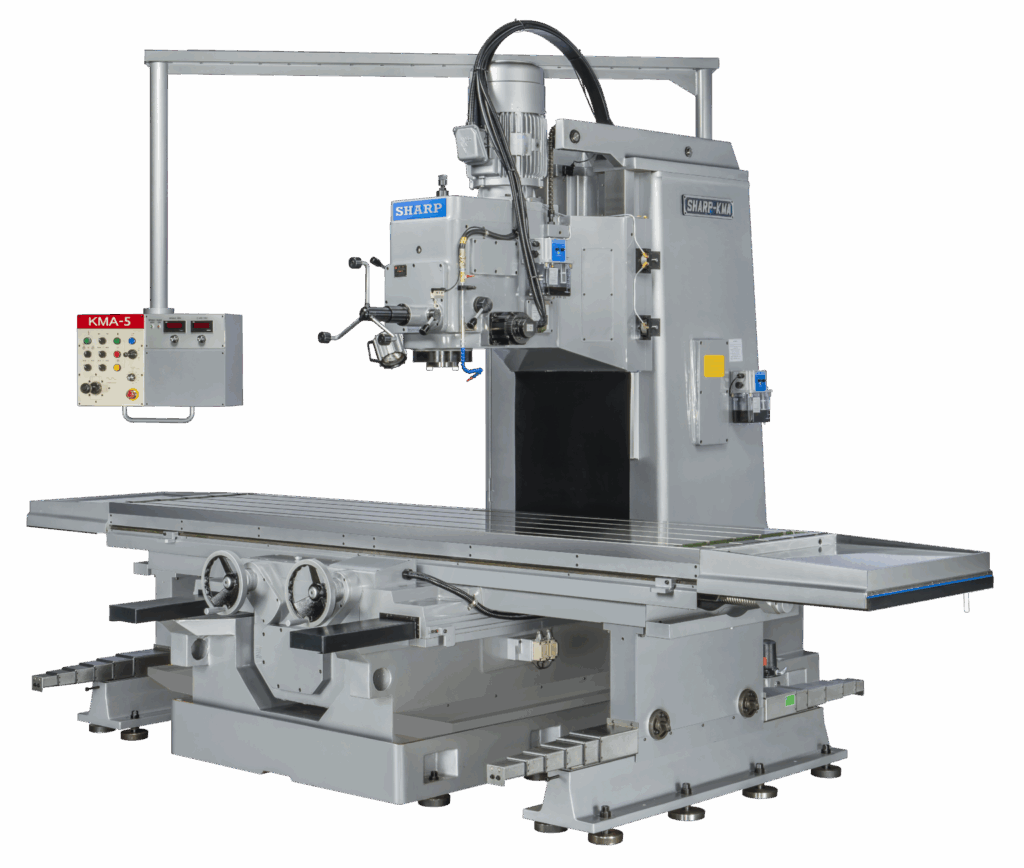

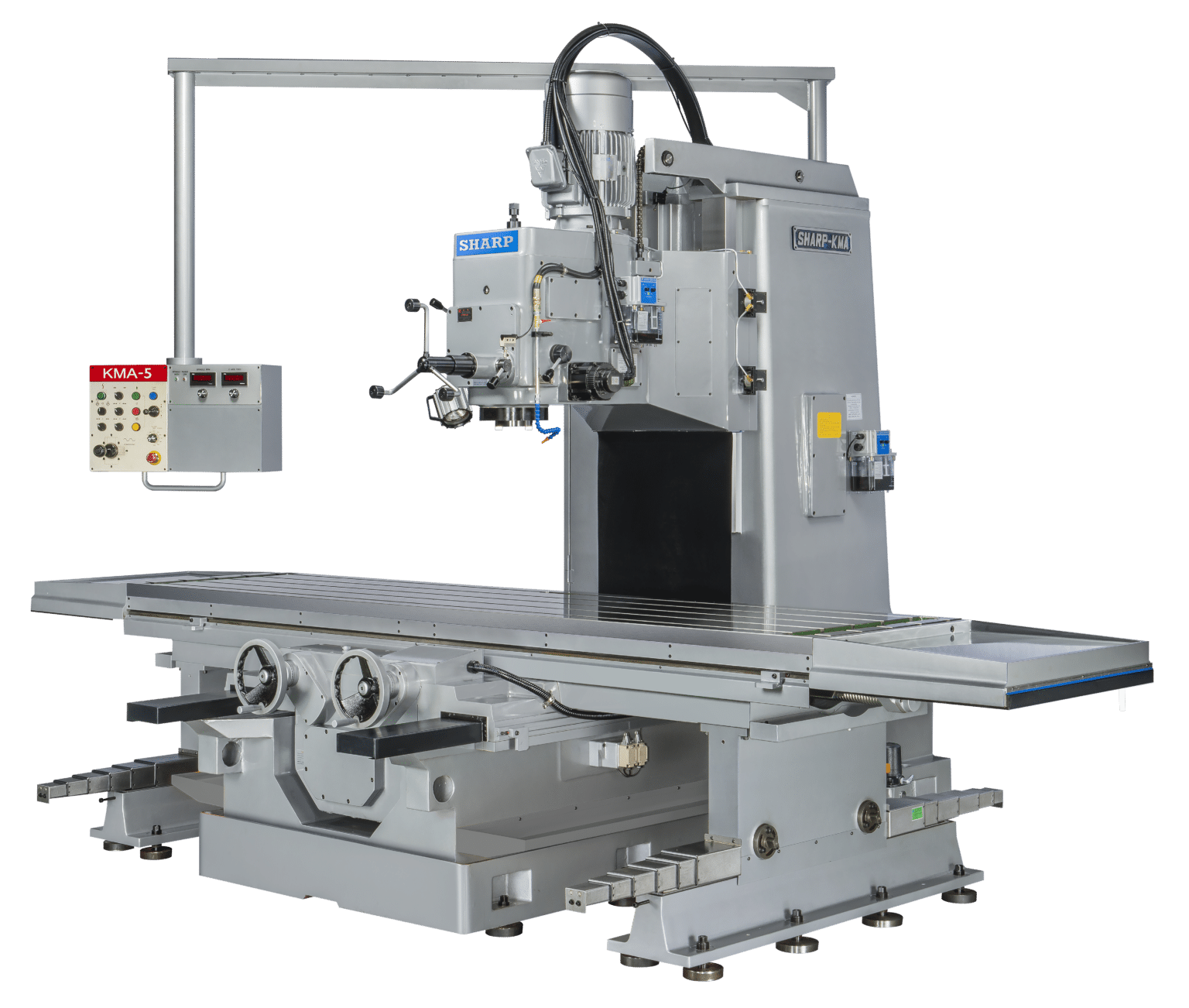

Sharp KMA-5 Bed Type Vertical Milling Machine

Stock #: Sharp-KMA-5

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Facebook

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

UTM Campaign

UTM Source

UTM Medium

UTM Term

UTM Content

Product Description

General Info

Stock #: Sharp-KMA-5
Brand: Sharp
Model: KMA-5
Approx. Shipping Weight: 26,000 lbs. / 11,793.40 Kg
Approx. Shipping Dimensions: 18.68′ x 10.08′ x 9.58′ / 5.69m x 3.07m x 2.91m

Specifications

Table Size: 106.3 x 29.5 in. / 2700.02 x 749.3 mm
T-slots (No., Size, Pitch): 5 x 0.75 x 5.9 in. / 5 x 19.05 x 149.86 mm
Longitudinal Travel (X): 78.74 in. / 2,000 mm
Cross Travel (Y): 31.5 in. / 800.1 mm
Vertical Quill Travel (Z): 27.56 in. / 700.02 mm
Spindle Nose: NST #50
Spindle Speeds: 45 – 1,500 rpm
No. of Spindle Speeds: Variable
Spindle Center to Column: 31.5 in. / 800.1 mm
Spindle Nose to Table: 2.75 – 30.3 in. / 69.85 – 769.62 mm
Longitudinal Feeds: 1.1 – 39.5 ipm / 27.94 – 1,003.3 mm/min
Longitudinal Rapids: 122 ipm / 3,098.8 mm/min
Cross Feeds: 1.1 – 39.5 ipm / 27.94 – 1,003.3 mm/min
Cross Rapids: 122 ipm / 3,098.8 mm/min
Vertical Head Feeds: 11.81 in. / 299.72 mm
Spindle Motor: 17.5 HP / 11 KW
Voltage: 220V/440V
Phase: 3 phase

Equipped With

Standard Accessories: Coolant system, Auto lubrication system, Draw-in bolt (1 pc), Tool box, Wired 220V or 440V
Optional Accessories: Power drawbar w/ foot pedal control, 6 in. “KURT” vise with swivel base D688, Halogen work light, 30 in. travel in z axis in lieu of 27.5 in.
