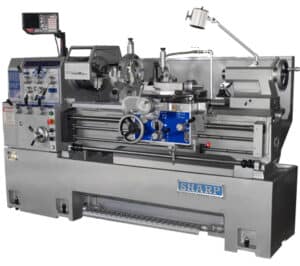

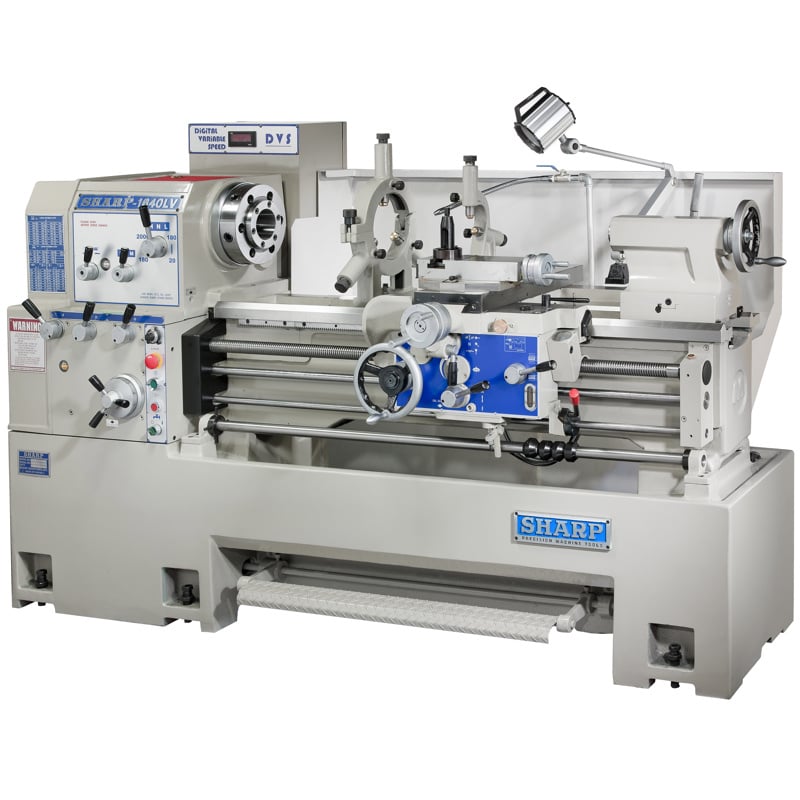

Sharp 1860LV Precision Lathe

Stock #: Sharp-1860LV

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Instagram

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: Sharp-1860LV
Brand: Sharp
Model: 1860LV
Approx. Shipping Weight: 4,500 lbs. / 2,041.1 Kg
Approx. Shipping Dimensions: 8.69′ L x 2.65′ W x 4′ H / 2.65m x 0.80m x 1.21m

Specifications

Swing Over Bed: 18 in. / 457 mm
Swing Over Cross Slide: 10.2 in. / 259.08 mm
Swing Over Gap: 27.12 in. / 688.8 mm
Gap Width (In Front Of Face Plate): 11.75 in. / 298.4 mm
Distance Between Centers: 60 in. / 1524 mm

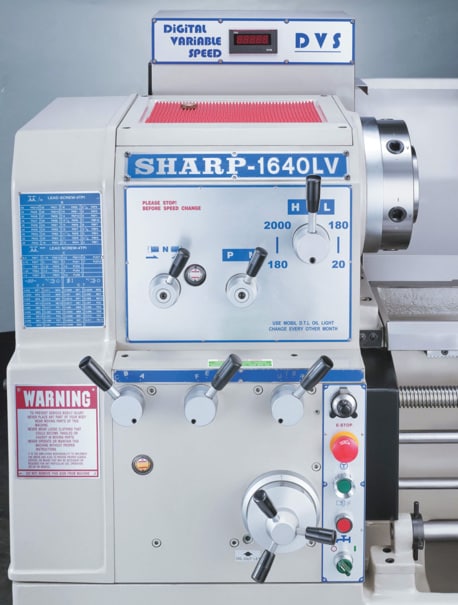

Spindle Speed: 20 – 2000 RPM (variable, high: 235-2000 rpm, low: 20-170 rpm, 12 speeds)

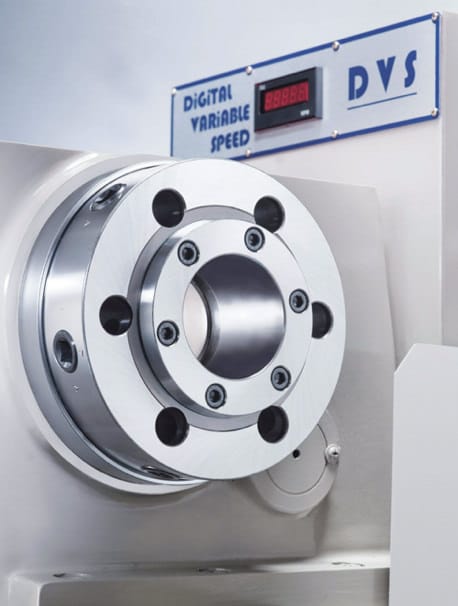

Spindle Nose: D1-8 Camlock
Spindle Bore: 3.06 in. / 77.7 mm
Threads (Inch/Metric): 4 – 56 tpi / 0.5 – 7 mm (36 / 17)
Modular Threads: Not provided
Diametral Pitch Threads: 0.157 – 2.20 in. / 4 – 56 mm (36)
Longitudinal Feeds: 0.002 – 0.032 in./rev / 0.05 – 0.82 mm/rev
Cross Feeds: 0.0001 – 0.0094 in./rev / 0.02 – 0.4 mm/rev
Leadscrew Pitch, Diameter: 4 tpi / 1.37 in.
Cross Slide Travel: 10.8 in. / 275 mm
Compound Travel: 4.9 in. / 124.4 mm
Compound Width: 5 in. / 127 mm
Bed Length: 79 in. / 2006.6 mm
Bed Width: 11.75 in. / 298.4 mm
Quill Diameter: 2.68 in. / 68.07 mm
Quill Travel: 5.5 in. / 139.7 mm
Quill Center Taper: MT #4
Spindle Motor: 7.5 HP / 5.59 KW
Voltage: 230V/460V
Phase: 3 phase
Power Consumption (230V): 8 KVA / 25 amps
Power Consumption (460V): 8 KVA / 12.5 amps

Equipped With

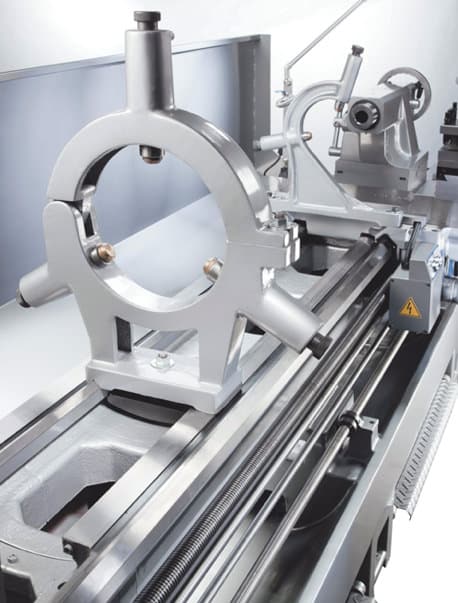

Standard Accessories: 3-jaw 10″ chuck, 12” face plate, steady rest, removable gap, back plate, coolant system, American tool post, full length splash guard, center sleeves, dead center, tool kit, wired 220V or 440V

Optional Accessories: 3-jaw 12″ chuck, 4-jaw 12″ chuck, chuck guard, tool guard (at front of compound slide with limit switch), lead screw cover (full length, accordion style), safety cover at end of spindle, UL or CSA electrical components, UL spindle motor, CSA pump motor
