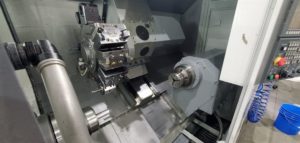

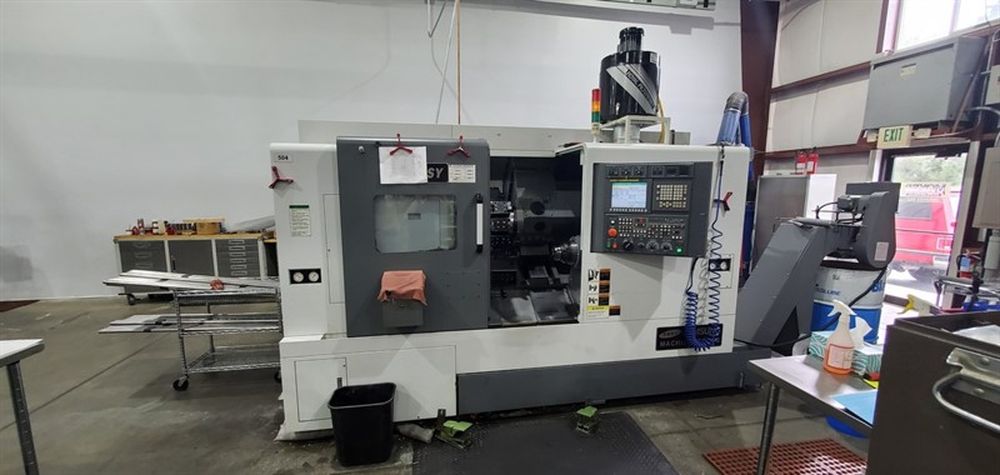

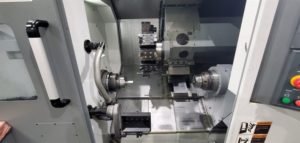

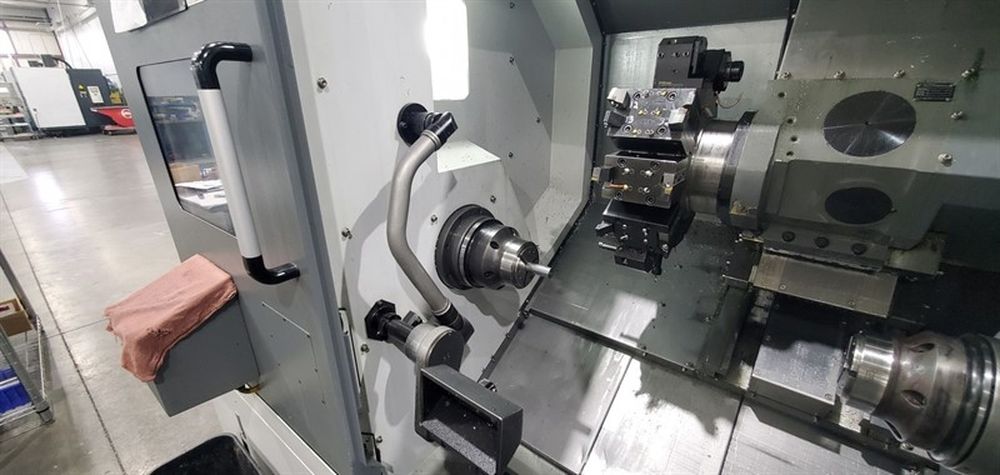

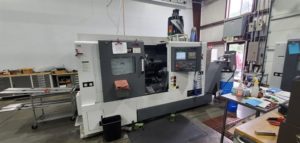

Samsung SL 25ASY CNC Lathe w/ Milling, Y Axis, Sub Spindle

Stock #: CS-D-220058

Out of stock

  • Stock #: CS-D-220058
  • Brand:

Out of stock

  • Stock #: CS-D-220058
  • Brand:

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

  • Hidden
  • Hidden
  • Hidden
  • Hidden
  • Hidden

Product Description

General Info

  • Stock #: CS-D-220058
  • Location: Mid West
  • Brand: Samsung
  • Model: SL 25ASY
  • Year: 2013
  • Approx. Shipping Weight: 12,800 LBS.
  • Approx. Shipping Dimensions: 15′ L x 7′ W x 7′ H
  • Crating Fee: Unavailable
  • Loading Fee: Rigging Required

Specifications

  • Swing Over Bed: 25.6″
  • Turning Diameter: 14.17″
  • Turning Length: 20.05″
  • Distance Between Spindles: 23″
  • Spindle Nose (Main, Sub): A2 – 6″, A 2 – 5
  • Spindle Horsepower (Main, Sub): 20, 10 HP
  • X – Axis Travel: 9.3″
  • Z – Axis Travel: 22.8″
  • Y – Axis Travel: 4″
  • C – Axis Indexing 1, 2: .001, .001
  • W – Axis Travel Sub Spindle: 22.8″
  • Rapid Traverse Rates X: 709 IPM
  • Rapid Traverse Rates Y: 472 IPM
  • Rapid Traverse Rates Z: 945 IPM
  • Turret Tool Positions: 12
  • Turret Rotary Tool Speeds: 5000 RPM BMT 65
  • Turret Rotary Tool Horse Power: 7.5 HP

Equipped With

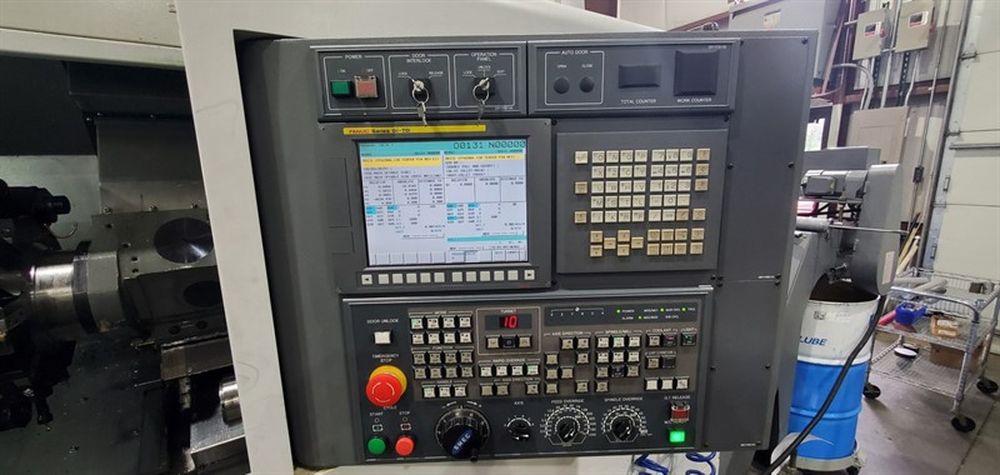

8″ Jaw Hydraulic chuck on Main Spindle, 6″ 3 Jaw Hydraulic Chuck on Sub-Spindle, Bar Feed interface, Parts Catcher and Bucket, Chip Conveyor, Fanuc 0I-TD Controller, Tool Touch-off Sensor

Additional Info

All specifications subject to buyer verification.

This machine is being sold from our client’s facility and is sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.
