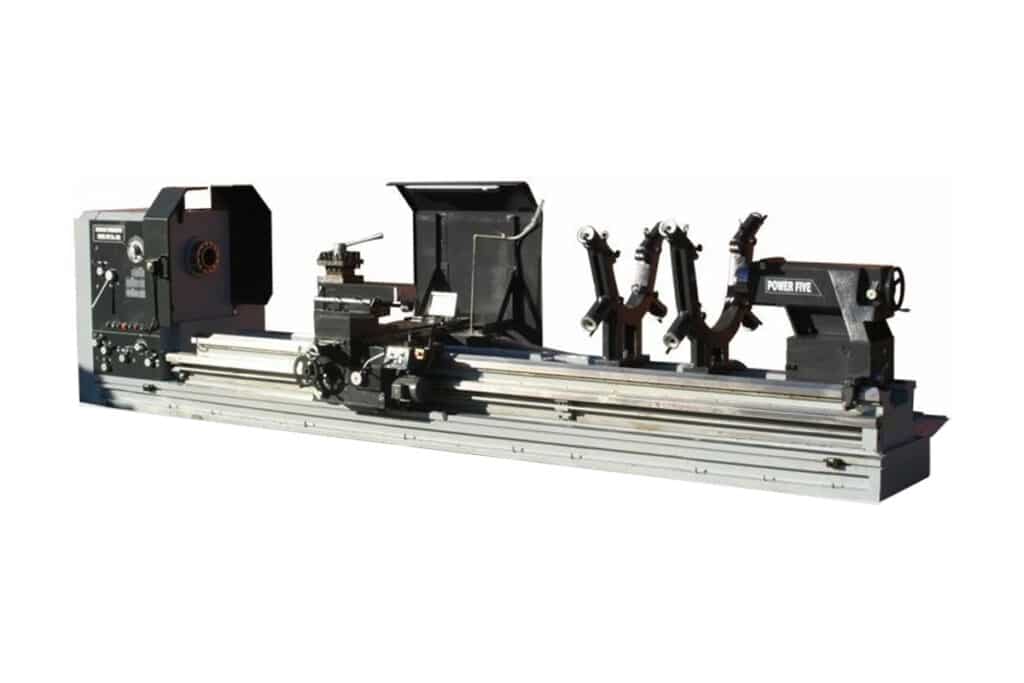

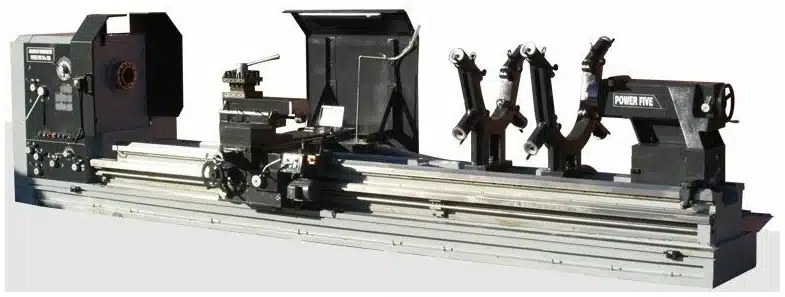

Republic Lagun Power Five Big Bore Lathe

Stock #: Lagun-PowerFive

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Facebook

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: Lagun-PowerFive
Brand: Republic Lagun
Model: Power Five

Specifications

Swing Over Bed: 45″/50″/60″/70″
Swing Over Cross Slide: 32″/37″/47″/57″
Distance Between Centers: 60″-800″
Spindle Speed RPM Range: 7-700 RPM / Varies Sizes
Hole Through Spindle: 6.02″ +
Spindle Nose: A2-15
Motor HP: 30 HP (40 HP Optional)
Disk Clutch Headstock: No
Inch Thread Range (TPI): 1/2-28 TPI
Metric Thread Range: 1-56 mm
Tailstock Spindle Taper: Not Specified
Digital Threading Control: No
CNC or Manual: Manual

Features

One piece (monolithic) bed, floor type casting, Three way design, 2 “Vee” ways on top plus 1 extra front lateral way for more apron-carriage support, All three ways are hardened and ground, Forged steel spindle with opposed taper roller bearings, Dual chucks are optionally available, Hardened and ground gears and shafts throughout, Hardened and ground cross slide ways and screws, Electromagnetic spindle brake, Universal inch / metric gear box, totally enclosed, Automatic four speed electronic variable speed, Spindle Bore standard 9” spindle nose A2-15. Bores from 10” up to 32” are optionally available, Six way rapid traverse and power feed to top slide, Thread chasing dial, Overload safety device on apron, Dual voltage motor and controls, standard 50 HP, optional 75 HP, Retractable leadscrew / feed rod support on models over 120″ cc, One piece stainless steel lead screw protection cover, Rear chip conveyor and full length rear splash guard is optionally available, Safety chuck guard with micro switch and jog button is standard
