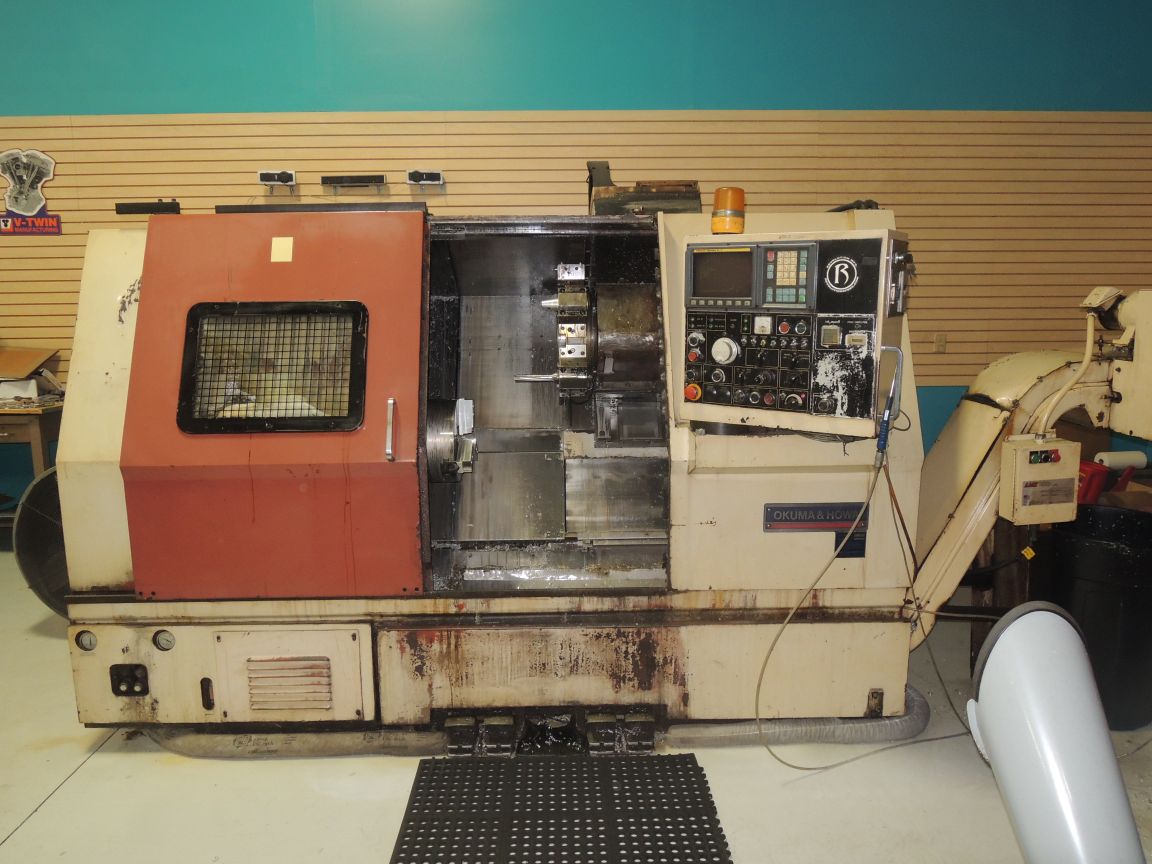

Okuma Howa ACT-4 CNC Lathe
$1.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info:
Stock #: CL-B-161009
Location: Marietta, GA
Brand: Okuma Howa
Model: ACT-4
Serial #: 01601
Year: 1989
Approx. Shipping Weight: 15,400 Lbs.
Approx. Shipping Dimensions: 13′ L x 6.5′ W x 6.5′ H
Loading Fee: $1,000 (Rigging Required)
Specifications:
Horsepower: 30
Swing Over Bed: 21.25″
Distance Between Center: 29.52″
Max Turning Diameter: 15.35″
Max Turning Length: 28.74″
Spindle Nose: A2-8
Hole Through Spindle: 3.03″
Chuck Draw Tube ID: 2.61″
Number of Speed Ranges: 2
Low Range Speeds: 35-1050 RPM
High Range Speeds: 35-3500 RPM
Turret Configuration: Drum Type 12
Max Diameter of Boring bar: 1.75″
Tailstock Body Travel: 18.8″
Tailstock Quill Diameter: 3.93″
Tailstock Quill Taper: MT#5
Equipped With:
Fanuc Series O-T Controller, Chip Conveyor, 12″ 3-Jaw Hyd. Chuck and Programmable Tailstock
Additional Info:
Machine is currently under power and can be demoed upon request.
This machine is being sold from our client‰Ûªs facility and is being sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.
Seller Contact Info:
The Equipment Hub
770-621-0495
4601 Lewis Rd.
Stone Mountain, GA 30083
