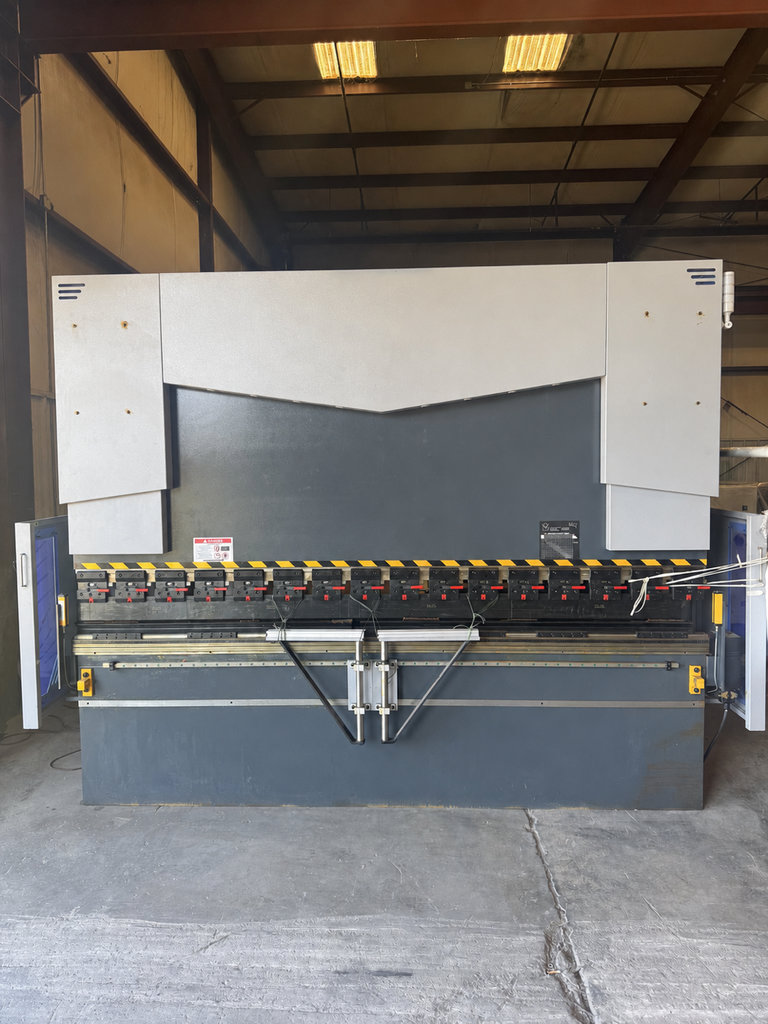

Jay-Shree KPBF-1632 175 Ton x 120″ 3+1 Axis CNC Hydraulic Press Brake (2026)

Stock #: 141260013

$59,500.00

See Product Details

Business Financing Available

  • Stock #: 141260013
  • Brand: Jay-Shree

Business Financing Available

  • Stock #: 141260013
  • Brand: Jay-Shree

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Provide Shipping Quote
Provide Financing Options
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Product Description

General Info

  • Stock #: 141260013
  • Location: TN
  • Brand: Jay-Shree
  • Model: KPBF-1632
  • Serial #: 840
  • Year: 2026
  • Approx. Shipping Weight: 22,000 LBS.
  • Approx. Shipping Dimensions: 158″ L x 67″ W x 108″ H
  • Skidding Fee: Skidding Unavailable

Specifications

  • Tonnage: 175 Tons
  • Maximum Bending Length: 120″
  • Distance Between Uprights: 106″
  • Throat Depth: 13.7″
  • Ram Stroke: 7.87″
  • Maximum Open Height: 17.71″
  • Ram Rapid Travel Speed: 3.93″ / sec
  • Ram Rapid Retract Speed: 3.14″ / sec
  • Backgauge Travel: 24″
  • Motor HP: 7.5HP
  • Hydraulic Oil Capacity: 132 Gallons
  • Electrical: 440V / 3PH

Equipped With

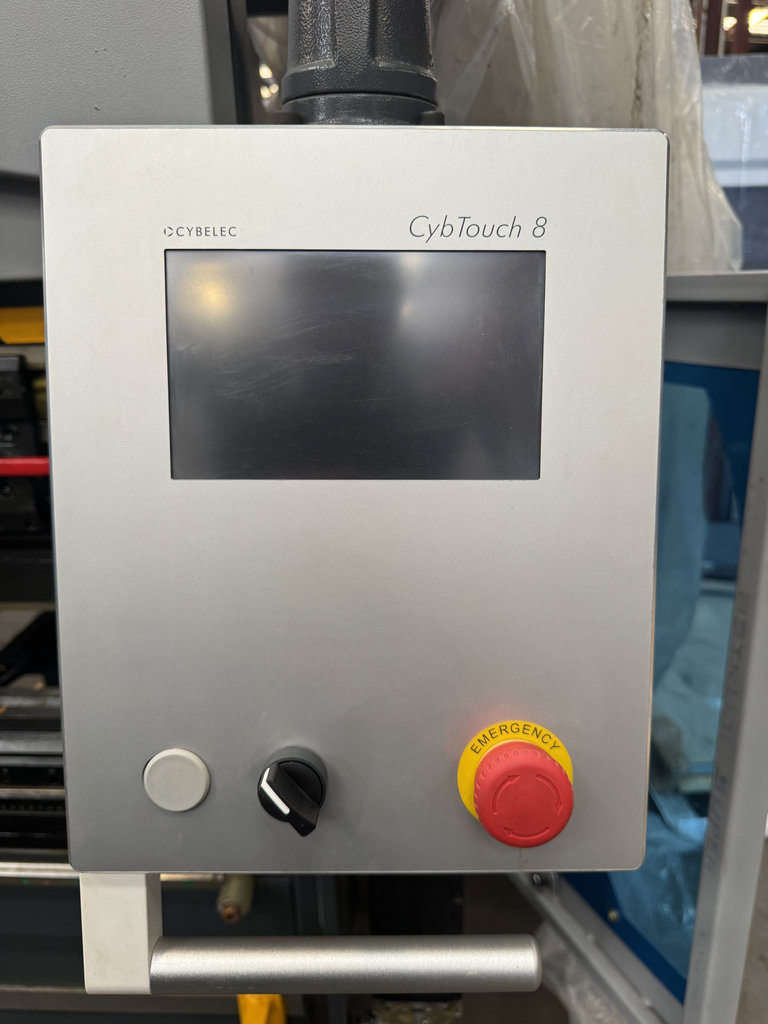

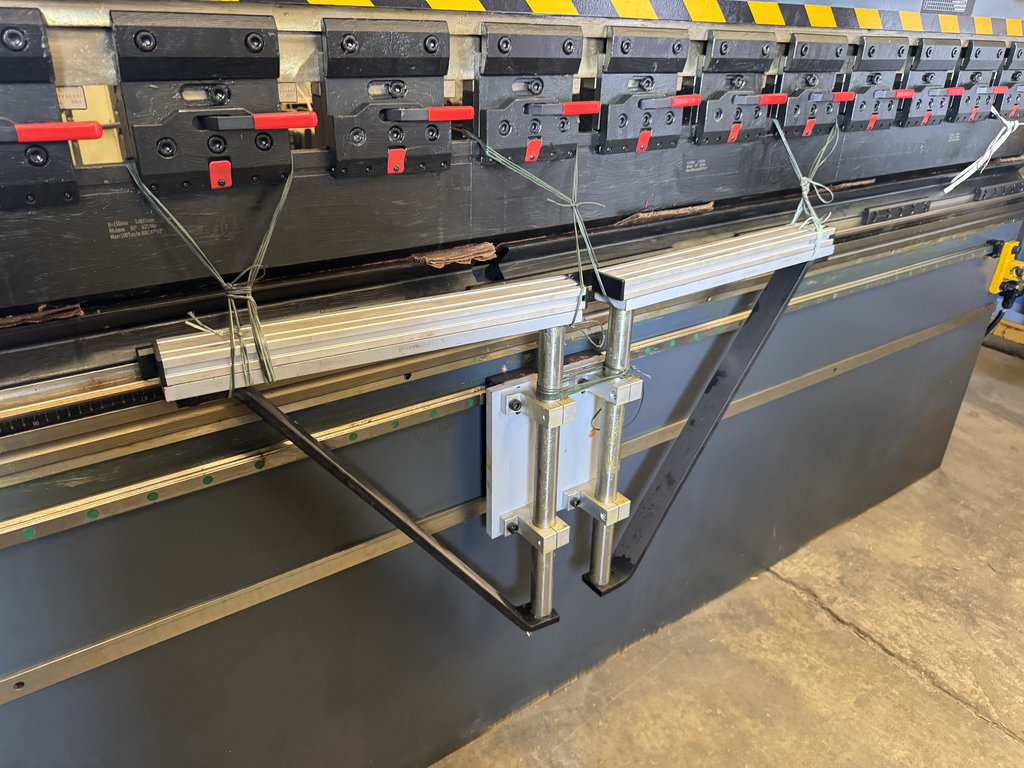

Cyblec Cybtouch 8 CNC Control (8″ high-resolution screen), Fully Synchronized Servo 3+1 Axis System (Y1, Y2, X + Motorized Crowning), Linear Glass Scale Encoders for High Accuracy, Heavy-duty Forged Hydraulic Cylinders, Adjustable Dwell Timing, Gooseneck Punch & Multi-Opening Die (10-gauge mild steel), Quick-Action Ram Clamps, Front Light Curtains for Safety, Linear Guide Rail for Back Gauge for High Accuracy
