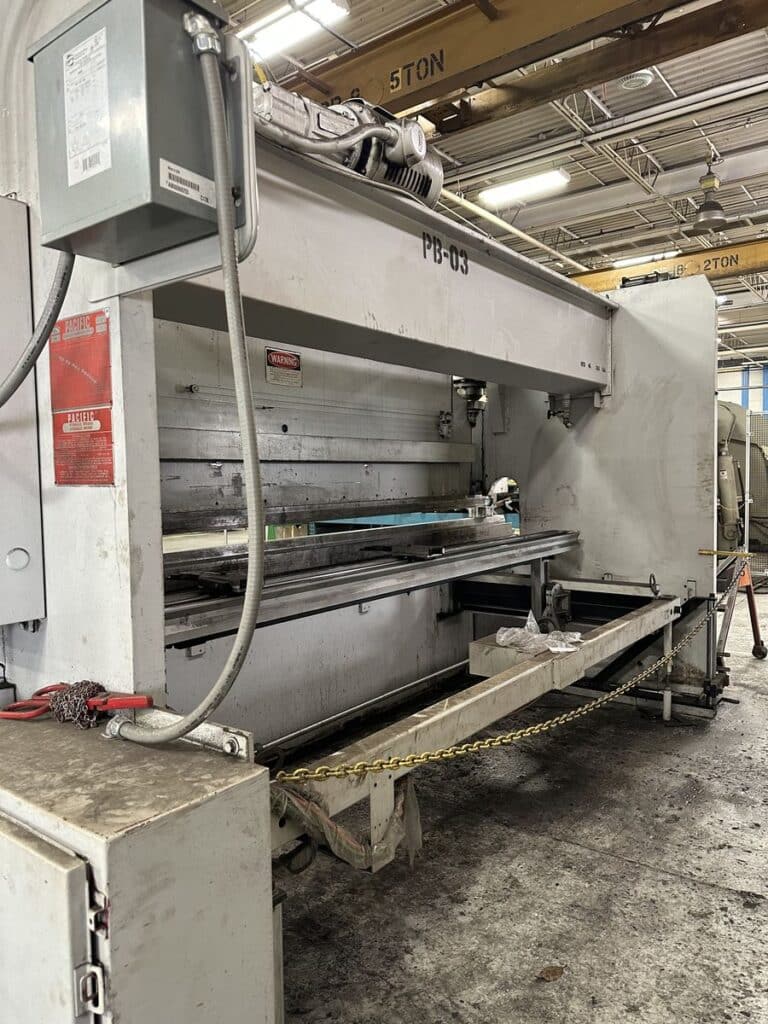

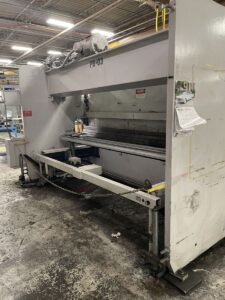

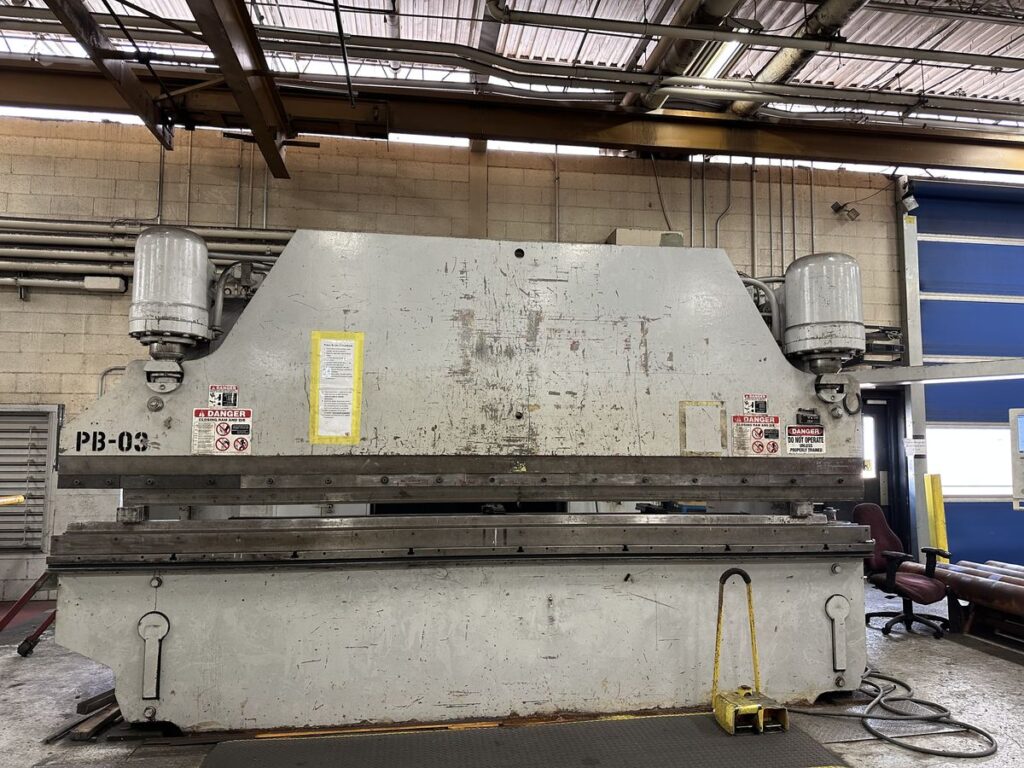

Pacific J165-14 165 Ton x 14′ CNC Press Brake, 15′
Stock #: 130240032
$29,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
Product Description
General Info
- Stock #: 130240032
- Location: Stone Mountain, GA
- Brand: Pacific
- Model: J165-14
- Serial #: A500
- Approx. Shipping Weight: 30,000 Lbs.
- Approx. Shipping Dimensions: 30′ L x 7′ W x 9.5′ H
- Loading Fee: Rigging Required
Specifications
- Capacity: 165 Ton
- Overall Length of Bed and Ram: 15′
- Distance Between Housings: 149″
- Stroke: 10″
- Speed – Rapid Adance: 165 IPM
- Speed – High Press: 35 IPM
- Speed – Medium Press: 18 IPM
- Speed – Low Press: 10 IPM
- Speed – Return: 175 IPM
- Motor HP: 30
Equipped With

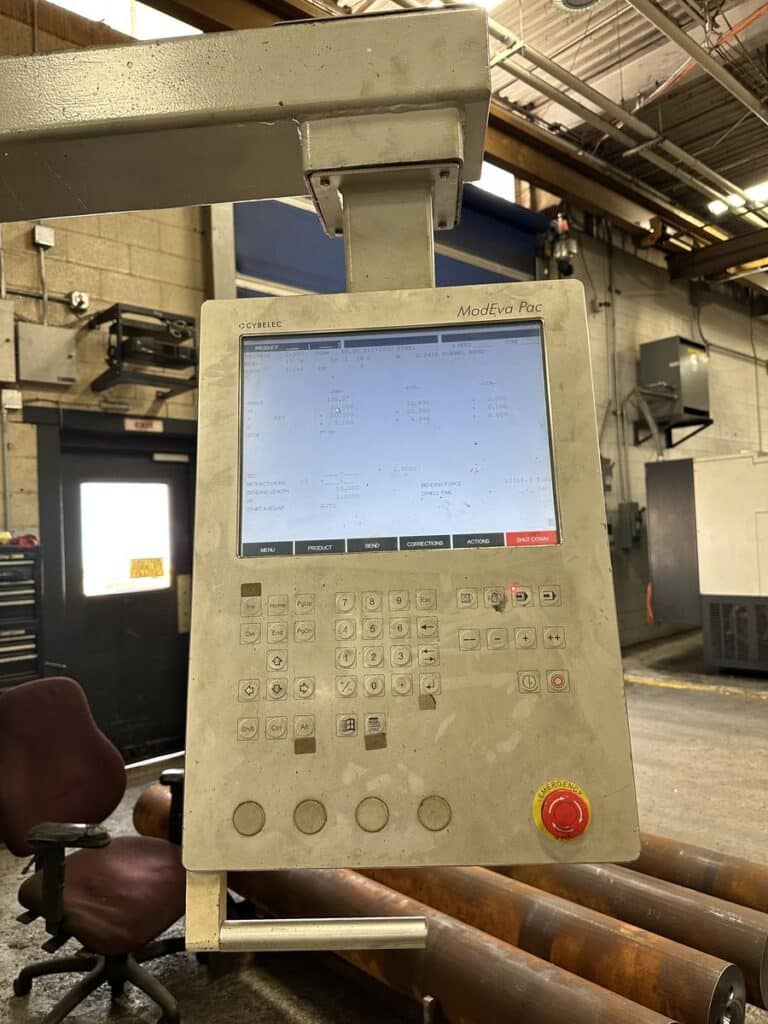

Cybelec ModEva Pac 3-Axis CNC Controller, 2-Axis Back Gauge
Additional Info
The Pacific Press Brake can be demoed upon request. **Machine requires a pit**
