Product Description

General Info

  • Stock #: BP-B-210008
  • Location: Warren, MI

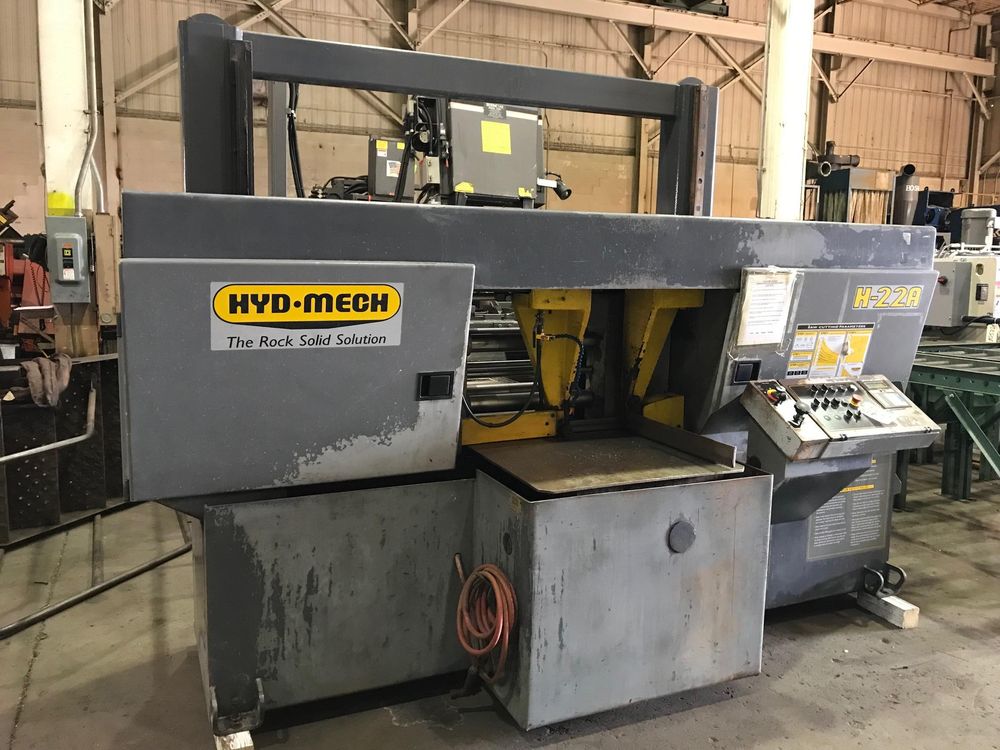

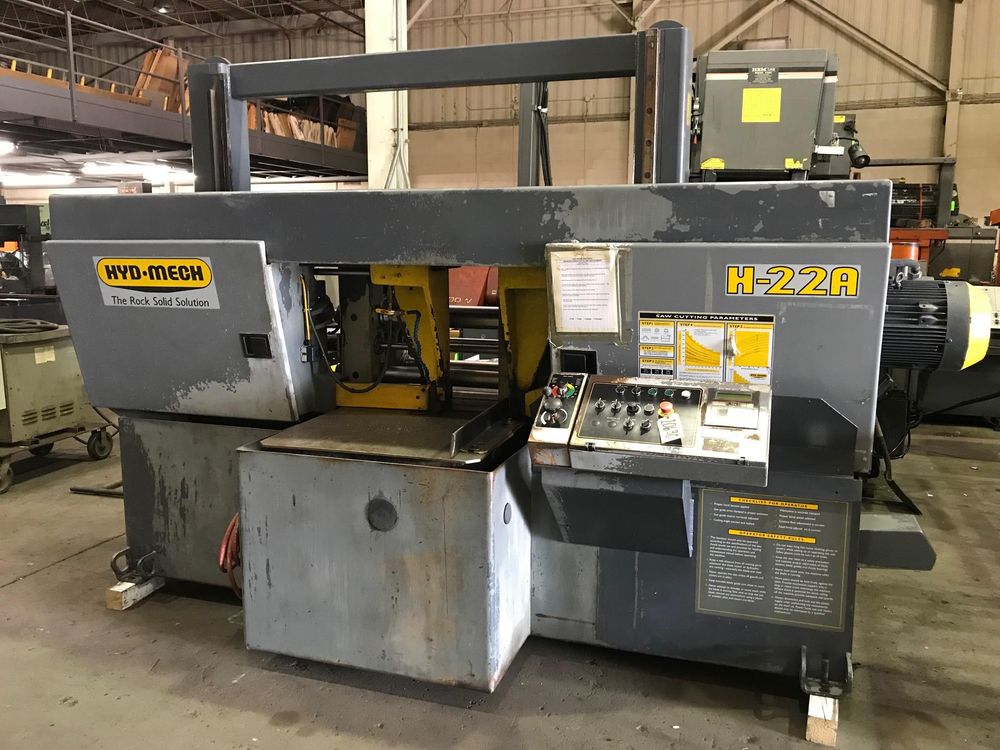

  • Brand: Hyd-Mech
  • Model: H-22A
  • Serial #: C0401097B
  • Year: 2001
  • Approx. Shipping Weight: 12,500 LBS.
  • Approx. Shipping Dimensions: 141″ L x 89″ W x 93″ H
  • Skidding Fee: Skidding Unavailable
  • Loading Fee: Rigging Required

Specifications

  • Cutting Capacity: 22″ x 22″
  • Blade Size: 22’6″ x 2″ x .063″
  • Blade Speeds: 50 – 350 FPM (Variable Frequency Drive)
  • Shuttle Stroke: Up to 34″ Single Stoke (Multi Index up to 9x)
  • Blade Wheel Diameter: 27″
  • Blade Drive Motor: 10 HP
  • Coolant Tank Capacity: 30 Gallons
  • Hydraulic Motor: 3 HP
  • Hydraulic Tank Capacity: 9 Gallons
  • Vise Control: Hydraulic
  • Maximum Work Load: 15,000 LBS.
  • Table Height: 31″
  • Electrical: 460 V/3 PH

Equipped With

Mitsubishi MTA-100 Control, Hydraulic Chip Auger, Powered Guide Arm, Hydraulic Blade Tension

Additional Info

This machine is being sold from our client’s facility and is sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.
