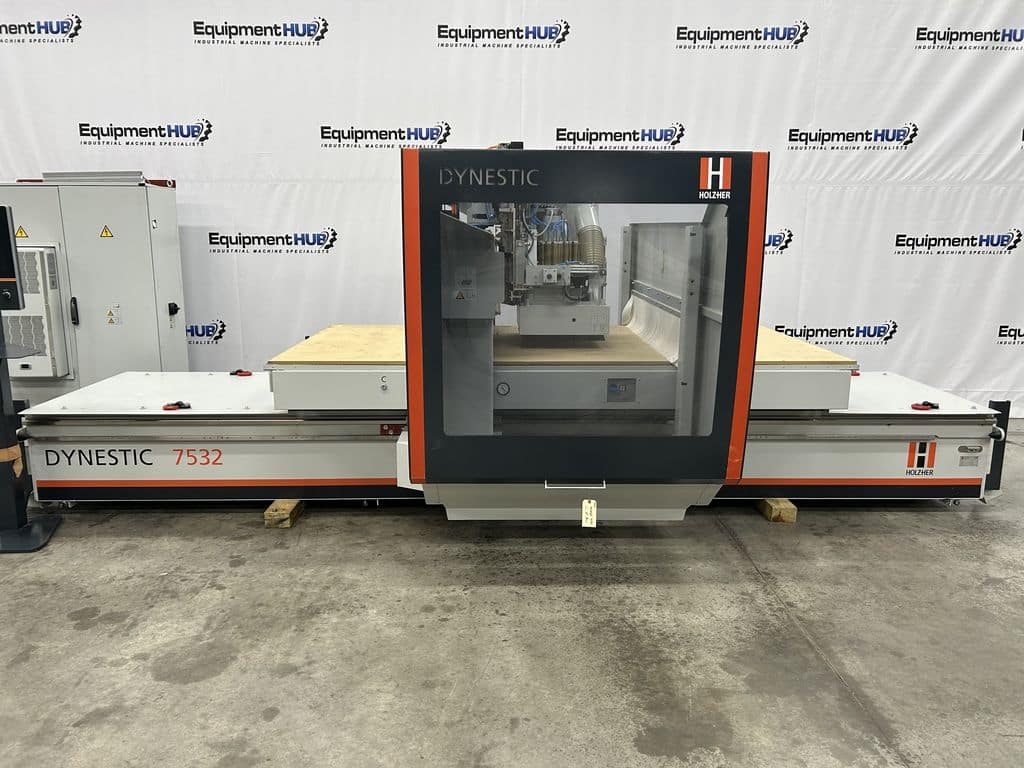

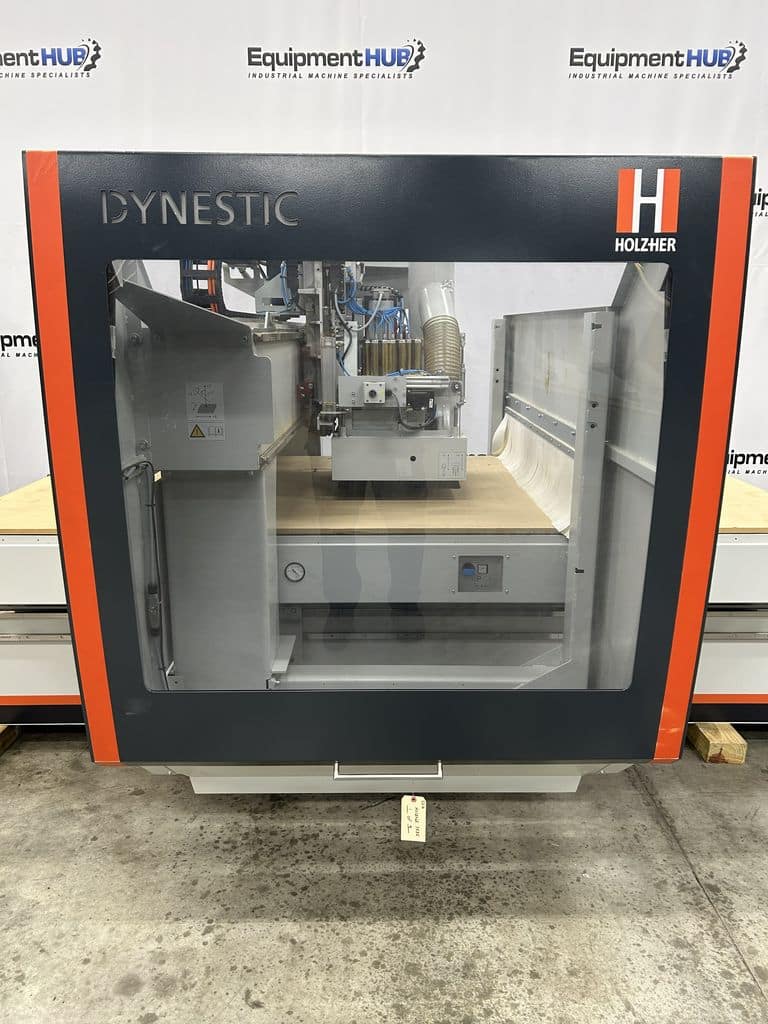

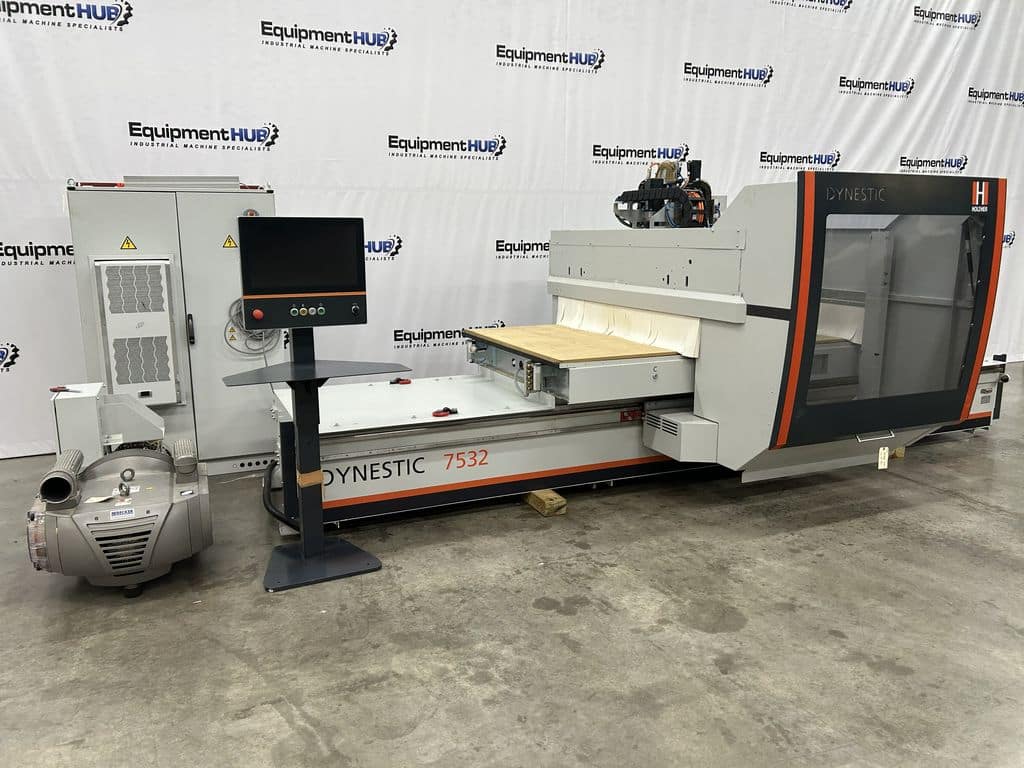

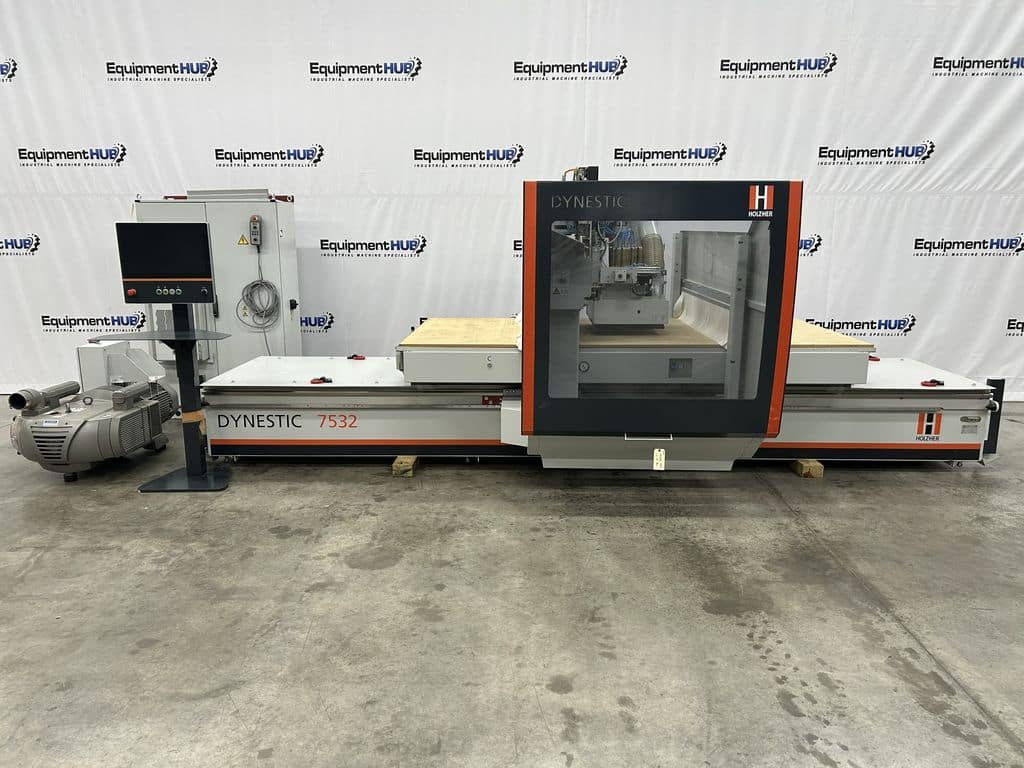

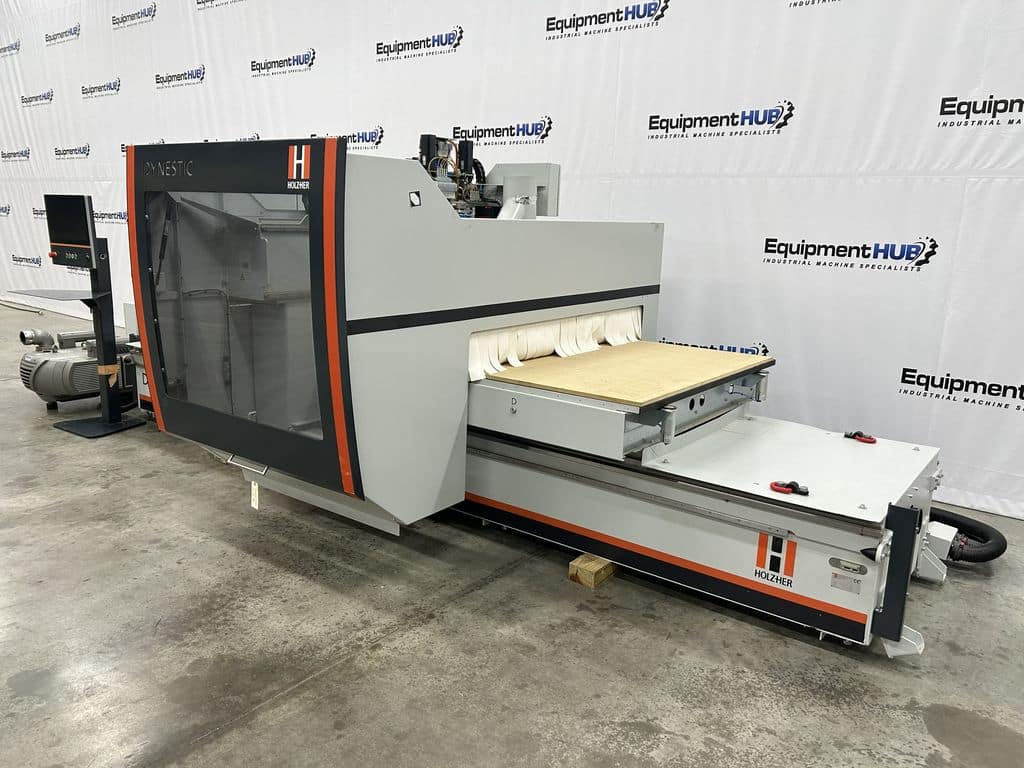

Holz-Her Dynestic 7532 B CNC Gantry Nesting Machining Center Router (2022)

Name: Holz-Her Dynestic 7532 B CNC Gantry Nesting Machining Center Router (2022)
SKU: 201691
Price: 119500.00 USD
Availability: InStock

Stock #: 116260003

$119,500.00

See Product Details

Stock #: 116260003
Brand: Holz-Her

Not What You're Looking For?

Have Surplus Machinery to Sell?

Stock #: 116260003
Brand: Holz-Her

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Comments

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

Provide Shipping Quote

Provide Financing Options

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

This field is hidden when viewing the form

In Stock?

Product Description

General Info

Stock #: 116260003
Location: Decatur, GA
Brand: Holz-Her
Model: Dynestic 7532 B

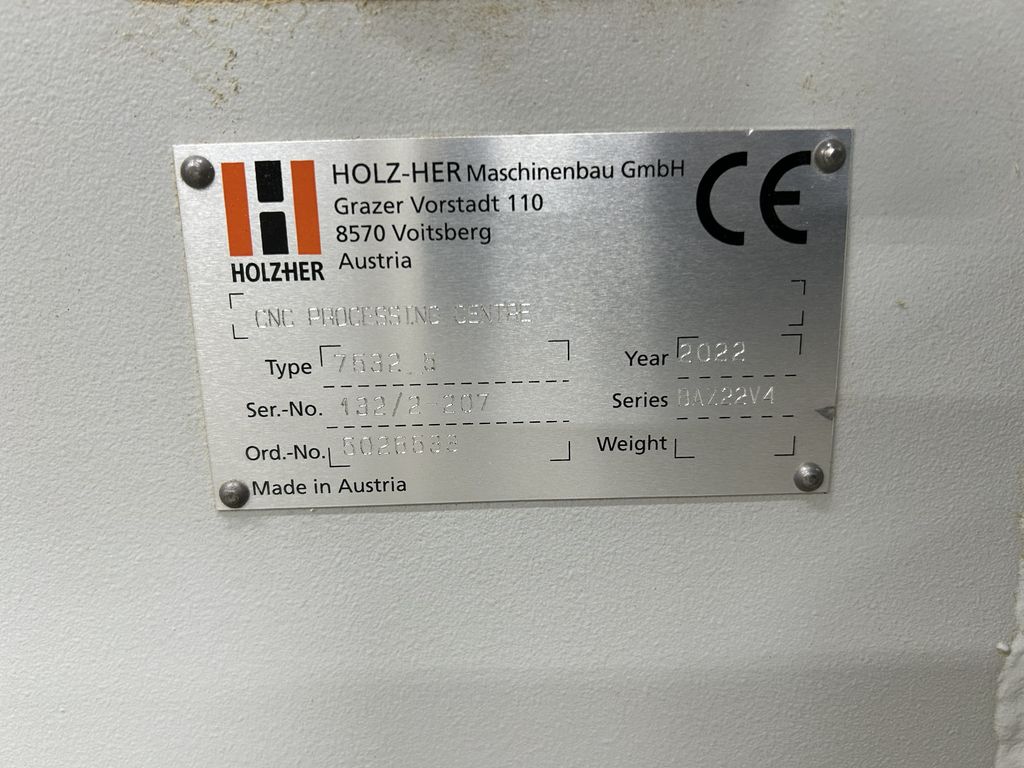

Serial #: 132/2 207
Year: 2022
Approx. Shipping Weight: 20,000 Lbs.
Approx. Shipping Dimensions: 28′ L x 9’2″ W x 7′ H

Specifications

Machining Dimensions (X): 3,700 mm (145.7″)
Machining Dimensions (Y): 2,200 mm (86.6″)
Vector Speed: 100 m/min
Spindle: 8 kW Air-Cooled Precision Milling Spindle
Spindle Speed: 1,000 – 24,000 RPM

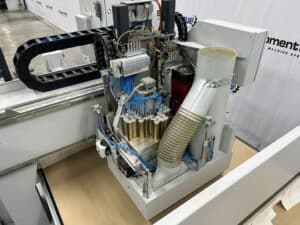

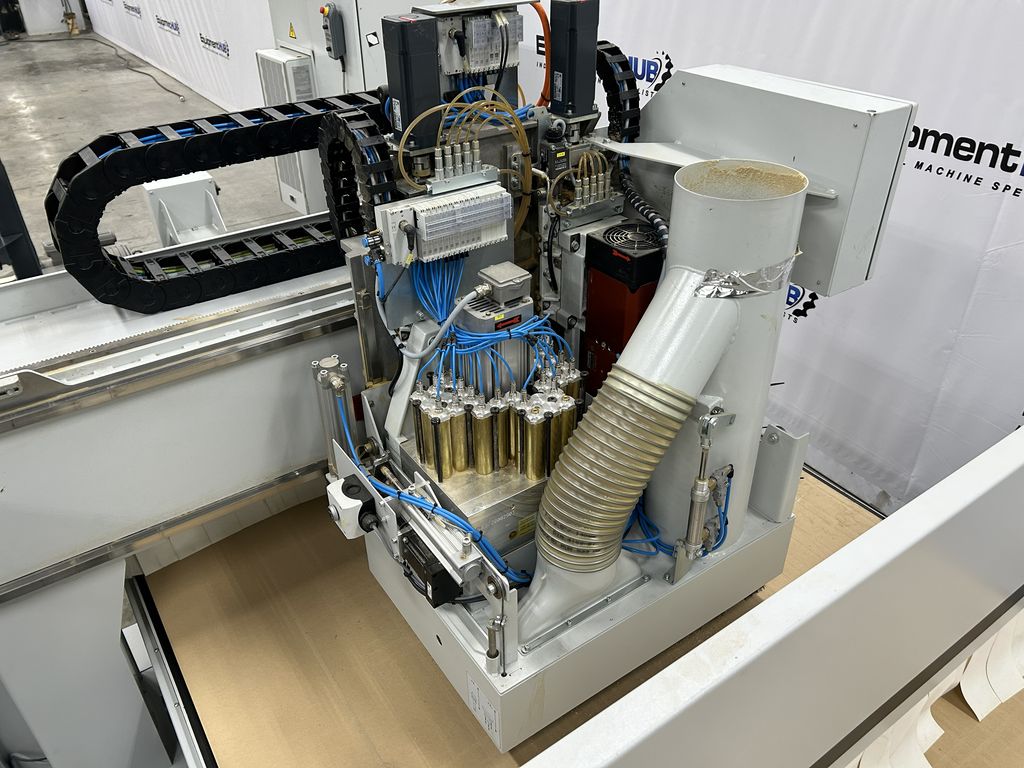

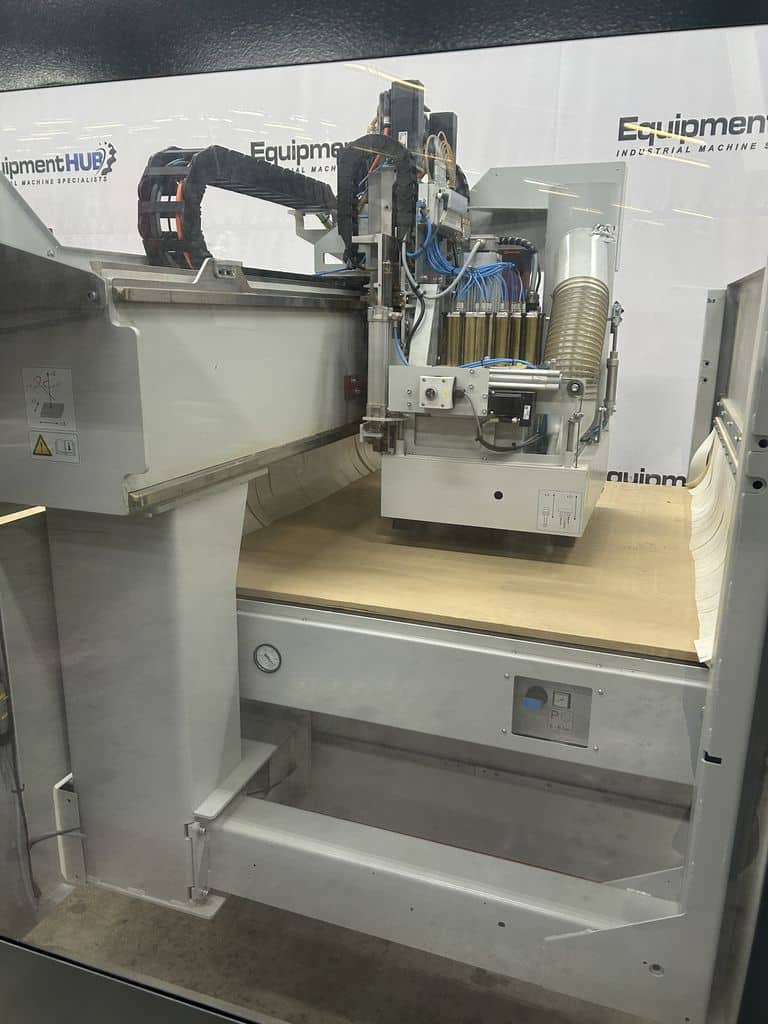

Drilling Head: 15 Spindles (9 Vertical, 6 Horizontal) w/ Sawing Unit for Grooving in X Direction
Tool Changer: 14-Position Pick-Up Tool Changer w/ Tool Cover

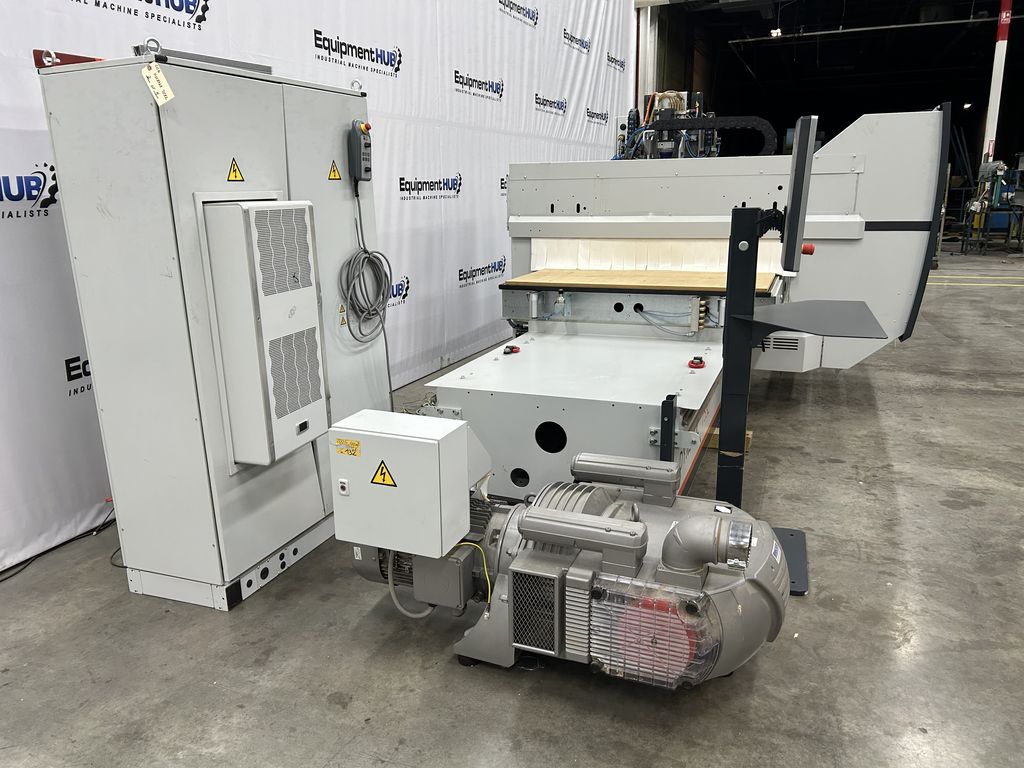

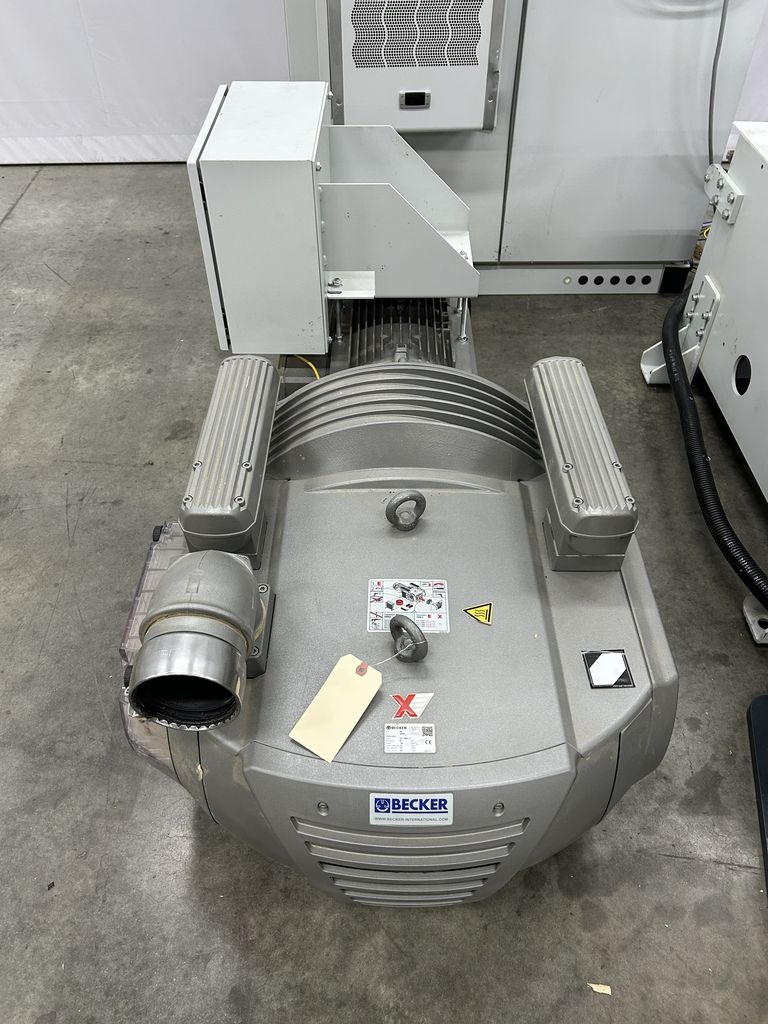

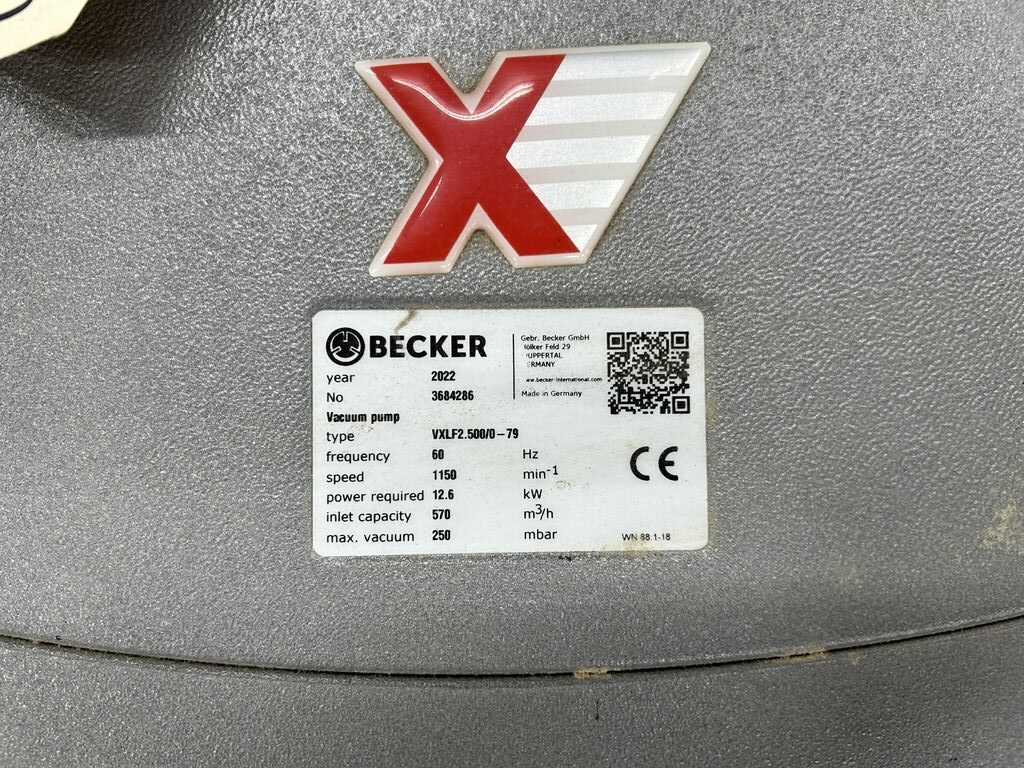

Vacuum Pump: Becker VXLF2.500D-79 (12.6 kW, 570 m³/h, 250 mbar Max Vacuum)
Table Type: High-Flow Nesting Table w/ Continuous Vacuum Field

Equipped With

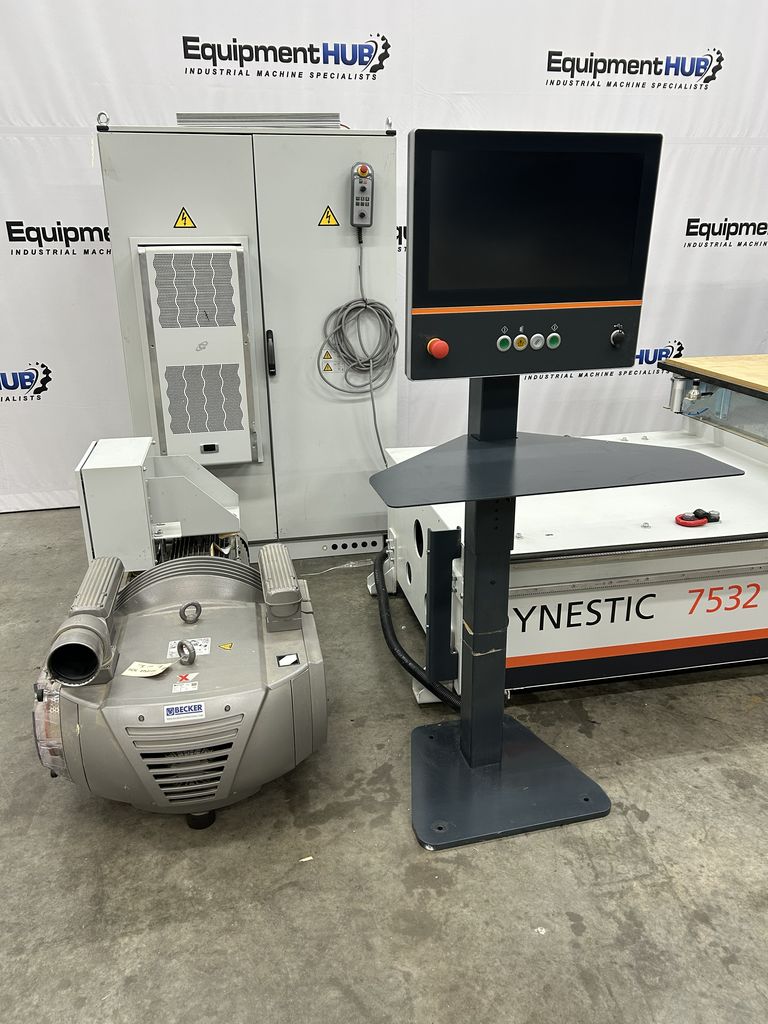

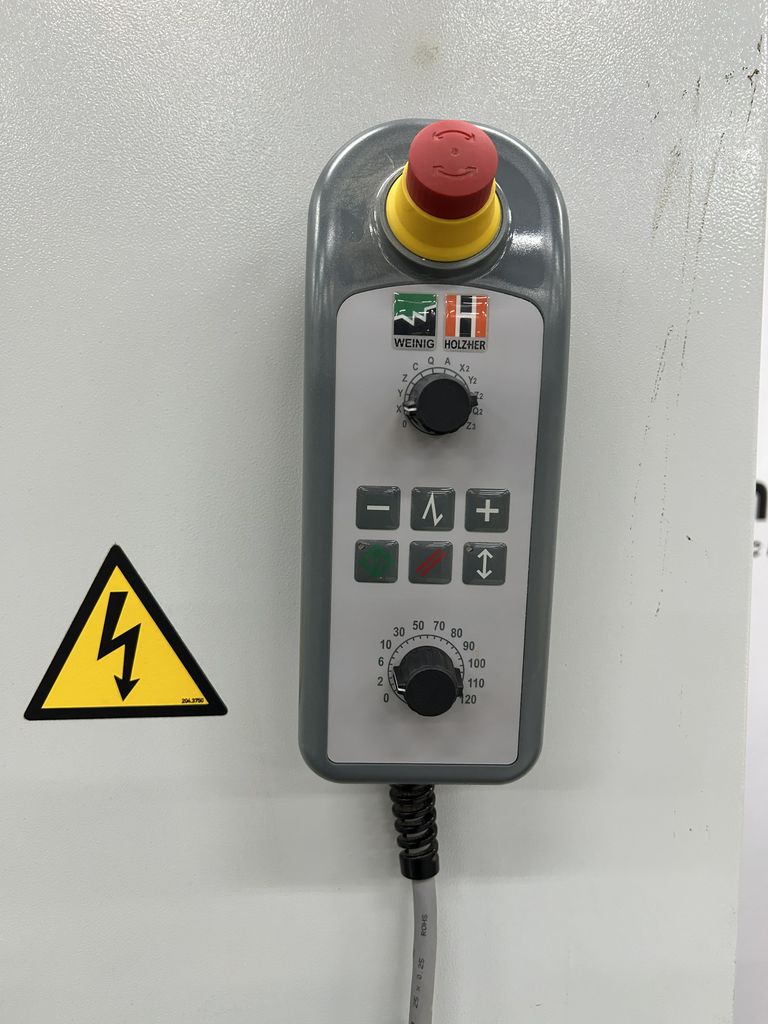

CAMPUS Software w/ aCADemy CAD/CAM Module, CabinetControl Base, 21.5″ Touchscreen Control Console, Weinig Holz-Her Handheld Pendant/Remote Jog, Becker Dry-Running Vacuum Pump, Light Grid Safety System, Brush Strip Table
