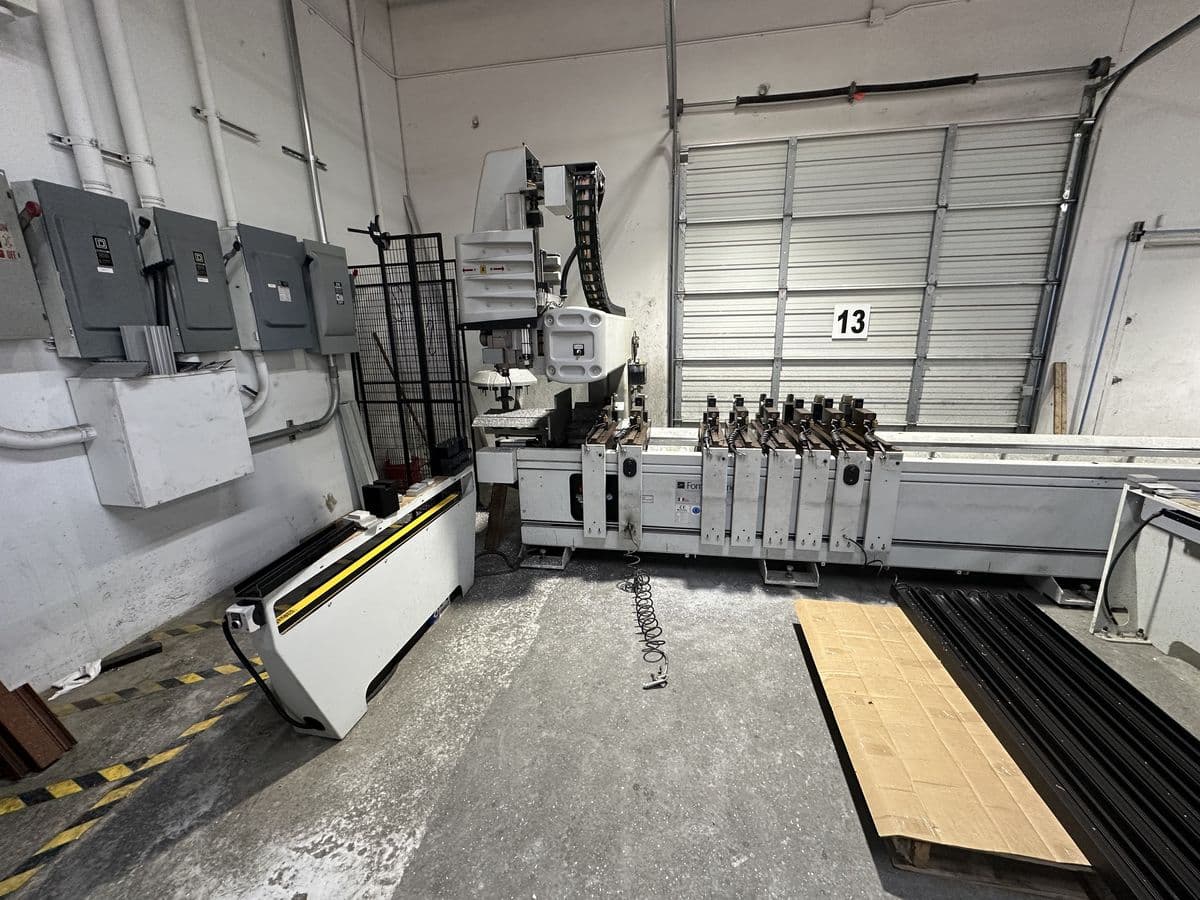

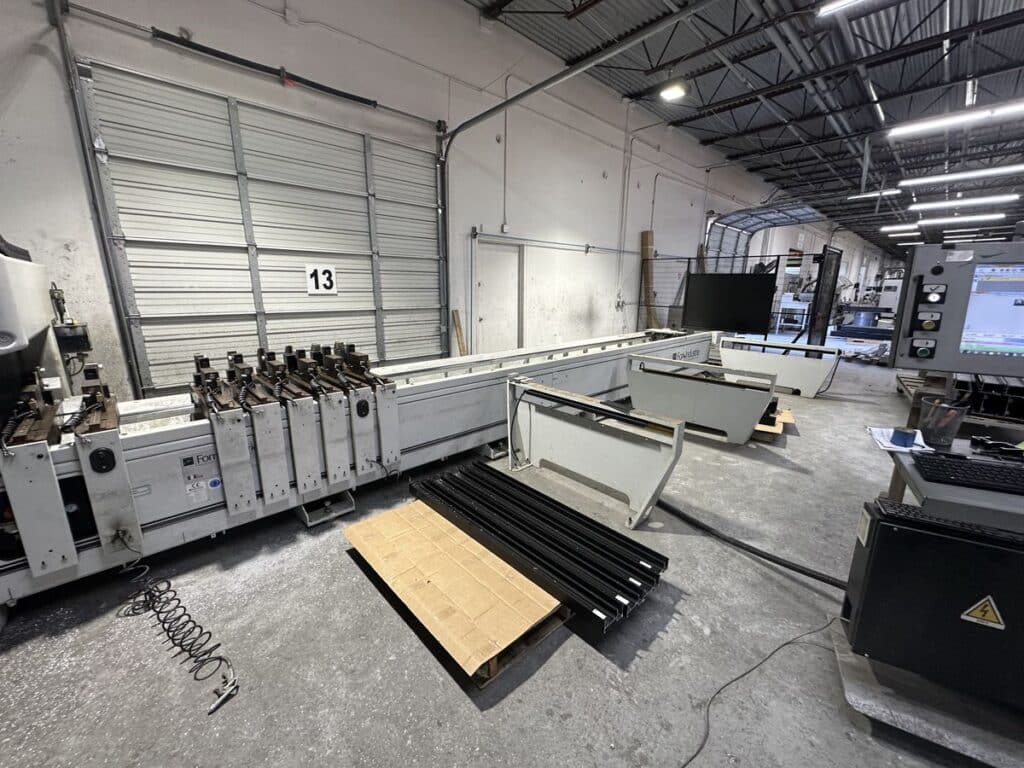

FOMIndustrie ARGO 70 CNC Profile Machining Center (2018)
Stock #: 171250018
$55,000.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
Product Description
General Info
- Stock #: 171250018
- Location: TX
- Brand: FOMIndustrie
- Model: ARGO 70
- Year: 2018
- Approx. Shipping Weight: 10,000 LBS
- Approx. Shipping Dimensions: 327″L x 74″W x 97″H
- Loading Fee: $2,500.00
Specifications
- X Axis – Longitudinal Travel: 7030 mm
- Y Axis – Transversal Travel: 1100 mm
- Z Axis – Vertical Travel: 425 mm
- A Axis – Electrospindle Rotation: 0°/90°/180°
- Rapid Traverse (X, Y, Z): (100 m/1′, 60 m/1′, 30 m/1′)
- A Axis Movement: 180°/sec
- Electrospindle Speed: 17,000 RPM
- Tool Capacity: 12 Position Tool Magazine
- Work Holding: 8 Pneumatic Vices w/ NC Positioning & Locking
- Power Required: 480V / 3 Phase
Equipped With
17,000 RPM Electrospindle, 12-Position Tool Magazine, (8) Pneumatic Vices, LH Sliding Pneumatic Stop, Tool Micro-Drop Lubrication, Soundproof Cover of Machining Head, Rear & Side Fences, PC+Monitor+Operating System
Additional Info
Machine is under power and available to demo until 04/04/25.
