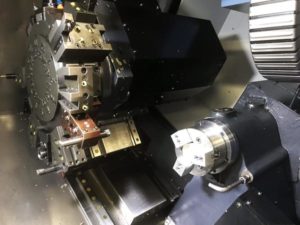

Doosan LYNX 220 LSYC CNC Lathe (2015)

General Info:

Stock #: CD-B-191056
Brand: Doosan
Model: LYNX 220 LSYC
Year: 2015
Approx. Shipping Weight: 9,193 Lbs.
Approx. Shipping Dimensions: 113.4″ L x 67.3″ W x 75.6″ H
Loading Fee: Rigging Required

Specifications:

Swing Over Bed: 23.6″
Swing Over Saddle: 15.7″
Recommended Turning Diameter: 8.3″
Max Turning Diameter: 11.8″
Max Turning Length: 20.1″
Chuck Size: 8″
Bar Working Diameter: 2.6″
X Axis Travel: 8.1″
Y Axis Travel: 52.5″
Z Axis Travel: 22″
Feedrates (IPM): 1181 (X), 394 (Y), 1417 (Z)
Max Spindle Speed: 4,500 RPM
Spindle Motor HP: 20 / 20 / 15
Max Spindle Torque: 125 lb/ft
Spindle Nose: A2-6
Spindle Bearing Diameter: 4.3″
Spindle Through Hole Diameter: 3″
Min. Spindle Indexing Angle (C Axis): .0001 Deg
Sub Spindle Speed: 6000 RPM
Sub Spindle HP: 7.5 / 7.5 / 5 HP
Sub Spindle Torque: 34 Lb/ft
Sub Spindle Nose: 4.3″
Sub Spindle Bearing Diameter: 3″
Sub Spindle Through Hole Diameter: 1.7″
Turret Positions: 12 (24 Index)
OD Tool Size: .8″
Max Boring Bar Size: 1.3″ / 0.8″
Turret Indexing Time: .11 seconds
Max Rotary Tool Speed: 6000

Equipped With:

High pressure coolant, Chip conveyor, Parts catcher, Parts conveyor, Part ejector, Chuck air blower, Bar feed interface, Tool load monitoring, Oil skimmer, Tool setter, Live tooling, All available tool holders, All available manuals

Additional Info:

This machine is being sold from our client’s facility and is sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.
