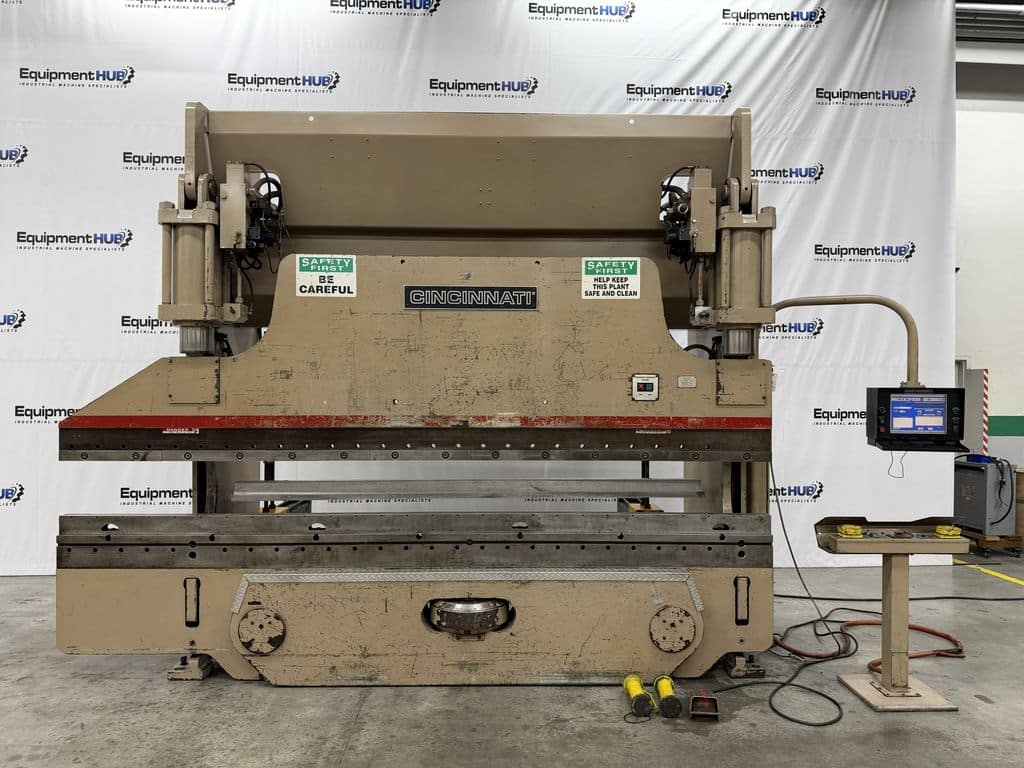

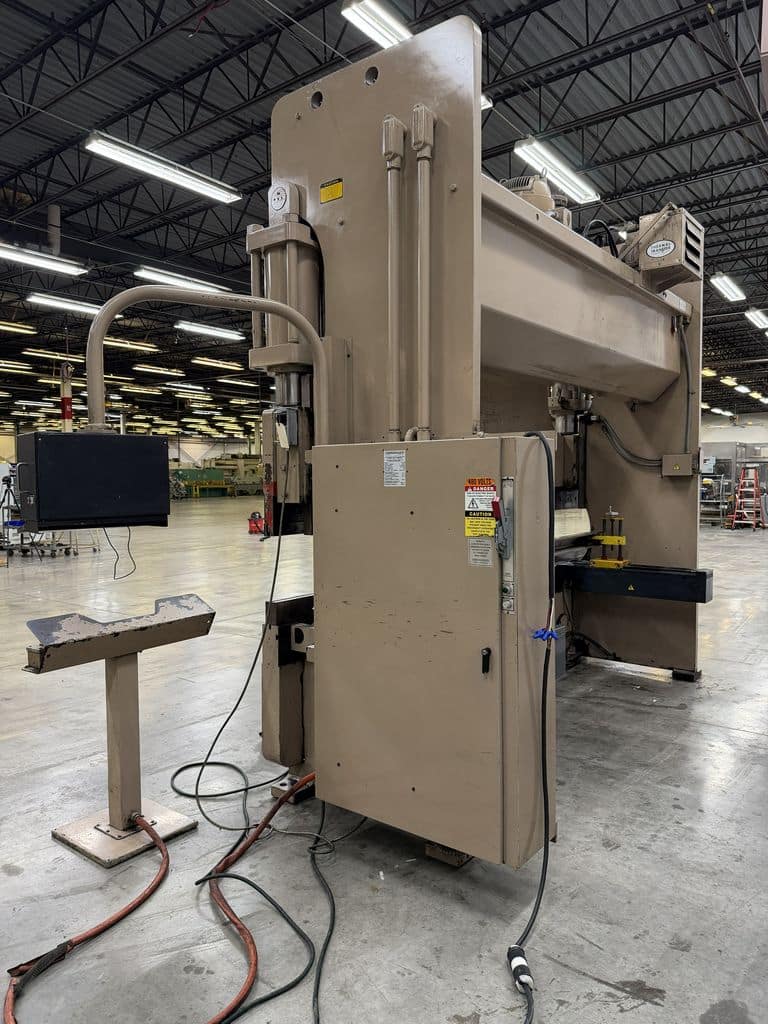

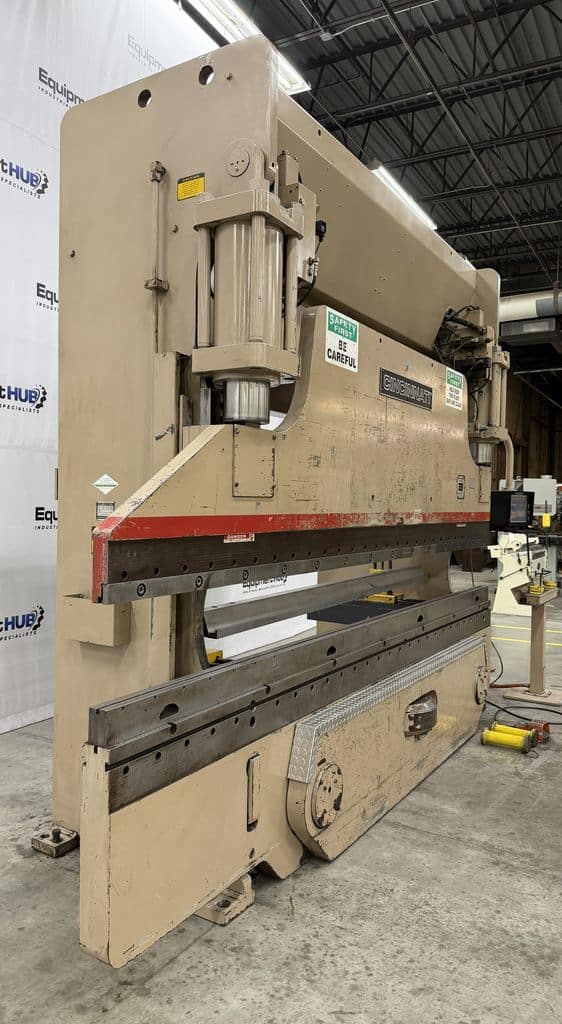

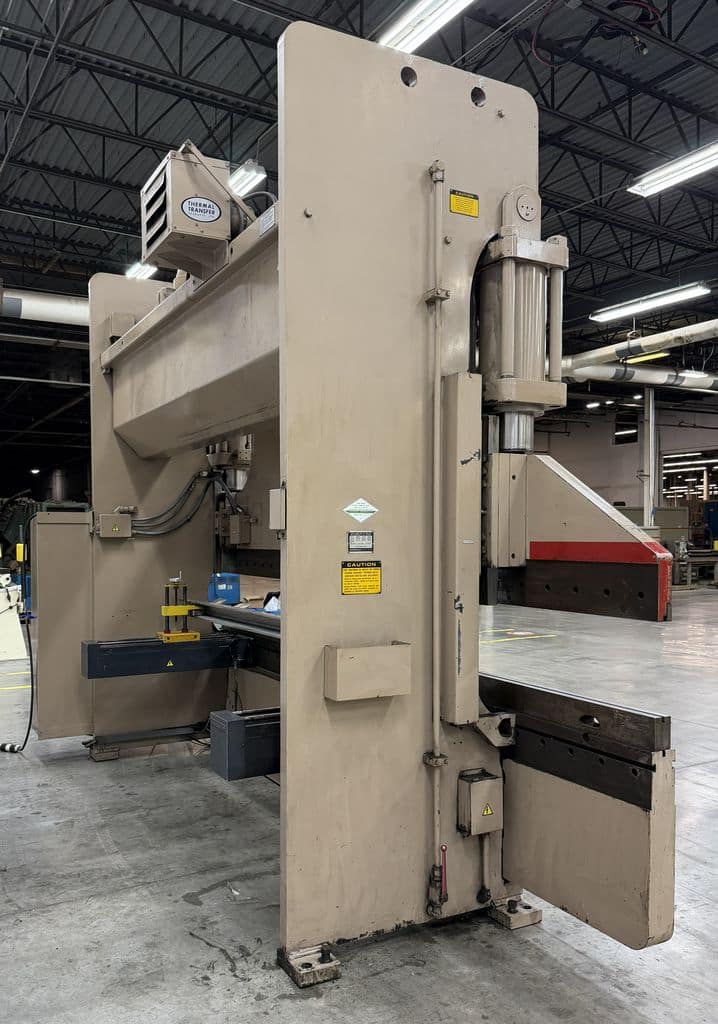

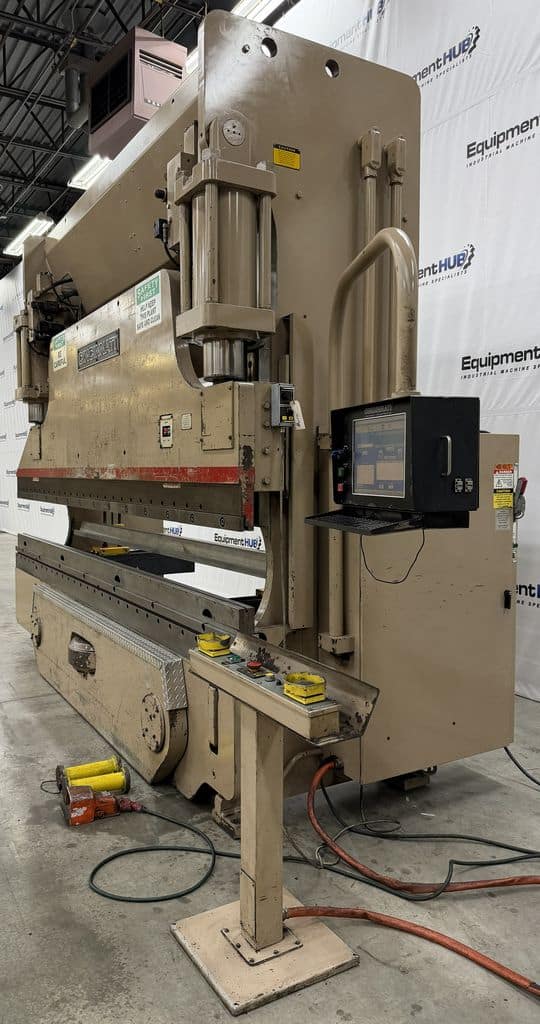

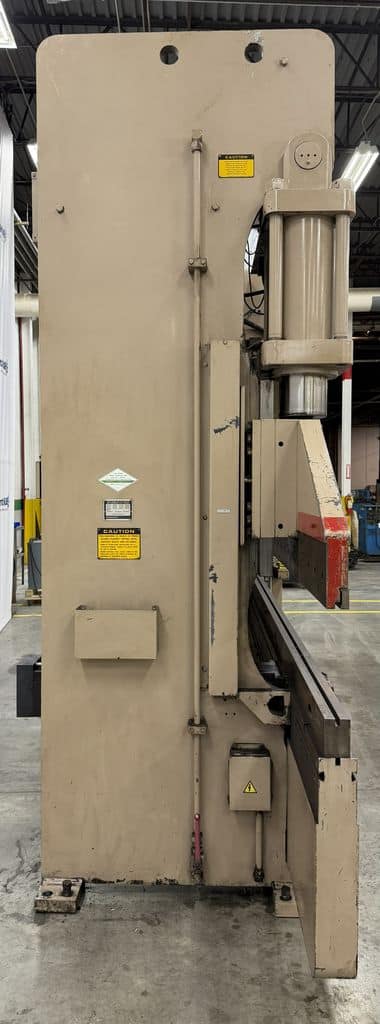

Cincinnati 175FMII10 175 Ton x 12′ Hydraulic CNC Press Brake
Stock #: 170260017
$44,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info

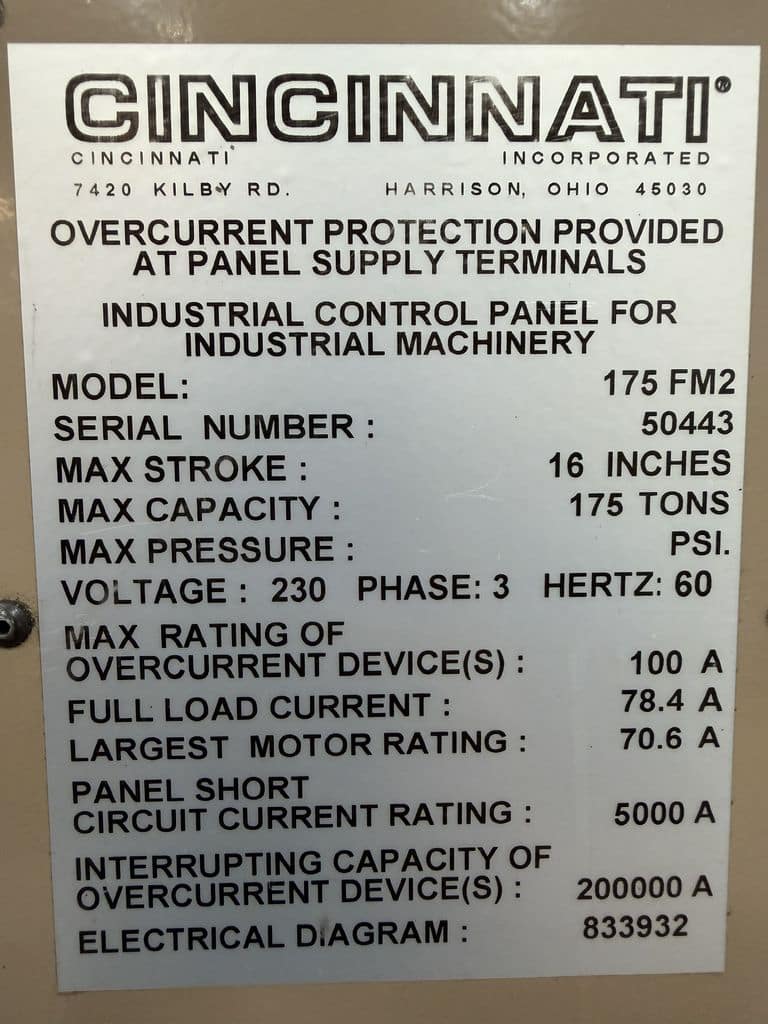

- Stock #: 170260017
- Location: Decatur, GA

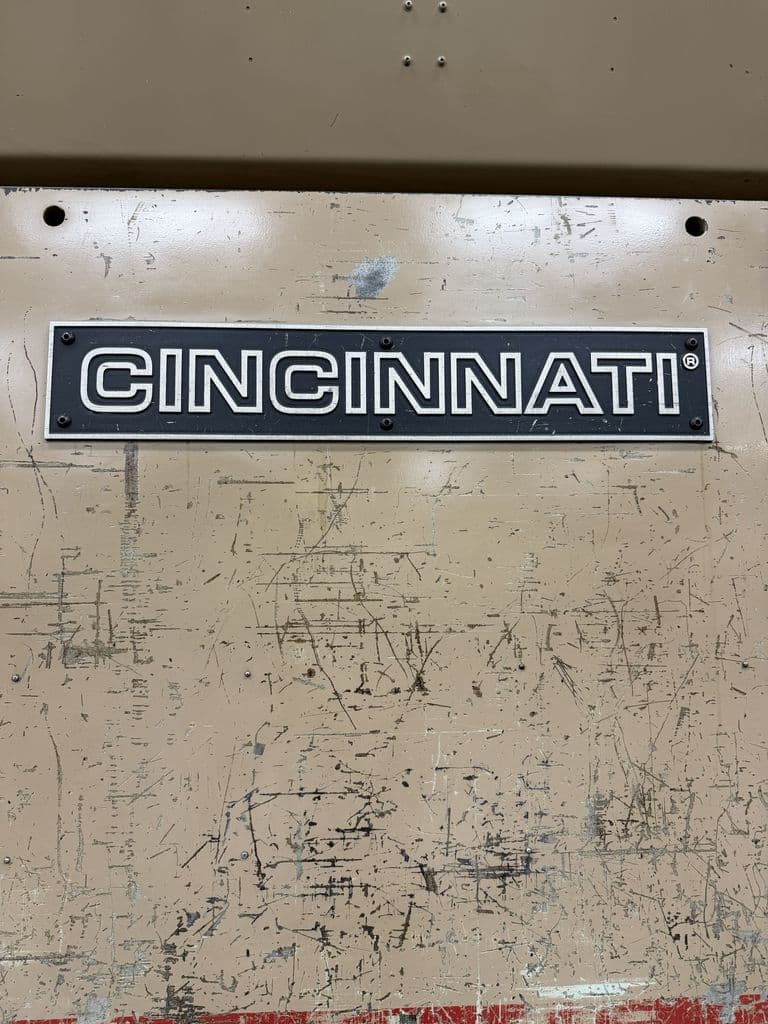

- Brand: Cincinnati
- Model: 175FMII10

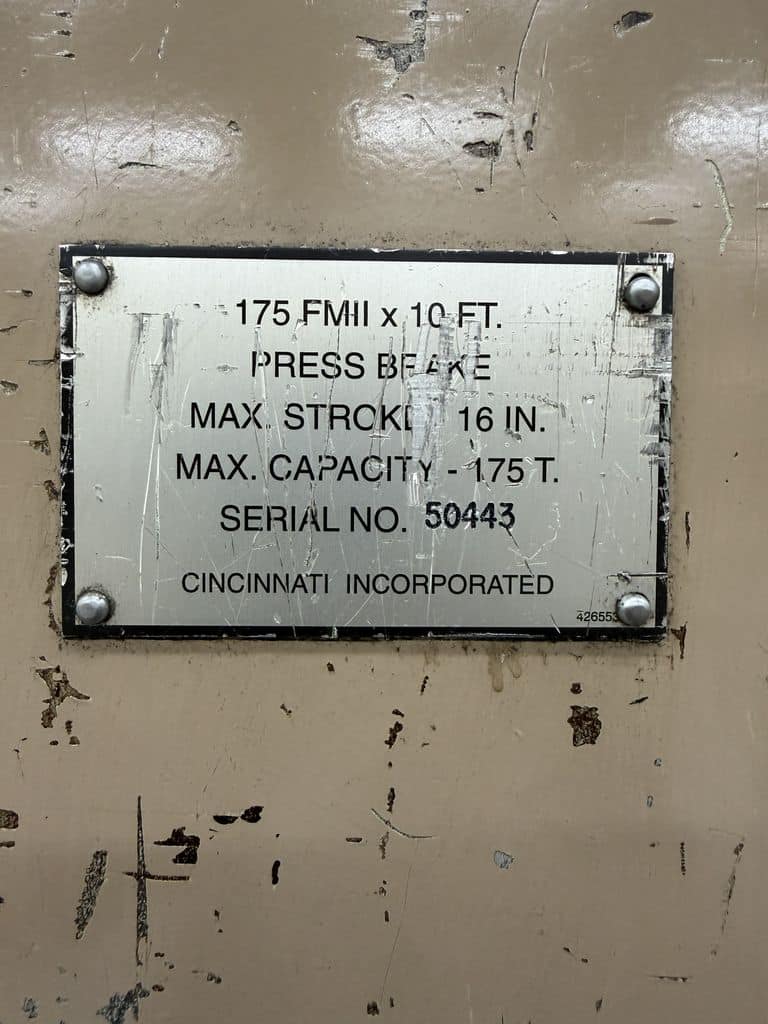

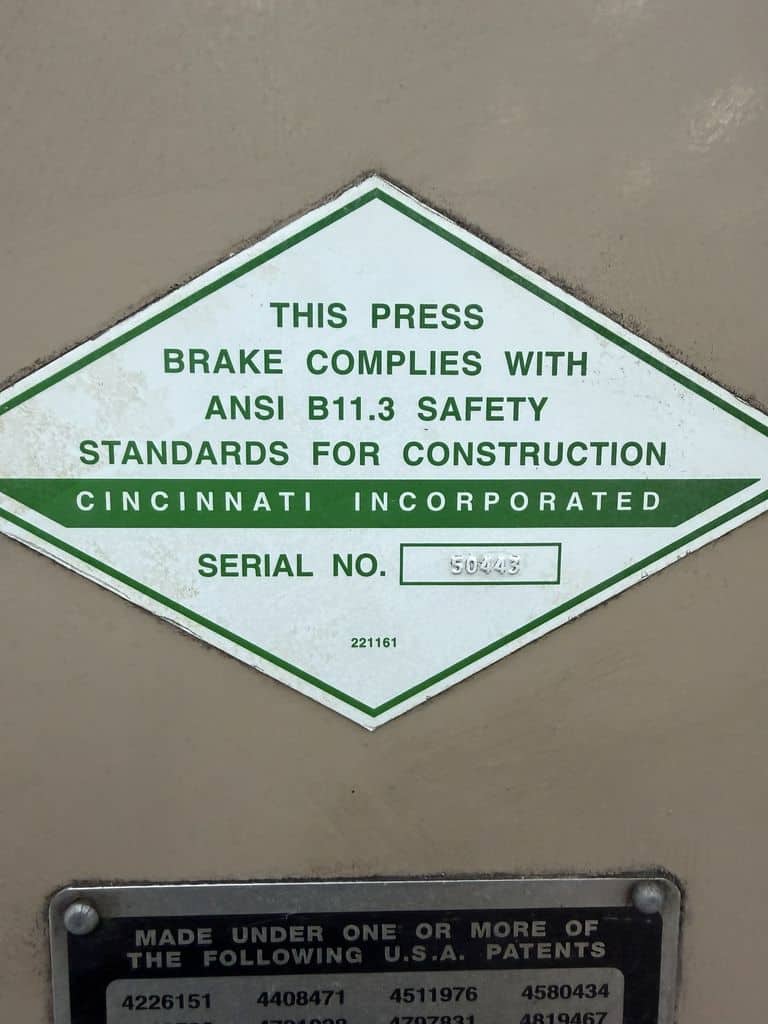

- Serial #: 50443
- Approx. Shipping Weight: 27,000 Lbs.
- Approx. Shipping Dimensions: 14’10” L 11’7″ H 7’8″ W
Specifications
- Tonnage Capacity: 175 Tons
- Bed & Ram Length: 12′
- Distance Between Housings: 10’6″
- Ram Approach Speed: 260 IPM
- Variable Bending Speed: 1 – 65 IPM
- Variable Ram Return Speed: 1 – 290 IPM
- Programmable Backgauge Distance: 24″
- Throat Depth: 10″
- Max Stroke: 16″
- Electrical: 460V/3PH
Equipped With

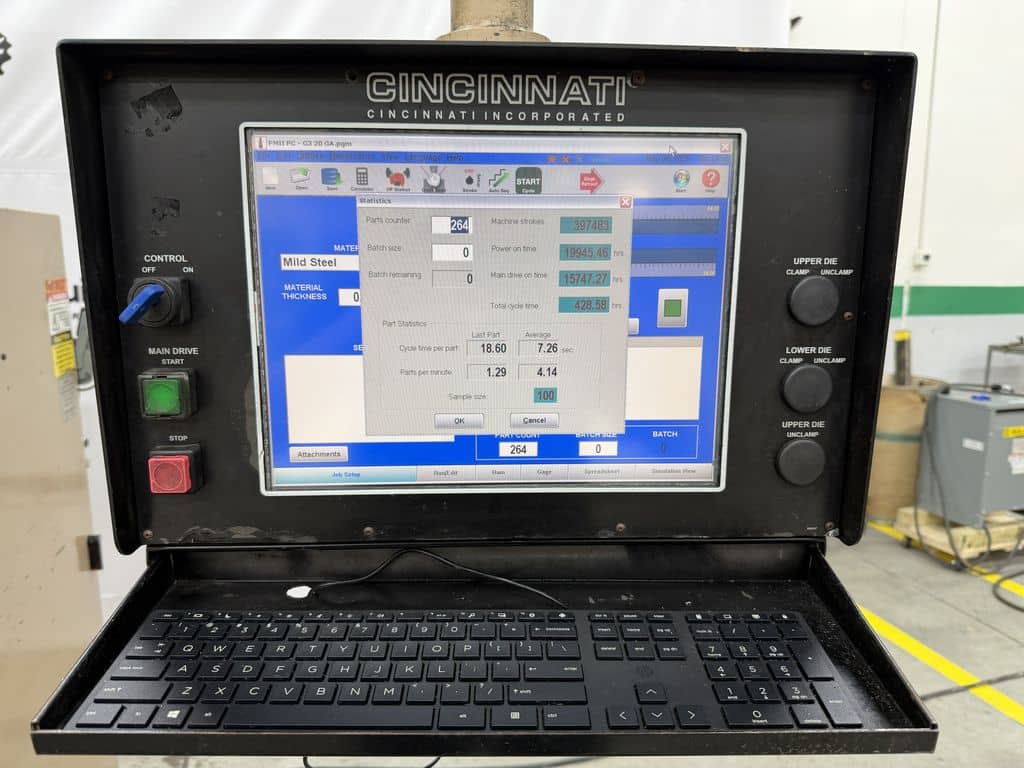

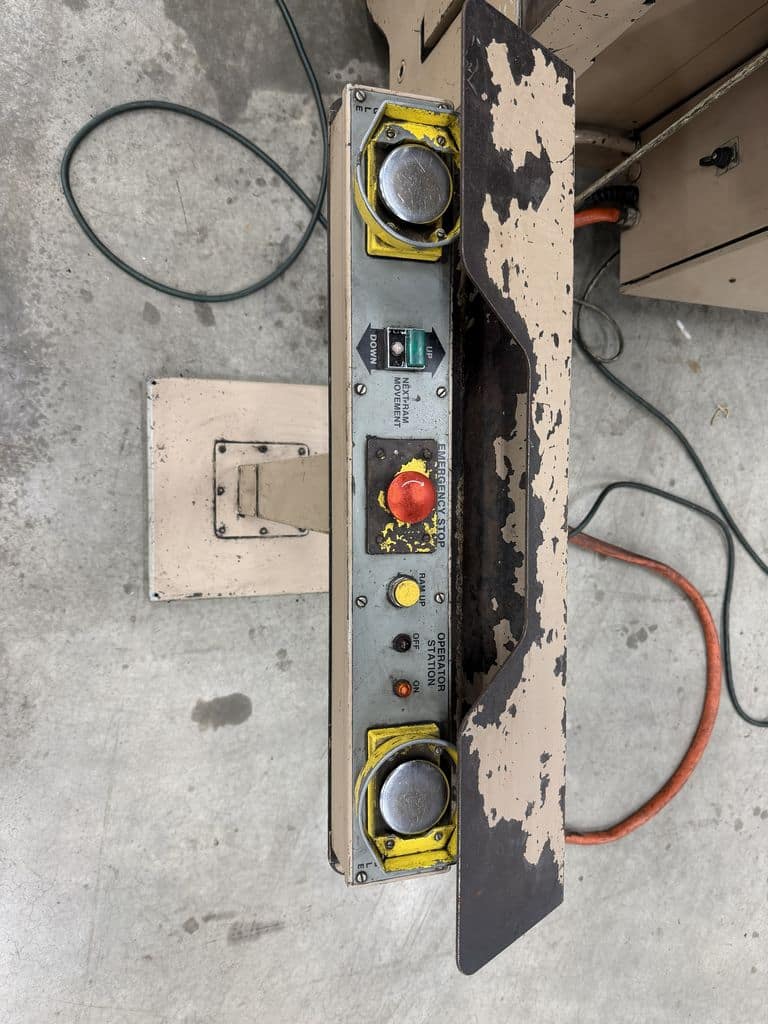

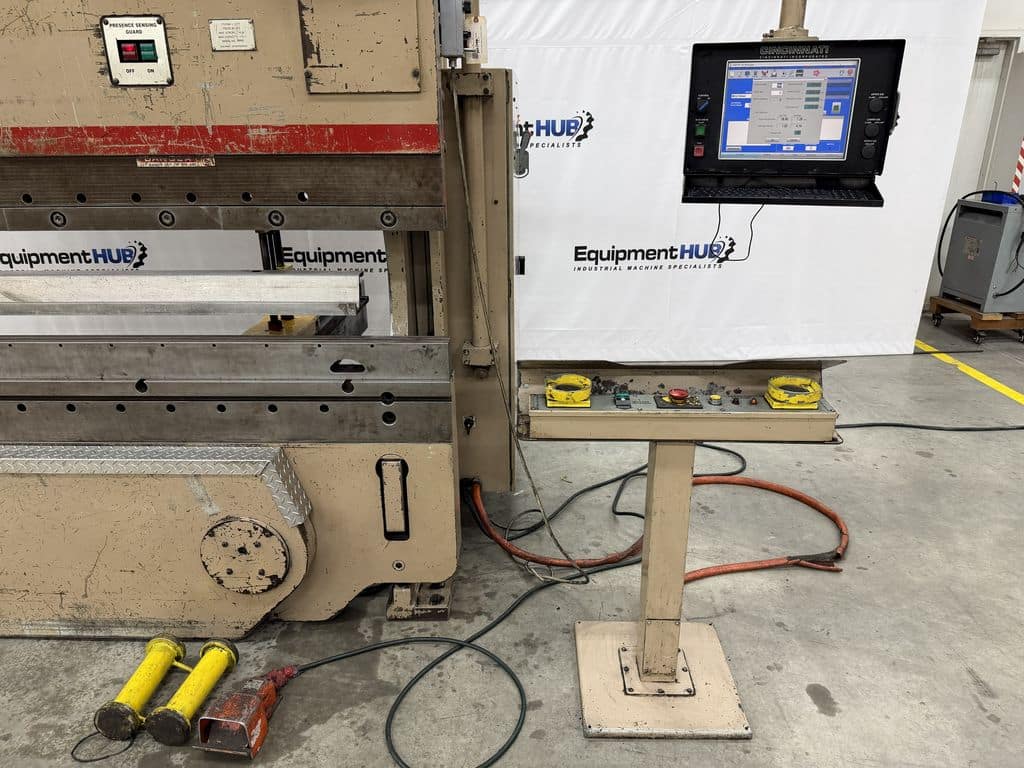

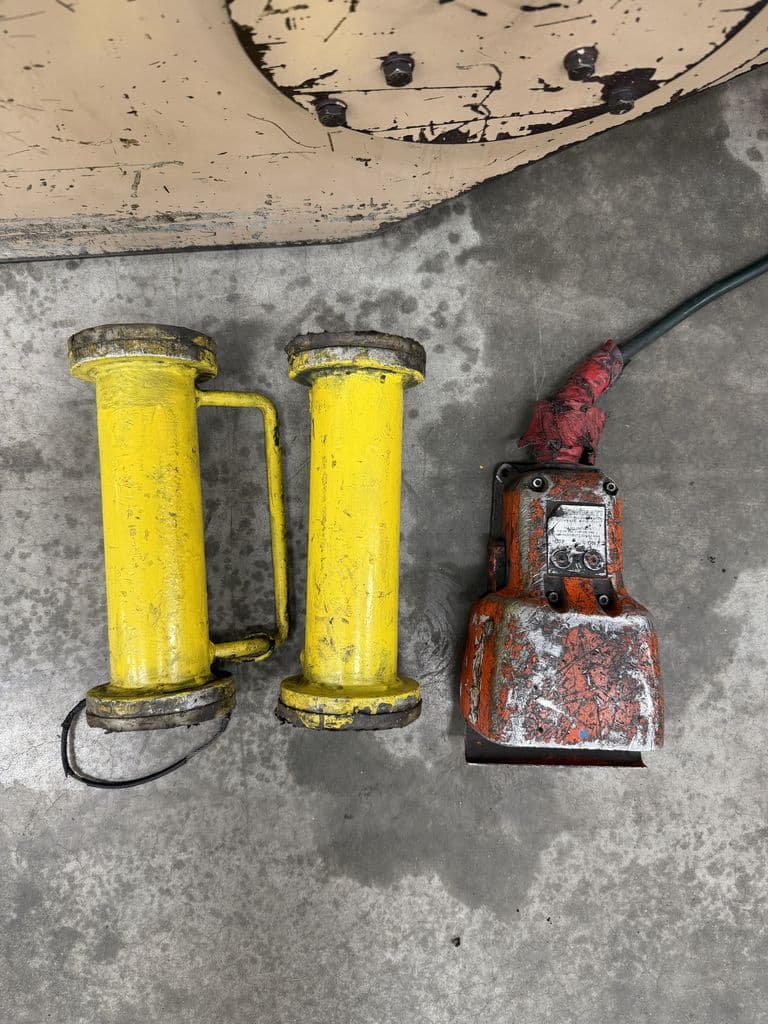

Form Master II Control System, Ram Clamps, Lower Die Holder, Hydraulic Crowning, Dual Palm Buttons and Remote Foot Pedal
Additional Info
The Cincinnati CNC Press Brake can be demoed upon request, check out the video on the listing to see it in operation.
