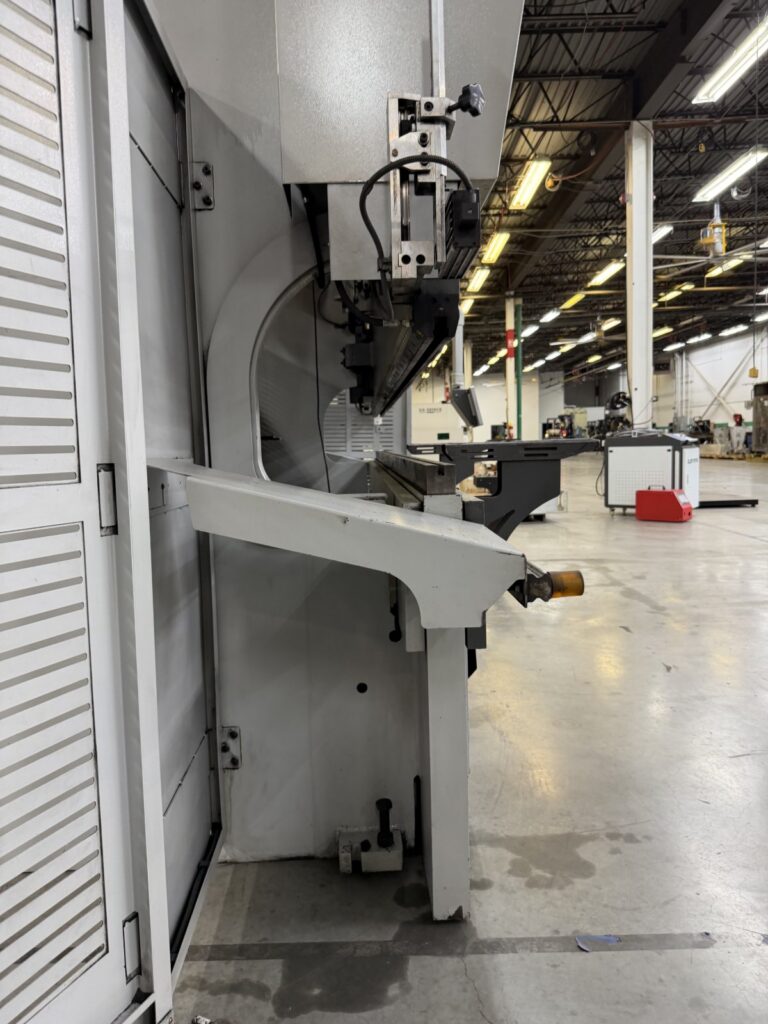

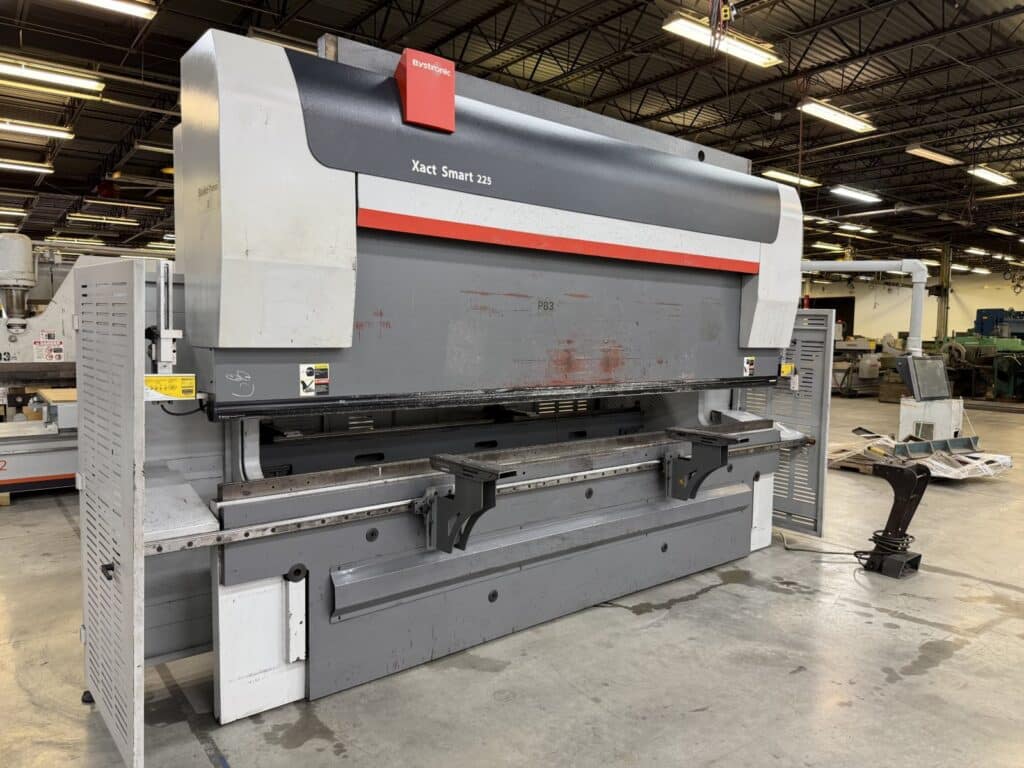

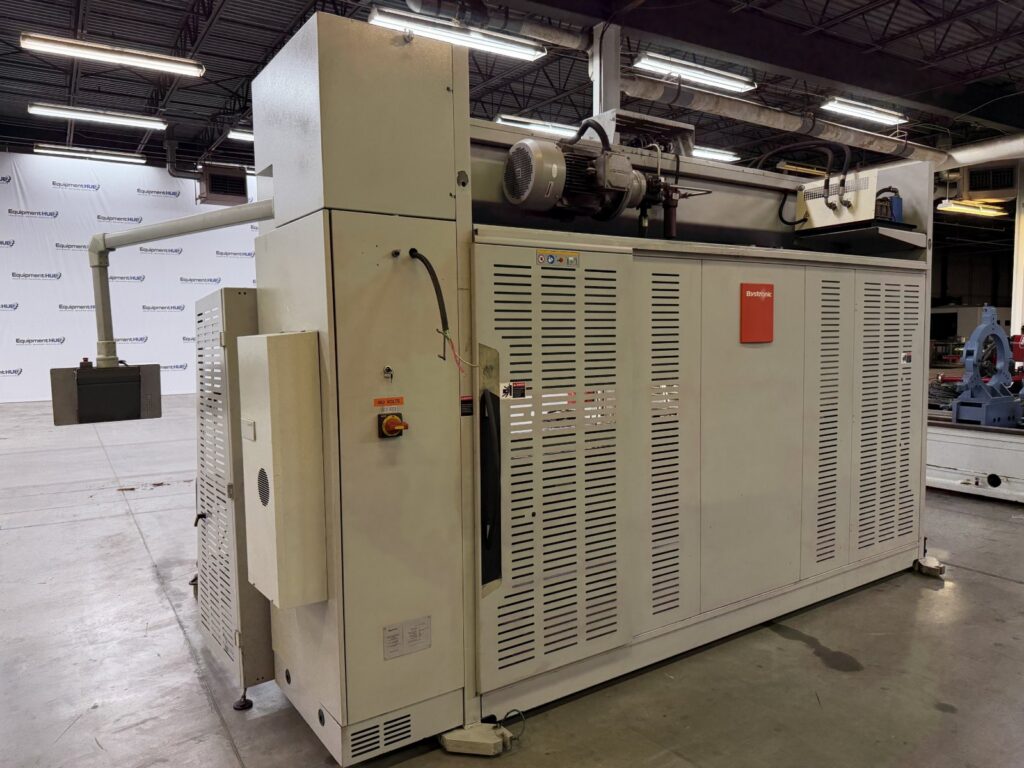

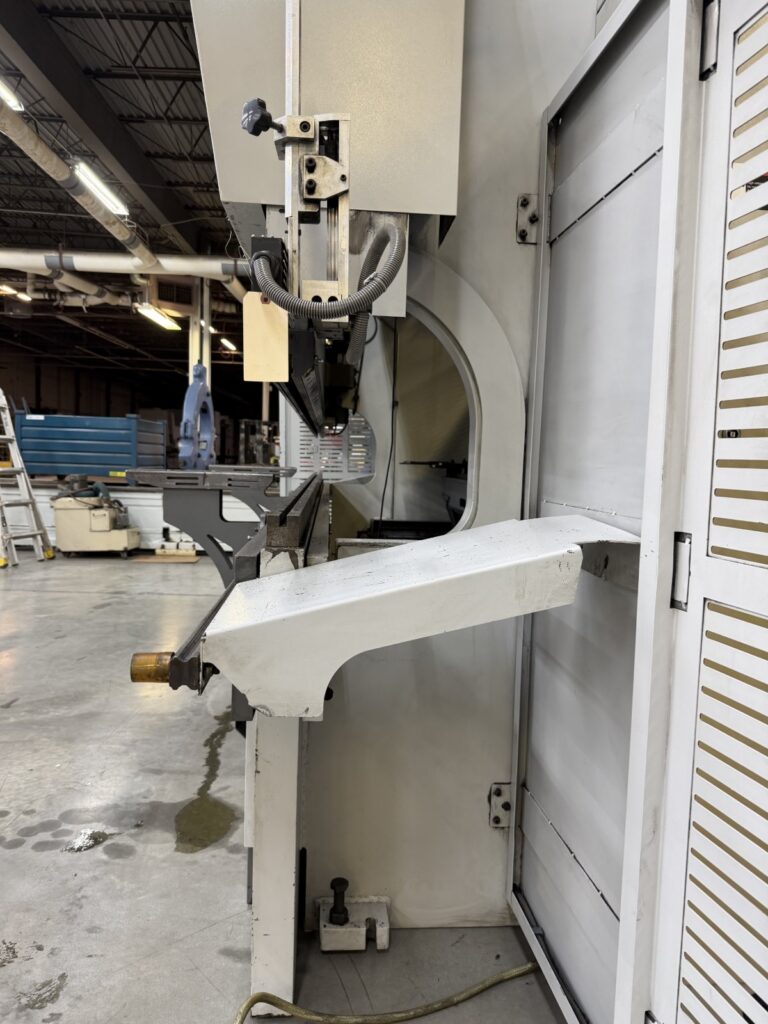

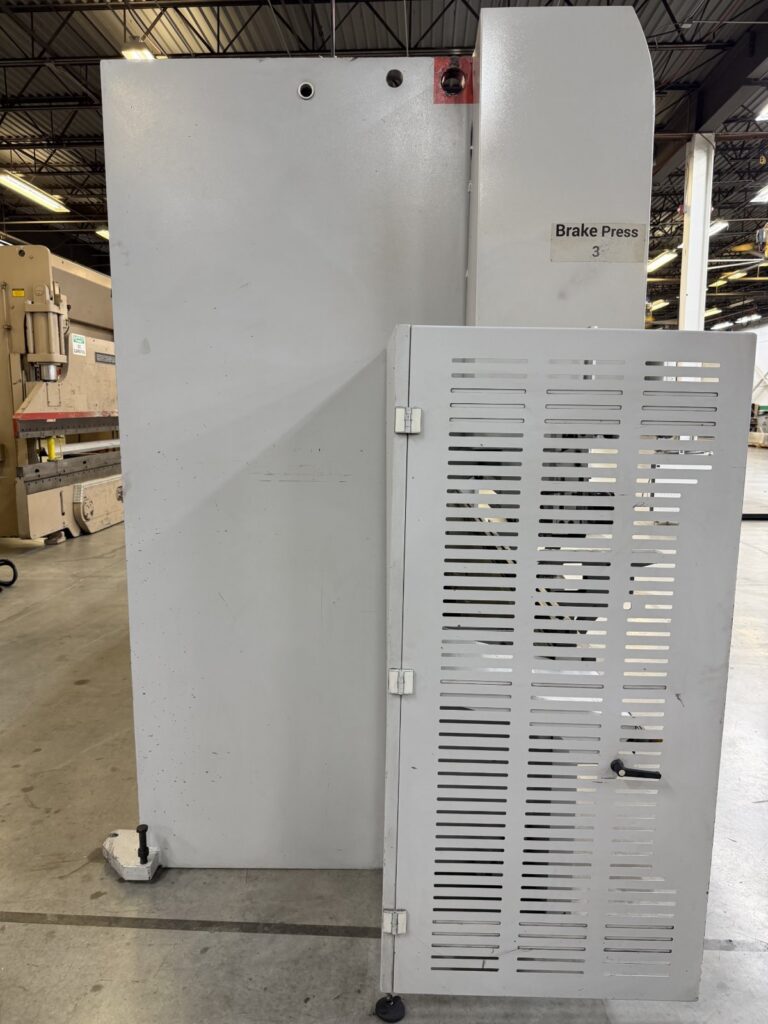

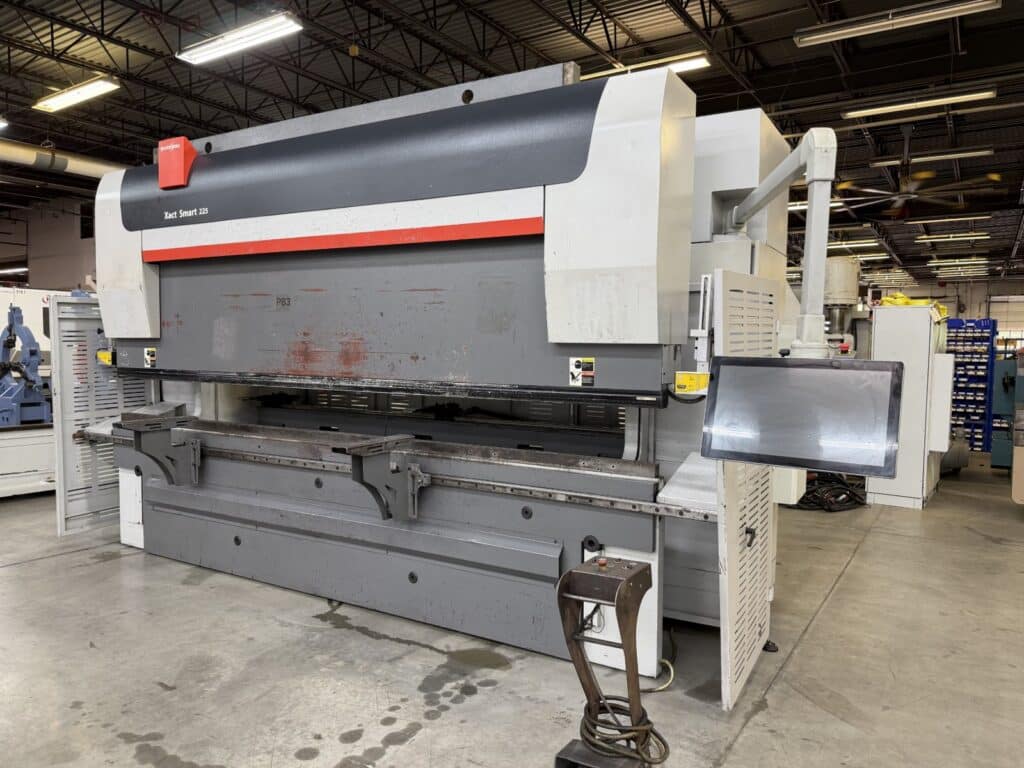

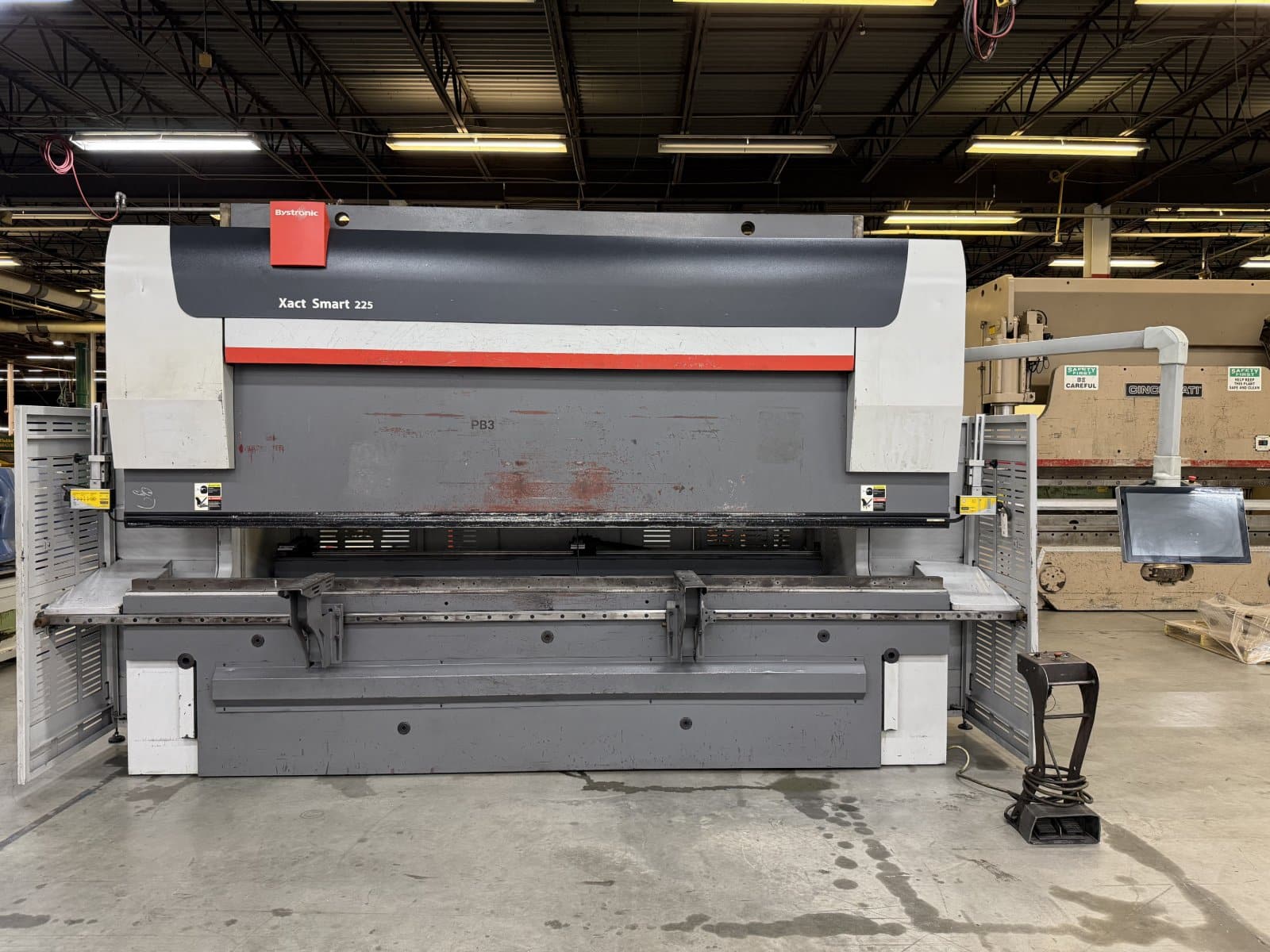

Bystronic Xact Smart 225/4100 248 Ton x 13′ CNC Press Brake

Stock #: 190260023

$129,500.00

See Product Details

Business Financing Available

  • Stock #: 190260023
  • Brand: Bystronic

Business Financing Available

  • Stock #: 190260023
  • Brand: Bystronic

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Provide Shipping Quote
Provide Financing Options
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Product Description

General Info

  • Stock #: 190260023
  • Stock #: 190260023
  • Location: Decatur, GA
  • Brand: Bystronic

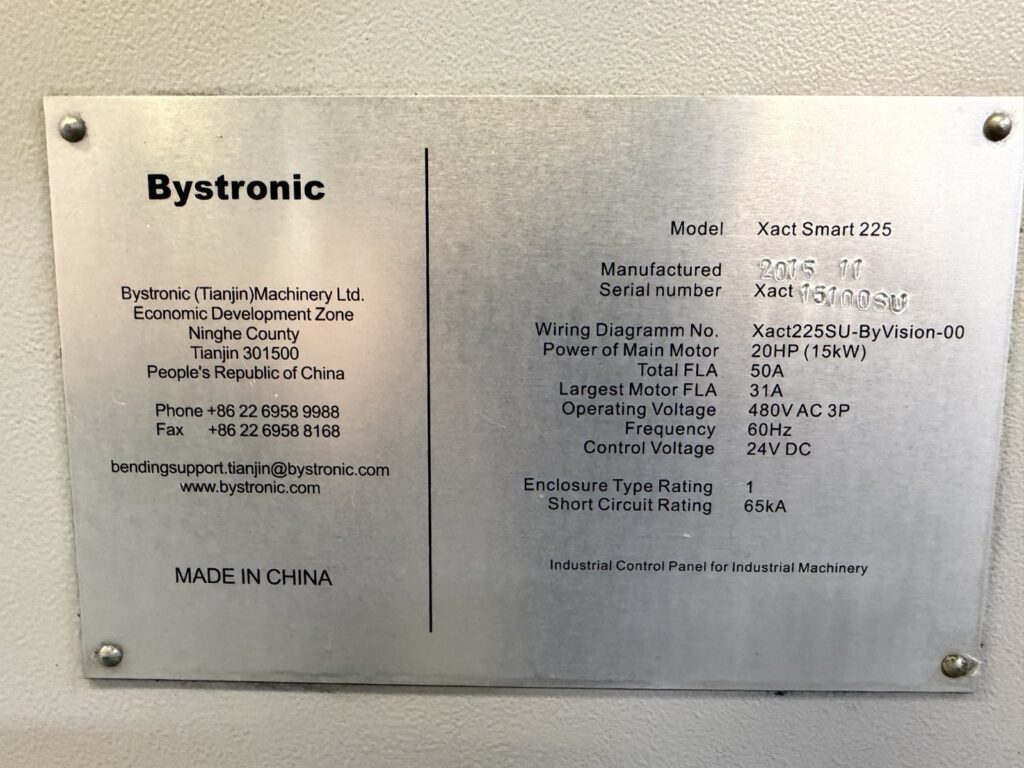

  • Model: Xact Smart 225/4100
  • Serial #: Xact 15100SW
  • Year: 2015
  • Approx. Shipping Weight: 37,000 Lbs.
  • Approx. Shipping Dimensions: 16′ L x 8’4″ W x 10′ H

Specifications

  • Capacity: 248 US Tons (225 Metric Tons)
  • Working Length: 161.4″
  • Max. Stroke: 11.8″
  • Rapid Approach: 5.5″/sec
  • Working Speed: 0.04 – 0.39″/sec
  • Return Speed: 4.5″/sec

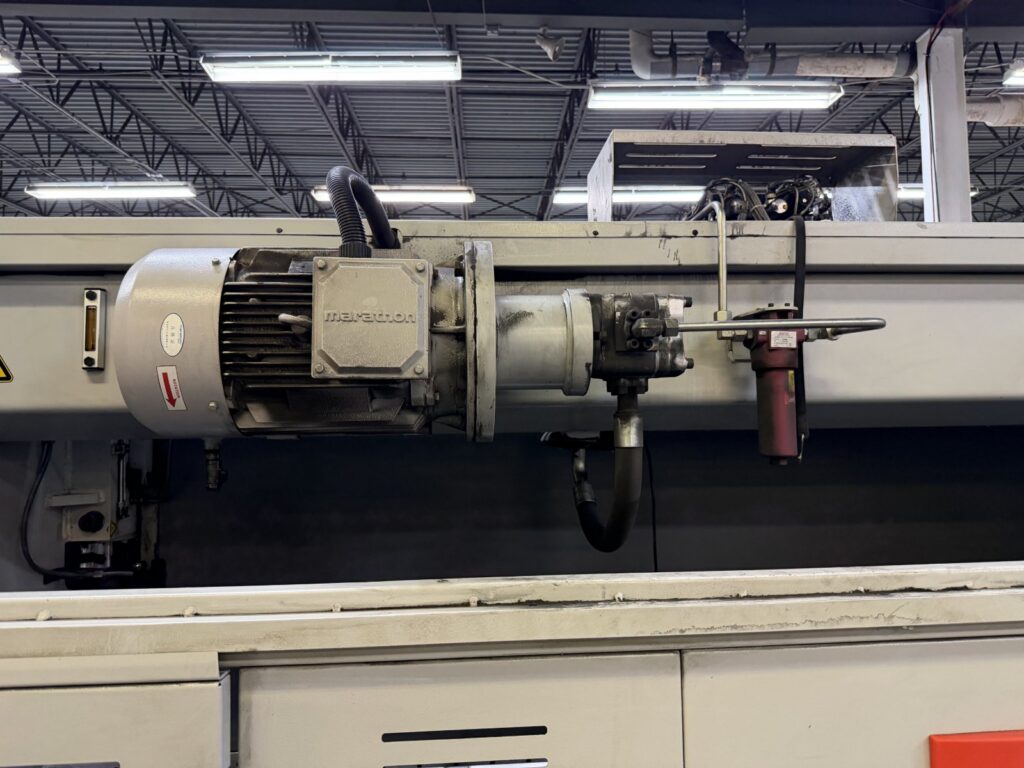

  • Power Of Main Motor: 20 HP
  • Electrical: 480V/3PH

Equipped With

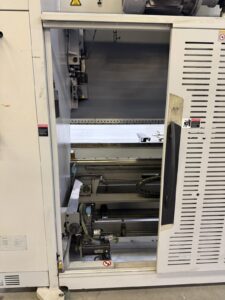

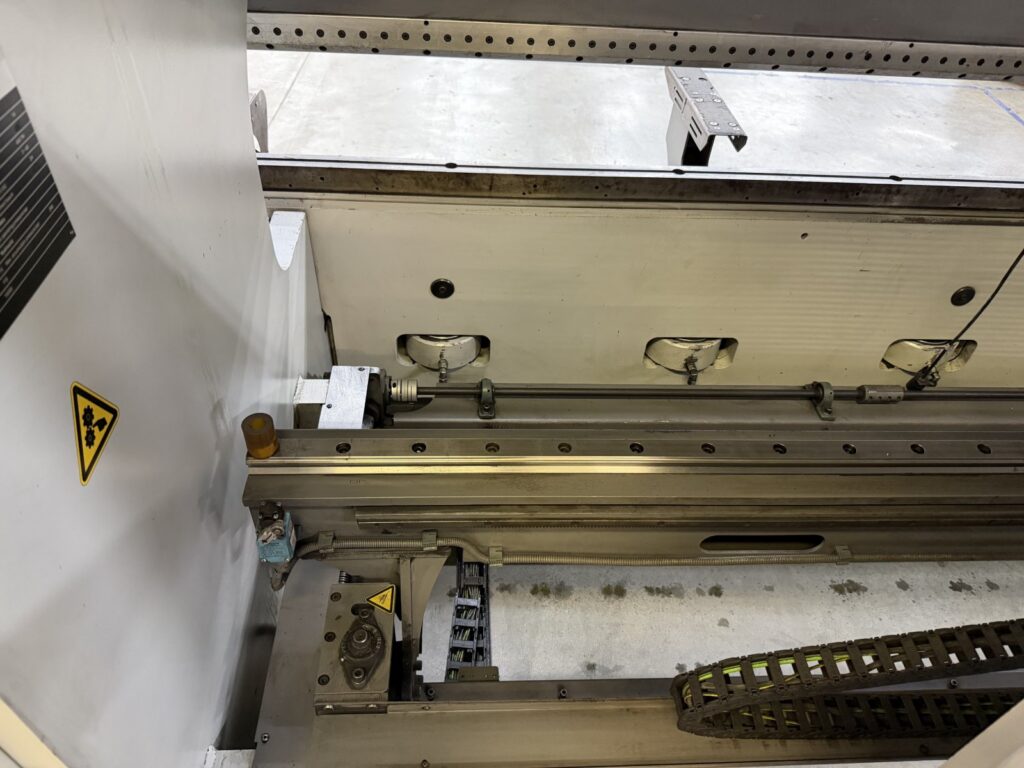

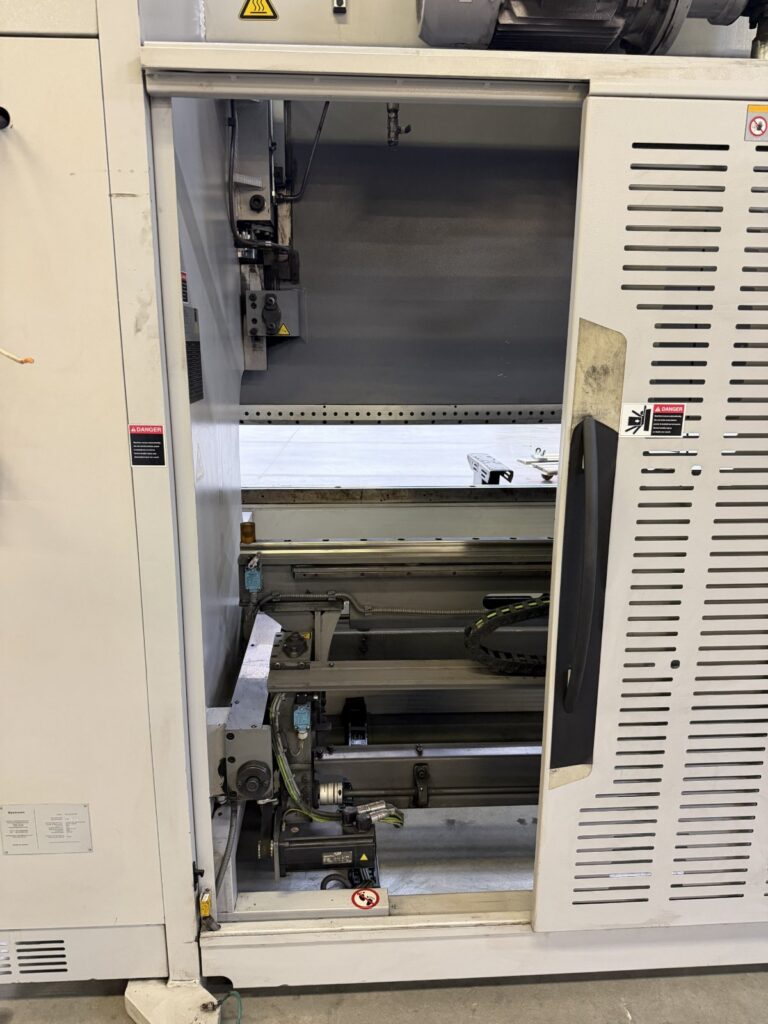

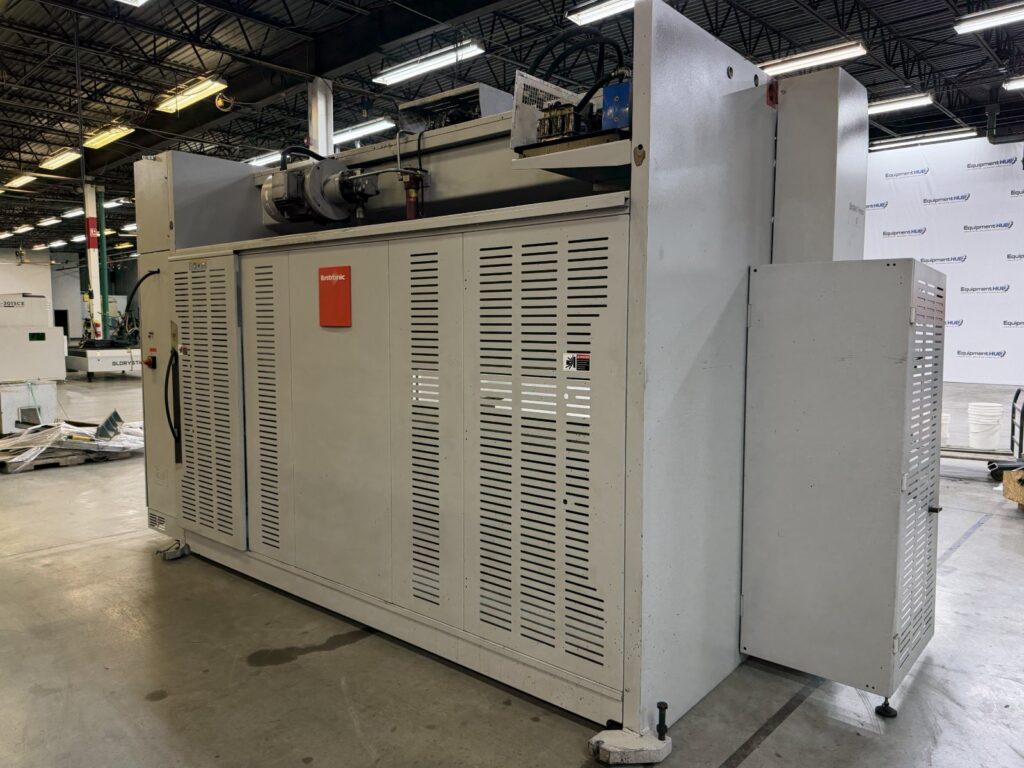

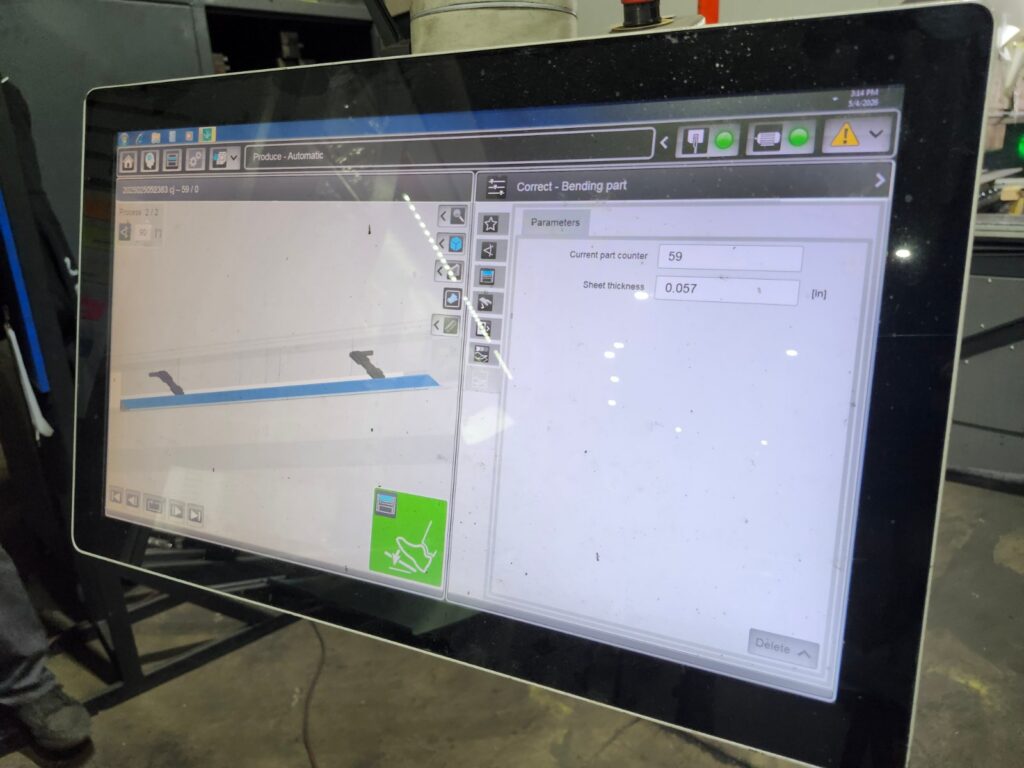

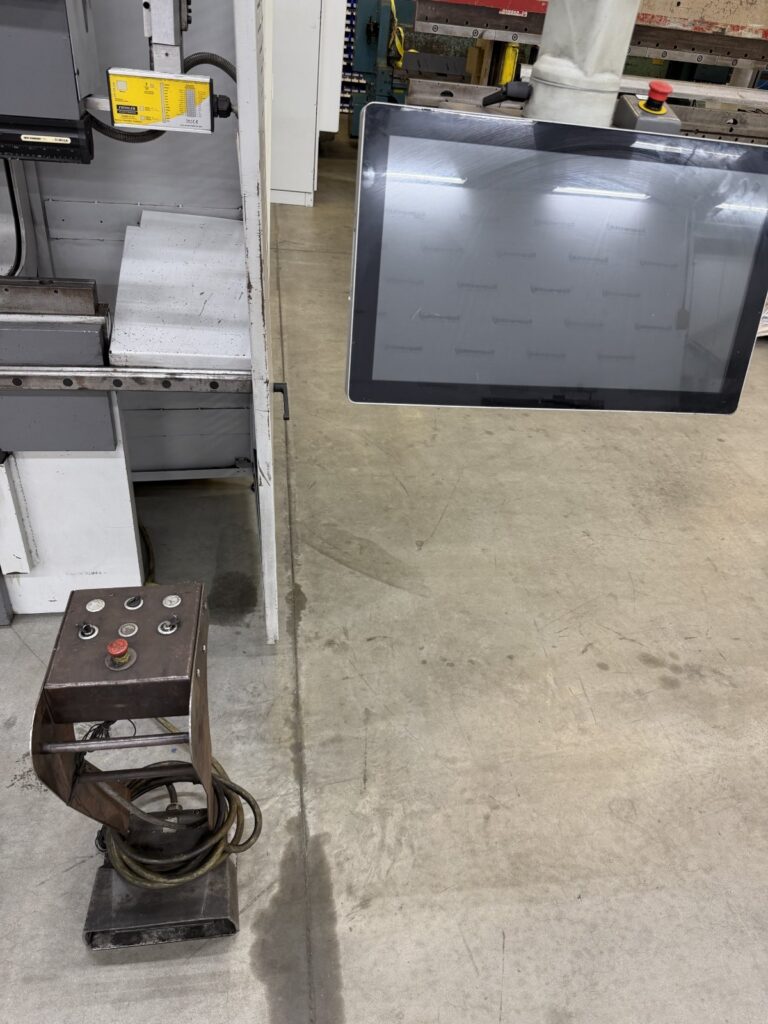

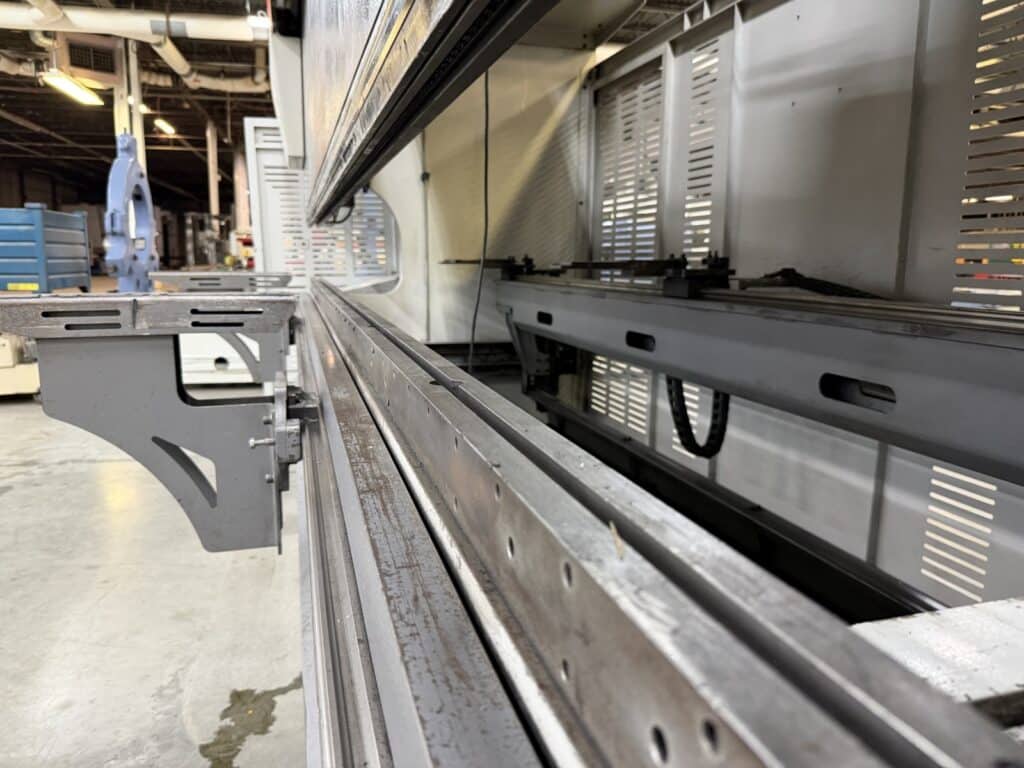

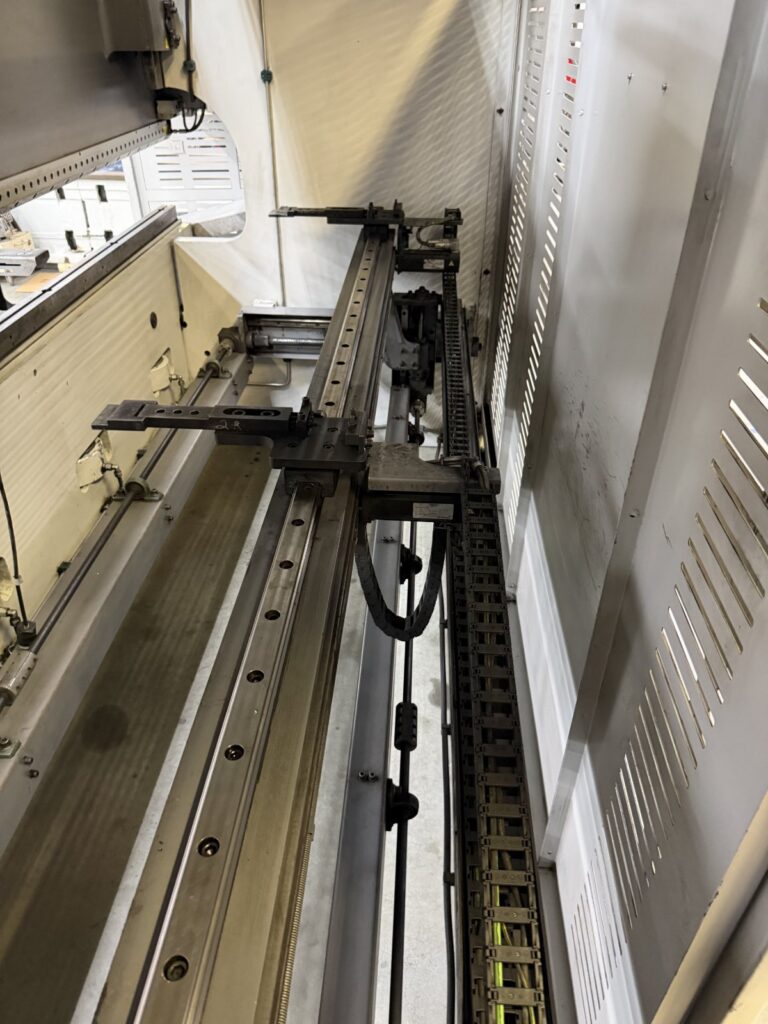

Byvision Bending CNC Control With 22″ Full Hd Touchscreen (3D Part Visualization, Automatic Mode, Part Counter), 5-Axis CNC Back Gauge (X, X1, R, Z1, Z2), CNC Controlled Hydraulic Crowning, Willa New Standard Pro Hydraulic Rfa Style Upper Tooling Clamping, Fiessler Safety Laser System, LED Illumination (Front & Rear), Electrically Interlocked Side Safety Fences, Rear Protection Sliding Doors With Interlock Switch, Front Sheet Support Arms (2), Foot Pedal Control With Emergency Stop

Additional Info

The Bystronic CNC Press Brake can be demoed upon request.
