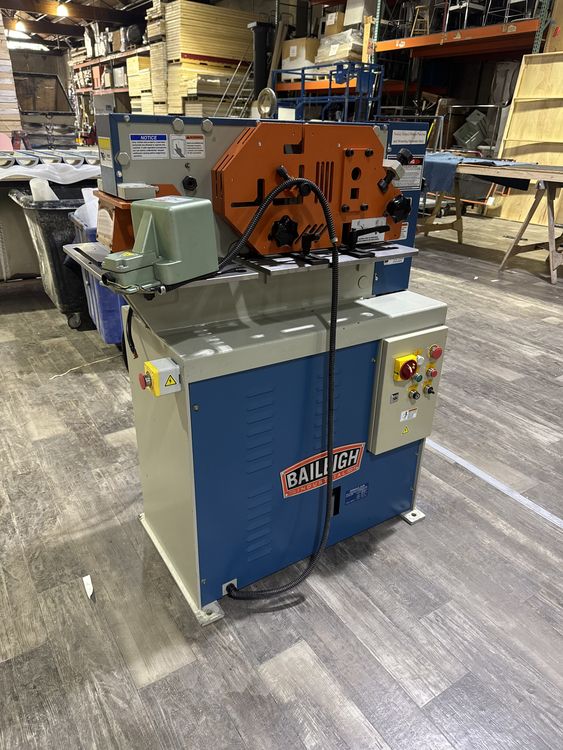

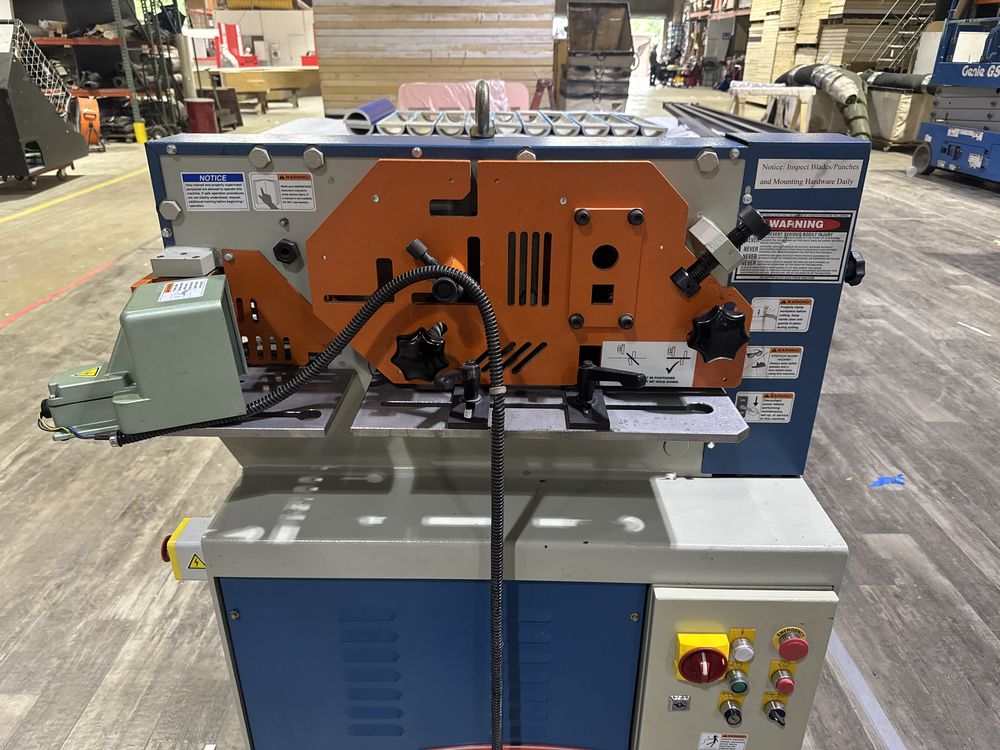

Baileigh SW-443 Hydraulic Ironworker
Stock #: 181250015
$6,150.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 181250015
- Location: Jersey City, NJ
- Brand: Baileigh
- Model: SW-443
- Year: 2021
- Approx. Shipping Weight: 2,310 Lbs.
- Approx. Shipping Dimensions: L-45″ x W-30″ x H-68″
Specifications
- Stations: 4
- Punching Pressure: 44 Tons
- Punch Capacity: 0.75″ Diameter x 0.625″ Thickness (19mm x 16mm); Also Supports 1.5″ Diameter x 0.375″ Thickness (38mm x 9.5mm)
- Throat Depth: 6.88″ (175mm)
- Maximum Stroke Length: 1.125″ (28.6mm)
- Flat Bar Shearing Capacity: 7.87″ x 0.5″ (200mm x 12.7mm)
- Blade Length: 13.87″ (352mm)
- Round Bar Shear Capacity:: 1.125″ (28.6mm)
- Square Bar Shear Capacity: 1.125″ (28.6mm)
- Angle Shearing at 90°: 3″ x 3″ x 0.25″ (76mm x 76mm x 6.35mm)
- Angle Flange Trim: 3.14″ x 0.393″ (80mm x 10mm)
- Bar Shearing Working Height: 44.88″ (1140mm)
- Angle Shearing Working Height: 40″ (1016mm)
- Flat Shearing Working Height: 42.32″ (1075mm)
- Cycles per Minute: Up to 23 cycles
- Power Requirements: 220V, 3-Phase 13.9 Amps
- Motor Horsepower: 3 HP
Equipped With
Like New, Barely Used
Additional Info
Inspection Upon Request
