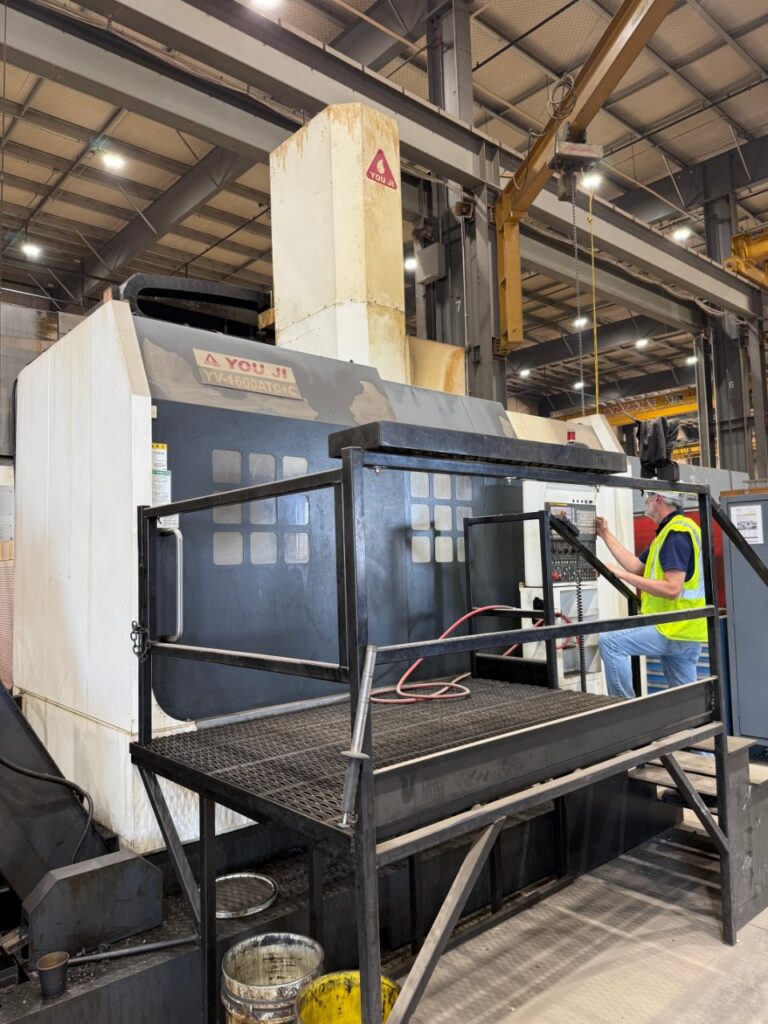

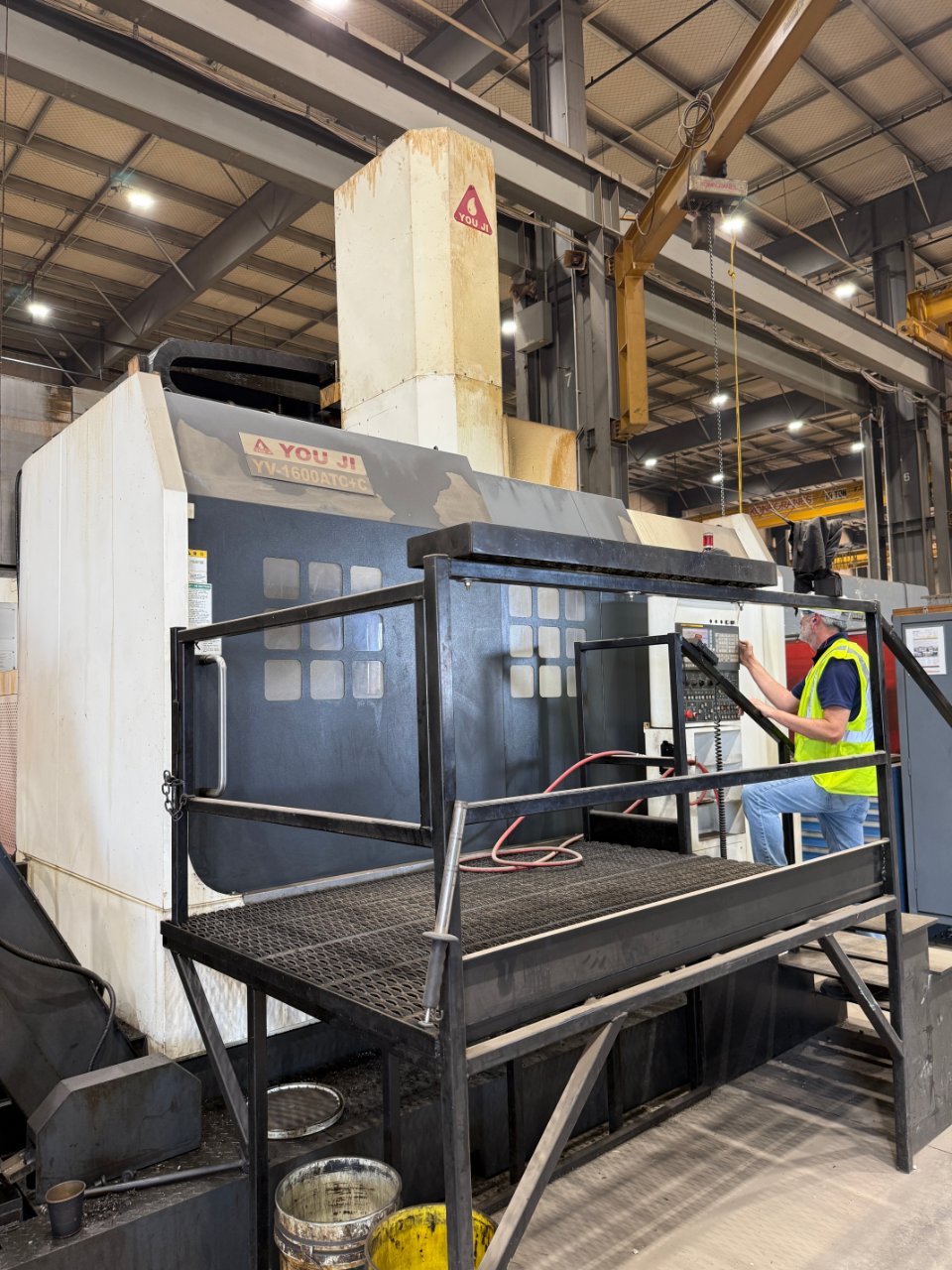

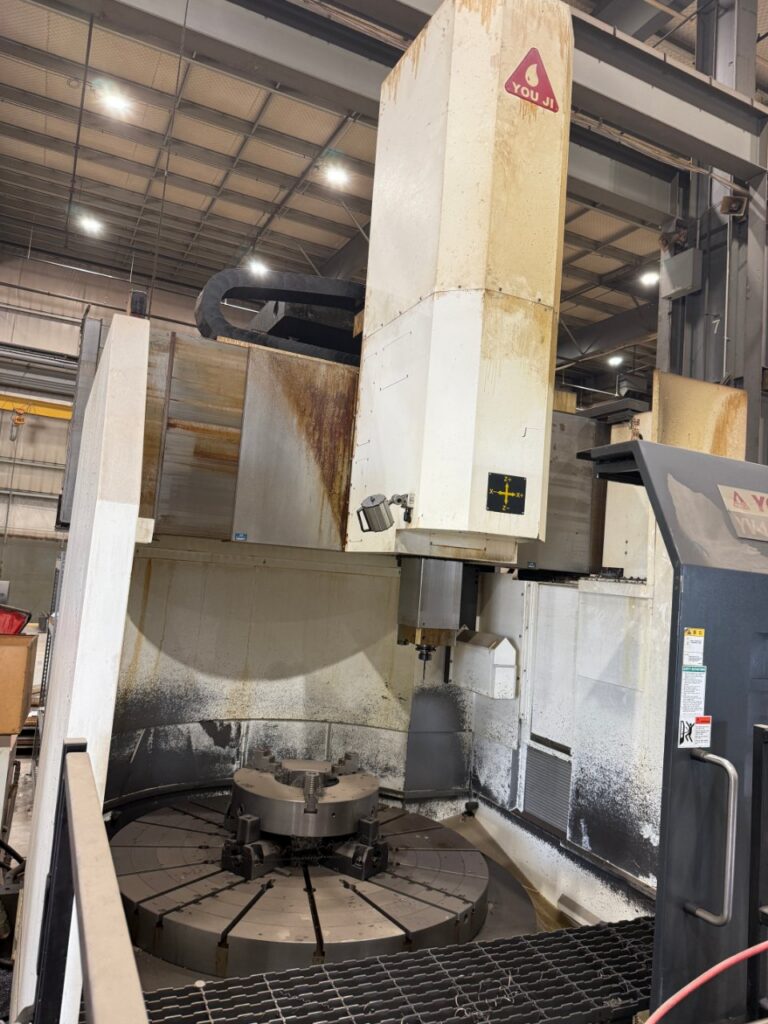

You Ji YV-1600 ATC+C Vertical CNC Lathe
Stock #: 121260023
$329,950.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 121260023
- Brand: You Ji
- Model: YV-1600 ATC+C
- Year: 2018
- Approx. Shipping Weight: 83,000 pounds
- Approx. Machine Dimensions: 178" x 230" x 213" (max height)
Specifications

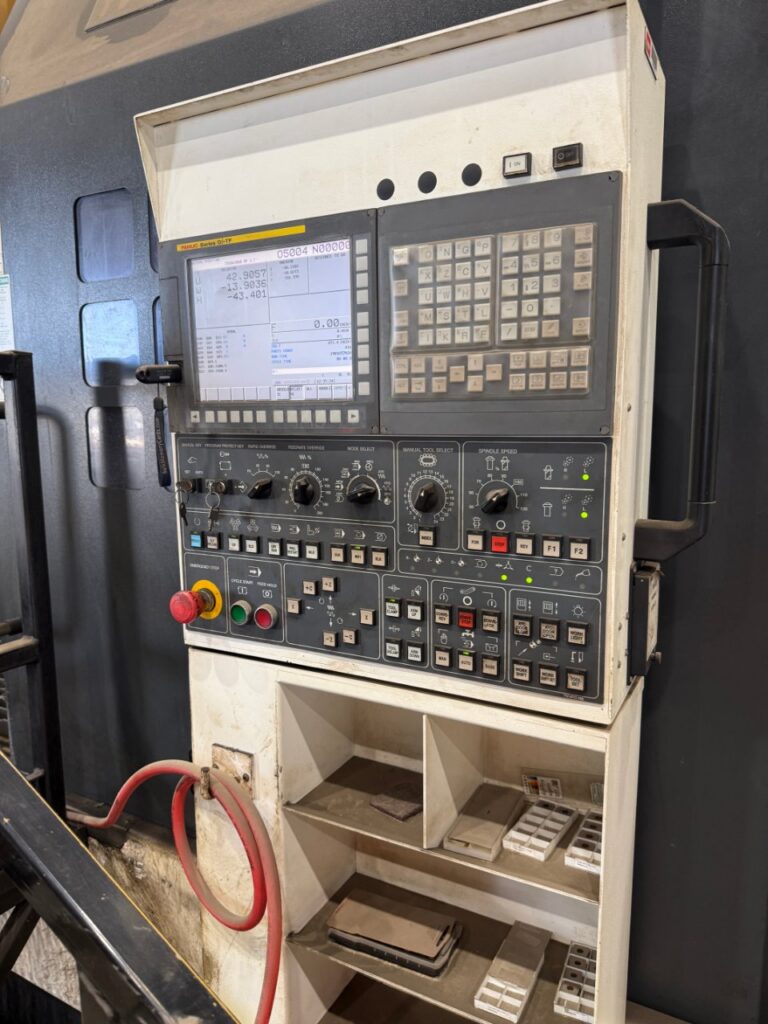

- Control Type: Fanuc 0i-TF
- Swing: 78.4"
- Turning Diameter: 70.86"
- Table Diameter: 62.99"
- Max Table Load: 17,636 pounds

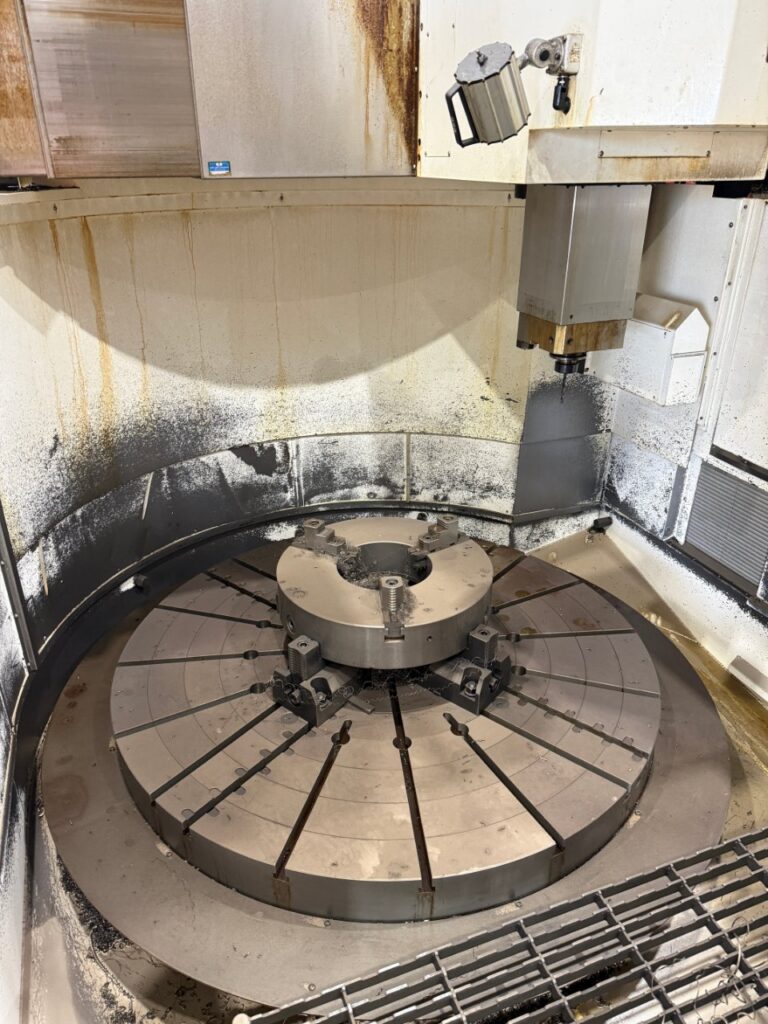

- Chuck Size: 63"
- Max Height Under Rail: 47.24"
- Vertical Travel Of Crossrail: 31.49"
- X-Axis Travel: 48.23"
- Z-Axis Travel: 35.43"
- Spindle Taper: CAT 50
- Spindle Speed: 70-250 rpm
- Spindle Motor: 60 horsepower

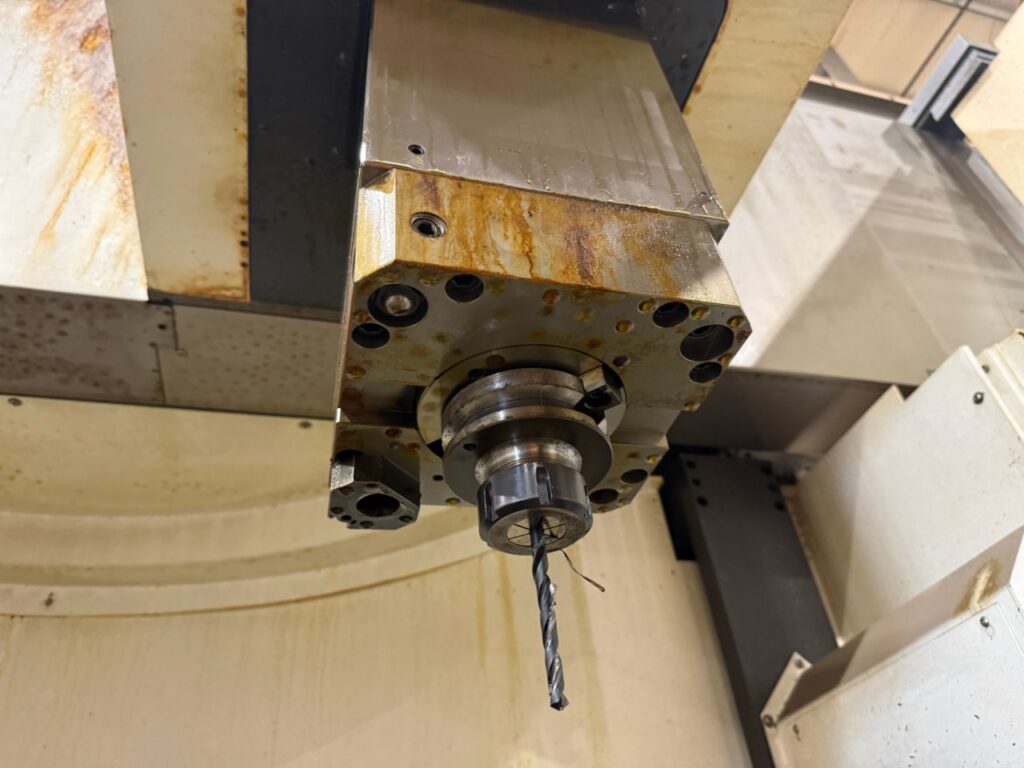

- Live Tooling: yes
- Live Tooling Speed: 2,400 rpm
- Live Tooling Motor: 15 hp

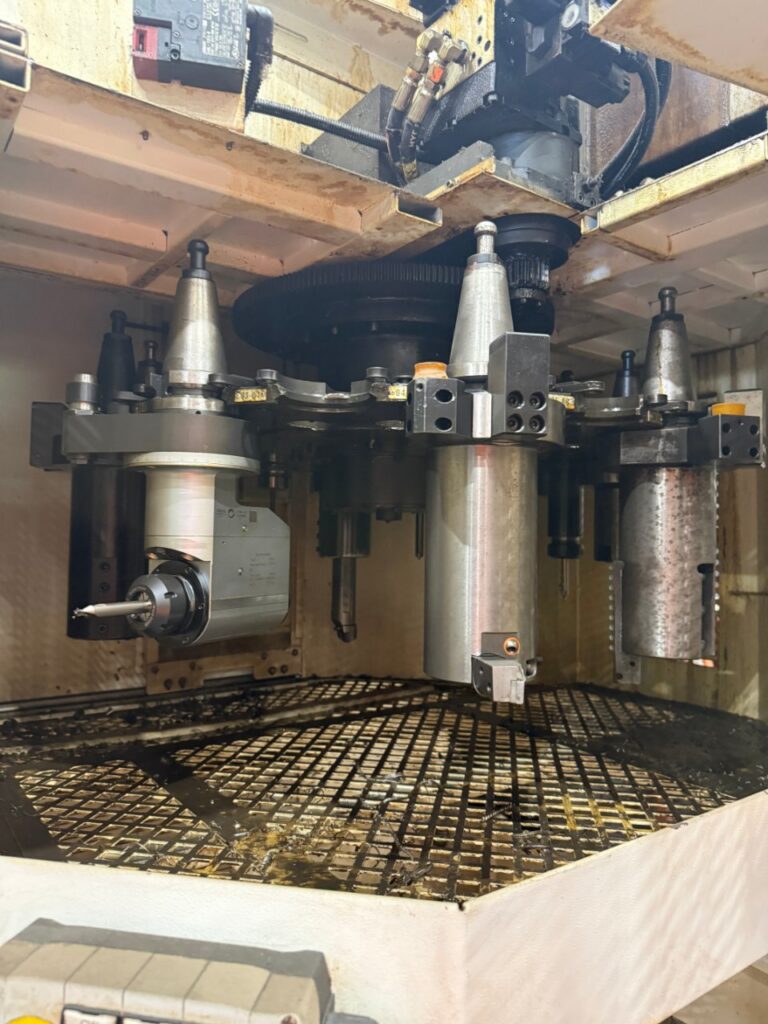

- Tool Changer Capacity: 16
Equipped With

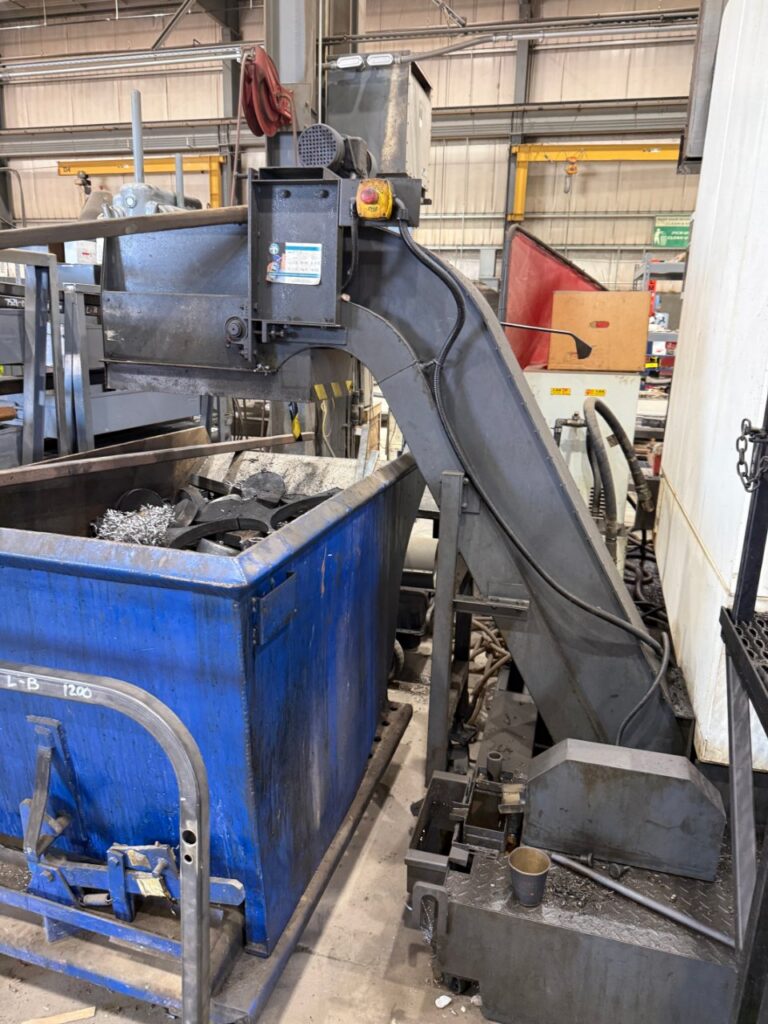

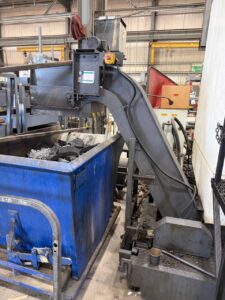

Fanuc 0I-Tf CNC Control, Chip Conveyor, Coolant Tank & Pump, Live Tooling, 4-Jaw Manual Chuck
Additional Info
Machine can be inspected upon request.
