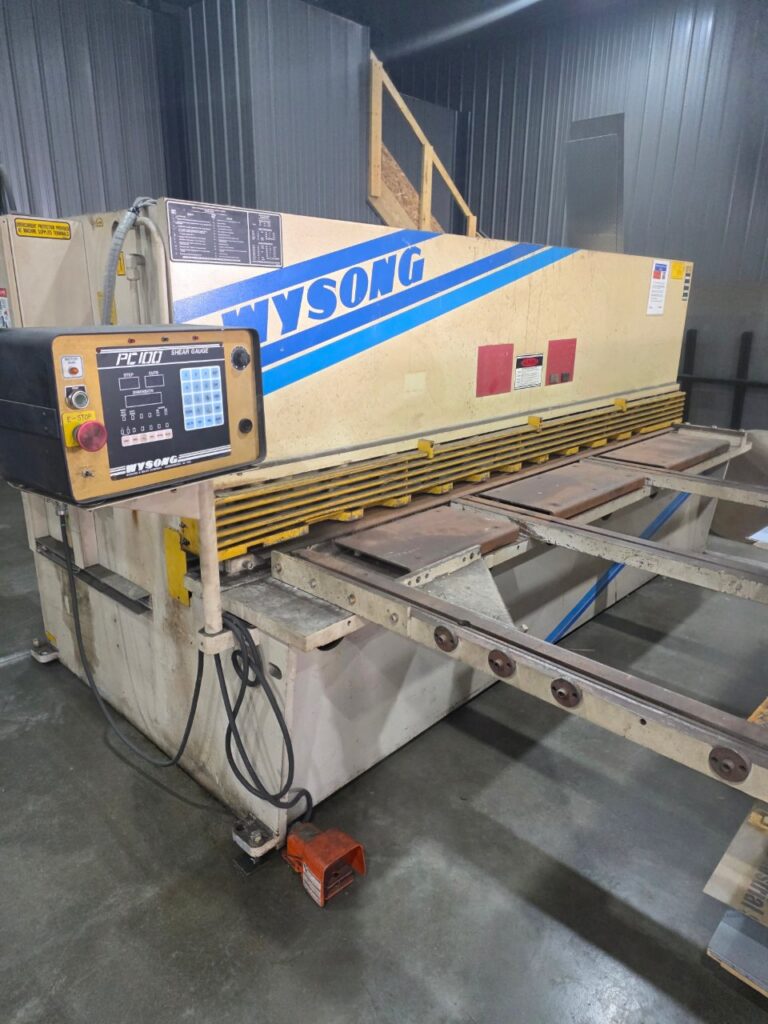

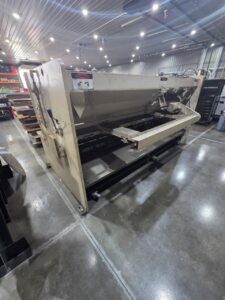

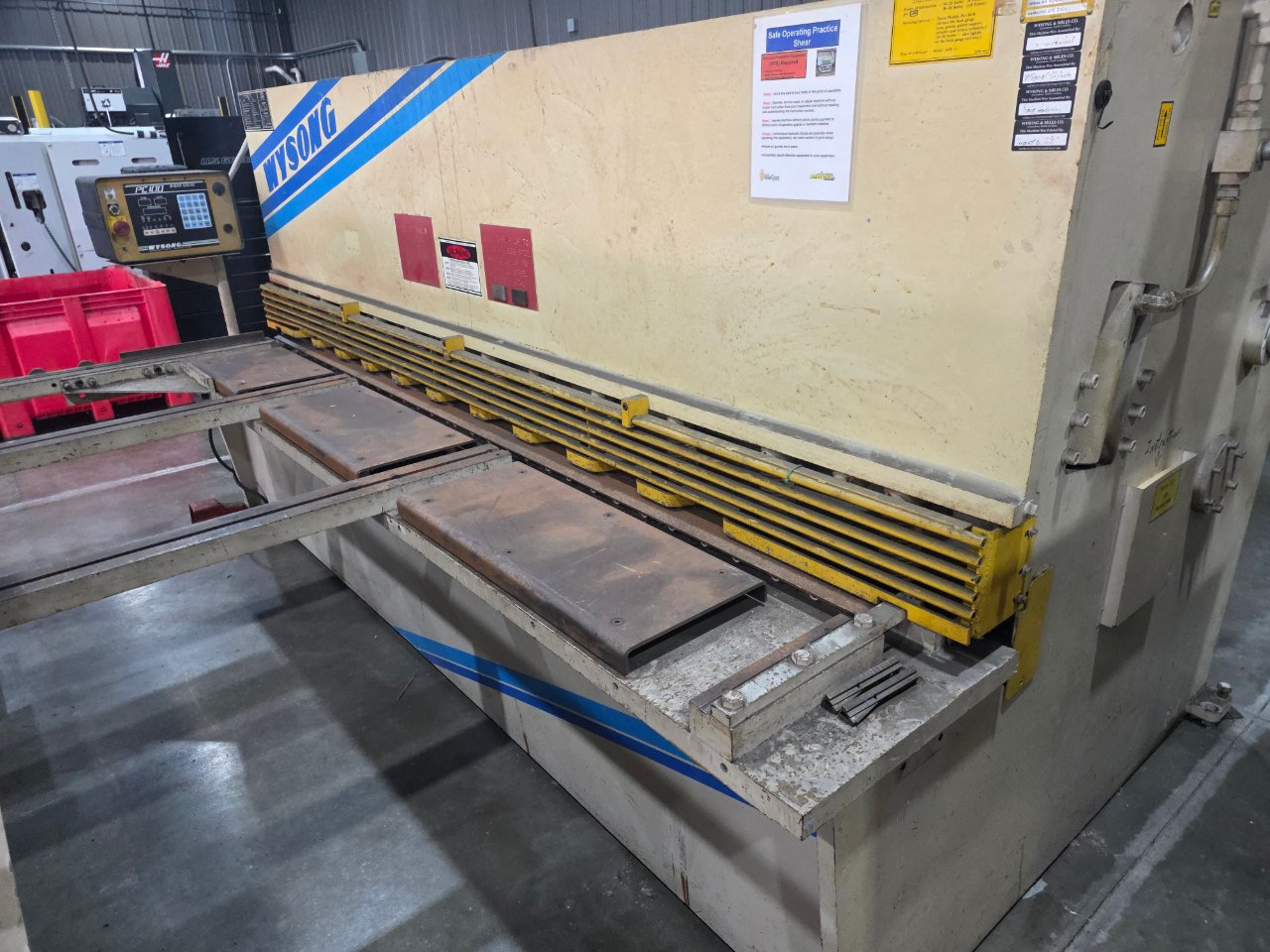

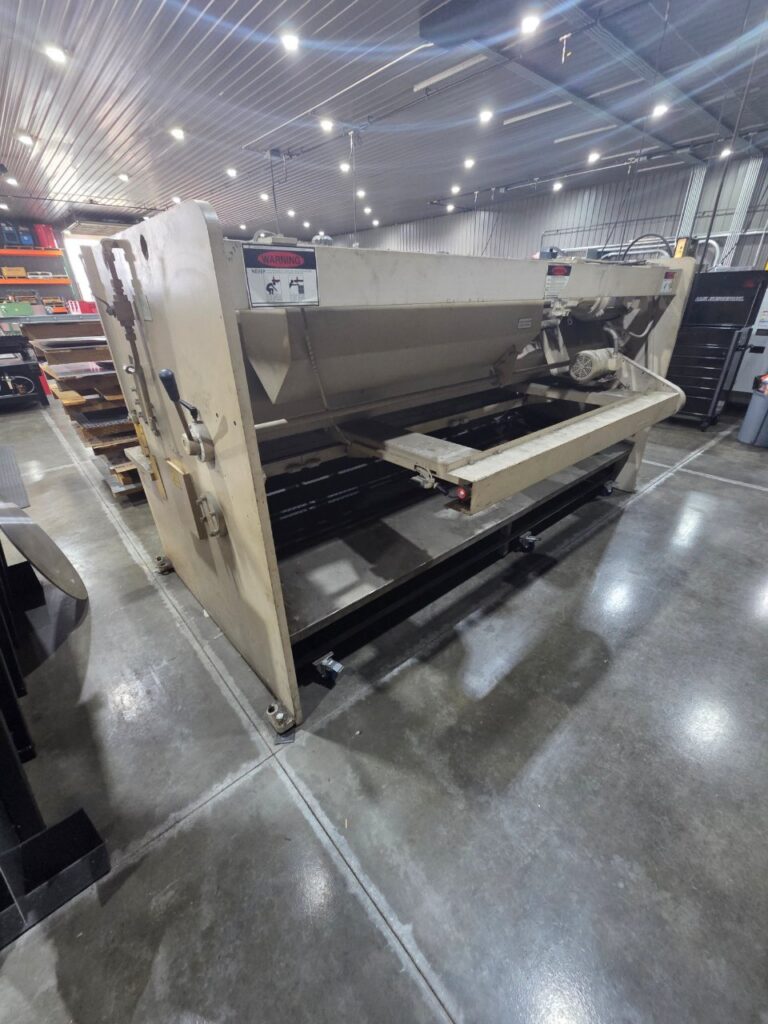

Wysong H-2510 10′ x 1/4″ CNC Hydraulic Power Squaring Shear
Stock #: 211260036
$29,950.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 211260036
- Location: Stone Mountain, GA
- Brand: Wysong
- Model: H-2510

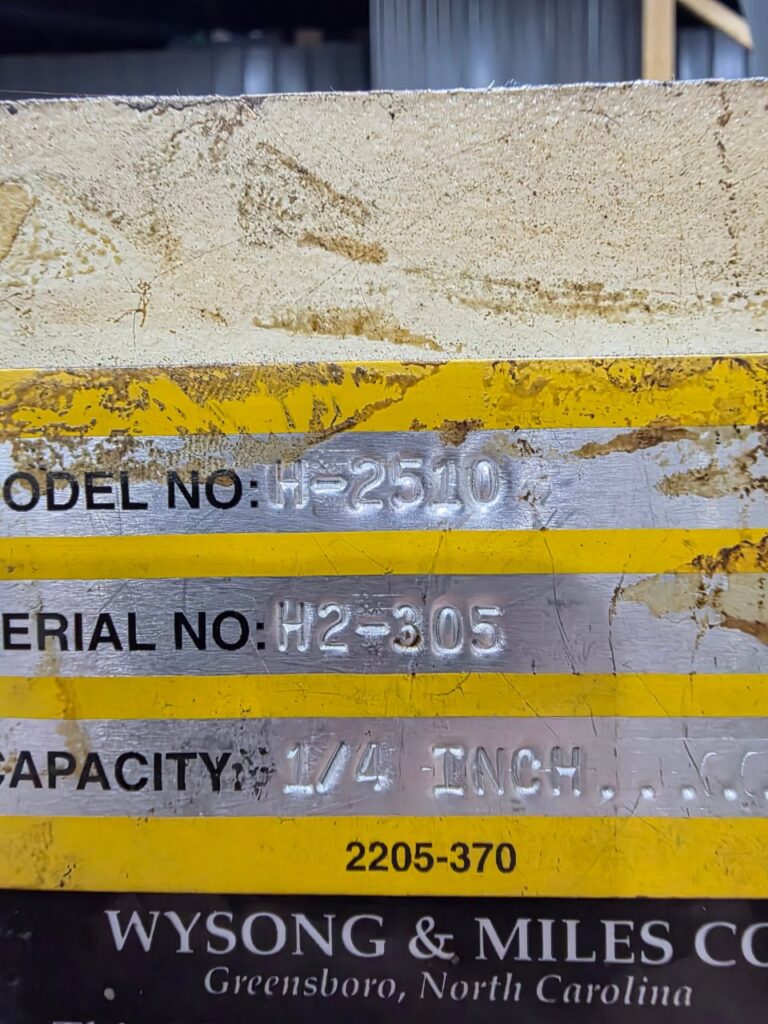

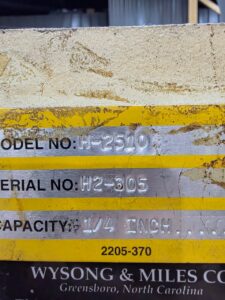

- Serial Number: H2-305
- Approx. Shipping Weight: 20,000 Lbs.
- Approx. Shipping Dimensions: 14′ L x 7′ W x 6.5′ H
Specifications
- Shearing Capacity, Mild Steel: 10′ x 1/4"
- Shearing Capacity, Stainless Steel: 10′ x 7 GA
- Throat Depth: 3"
- Rake Angle Inch Per Foot: 5/16"
- Number Of Holddowns: 13
- Strokes Per Minute, Full Capacity Full Length: 21 SPM
- Strokes Per Minute, Full Capacity Short Stroke: 45 SPM
- Strokes Per Minute, Reduced Cap Full Length: 40 SPM
- Strokes Per Minute, Reduced Cap Short Stroke: 60 SPM
- Main Motor, Horsepower: 20 HP
- Electrical: 460V/3PH
Equipped With
Wysong "Pc100" 3-Axis CNC Control W/ 36" Backgauge, (2) Front Arm Supports
Additional Info
The Wysong Shear can be demoed upon request. Rigging Required.
