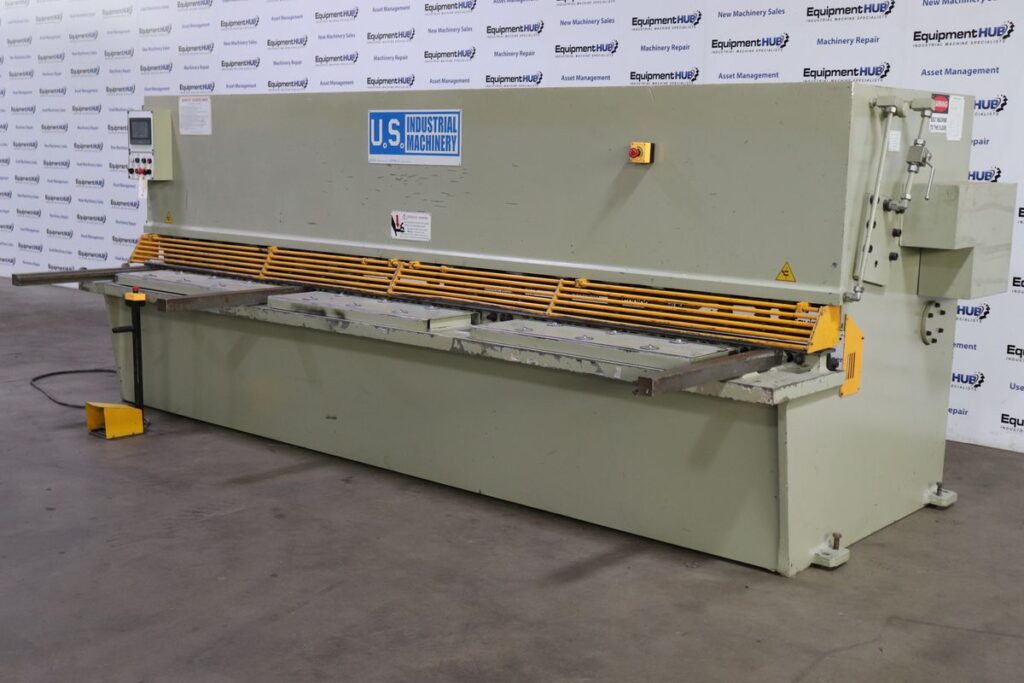

US Industrial US1325CNC 13′ x 1/4″ CNC Programmable Hydraulic Shear
Stock #: 170250007
$29,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
Product Description
General Info
- Stock #: 170250007
- Location: Stone Mountian, Ga
- Brand: US Industrial
- Model: US1325CNC
- Serial #: J1602-017H
- Approx. Shipping Weight: 23,000 Lbs.
- Approx. Shipping Dimensions: 16′ L x 8′ W x 6′ H
Specifications
- Sheet Size
157″ - Shearing Capacity – Mild Steel
1/4″ - Shear Angle
1° 30′ - No Load Strokes
10 - Throat Depth
4.7″ - Adjustment Range of Back Gauge
0.75″ to 36″ - Hydraulic Oil Capacity
66 Gallons - Motor HP
15 - Electrical
230V/3PH
Equipped With
3-Axis Touch-Screen Operated CNC Programmable Controller(Controls Back Gauge Depth, Blade Gap & Stroke Length with 200 Program Storage Capacity), Squaring Arm, (2) Front Arm Supports, Shadow Line with LED Lighting
Additional Info
The US Industrial Shear can be demoed upon request, check out the video on the listing to see it in operation.
