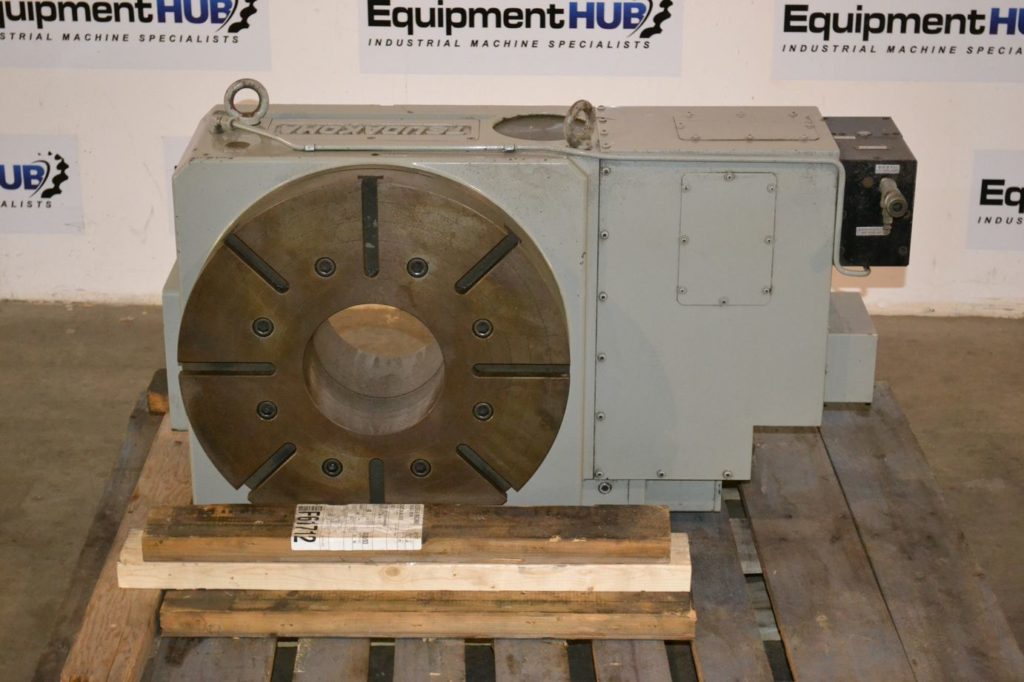

Tsudakoma RNCB-501R 20″ Big Bore CNC Rotary Table
$3,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info:
Stock #: CL-171024
Location: Stone Mountain, GA
Brand: Tsudakoma
Model: RNCB-501R
Serial #: 602408
Approx. Shipping Weight: 1,500 Lbs.
Approx. Shipping Dimensions: 48″ L x 48″ W x 36″ H
Specifications:
Table Diameter: 19.09″
Table Height (Horizontal Position): 12.99″
Table Center Height (Vertical Position: 12.2″
Overall Height (Vertical Position): 22.24″
Center Bore Diameter: 7.087″
T-Slot Size: 0.7087″
Load Capacity (Horizontal): 1,320 Lbs.
Load Capacity (Vertical): 550 Lbs.
Maximum Rotation Speed: 8.3 RPM
Additional Info:
Unit is in good overall condition. Only comes with what is seen in photos. We ship out next day after payment is received.
Seller Contact Info:
The Equipment Hub
770-621-0495
4601 Lewis Rd.
Stone Mountain, GA 30083
