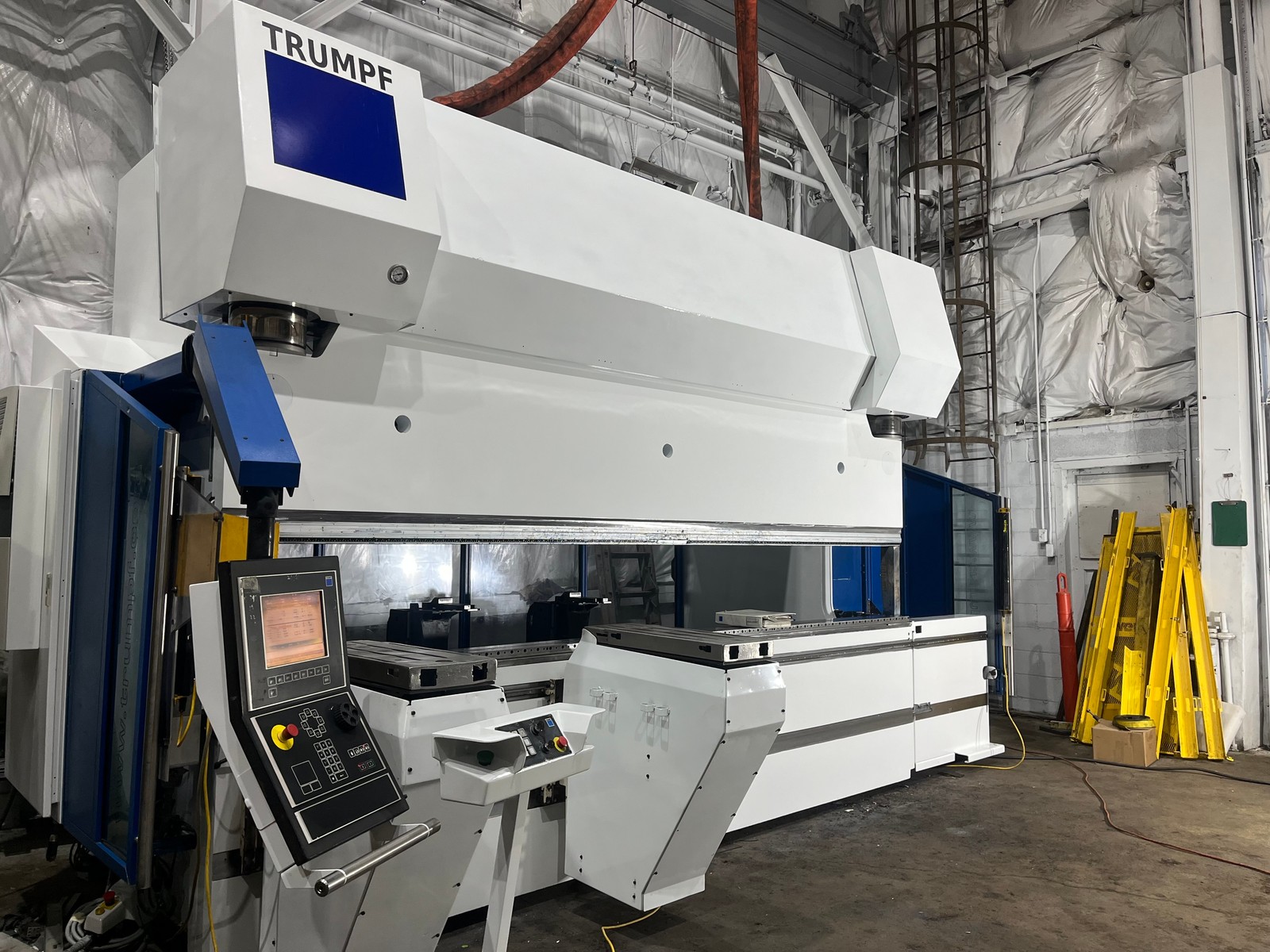

Trumpf Trumabend V320 352 Ton x 14′ CNC Hydraulic Press Brake

Stock #: 153260058

$165,500.00

See Product Details

Stock #: 153260058
Brand: Trumpf

Not What You're Looking For?

Have Surplus Machinery to Sell?

Stock #: 153260058
Brand: Trumpf

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Comments

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

Provide Shipping Quote

Provide Financing Options

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

This field is hidden when viewing the form

In Stock?

UTM Campaign

UTM Source

UTM Medium

UTM Term

UTM Content

Product Description

General Info

Stock #: 153260058
Brand: Trumpf
Model: Trumabend V320
Year: 2006
Approx. Shipping Weight: 53900 lbs.
Approx. Shipping Dimensions: 212” L X 109”W X 126” H

Specifications

Capacity: 352 US Tons
Overall Length Of Bed And Ram: 174”
Distance Between Housings: 145”
Stroke: 14”
Max Open Height: 25”
Effective Open Height: 21”
Ram Inclination: +/- 0.4”
Throat Clearance: 16”
Speeds Approach: 354” Per Minute
Form: 2-24” Per Minute
Return: 320” Per Minute
Distance Floor To Top Of Bed: 41”
Width At Top Of Bed: 8”
Operating Height: 41”

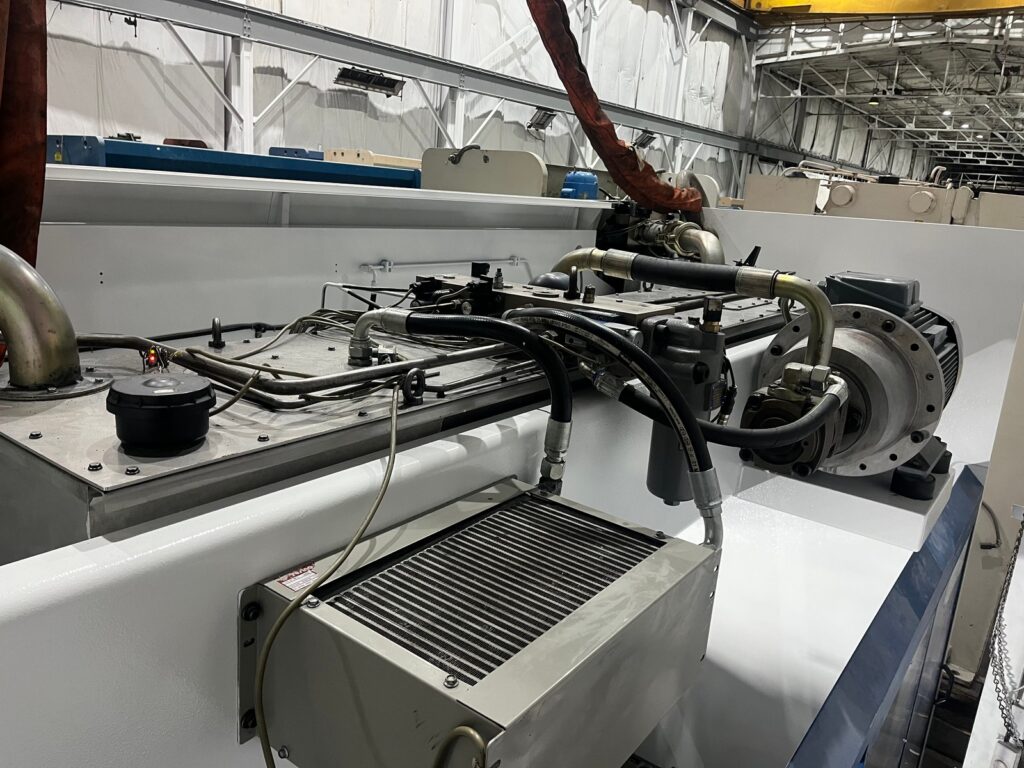

Oil Capacity: 133 US Gallons
Main Motor Horsepower: 50 230/460/3/60

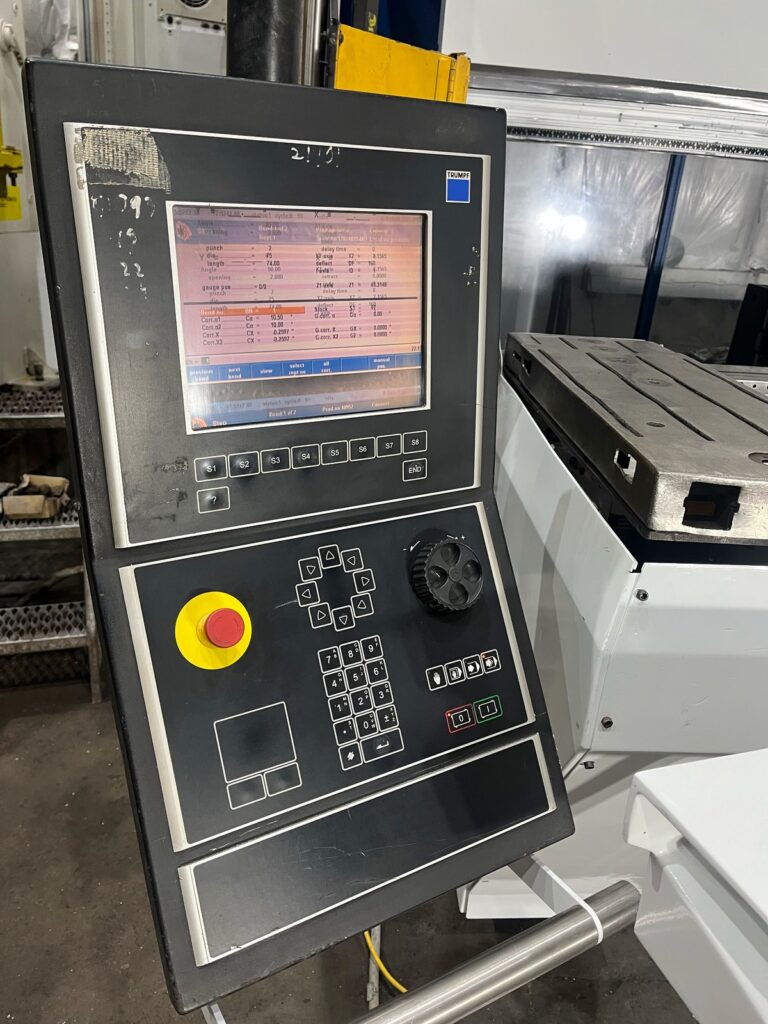

Control: Trumpf Delem DA-69TW Multi-Axis Control (Y1,Y2,X , R, I )

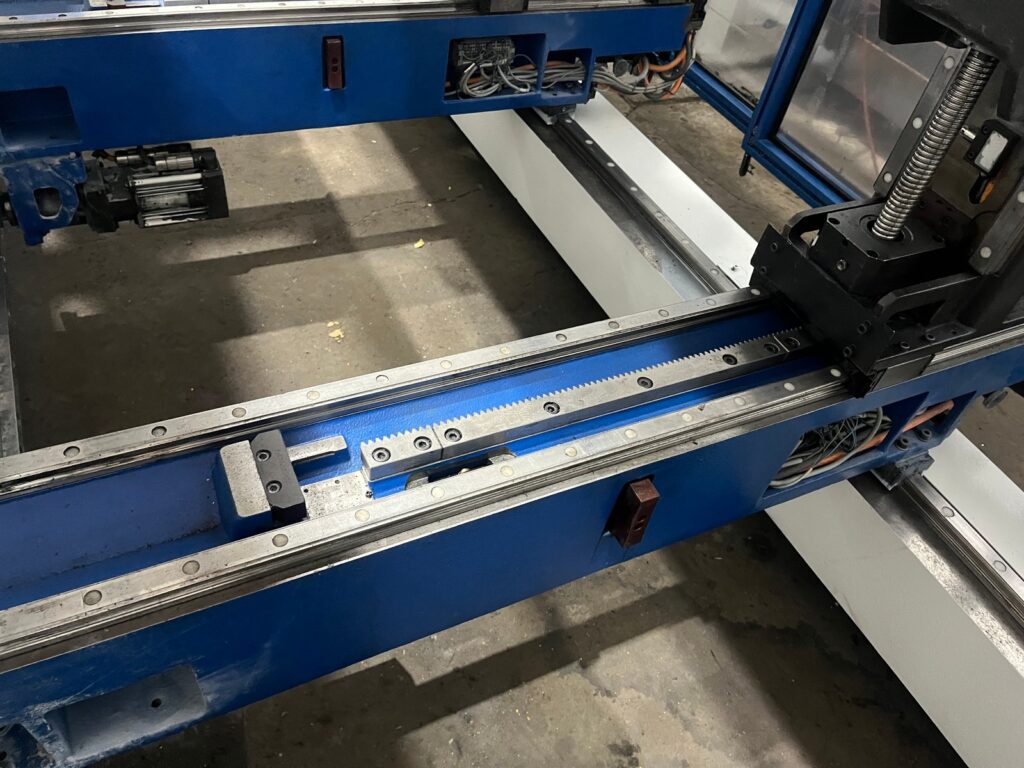

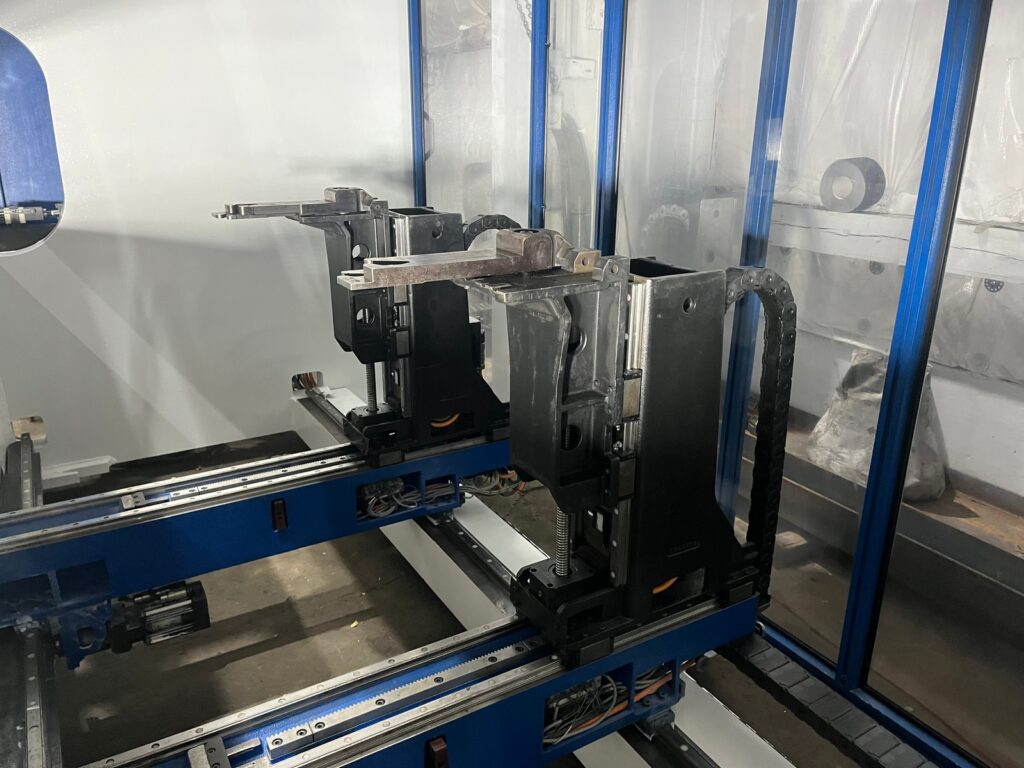

X-Axis: X1, X2 Max Distance 34.6” Travel 19.6” Max Speed 13” Per Min
R-Axis: R1, R2 Travel 13.3” Max Speed 3.9”
Z-Axis: Z1, Z2

Equipped With

Automatic Crowning, I-Axis Die Shift, Isb Merlin Light Curtains, Ram Inclination In Y1 –Y2, Upper & Lower Hydraulic Tool Clamping, Self-Active Crowning, Self Centering Tooling Adaptor, Precision Ram Leveling With Dual Linear Glass Scale Encoders, Oil Cooler, Electric Foot Switch
