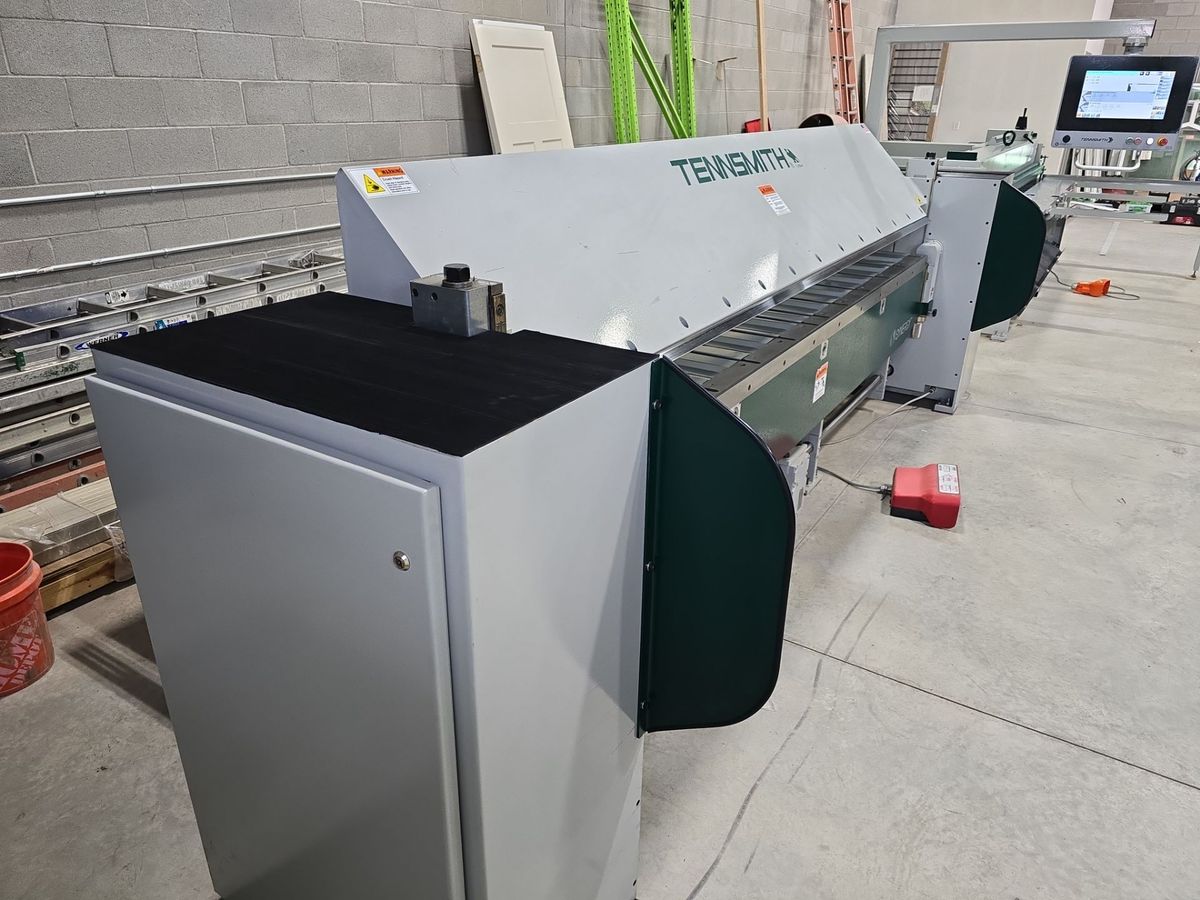

Tennsmith SBS126-14 126″ x 14 Gauge CNC Folding Machine (2020)
Stock #: 171250033
$59,500.00
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: 171250033
- Location: CO
- Brand: Tennsmith
- Model: SBS126-14
- Year: 2020
- Approx. Shipping Weight: 9,020 LBS
- Approx. Shipping Dimensions: 180″ L x 96″ W x 72″ H
- Loading Fee: Rigging Required
Specifications
- Bending Capacity (Mild Steel): 14 Gauge (2.0 mm)
- Bending Capacity (Stainless): 16 Gauge (1.5 mm)
- Bending Length: 126″ (3200 mm)
- Bending Bars: 1″ (25 mm)
- Backgauge Depth: 41″ (1016 mm)
- Clamping Beam Opening Height: 7″
- Camping Beam Tooling: 30°
- Folding Beam Adjustment: 1″ (25 mm)
- Crowning of the Folding Beam: 5-Point 0″ – 0.030″ Adjustment
- Working Height: 34″ (864 mm)
- Clamping Beam Speed: 2.5″ Per Second
- Folding Beam Speed: 90° Per Second
- Backgauge Speed: (.375″ to 41″): 4 Seconds
- Motor: Backgauge Motor: 3/4 HP Clamping Beam Motor: 2 HP Bending Beam Motor: 2+2 HP
- Power Required: 230V / 3 Phase
Equipped With

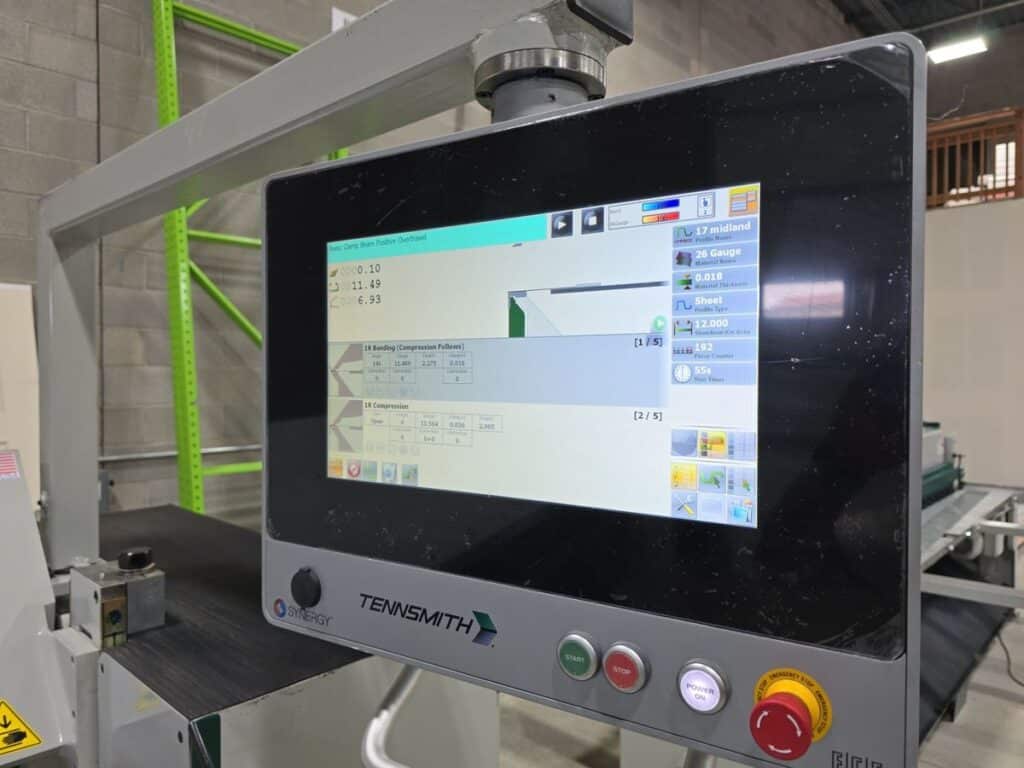

17″ Touch Screen Monitor, Tennsmith Synergy Control, 3D Part Display, Graphical Programming of Profiles, Parts Counter, Inch/Metric Conversions, Material Spring Back Compensation Tables, USB Memory Drive for both PLC & PC, Capable of importing DXF files
Additional Info
Machine is under power and available to demo.
