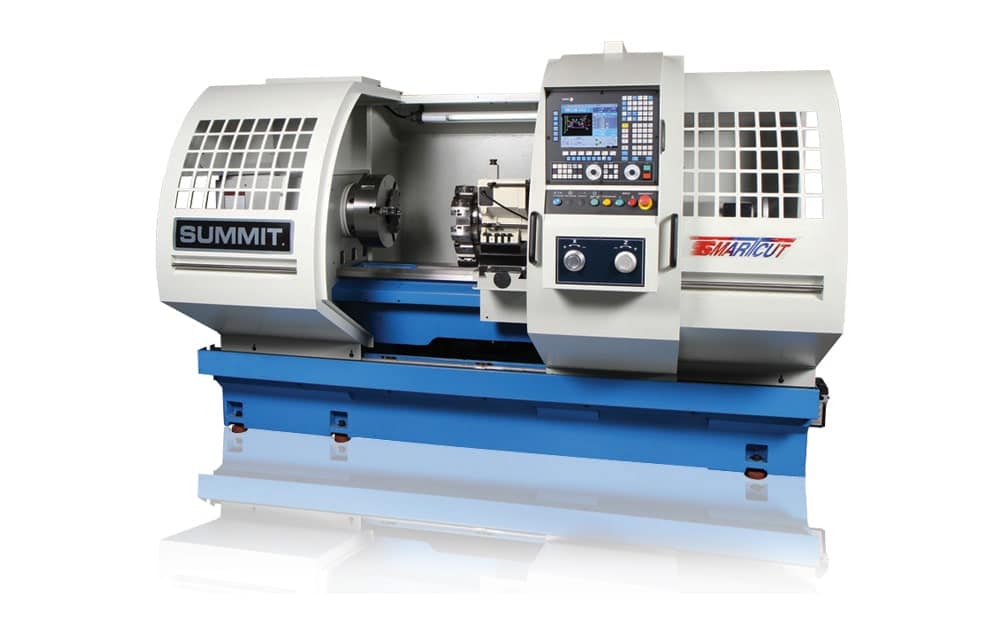

Summit Smartcut Flatbed CNC Lathe

Stock #: Summit-SmartCutFlat

See Product Details

Not What You're Looking For?

Have Surplus Machinery to Sell?

Request Formal Quote

Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.

"*" indicates required fields

Facebook

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Company Name*

Phone*

Email*

Street Address

City

State

Zip

Message

Provide Shipping Quote

Provide Financing Options

This field is hidden when viewing the form

Post ID

This field is hidden when viewing the form

Quantity

This field is hidden when viewing the form

Product Name

This field is hidden when viewing the form

Product URL

This field is hidden when viewing the form

Product Price

Product Description

General Info

Stock #: Summit-SmartCutFlat
Brand: Summit
Model: SmartCut Flat Bed CNC

Specifications

Models Available: SC22, SC26, SC30-4, SC30-6, SC32
Swing over bed: 22 in. (SC22) / 26 in. (SC26) / 30 in. (SC30-4 & SC30-6) / 31.5 in. (SC32)
Swing over cross slide: 13.4 in. (SC22) / 18 in. (SC26) / 22 in. (SC30-4 & SC30-6) / 20 in. (SC32)
Swing over gap: 30 in. (SC22) / 33 in. (SC26) / 37 in. (SC30-4 & SC30-6) / 43.3 in. (SC32)
Distance between centers: 40 in. to 160 in.
Hole through spindle: 3.312 in. (SC22) / 4.125 in. (SC26, SC30-4) / 6.1 in. (SC30-6) / 9.8 in., 12 in., or 14.9 in. (SC32)
Spindle speeds: Infinitely variable: 30-2000 RPM (SC22) / 22-1500 RPM (SC26, SC30-4) / 22-1000 RPM (SC30-6) / 4-600 RPM or 4-400 RPM (SC32)
Spindle nose: A2-8 (SC22) / A2-11 (SC26, SC30-6) / D1-11 (SC30-4) / A2-15 or A2-20 (SC32)
Tailstock quill diameter: 3 in. (SC22 to SC30) / 4.1 in. (SC32)
Tailstock quill travel: 6.25 in. (SC22) / 8.8 in. (SC26 to SC30) / 10.8 in. (SC32)

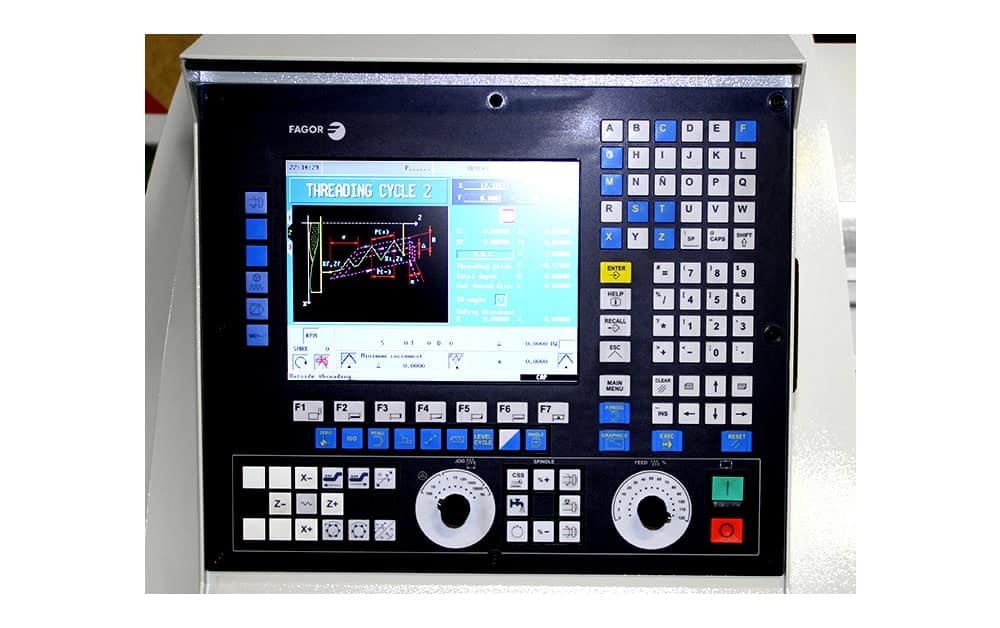

CNC Control: Fagor 8055TC with handwheels & self-teaching capability
Spindle motor: 15 HP (SC22) / 20 HP (SC26 to SC30) / 30 HP (SC32)

Equipped With

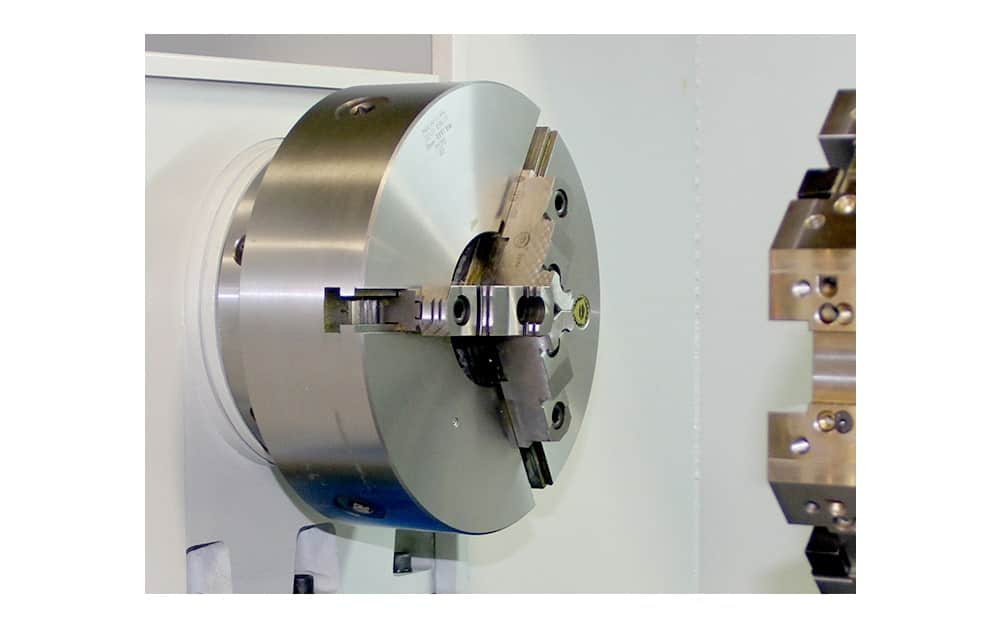

Standard Accessories: Fagor 8055TC CNC control with handwheels & self-teaching feature, steady rest with roller tips, follow rest, coolant system, work light, sliding enclosure doors, 3-jaw chuck (except SC32), front & rear 4-jaw chucks (SC32), hydraulic chuck with foot switch, automatic lubrication, full guarding, constant surface speed
Optional Accessories: Hydraulic steady rest, chip conveyor, bar feed interface, quick-change tool post with holders, live center
