Product Description

General Info

Stock #: Summit-SmartCutEVS
Brand: Summit
Model: SmartCut EVS Series CNC
Approx. Shipping Weight: 2,900 lbs. (EVS-350B) / 3,740 lbs. (EVS-550B)

Specifications

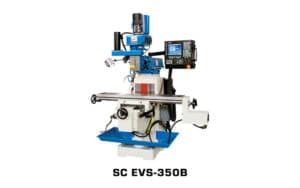

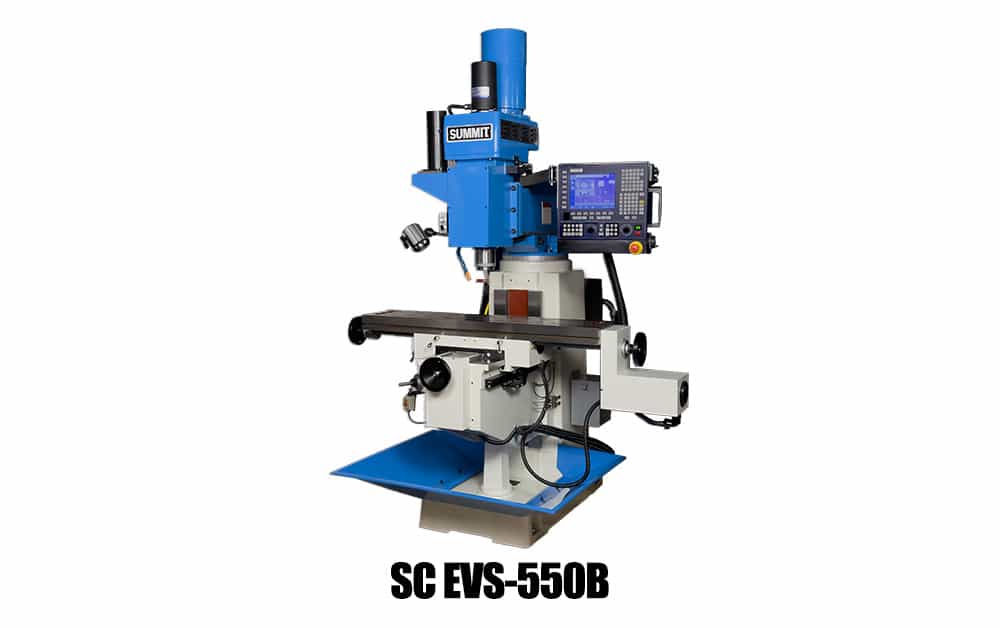

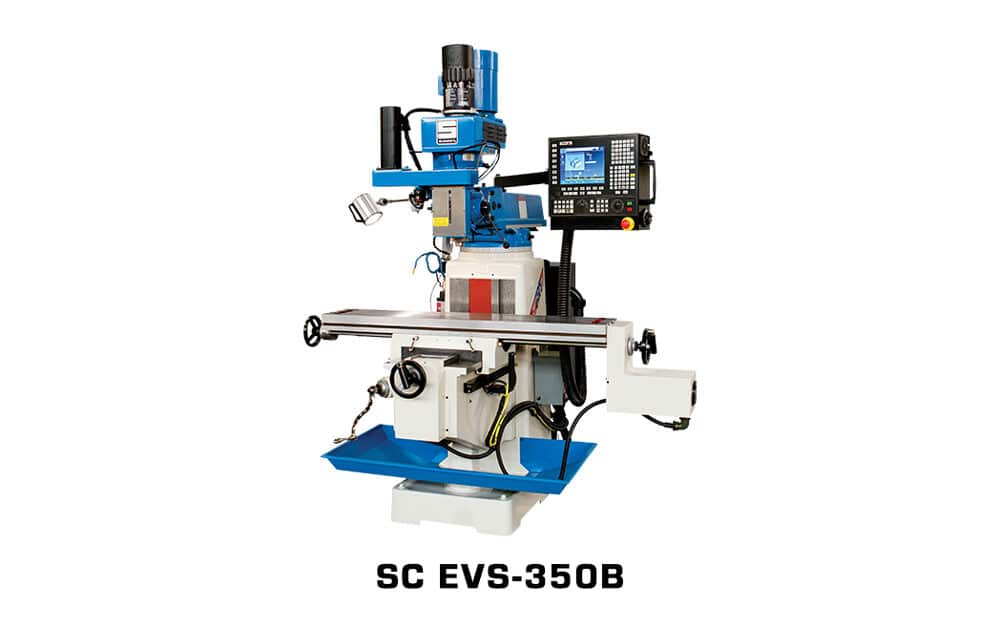

Models Available: EVS-350B / EVS-550B

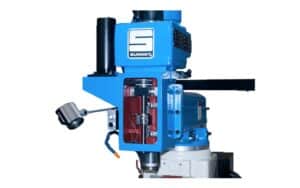

Motor size: 3 HP (EVS-350B) / 5 HP (EVS-550B)
Spindle speeds: Infinitely variable, 60-4,200 RPM (EVS-350B) / 0-3,650 RPM (EVS-550B)
Spindle taper: R-8 (EVS-350B) / NT#40 (EVS-550B)
Spindle travel: 5.5 in.
Spindle feed range: 0.0015 / 0.003 / 0.006 IPR (EVS-550B)
Head movement side to side: +/- 90°
Head movement front to back: +/- 45°
Table size: 10 in. x 54 in. (EVS-350B) / 11 in. x 52 in. (EVS-550B)
Longitudinal travel: 34 in. (EVS-350B) / 32 in. (EVS-550B)
Cross travel: 14 in.
Max workpiece weight: 850 lbs. (EVS-350B) / 1,025 lbs. (EVS-550B)
Over arm rotation: 360°
Over arm adjustment: 22 in. (EVS-350B) / 24 in. (EVS-550B)
Spindle nose to table: 2.5 in. – 17.5 in. (EVS-350B) / 3 in. – 20 in. (EVS-550B)

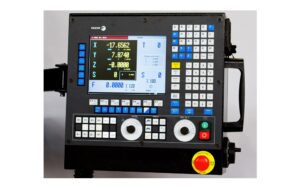

CNC Control: Fagor 8058 with ISO G-code and conversational programming

Equipped With

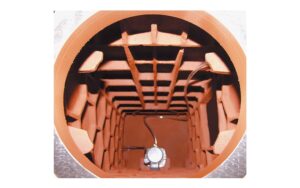

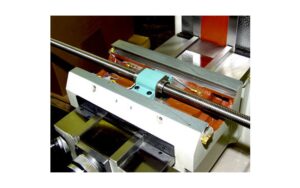

Standard Accessories: Fagor 8058 CNC control system, inverter duty high-efficiency motors, Turcite-B guideways, automatic way lubrication, built-in coolant system & tank, halogen work light, clamping kit, service wrenches, centrally located controls, fan cooled electrical enclosure, heavy Meehanite castings, huge box ways on knee
Optional Accessories: Digital readout (DRO) enhancements, power feed on X/Y/Z, air power draw bar, additional tooling or collets
