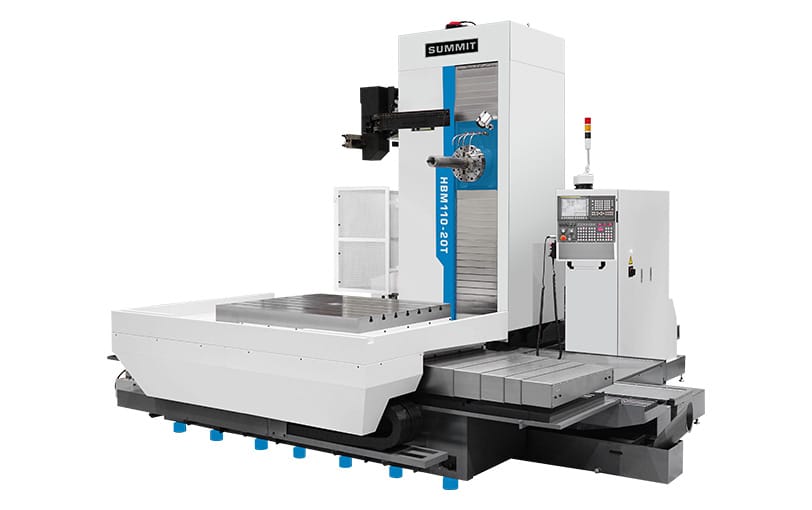

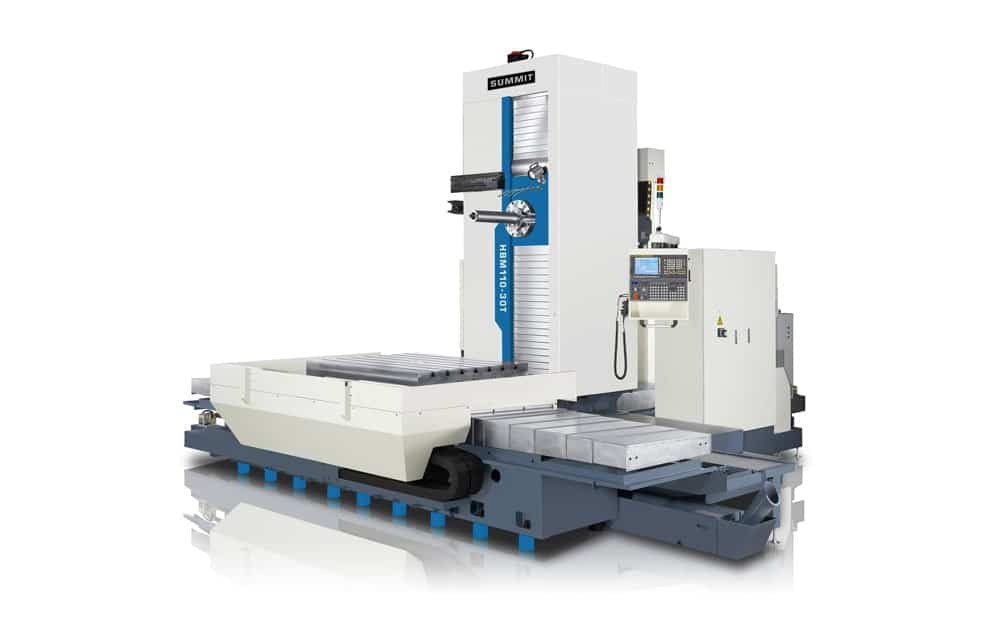

Summit HBM 110-20T & 30-T CNC Horizontal Boring Mill
Stock #: Summit-HBM110T
Request Formal Quote
Fill out the form below to receive a quote on this machine. Once the form is filled out, you will be able to see all pricing throughout our website.
"*" indicates required fields
Product Description
General Info
- Stock #: Summit-HBM110T
- Brand: Summit
- Model: HBM 110-20T / 30T CNC
- Approx. Shipping Weight: 52,800 lbs. (20T) / 54,800 lbs. (30T)
- Approx. Shipping Dimensions: 217 in. x 177 in. x 159 in. (20T) / 217 in. x 216 in. x 159 in. (30T)
Specifications

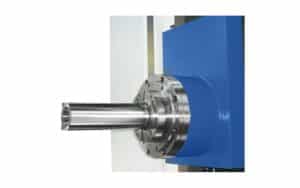

- Diameter of spindle: 4.3 in.
- Taper of spindle: CAT 50
- Number of spindle speeds: Infinitely variable (2 steps)
- Spindle speed range: 5 – 2,500 RPM
- Headstock, Vertical (Y axis): 70.8 in.
- Table, Cross (X axis): 78.7 in. (20T) / 118.1 in. (30T)
- Longitudinal (W axis): 55.1 in.
- Spindle (Z axis): 21.6 in.
- Number of feeds: Infinitely variable
- Range of feeds: 0.04 – 236 IPM
- Rapid traverse: 394 IPM (20T) / 400 IPM (30T)

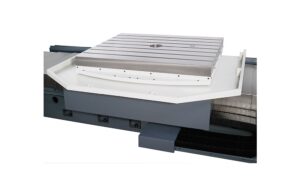

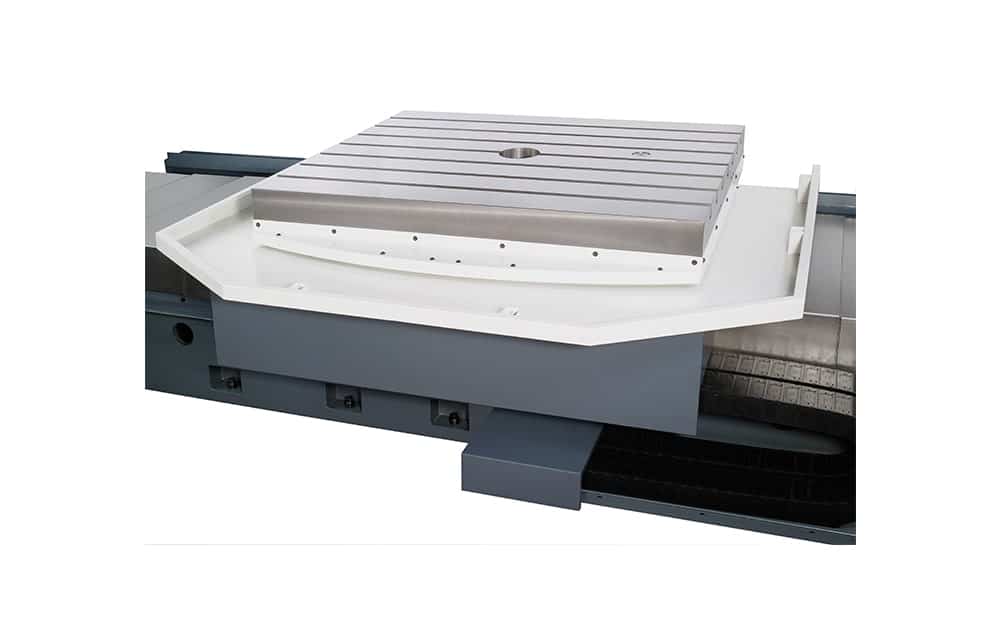

- Rotary table dimensions: 47 in. x 59 in.
- Table index: 360 degrees
- Incrementals: 0.001 degree
- T-slot width: 0.875 in.
- Max table load: 11,000 lbs.
- Main spindle motor: 30 HP
- Servo linear axis feed motor: 8 HP
- Electrics: 220V / 3 Phase / 60 Hz
Equipped With
Standard Accessories: 60 Position Tool Holder, Heidenhain Scales on all linear Axis (closed-loop feedback), Heidenhain Rotary Encoder on Table, Hydraulic Tool Clamping (CAT 50), Automatic Lube to the Ways, Hydraulic Clamping with shot pins on B Axis Indexing Table (360,000 positions), Hardened and Precision Ground Ways (HRC 50-58), Telescoping Steel Way Covers on X & W Axis, Ball Screws on X, Y, W, & Z Axis, Programmable Coolant System, Portable MPG Handwheel, FANUC 0i +Plus Control with full 4-axis simultaneous movement, large parts program capacity, high speed ethernet, advanced interpolation modes
Optional Accessories: Additional tooling or attachments (contact for custom options)
